Teknisk fil
Código Producto
LVE-4099854003981
Temperatura Luz
CW
Kelvin º
4000
Potencia (W)
33.0
Luminosidad (Lm)
4320
Eficacia Luminosa (Lm/W)
130
LED Performance
143

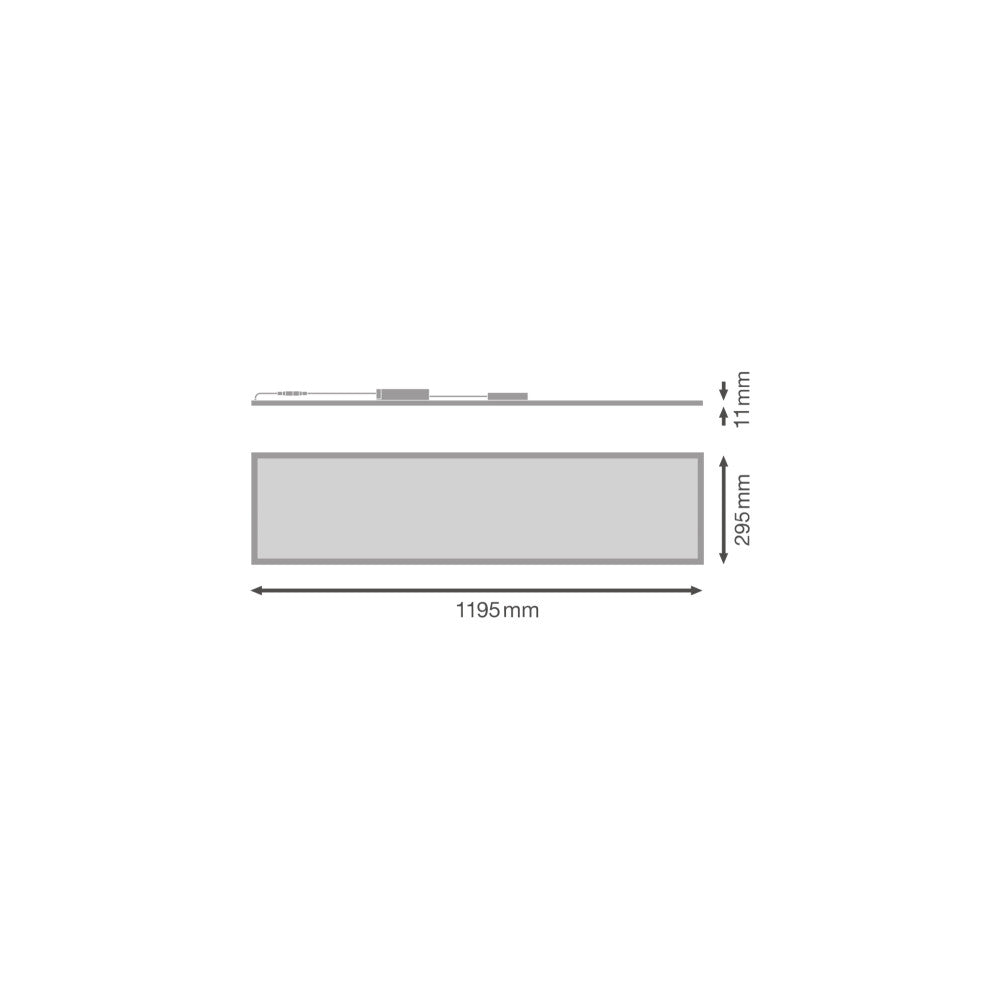

Medidas (mm)
1195x295x11
Alto
295.0
Largo
1195.0
Ancho
11.0
CRI
80
Factor de Potencia (PF)
0.9
Materialer
Stål
Angulo De Apertura (º)
110
IP Rating
IP40/IP20
Nominel Spænding
220-240VAC
Vida Estimada (H)
100000
Dæmpbar
Ingen
Frecuencia de Trabajo (Hz)
50/60
Base
Borna
Ciclos de Encendidos
50000
Consumo de Energía (kWh/1000h)
33.0
Peso (Gr)
2800
Vida Útil Media Años (a 3 h/día)
91.32
Vida Útil Media Años (a 5 h/día)
54.79
Vida Útil Media Años (a 8 h/día)
34.24
CCT Único
4000
Finish
hvid
Beskrivelse

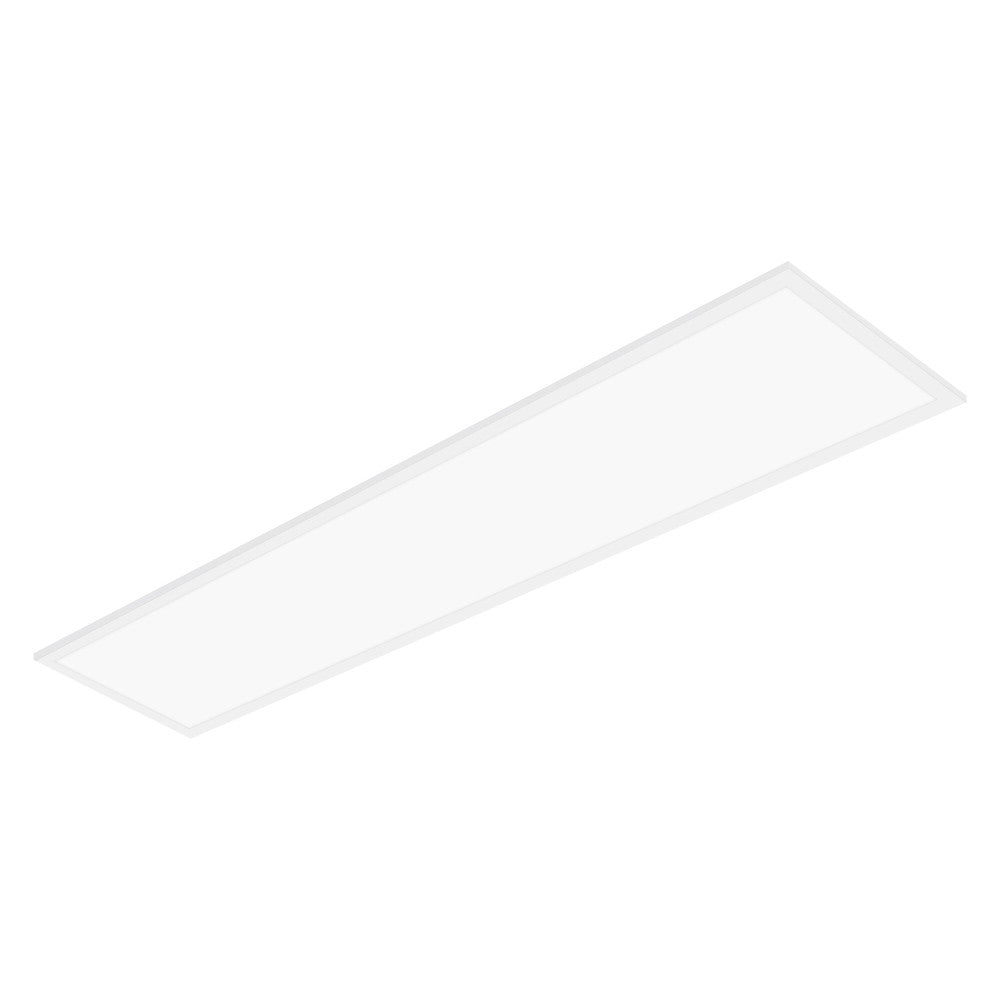

Recessed rectangular panel luminaires with power selection (PS) function, for 1200 x 300 mm ceiling systems. Product Features: Extruded aluminum frame. Polystyrene diffuser. 5-pole terminal block, cable section up to 5 x 2.5 mm². Luminaire versions with IoT-ready DALI-2 driver available. Service life (L80/B10): 70,000 h (at 25 °C). Product Benefits: Highly versatile due to selectable power steps (Power Select - PS) on the driver. Electrical connection without tools due to the push-button connector. Wiring possible with connector box included. Energy savings thanks to the high efficiency of the system: up to 130 lm/W. High color consistency with SDCM 3. Possibility of extended services such as energy monitoring and remote maintenance with DALI versions. External driver for greater flexibility and easy installation. Low flickering thanks to a special electronic control mechanism. Emergency lighting possible with LEDVANCE Emergency Conversion Box. 5 years warranty. Areas of application: Direct replacement for recessed luminaires with fluorescent lamps. Offices, conference rooms... Reception areas, lobbies, hallways, elevators. Suitable for recessed ceiling systems with a size of 1200 x 300 mm. Equipment / Accessories: Accessories available for different mounting options. Connector box with 5-pole terminal included. Safety cable for luminaire included. Pre-installed security brackets. External control equipment included. Twist lock DC cable extension available separately. Suitable for use with a separate emergency conversion box.
Dokumenter
Questions & Answers loading...
Opiniones sobre este producto
Sé el primero en dejar una reseña sobre este producto
Drop -down -indhold
Egenskaber
Egenskaber
Código Producto
LVE-4099854003981
Temperatura Luz
CW
Kelvin º
4000
Potencia (W)
33.0
Luminosidad (Lm)
4320
Eficacia Luminosa (Lm/W)
130
LED Performance
143
Medidas (mm)
1195x295x11
Alto
295.0
Largo
1195.0
Ancho
11.0
CRI
80
Factor de Potencia (PF)
0.9
Materialer
Stål
Angulo De Apertura (º)
110
IP Rating
IP40/IP20
Nominel Spænding
220-240VAC
Vida Estimada (H)
100000
Dæmpbar
Ingen
Frecuencia de Trabajo (Hz)
50/60
Base
Borna
Ciclos de Encendidos
50000
Consumo de Energía (kWh/1000h)
33.0
Peso (Gr)
2800
Vida Útil Media Años (a 3 h/día)
91.32
Vida Útil Media Años (a 5 h/día)
54.79
Vida Útil Media Años (a 8 h/día)
34.24
CCT Único
4000
Finish
hvid
Beskrivelse
Beskrivelse
Recessed rectangular panel luminaires with power selection (PS) function, for 1200 x 300 mm ceiling systems. Product Features: Extruded aluminum frame. Polystyrene diffuser. 5-pole terminal block, cable section up to 5 x 2.5 mm². Luminaire versions with IoT-ready DALI-2 driver available. Service life (L80/B10): 70,000 h (at 25 °C). Product Benefits: Highly versatile due to selectable power steps (Power Select - PS) on the driver. Electrical connection without tools due to the push-button connector. Wiring possible with connector box included. Energy savings thanks to the high efficiency of the system: up to 130 lm/W. High color consistency with SDCM 3. Possibility of extended services such as energy monitoring and remote maintenance with DALI versions. External driver for greater flexibility and easy installation. Low flickering thanks to a special electronic control mechanism. Emergency lighting possible with LEDVANCE Emergency Conversion Box. 5 years warranty. Areas of application: Direct replacement for recessed luminaires with fluorescent lamps. Offices, conference rooms... Reception areas, lobbies, hallways, elevators. Suitable for recessed ceiling systems with a size of 1200 x 300 mm. Equipment / Accessories: Accessories available for different mounting options. Connector box with 5-pole terminal included. Safety cable for luminaire included. Pre-installed security brackets. External control equipment included. Twist lock DC cable extension available separately. Suitable for use with a separate emergency conversion box.
