20W 36º CCT Track Spotlight (Adjustable Light Tone) White Finish

20W 36º CCT Track Spotlight (Adjustable Light Tone) White Finish

See questions and answers

For additional amounts the delivery period is 1 days As of the order date
  • + Philips Led
  • Sku:HT-TL04A25-W
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 20-55 º Opening
  • Certificado ENEC
37,39€
37,39€ 37,39€ %
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 20-55 º Opening
  • Certificado ENEC
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HT-TL04A25-W_padreImg_ht_tl04a25_w_0.png)
CCT
Available
Free shipping
37,39€
37,39€ 37,39€ %

Technical file

Product code
HT-TL04A25-W
Light temperature
CCT
Power (W)
20.0
Luminosity (LM)
2600
Luminous efficacy (LM/W)
130
LED efficacy
140
Type of LEDs
Philips LED
Number of LEDs
1
Measures (mm)
100x100x47
High
100.0
Long
100.0
Broad
47.0
Diameter
Ø100
CRI
95
UGR
◄15
Diffuser
Transparent
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
20-55
Facility
IP20
Strain
AC 230 V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
150
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
620
Flicker
0.48
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Directional
Single/range CCT
CCT
INDEX R9
8
Minimum cri range
96
Maximum cri range
50
Chromaticity x
0.429
Chromaticity y
0.404
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
20.0

Characteristics

Product code
HT-TL04A25-W
Light temperature
CCT
Power (W)
20.0
Luminosity (LM)
2600
Luminous efficacy (LM/W)
130
LED efficacy
140
Type of LEDs
Philips LED
Number of LEDs
1
Measures (mm)
100x100x47
High
100.0
Long
100.0
Broad
47.0
Diameter
Ø100
CRI
95
UGR
◄15
Diffuser
Transparent
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
20-55
Facility
IP20
Strain
AC 230 V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
150
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
620
Flicker
0.48
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Directional
Single/range CCT
CCT
INDEX R9
8
Minimum cri range
96
Maximum cri range
50
Chromaticity x
0.429
Chromaticity y
0.404
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
20.0

Description

The 20W 20–55º CCT LED track spotlight, featuring a white finish, is a professional lighting solution designed for commercial spaces, shop windows, exhibitions, offices, hotels, and interior design projects that require versatile, adaptable lighting. It incorporates CCT (Correlated Color Temperature) technology, which allows for the selection of different color temperatures within a single fixture—adapting the lighting environment to the specific needs of each installation while also streamlining inventory management. The beam angle is adjustable between 20° and 55°, enabling precise control over the light beam’s focus. Narrower angles are ideal for accent lighting and highlighting specific elements, while wider angles provide more uniform, general illumination. Its adjustable design and track-mounted installation offer great flexibility, making it easy to direct and reposition the light source according to the requirements of the space. With a 20W output and an elegant white finish, it boasts a modern, minimalist design that integrates discreetly into any setting. It is particularly well-suited for retail stores, galleries, showrooms, and other professional environments where a combination of efficiency, precision, and lighting flexibility is desired.

Documents

Installation_manual

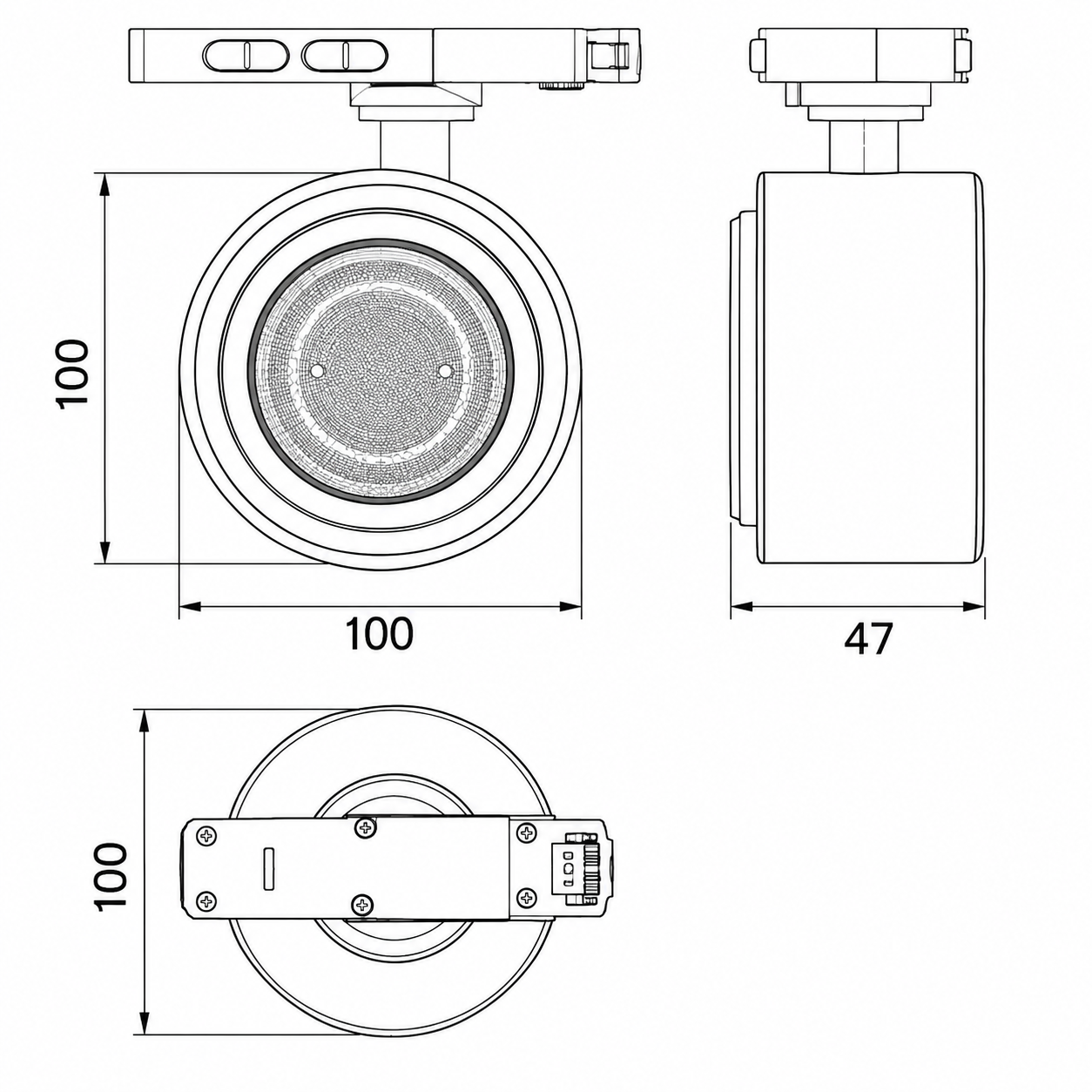

Technical_drawings
