COB LED Strip 20W/M IP20 RGB/Cool White Roll 5M

COB LED Strip 20W/M IP20 RGB/Cool White Roll 5M

See questions and answers

For additional amounts the delivery period is 30 days As of the order date
  • Brand:Kimera / KIMERA
  • SkuSKY-FSLCOB-660L-12mm-24V-RGBCW
  • AAA 2021
Warranty
  • Warranty 5 years
  • 120 º Opening
55,68€
55,68€ 55,68€ %
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(SKY-FSLCOB-660L-12mm-24V-RGBCW_padreImg_sky_fslcob_660l_12mm_24v_rgbcw_0.jpeg)
RGB-Cool White
Stock available
Free shipping
55,68€
55,68€ 55,68€ %

Accessories

  • (TB-QC25W_padreImg_tb_qc25w_0.jpeg) (TB-QC25W_padreImg_tb_qc25w_1.jpeg)

    Controller 2,4G LED Strip RGB-White Remote Control 12-24VDC ► 288/576W

    Offer
    GreenIce

    Controller 2,4G LED Strip RGB-White Remote Control 12-24VDC ► 288/576W

    15,56€
    22,78€ 15,56€ -31%
    Offer
  • (CP-300-24_220 IP21_padreImg_cp_300_24_220_ip21_0.jpeg) (CP-300-24_220 IP21_padreImg_cp_300_24_220_ip21_1.jpeg)

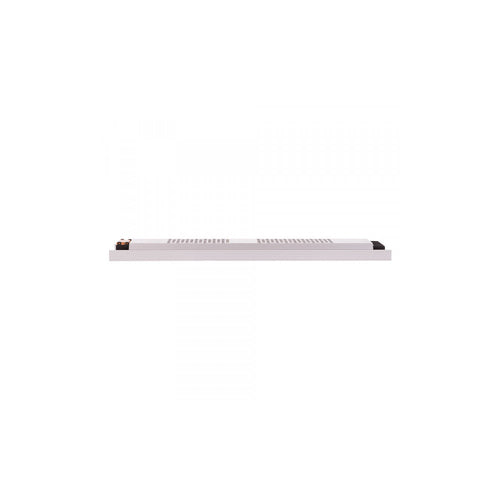

    Ultrathin LED Transformer 300W 24VDC_110V-220V/AC IP20

    Offer
    GreenIce

    Ultrathin LED Transformer 300W 24VDC_110V-220V/AC IP20

    25,46€
    31,82€ 25,46€ -19%
    Offer
  • (HLP-YS-WIFI-RF24-04_padreImg_hlp_ys_wifi_rf24_04_0.jpeg)

    Tuya Wifi 2.4G RF RGBW LED Controller 24 Keys [HLP-YS-WIFI-RF24-04]

    Offer
    GreenIce

    Tuya Wifi 2.4G RF RGBW LED Controller 24 Keys [HLP-YS-WIFI-RF24-04]

    19,76€
    24,70€ 19,76€ -20%
    Offer
  • (HZ-MPS-200W24V_padreImg_hz_mps_200w24v_0.jpeg) (HZ-MPS-200W24V_padreImg_hz_mps_200w24v_1.jpeg)

    LED transformer 200W 24VDC 6.5A IP20

    Offer
    GreenIce

    LED transformer 200W 24VDC 6.5A IP20

    18,43€
    22,48€ 18,43€ -18%
    Offer

Technical file

Product code
SKY-FSLCOB-660L-12mm-24V-RGBCW
Light temperature
RGBCW
Power (W)
20.0
Luminosity (LM)
3000
Luminous efficacy (LM/W)
150
Type of LEDs
COB 896/M
Number of LEDs
896/M
Measures (mm)
12x5000x1
High
12.0
Long
5000.0
Broad
1.0
CRI
90
Construction
PCB/3M
Opening Angle (º)
120
Facility
IP20
Strain
24V DC
Estimated life (H)
50000
Isolation class
III
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
88
Maximum cri range
95

Characteristics

Product code
SKY-FSLCOB-660L-12mm-24V-RGBCW
Light temperature
RGBCW
Power (W)
20.0
Luminosity (LM)
3000
Luminous efficacy (LM/W)
150
Type of LEDs
COB 896/M
Number of LEDs
896/M
Measures (mm)
12x5000x1
High
12.0
Long
5000.0
Broad
1.0
CRI
90
Construction
PCB/3M
Opening Angle (º)
120
Facility
IP20
Strain
24V DC
Estimated life (H)
50000
Isolation class
III
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
88
Maximum cri range
95

Description

Its high color rendering (CRI>90) with a COB LED chip eliminates bright spots and offers uniform, linear illumination, ideal for spaces where lighting is the focus. The flexible LED strip integrates with minimal visual impact into projects, achieving a dramatic lighting effect that highlights the architectural form. Its ultra-flat design and easy installation make it ideal for hallways, display cases, and shelving. COB flexible strips are high-power and bright. Each meter has 896 LEDs with high luminosity, making this LED strip ideal for installations with high brightness requirements that display a continuous strip of light without visible isolated points. The Flexible LED strip has a powerful 3M adhesive on the back for easy installation on any surface (previously cleaned for a strong adhesion). The strip is extremely flexible and can be used in tight curves. The power supply is supplied via the soldering points. To install an LED strip, you will need a power supply. If you want to connect more than 8 meters of LED strip, it is recommended to insert a new power supply to avoid voltage drops and maintain the same brightness throughout the entire length. Accessories are also available to connect and splice LED strips quickly and easily. Cut every 4.55 cm. What is a COB LED strip light? A COB LED strip is a high-density LED lighting strip made with COB encapsulation, which reduces the thermal resistance of the electrical circuit, greatly improves the LED's lifespan, and provides high light flux density, minimal glare, and uniform light output without dark areas. What is the difference between a COB LED and an SMD LED? A chip-on-board (COB) is a method of manufacturing circuits that are connected with traces directly onto a printed circuit board. By eliminating individual semiconductor packaging, the final product can be more compact and lighter. It improves the performance of radio frequency systems by reducing the inductance and capacitance of integrated circuit wiring. This technique is used for LED encapsulation, combining many LEDs in a semi-rigid resin. Furthermore, since it is a single encapsulation, the LED's heat dissipation is much greater, which improves its light intensity and durability. With LED strips, we can decorate and add ambiance to countless projects: Under-shelf lighting Highlighting the contours of objects, walls, ceilings, structures, etc. Providing indirect light in enclosed spaces Architectural lighting Outlining circular and square spaces V-shaped lighting

Documents

Installation_manual
