Flexible LED Strip 12W/M 220VAC 120LEDs/M SMD5730 IP65 CCT (Color Changing) 50 Meters

Flexible LED Strip 12W/M 220VAC 120LEDs/M SMD5730 IP65 CCT (Color Changing) 50 Meters

See questions and answers

For additional amounts the delivery period is 25 days As of the order date
  • Brand:Kimera / KIMERA
  • SkuSKY-SHV-5730-120L-CCT
  • AAA 2021
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
115,95€
115,95€ 115,95€ %
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(SKY-SHV-5730-120L-CCT_padreImg_sky_shv_5730_120l_cct_0.jpeg)
CCT
Available
Free shipping
115,95€
115,95€ 115,95€ %

Accessories

  • (SKY-KY-IR24-AC1-2_padreImg_sky_ky_ir24_ac1_2_0.png)

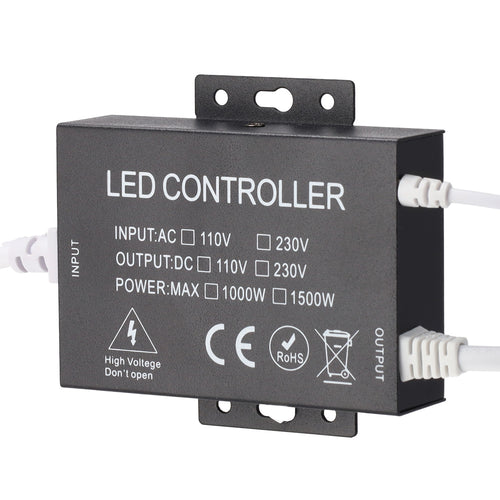

    Controller for CCT Strip

    GreenIce

    Controller for CCT Strip

    8,76€
    8,76€ 8,76€ %
  • (SKY-SHV-5730-120L-CCT-CONNECTOR_padreImg_sky_shv_5730_120l_cct_connector_0.jpeg)

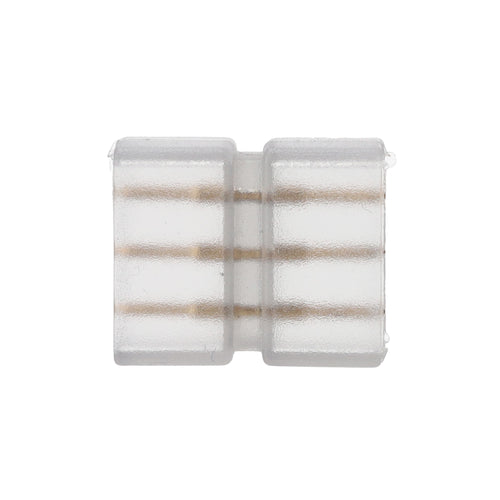

    Connector for SKY-SHV-5730-120L-CCT Strip

    GreenIce

    Connector for SKY-SHV-5730-120L-CCT Strip

    0,57€
    0,57€ 0,57€ %
  • (SKY-SHV-5730-120L-CCT-CLIP_padreImg_sky_shv_5730_120l_cct_clip_0.jpeg)

    Mounting Clip for SKY-SHV-5730-120L-CCT Strip

    GreenIce

    Mounting Clip for SKY-SHV-5730-120L-CCT Strip

    0,06€
    0,06€ 0,06€ %

Technical file

Product code
SKY-SHV-5730-120L-CCT
Light temperature
CCT
Power (W)
12.0
Luminosity (LM)
1680
Luminous efficacy (LM/W)
140
LED efficacy
150
Type of LEDs
SMD5730
Number of LEDs
120/M
Measures (mm)
50000x18x8
High
8.0
Long
50000.0
Broad
18.0
CRI
90
Power factor (PF)
0.99
Construction
Epoxy
Opening Angle (º)
120
Facility
IP65
Strain
220-240VAC
Estimated life (H)
50000
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
10000
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
80
Maximum cri range
90
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
1.0

Characteristics

Product code
SKY-SHV-5730-120L-CCT
Light temperature
CCT
Power (W)
12.0
Luminosity (LM)
1680
Luminous efficacy (LM/W)
140
LED efficacy
150
Type of LEDs
SMD5730
Number of LEDs
120/M
Measures (mm)
50000x18x8
High
8.0
Long
50000.0
Broad
18.0
CRI
90
Power factor (PF)
0.99
Construction
Epoxy
Opening Angle (º)
120
Facility
IP65
Strain
220-240VAC
Estimated life (H)
50000
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
10000
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
80
Maximum cri range
90
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
1.0

Description

The 220VAC SMD5730 CCT flexible LED strip is a linear lighting solution designed for both indoor and outdoor applications, offering high luminous efficiency, direct mains connection, and adjustable color temperature. General Features • Product Type: High-voltage flexible LED strip • Roll Length: 50 meters • Power: 12 W per meter • Supply Voltage: 220-240V AC (direct connection without external power supply) • LED Type: High-performance SMD5730 • LED Density: 120 LEDs per meter • CCT System: Variable color temperature (warm ↔ neutral ↔ cool via compatible controller) • Protection Rating: IP65 (dust and splash resistant) Lighting Performance • High brightness thanks to the SMD5730 chip, suitable for main or decorative lighting. • Uniform light distribution, reducing dark areas. • Color temperature control (CCT) to adapt the ambiance as needed. Construction Features • Protective silicone or PVC coating for outdoor use. • High flexibility for installation on curves or irregular surfaces. • Cuttable in sections marked every meter. • Designed for long runs without significant voltage drops. Recommended Applications • Perimeter and architectural lighting. • Facades and exteriors. • Shops and storefronts. • Indirect lighting in homes. • Gardens and covered terraces. Main Advantages • Simple installation directly onto a 220V mains supply. • Low maintenance and long lifespan. • Versatile ambiance thanks to the CCT system. • IP65 protection suitable for humid environments.
