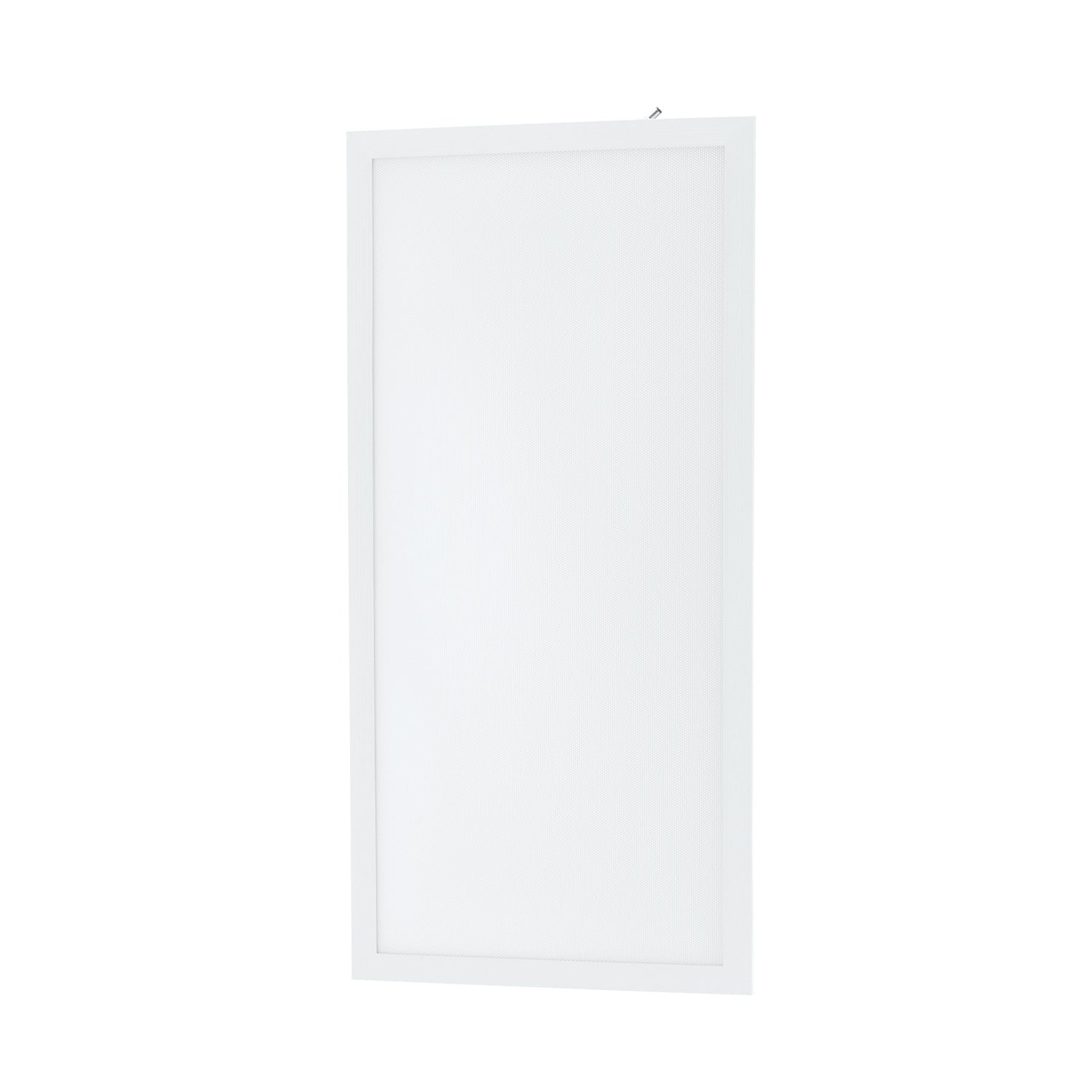

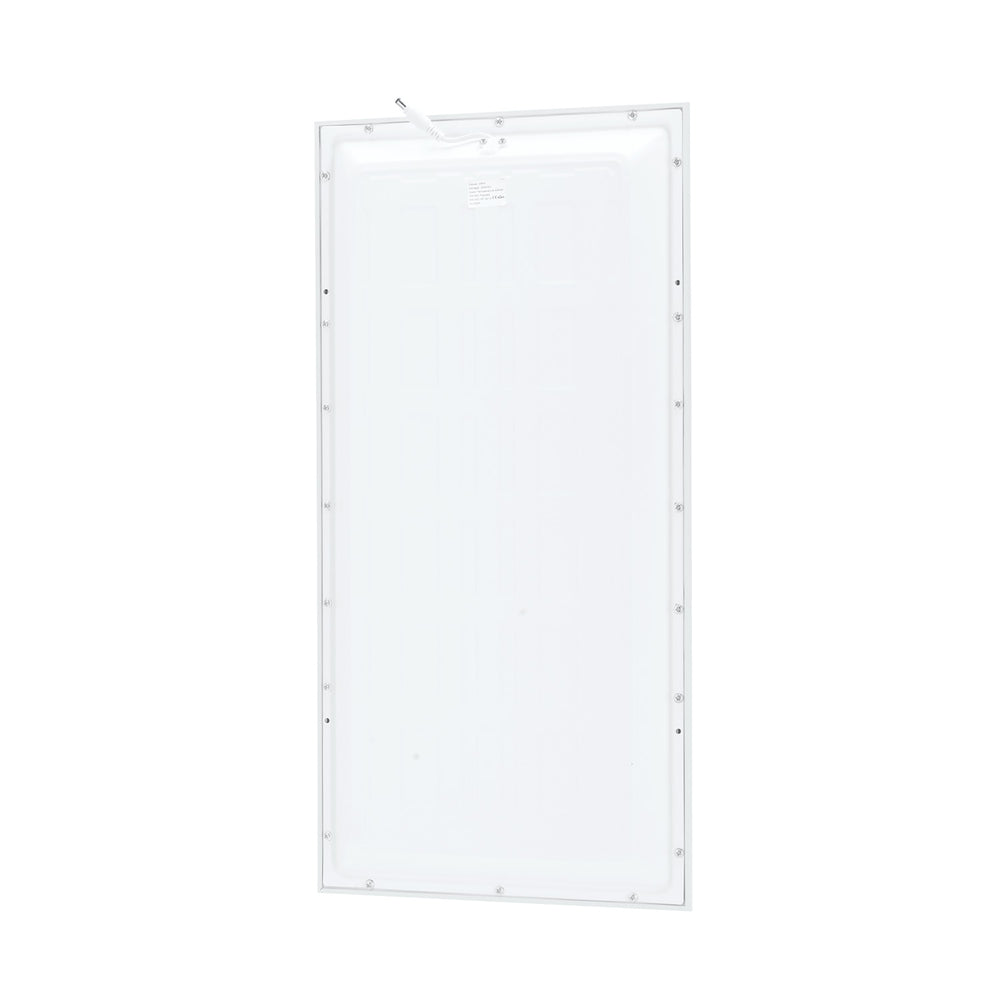

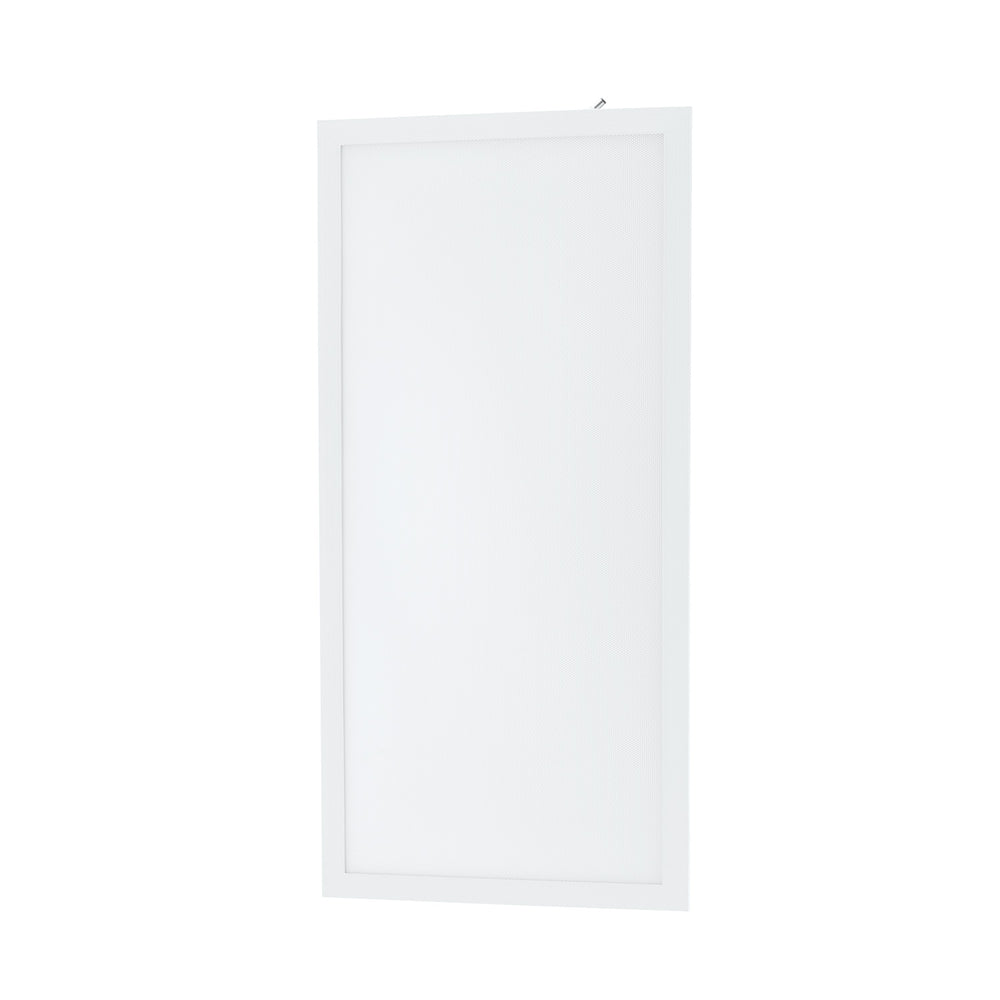

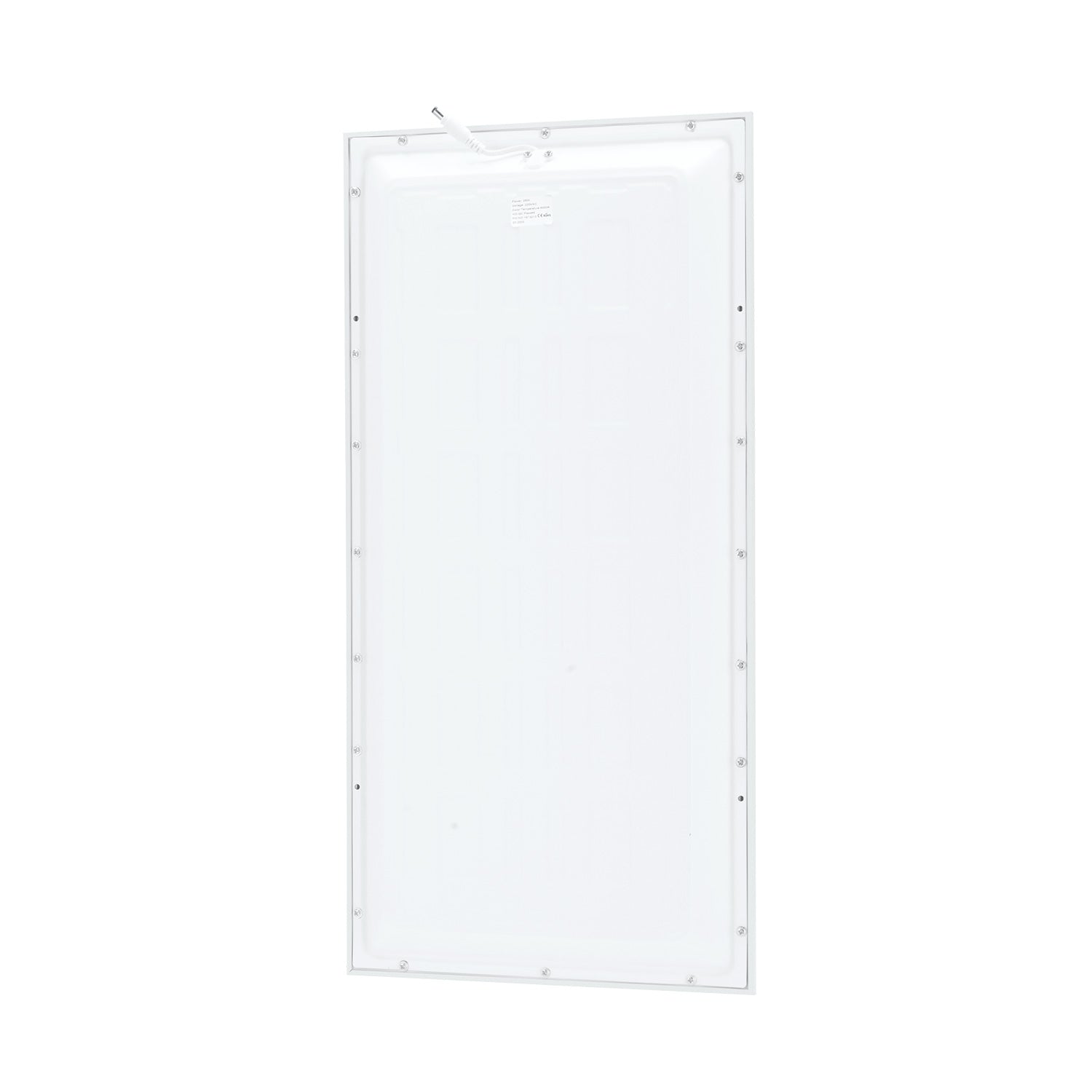

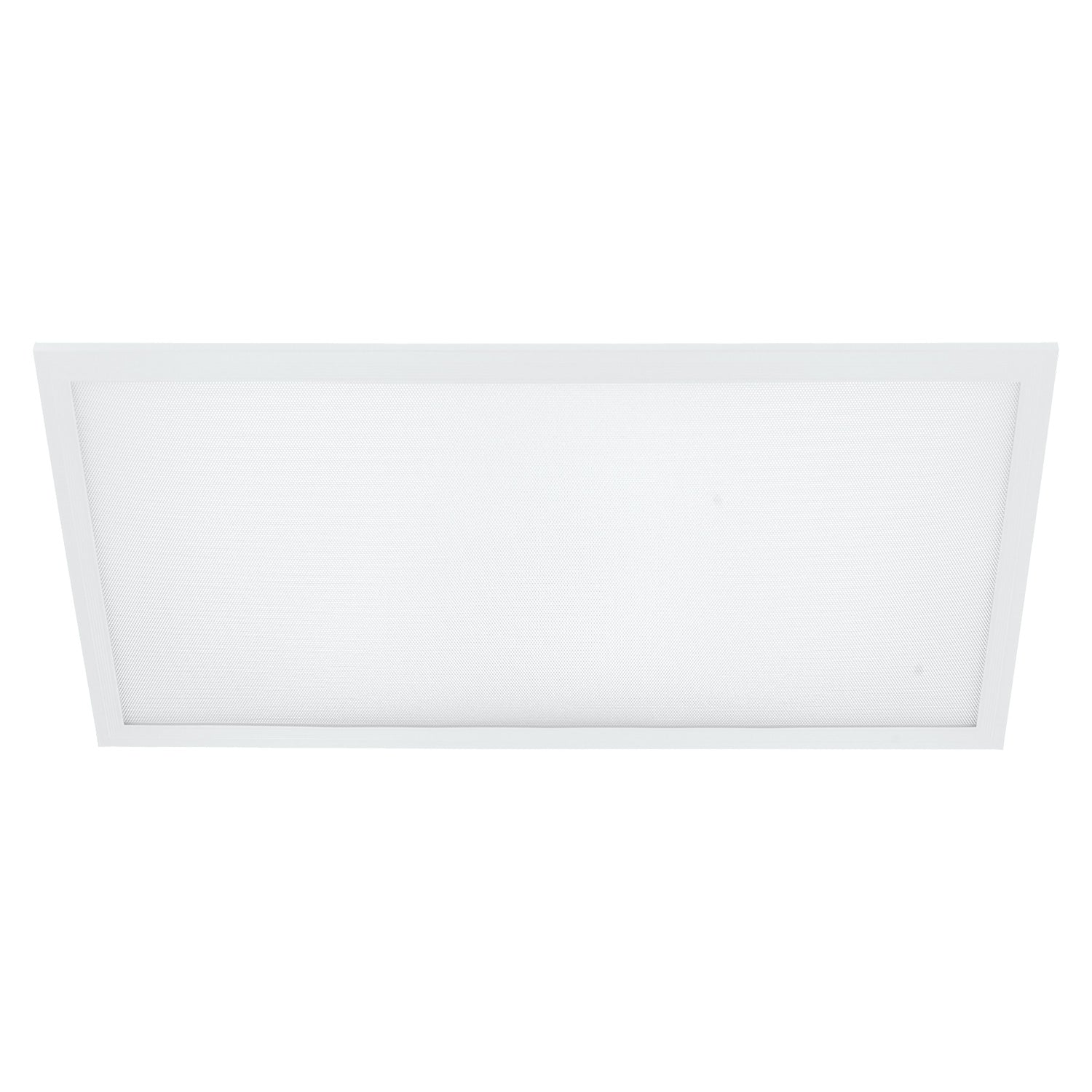

LED Panel 28W 2800Lm 6000ºK 60X30Cm 40,000H Driver Lifud UGR17 [HOPBD3060LIUGR17-CW]

LED Panel 28W 2800Lm 6000ºK 60X30Cm 40,000H Driver Lifud UGR17 [HOPBD3060LIUGR17-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • + Lifud Driver
  • Sku:HOPBD3060LIUGR17-CW
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
  • Certificado ENEC
21,33€
21,33€ 21,33€ %
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
  • Certificado ENEC
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HOPBD3060LIUGR17-CW_padreImg_hopbd3060liugr17_cw_0.jpeg)
Cool White
Stock available
Free shipping
21,33€
21,33€ 21,33€ %

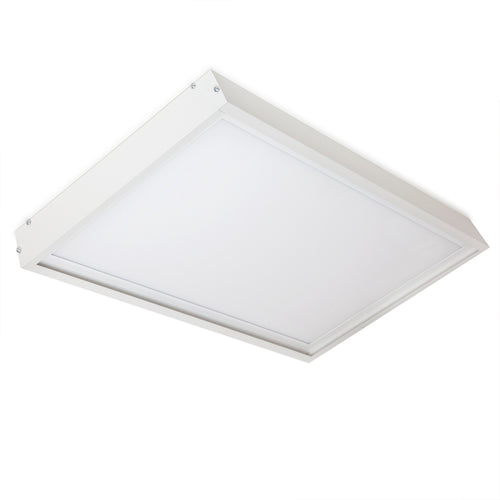

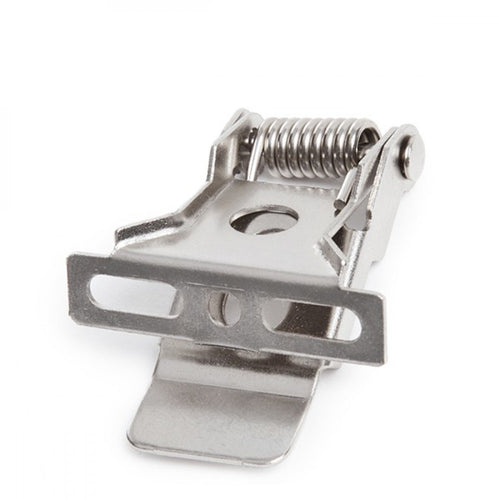

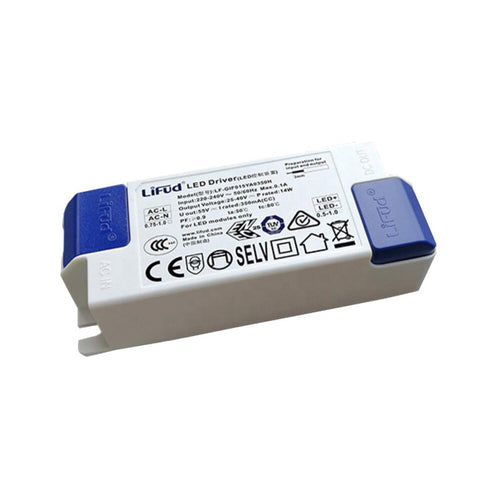

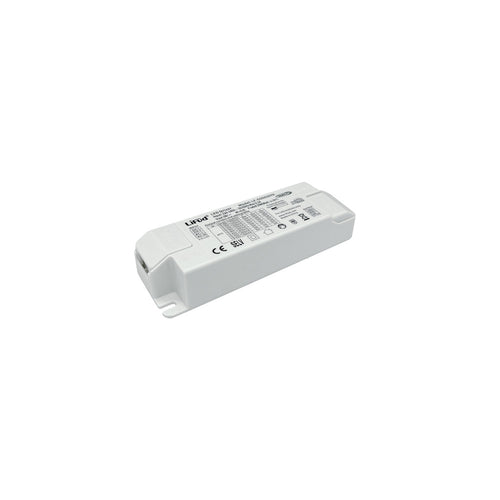

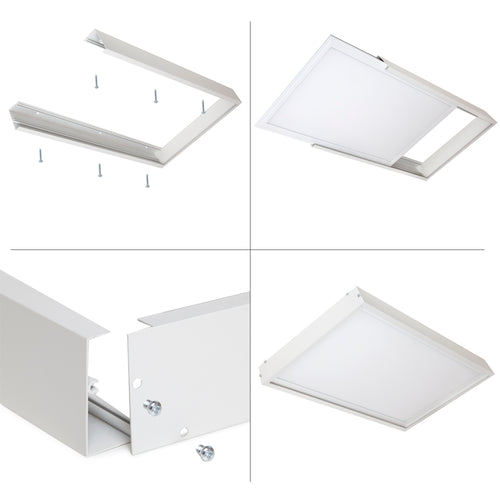

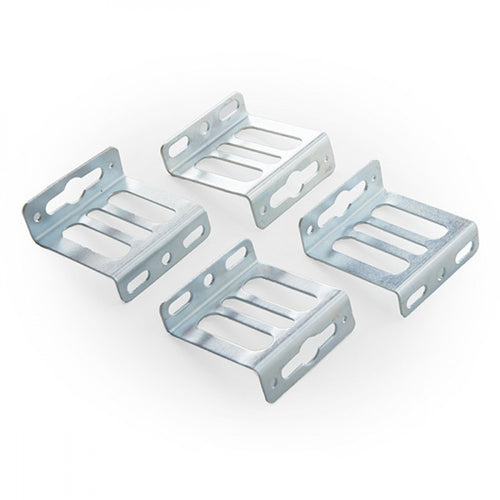

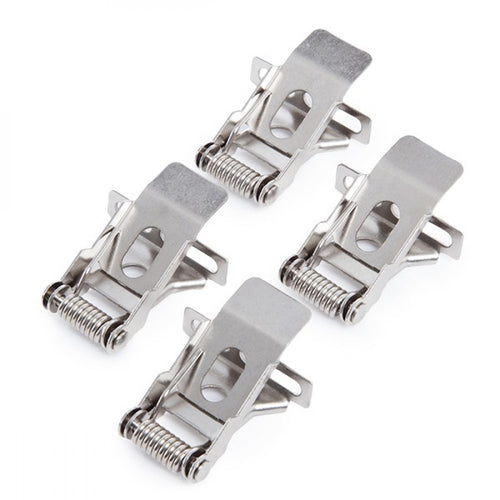

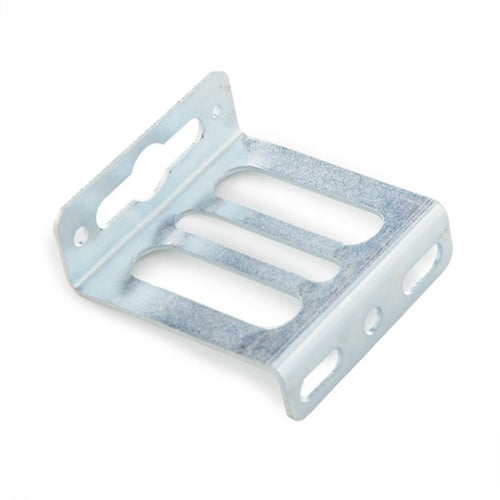

Accessories

Technical file

Product code
HOPBD3060LIUGR17-CW
Light temperature
CW
Kelvin º
6000
Power (W)
28.0
Luminosity (LM)
2800
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Sanmsung Led
Measures (mm)
295x595x35
High
35.0
Long
595.0
Broad
295.0
CRI
90
UGR
◄17
Diffuser
Micro
Power factor (PF)
0.99
Construction
Alu/PC
Opening Angle (º)
120
Facility
IP40
IK Protection Index
IK05
Strain
165-265VAC
Driver output
9-42V 750mA
Estimated life (H)
40000
Equivalence (W)
155
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
28.0
Weight (gr)
1300
Flicker
0.09
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single CCT
6000
INDEX R9
90
Minimum cri range
90
Maximum cri range
80
Chromaticity x
0.32
Chromaticity y
0.329

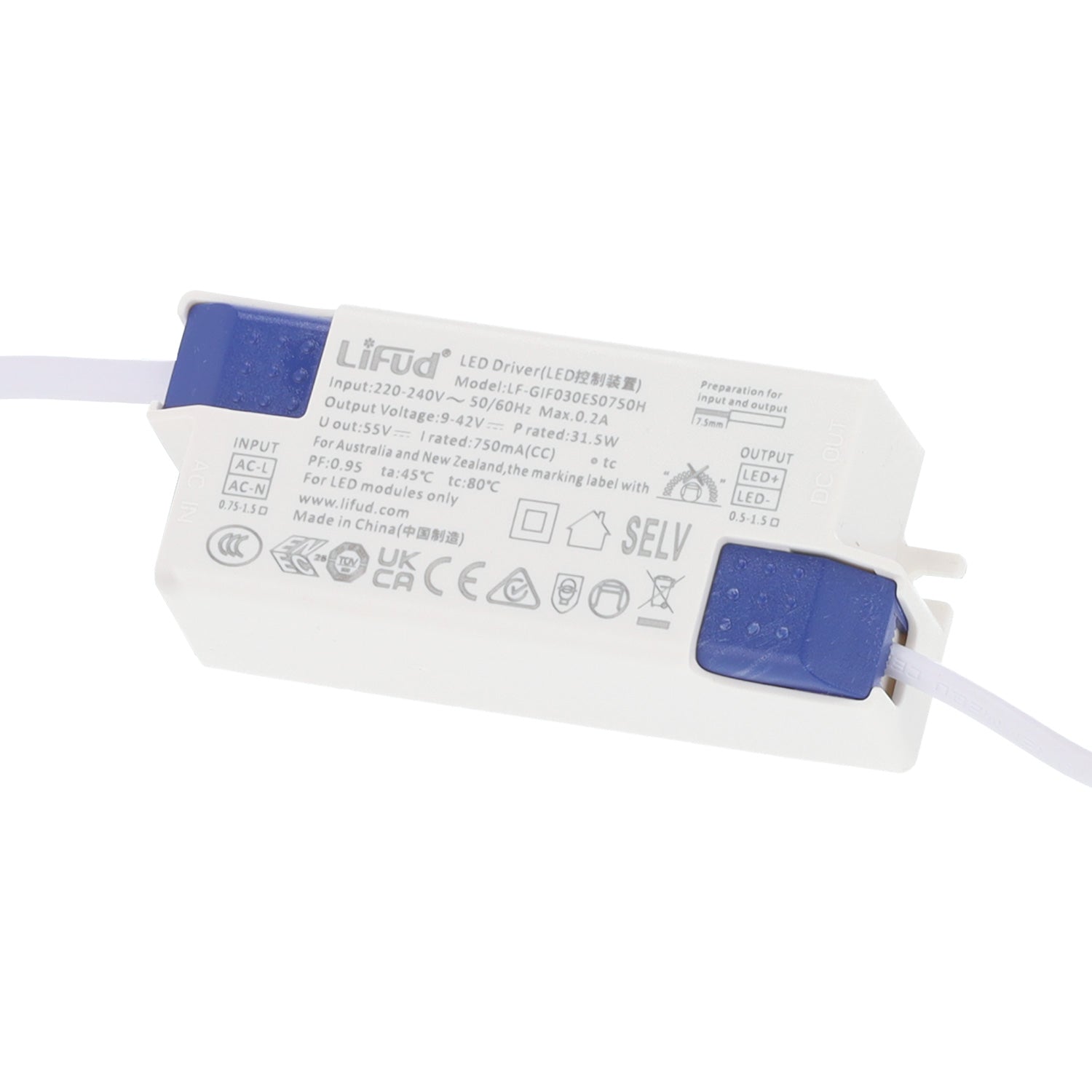

Driver
Lifud
Número unidades caja exterior
10.0
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HOPBD3060LIUGR17-CW
Light temperature
CW
Kelvin º
6000
Power (W)
28.0
Luminosity (LM)
2800
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Sanmsung Led
Measures (mm)
295x595x35
High
35.0
Long
595.0
Broad
295.0
CRI
90
UGR
◄17
Diffuser
Micro
Power factor (PF)
0.99
Construction
Alu/PC
Opening Angle (º)
120
Facility
IP40
IK Protection Index
IK05
Strain
165-265VAC
Driver output
9-42V 750mA
Estimated life (H)
40000
Equivalence (W)
155
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
28.0
Weight (gr)
1300
Flicker
0.09
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single CCT
6000
INDEX R9
90
Minimum cri range
90
Maximum cri range
80
Chromaticity x
0.32
Chromaticity y
0.329
Driver
Lifud
Número unidades caja exterior
10.0
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

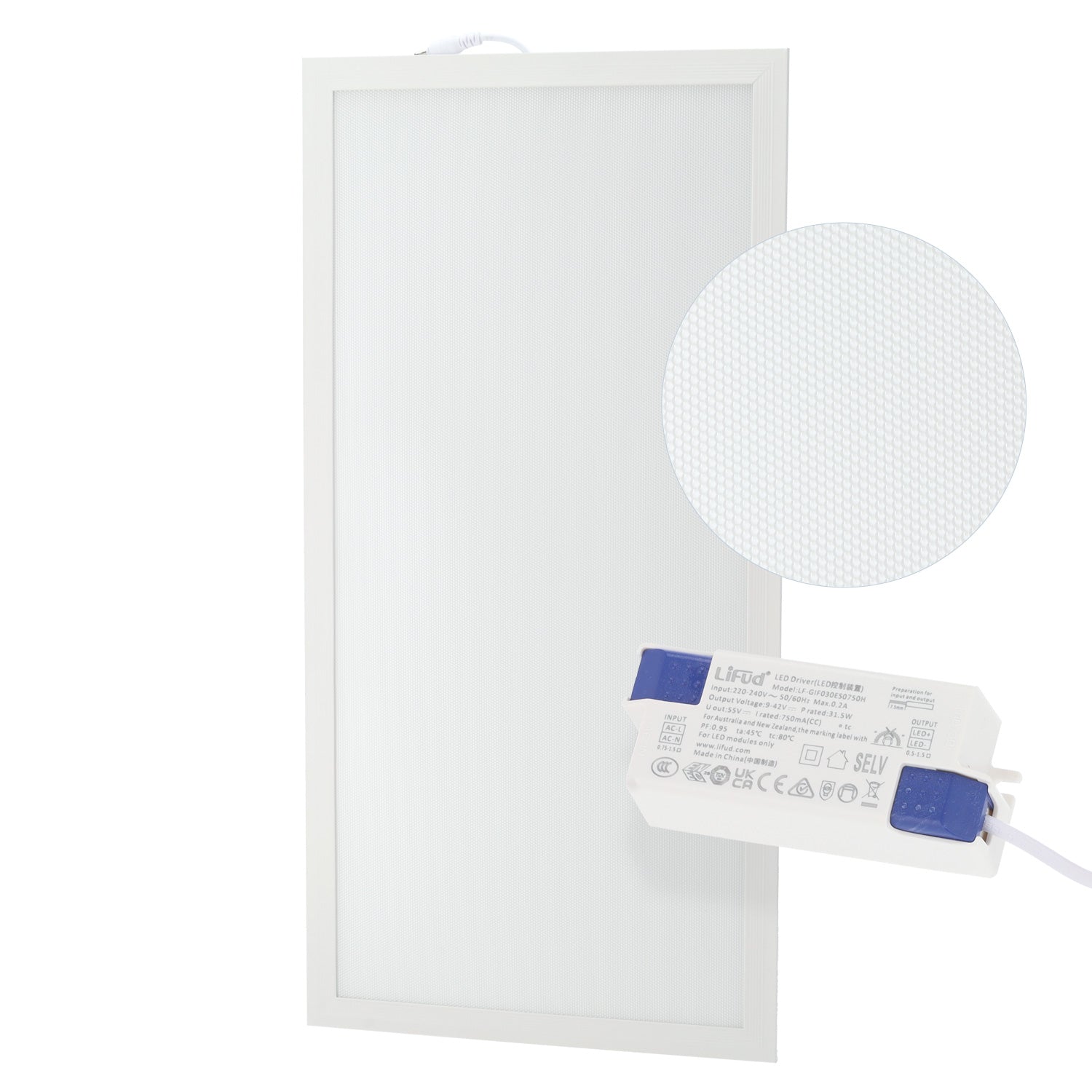

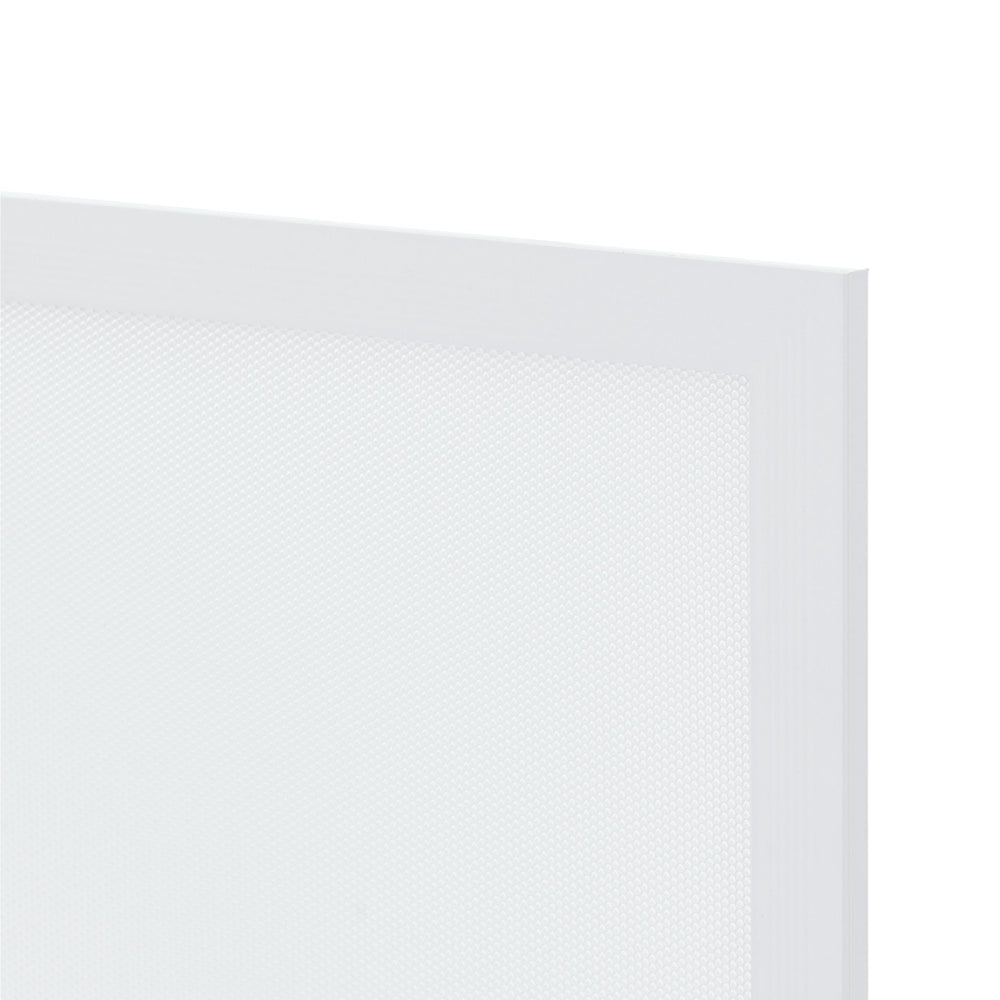

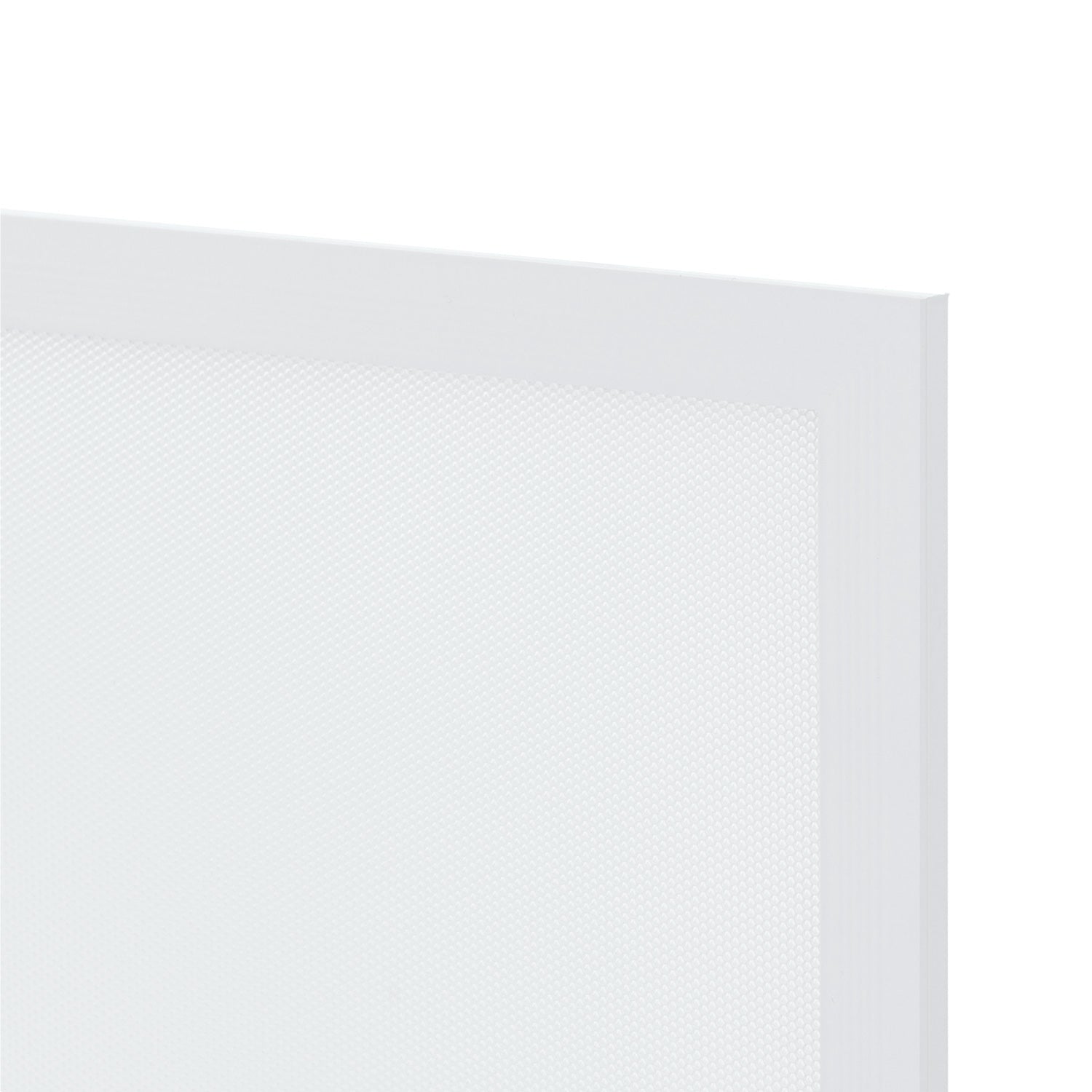

The 30x60 UGR17 LED Panel with a flicker-free LIFUD driver and white frame combines a very modern design with excellent efficiency and light quality. This panel is especially suitable for offices and work areas due to its low glare factor. The LED panel's light source has a brightness of 2,800 lumens, equivalent to that of a conventional 160W luminaire. This provides significant savings compared to traditional low-consumption luminaires. Suitable for lighting offices thanks to its low glare. Glare caused by lighting can negatively affect people, as a comfortable lighting environment is needed to assist us in our tasks. A low UGR17 level increases workers' sense of well-being, which indirectly contributes to productivity. Low glare levels are recommended in all areas where people spend long periods of time exposed to artificial light, especially in offices, educational centers, work areas, etc. White finish made of aluminum. The panel has an IP40 protection rating (valid for indoor dust and humidity), and is robust enough to withstand the required mechanical demands. These extra-flat LED screens consume up to 55% less energy and require no maintenance, avoiding the need to replace starters or ballasts. They also have the advantage of being a much lighter and more manageable product. The LED panel can be used supported on an Armstrong false ceiling, on plasterboard using the LED panel mounting clips, which allow the panel to be embedded in the ceiling, or with the LED panel suspension kits. These kits consist of four tensioners, one in each corner, allowing us to achieve the desired height or angle to perfectly complement our decor. This panel is available in natural white (4200°K) and cool white (6000°K). The indicated color temperature may vary within a tolerance of 7%.

Documents

Installation_manual
Spanish_technical_data
Eu_certificates
Technical_drawings
Ldt_ies
