Offer

LED Plate 12W 1200Lm 6000ºK Circular Satin Nickel 50,000H [GL-CL-R12N-CW]

LED Plate 12W 1200Lm 6000ºK Circular Satin Nickel 50,000H [GL-CL-R12N-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuGL-CL-R12N-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
6,40€
9,85€ 6,40€ -35%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-35.03%(GL-CL-R12N-CW_padreImg_gl_cl_r12n_cw_0.jpeg)
Cool White
Stock available
Free shipping
6,40€
9,85€ 6,40€ -35%

Accessories

  • (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_0.jpeg) (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_1.jpeg)

    Driver Non Dimmable Downlight LED 12W

    Offer
    GreenIce

    Driver Non Dimmable Downlight LED 12W

    1,82€
    4,04€ 1,82€ -54%
    Offer
  • (GR-DRDIM-12W_padreImg_gr_drdim_12w_0.jpeg) (GR-DRDIM-12W_padreImg_gr_drdim_12w_1.jpeg)

    Driver Dimmable Slimline Downlights 12W

    Offer
    GreenIce

    Driver Dimmable Slimline Downlights 12W

    6,61€
    10,16€ 6,61€ -34%
    Offer
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    5,55€
    5,55€ 5,55€ %
  • (HO-HP-ND-12W_padreImg_ho_hp_nd_12w_0.jpeg) (HO-HP-ND-12W_padreImg_ho_hp_nd_12w_1.jpeg)

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 12W

    Offer
    GreenIce

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 12W

    1,69€
    2,25€ 1,69€ -24%
    Offer
  • (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_0.jpeg) (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_1.jpeg)

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    Offer
    GreenIce

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    28,98€
    29,77€ 28,98€ -2%
    Offer
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    5,58€
    14,68€ 5,58€ -61%
    Offer
  • (OL-LCM-25_padreImg_ol_lcm_25_0.jpeg) (OL-LCM-25_padreImg_ol_lcm_25_1.jpeg)

    Driver Meanwell Downlights 25W Smart Adjustable0-10V IP20

    MEANWELL

    Driver Meanwell Downlights 25W Smart Adjustable0-10V IP20

    44,92€
    44,92€ 44,92€ %
  • (GR-DRDIM0-10V-12W_padreImg_gr_drdim0_10v_12w_0.jpeg) (GR-DRDIM0-10V-12W_padreImg_gr_drdim0_10v_12w_1.jpeg)

    Driver Adjustable 0-10V Ceiling Light / Placa /Downlight LED 12W

    Offer
    GreenIce

    Driver Adjustable 0-10V Ceiling Light / Placa /Downlight LED 12W

    12,56€
    12,80€ 12,56€ -1%
    Offer

Technical file

Product code
GL-CL-R12N-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
60
Measures (mm)
Ø167x20
Roof cut (mm)
Ø158
High
20.0
Diameter
167
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
245
Flicker
0.57
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
94
Maximum cri range
23
Chromaticity x
0.322
Chromaticity y
0.35
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
GL-CL-R12N-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
60
Measures (mm)
Ø167x20
Roof cut (mm)
Ø158
High
20.0
Diameter
167
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
245
Flicker
0.57
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
94
Maximum cri range
23
Chromaticity x
0.322
Chromaticity y
0.35
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 170mm diameter circular LED plate with ultra-thin dimensions (18mm), offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to power outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (72 Lm/W) consuming 12W through SMD2835 type LEDs and achieving provide a luminous flux of 860Lm evenly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 75W incandescent bulb, its consumption represents a value of 12kWh/1000h , reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

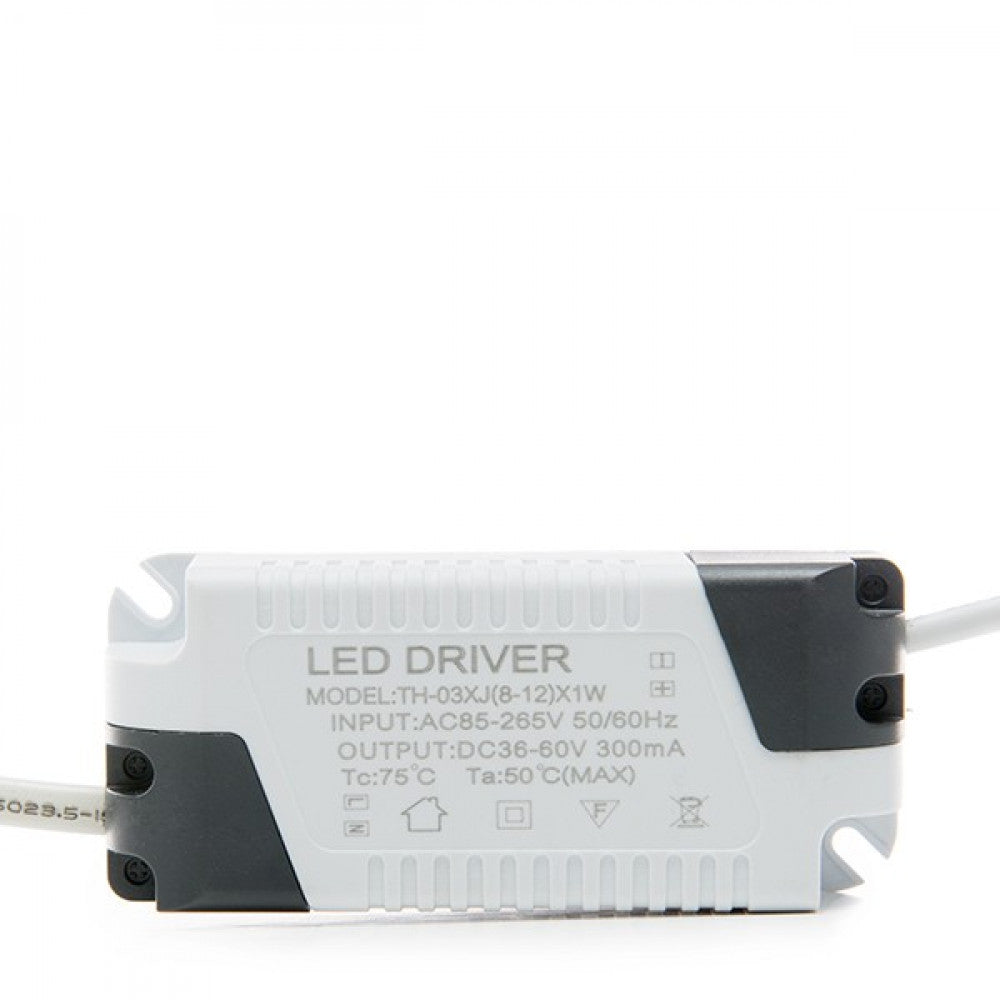

This board is powered by a non-dimmable driver included in the package that must be connected directly to the network, with a output com Compatible with the connection of the plate (36-60VDC, 300mA), additionally the necessary accessories for the installation of the plate are included. White finish built with aluminum.

The plate has an IP25 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands .

This plate is available in cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7 %.

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. They are also very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.
