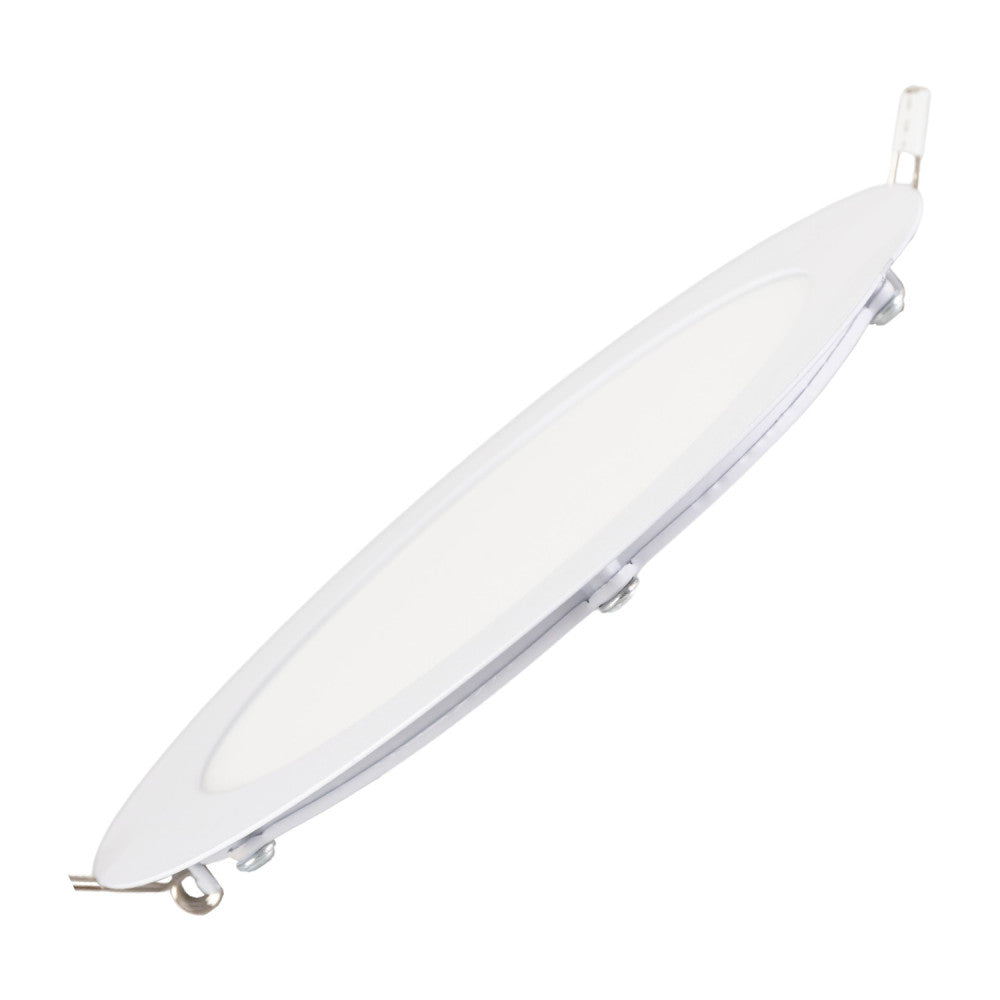

LED Plate 12W 860Lm CCT (Adjustable Light Shade) 3000-6000ºK Circular 40,000H [JL-GP-LZ-2-CCT]

LED Plate 12W 860Lm CCT (Adjustable Light Shade) 3000-6000ºK Circular 40,000H [JL-GP-LZ-2-CCT]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuJL-GP-LZ-2-CCT
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
10,13€
13,50€ 10,13€ -24%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-24.96%(JL-GP-LZ-2-CCT_padreImg_jl_gp_lz_2_cct_0.jpeg)
CCT
Stock available
Free shipping
10,13€
13,50€ 10,13€ -24%

Technical file

Product code
JL-GP-LZ-2-CCT
Light temperature
CCT
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
60
Measures (mm)
Ø170x17
Roof cut (mm)
Ø150
High
17.0
Diameter
170
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
246
Flicker
0.82
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Steps
INDEX R9
28
Minimum cri range
88
Maximum cri range
28
Chromaticity x
0.319
Chromaticity y
0.338
Connection
Borna
Minimum CCT range
3000
Maximum cri range
6000
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JL-GP-LZ-2-CCT
Light temperature
CCT
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
60
Measures (mm)
Ø170x17
Roof cut (mm)
Ø150
High
17.0
Diameter
170
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
246
Flicker
0.82
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Steps
INDEX R9
28
Minimum cri range
88
Maximum cri range
28
Chromaticity x
0.319
Chromaticity y
0.338
Connection
Borna
Minimum CCT range
3000
Maximum cri range
6000
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

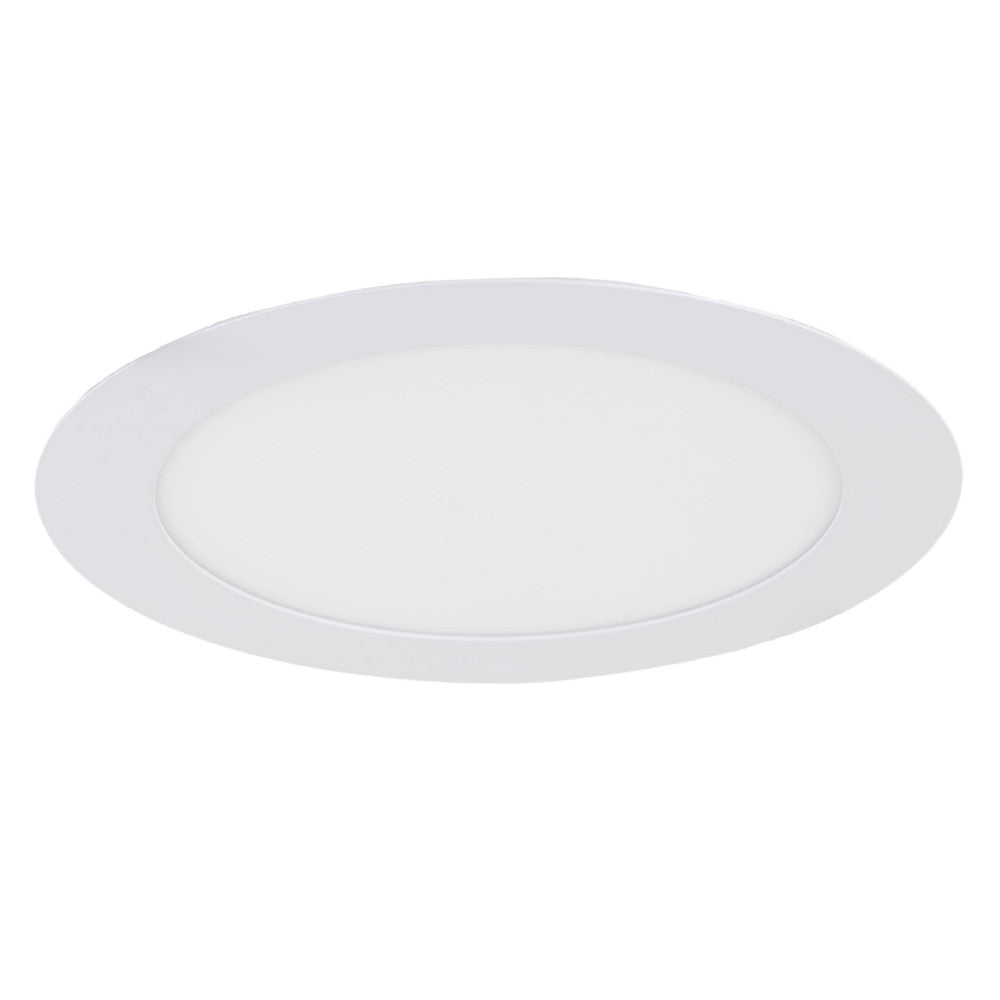

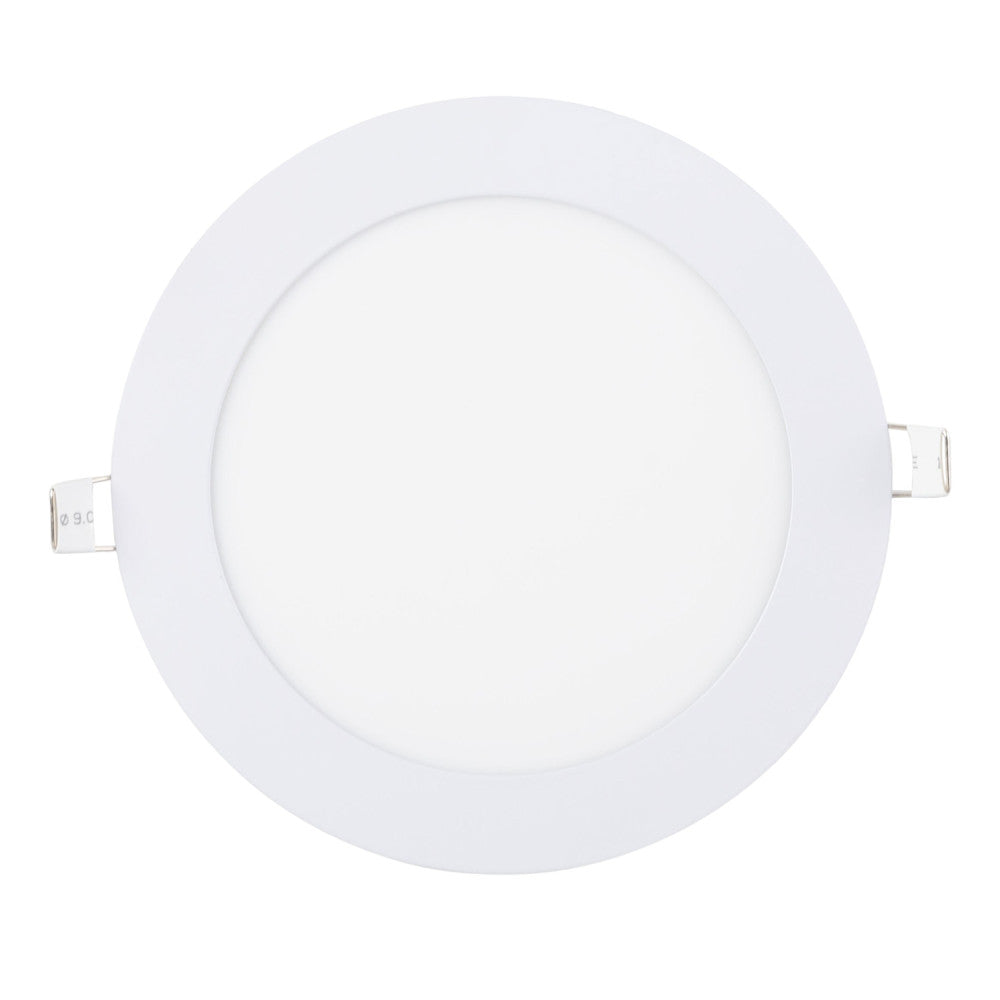

The Switch Dimm Selectable Circular LED Plate offers soft, homogeneous and efficient lighting, and has a modern and Nordic design.

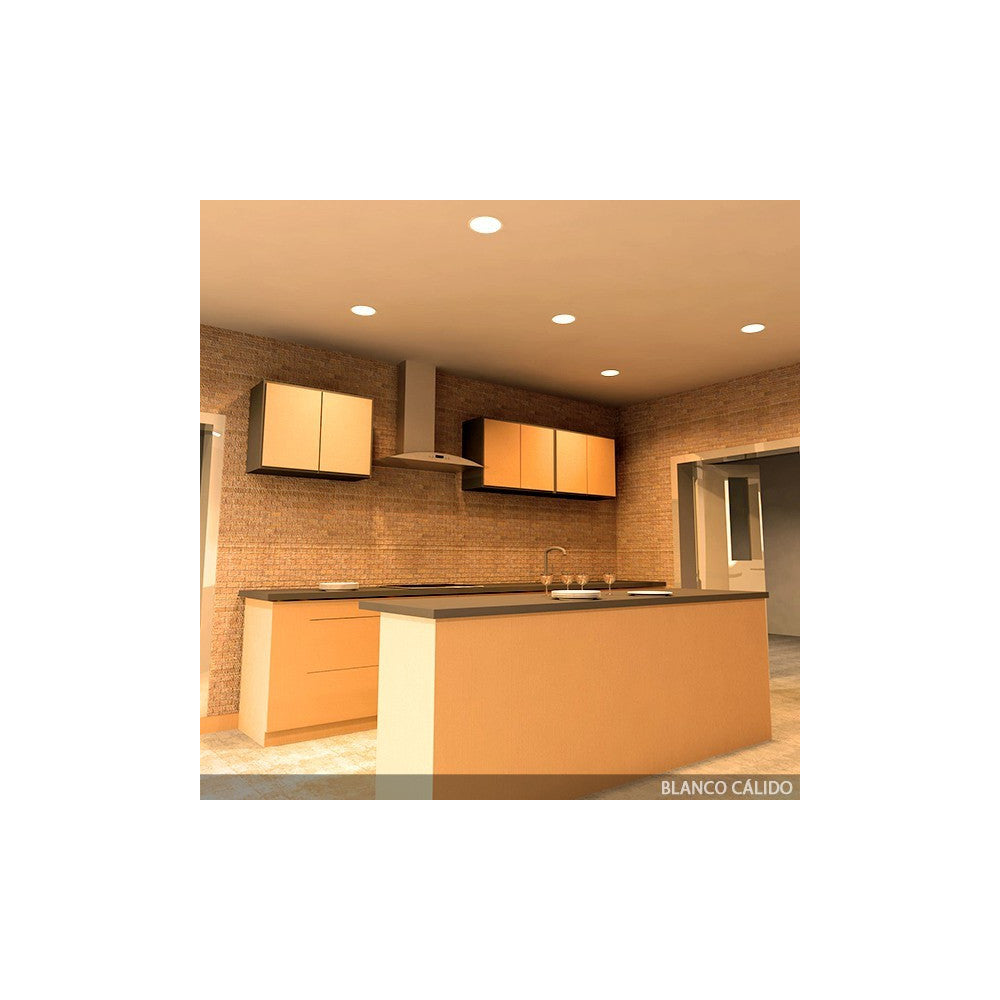

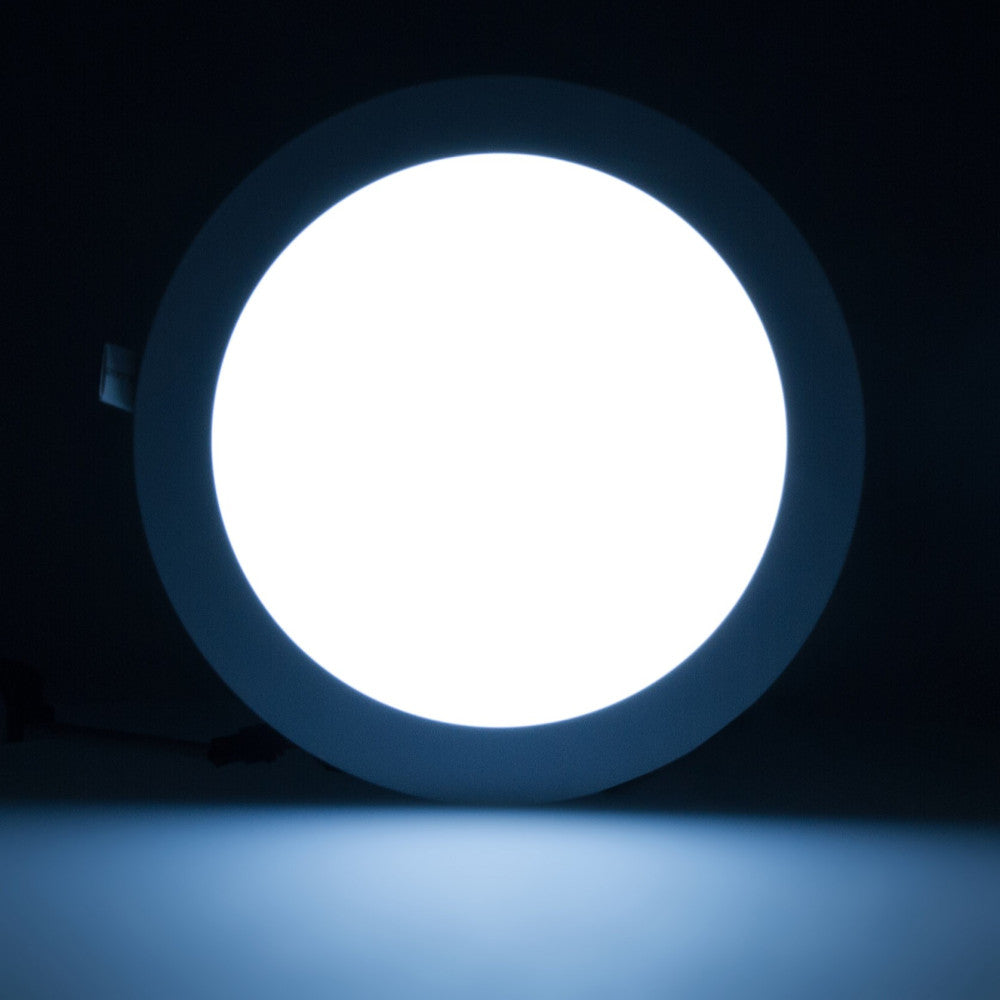

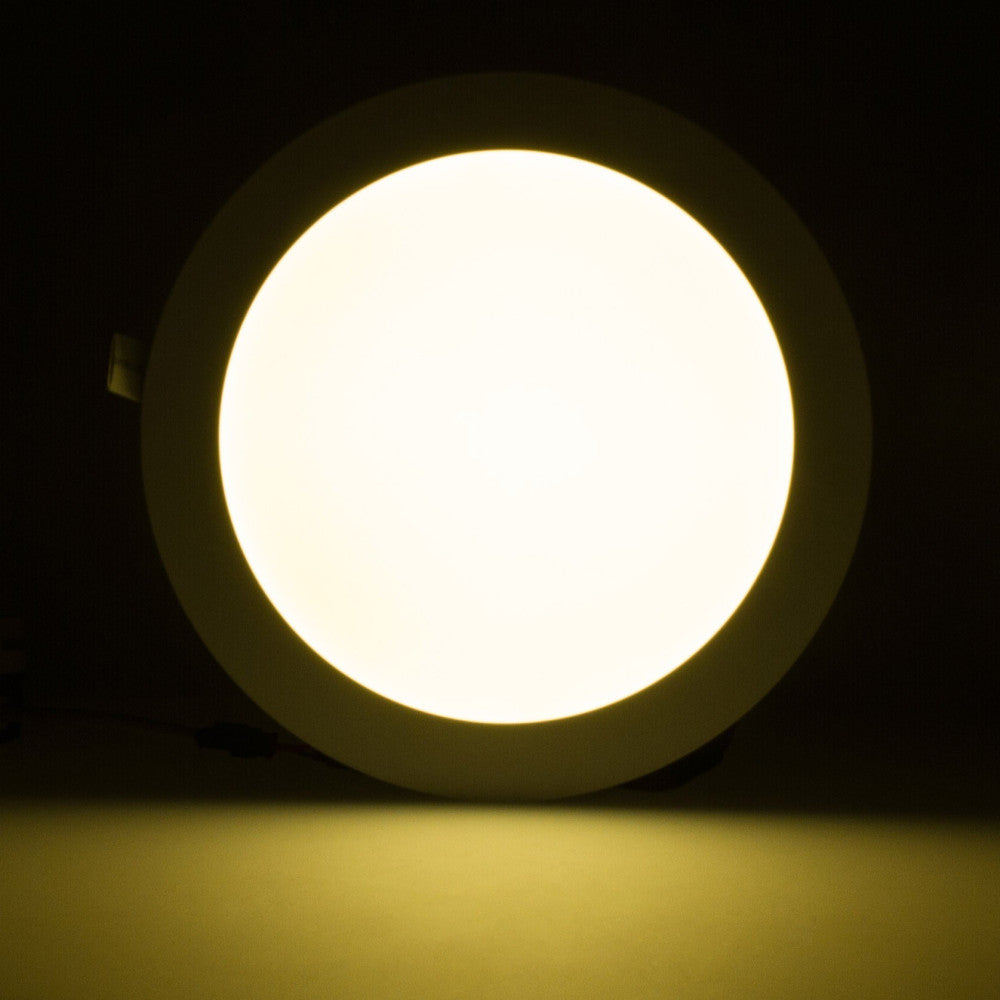

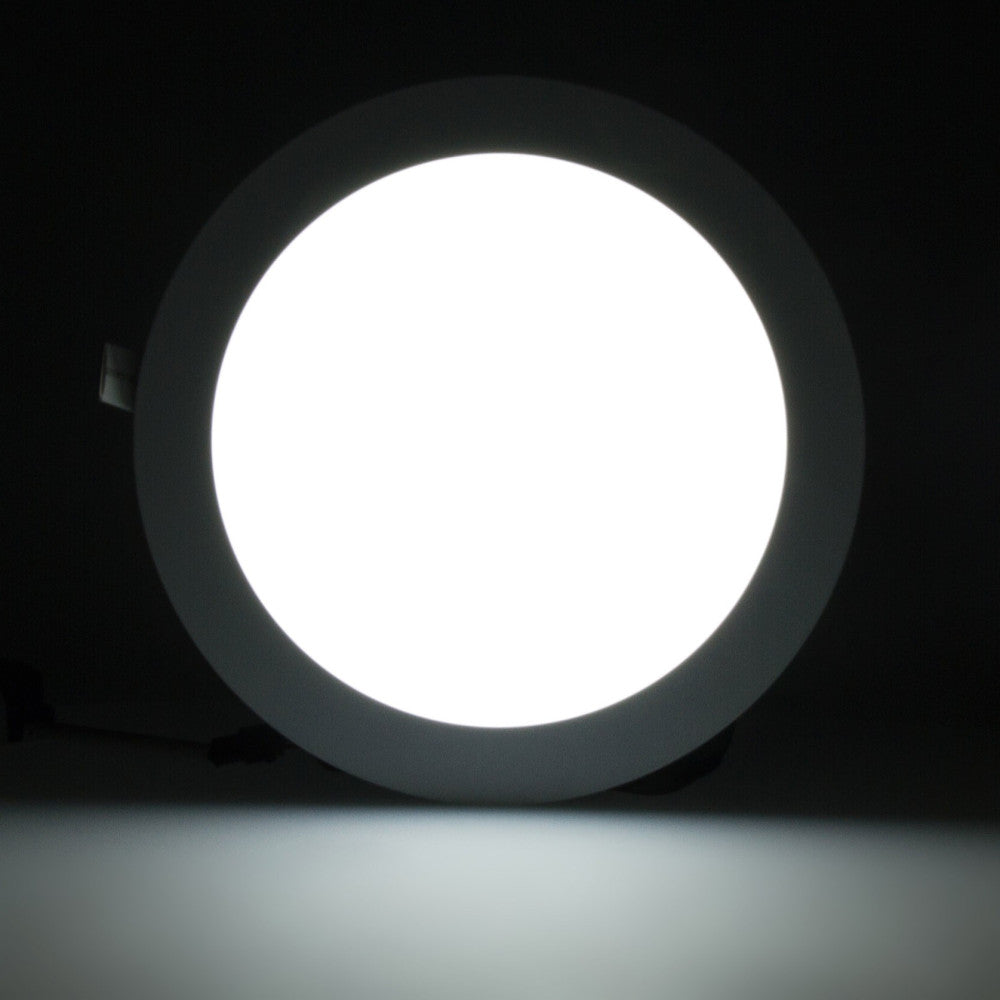

Its light can vary from a cozy warm white to a relaxed cold white in order to adapt the room to the desired needs.

It integrates an OSRAM light source that provides us with high quality light that is distributed at an angle of 120º. Given its performance, it is perfect for replacing a halogen luminaire of up to 120W.

The main advantage of this type of LED lighting comes from its small size, which allows us to install it in a false ceiling, even if there is hardly any space. At the same time, its reduced consumption and durability allow us to drastically reduce the amount of the electricity bill and the costs of maintenance and replacement of the lights.

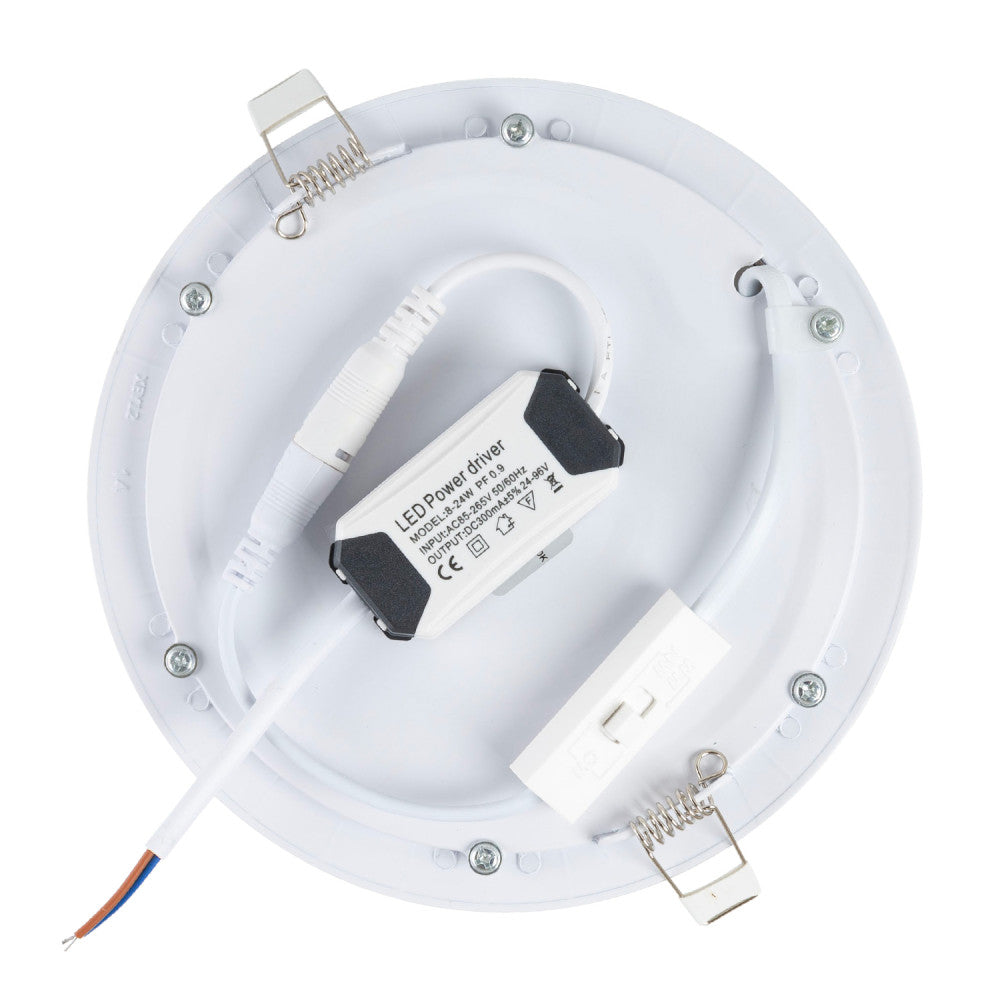

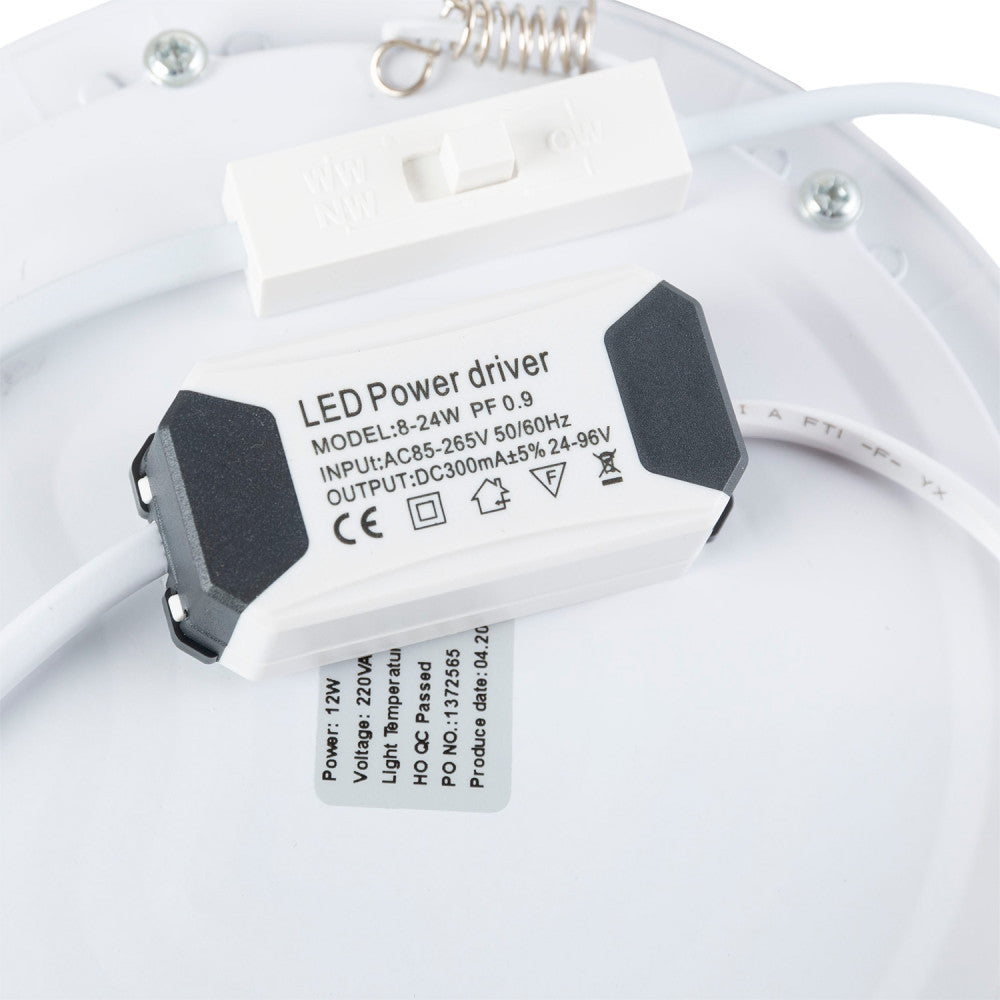

Integrates SwitchCCT System. Its operation is very simple, it allows 3 light color settings with a simple switch. To change the light color you just have to turn it on, off and on quickly until you find the desired mode. In addition, this system is equipped with memory which allows it to remember the last mode selected when the shutdown is normal. The SwitchCCT system is not compatible with dimmer switches.

What does CCT (correlated color temperature) mean?

When a product is marked as CCT it means that we can change the color temperature. CCT is defined in degrees Kelvin, according to the color perception of a white LED to the human eye, we can differentiate them into 3 types of color; a warm light, a neutral light and a cold light, 2700-3500K, 4000-4500K and 5000-6500K respectively. CCT values do not indicate anything about the color rendering ability of the LED.
