LED Plate 15W 1,177Lm 4200ºK Circular without Frame 40,000H [LUM-NSDL-R155-W]

LED Plate 15W 1,177Lm 4200ºK Circular without Frame 40,000H [LUM-NSDL-R155-W]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:Lumiastra / Lumiastra
  • SkuLUM-NSDL-R155
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Documents
20,73€
29,61€ 20,73€ -29%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Documents
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
-29.99%(LUM-NSDL-R155_padreImg_lum_nsdl_r155_0.jpeg)
Daylight
Stock available
Free shipping
20,73€
29,61€ 20,73€ -29%

Accessories

  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    Offer
    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    3,99€
    7,26€ 3,99€ -45%
    Offer
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    12,62€
    15,48€ 12,62€ -18%
    Offer
  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    Offer
    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    9,27€
    17,30€ 9,27€ -46%
    Offer
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    5,55€
    5,55€ 5,55€ %
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    5,55€
    14,62€ 5,55€ -62%
    Offer
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    6,51€
    6,51€ 6,51€ %

Technical file

Product code
LUM-NSDL-R155
Light temperature
Natural White
Kelvin º
4200
Power (W)
15.0
Luminosity (LM)
1177
Luminous efficacy (LM/W)
78
LED efficacy
85
Type of LEDs
SMD4014
Number of LEDs
80
Measures (mm)
155x8
Roof cut (mm)
Ø120
High
8.0
Diameter
155
CRI
80
Diffuser
Milky
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
100
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Energy consumption (kWh/1000h)
15.0
Weight (gr)
180
Flicker
0.76
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
3
Minimum cri range
98
Maximum cri range
2
Chromaticity x
0.392
Chromaticity y
0.391
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Características

Product code
LUM-NSDL-R155
Light temperature
Natural White
Kelvin º
4200
Power (W)
15.0
Luminosity (LM)
1177
Luminous efficacy (LM/W)
78
LED efficacy
85
Type of LEDs
SMD4014
Number of LEDs
80
Measures (mm)
155x8
Roof cut (mm)
Ø120
High
8.0
Diameter
155
CRI
80
Diffuser
Milky
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
100
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Energy consumption (kWh/1000h)
15.0
Weight (gr)
180
Flicker
0.76
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
3
Minimum cri range
98
Maximum cri range
2
Chromaticity x
0.392
Chromaticity y
0.391
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Descripción

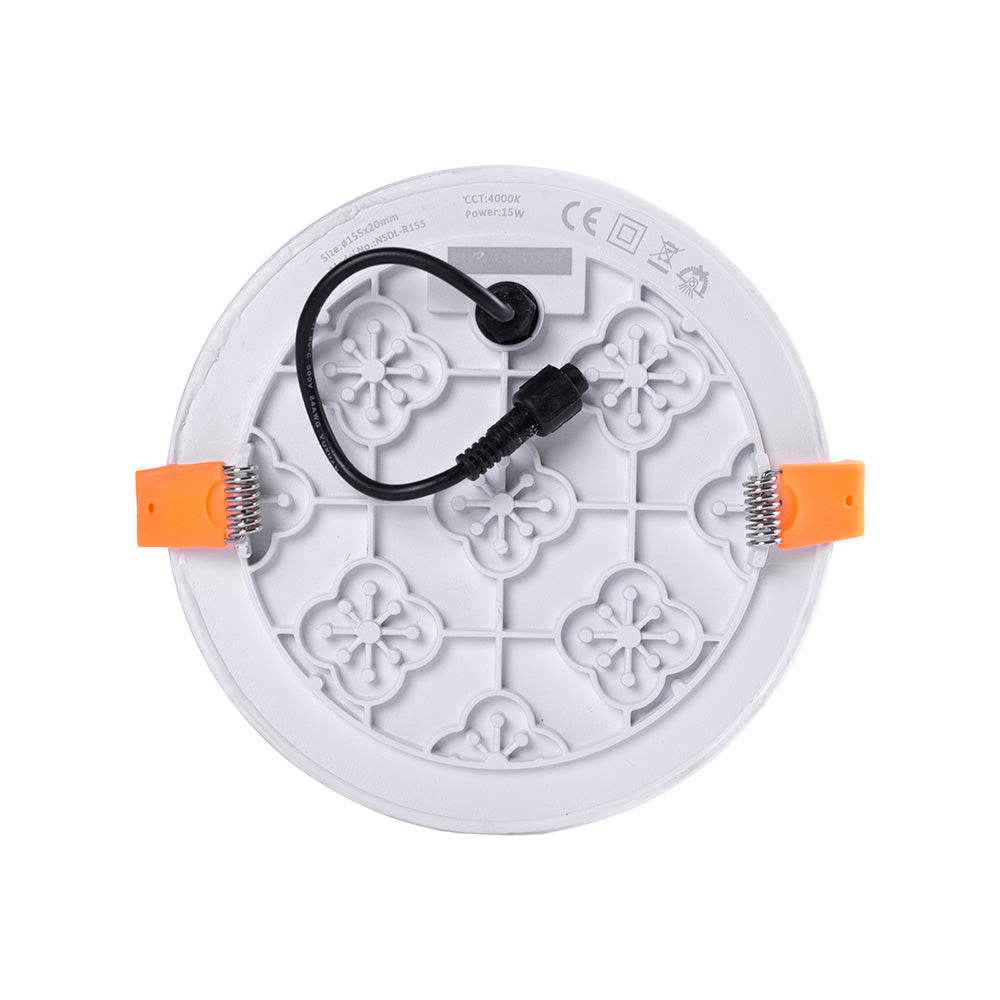

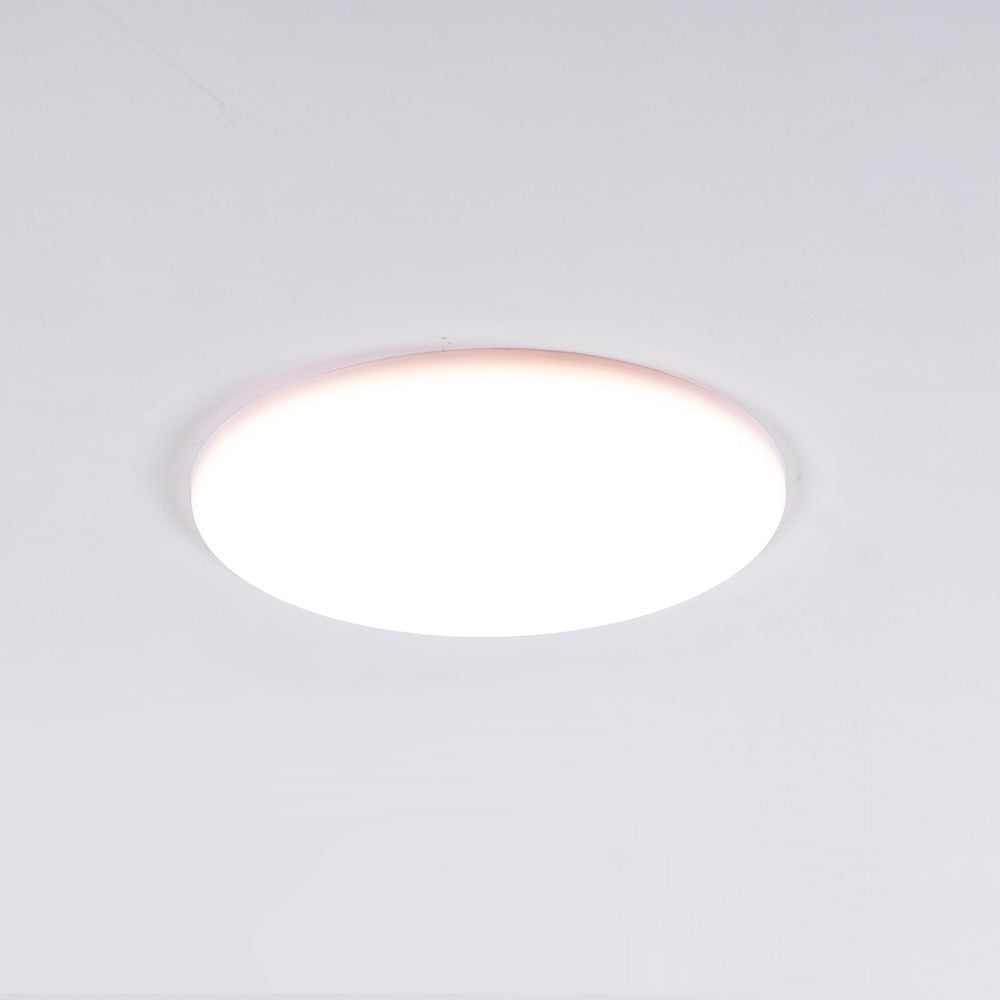

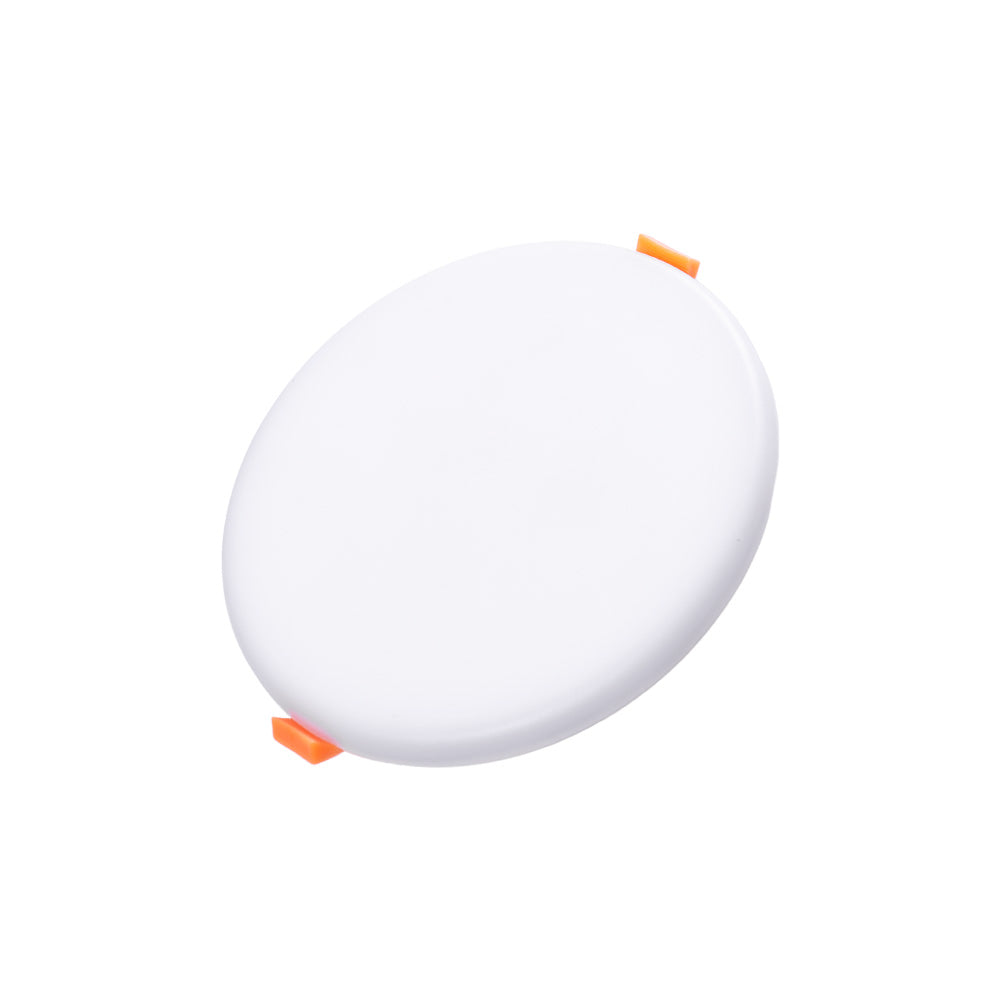

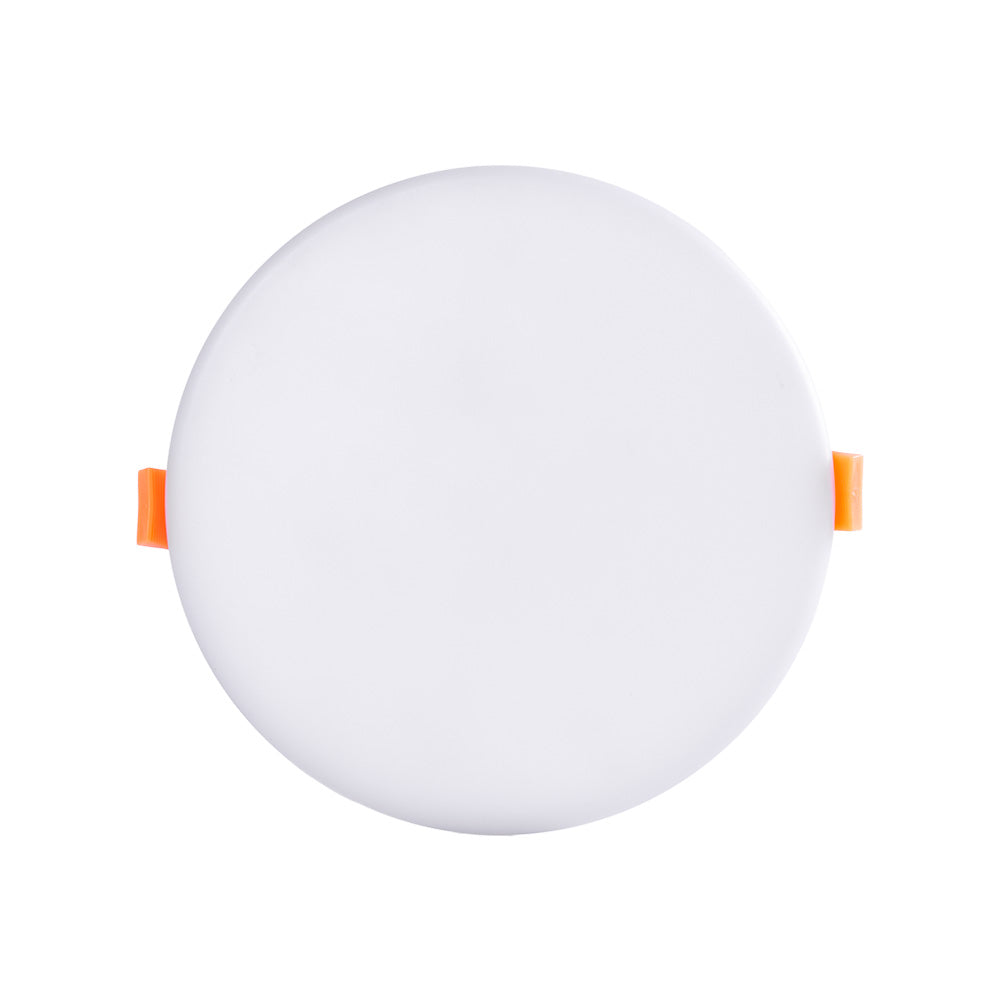

The Frameless LED Recessed Downlight with ultra-thin dimensions , offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

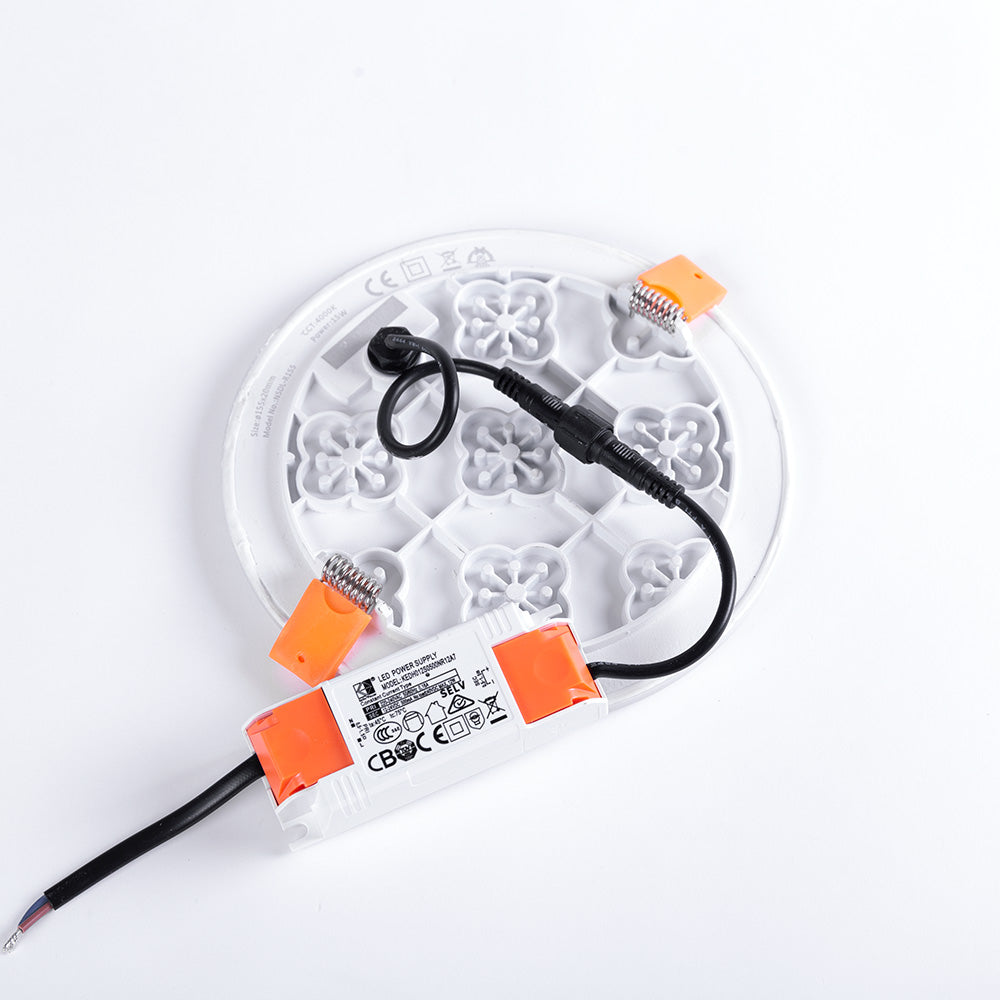

It has a high efficiency (78 Lm/W) .This downlight is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (27-36VDC, 300mA), additionally included the necessary accessories for the installation of the plate.

White finish made of aluminum. The downlight has an IP65 degree of protection (valid for outdoors), in addition to being robust enough for the required mechanical demands.

This downlight is available in natural white 4000ºk . The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

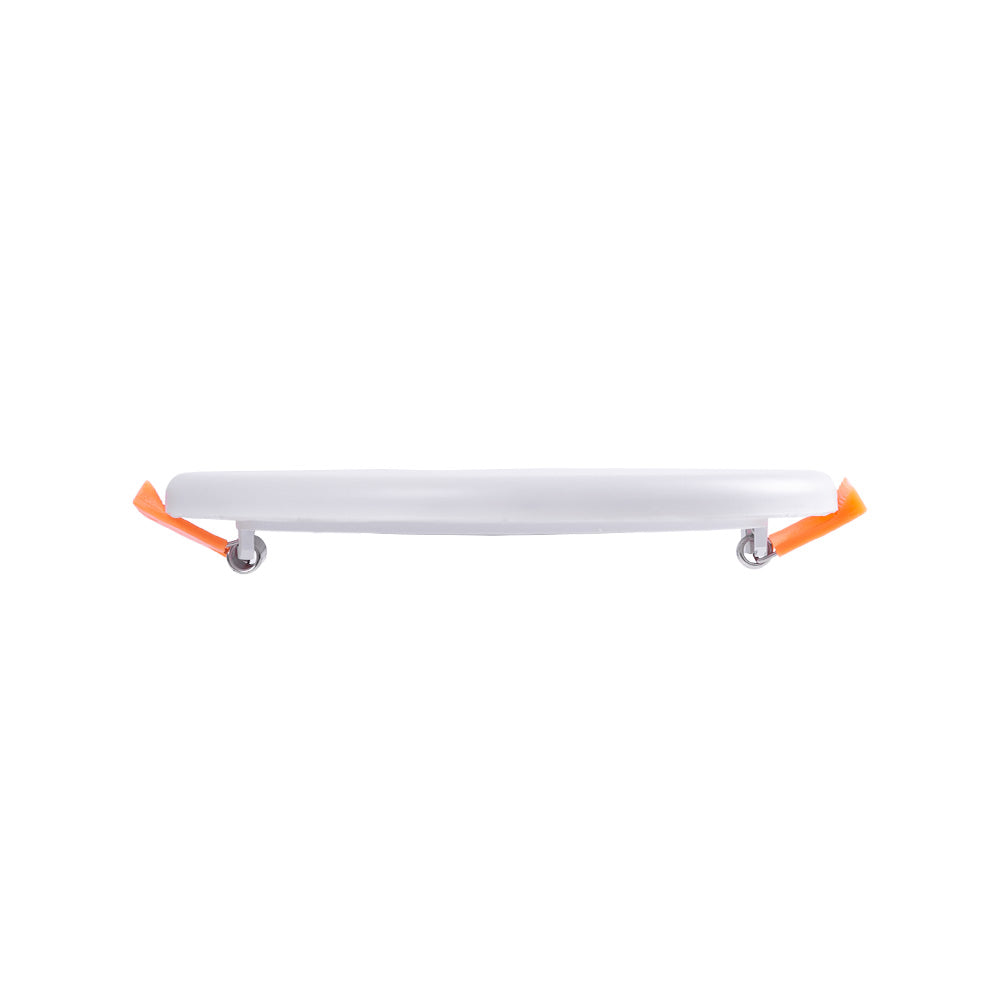

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. In addition, they are very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.
