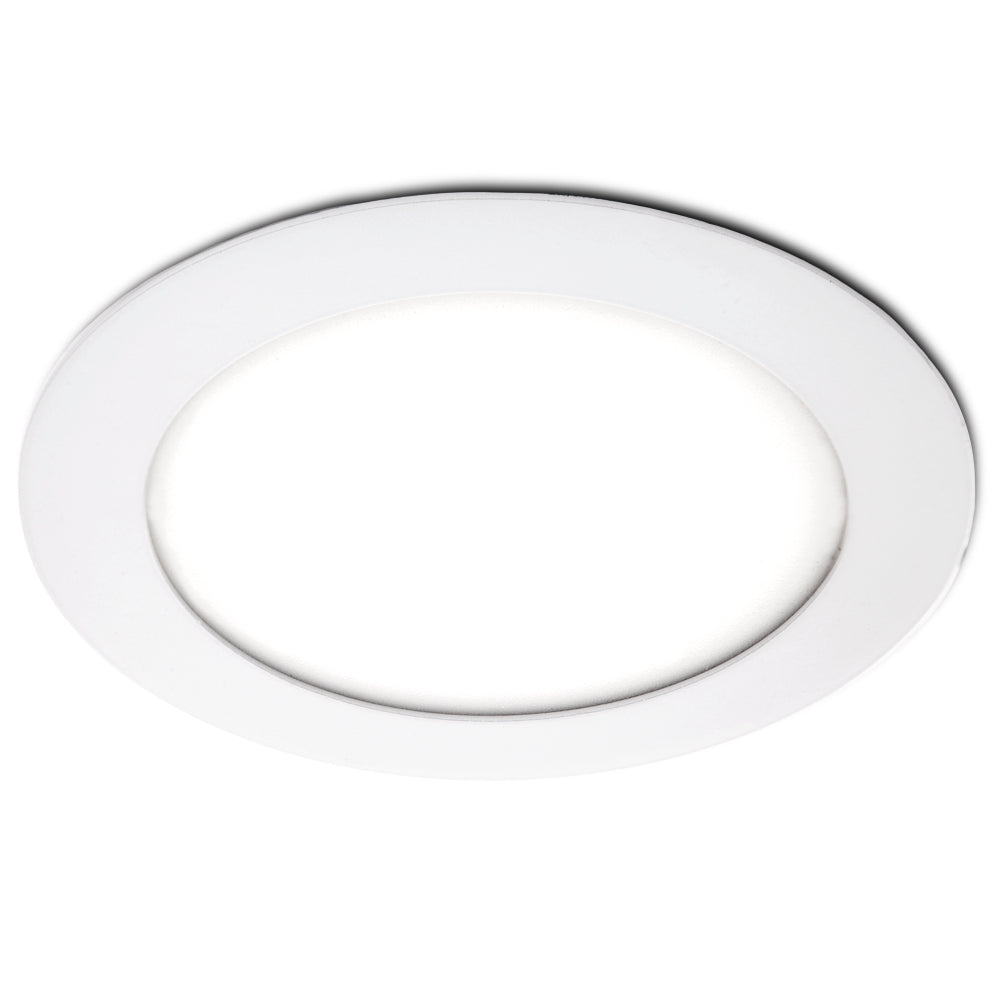

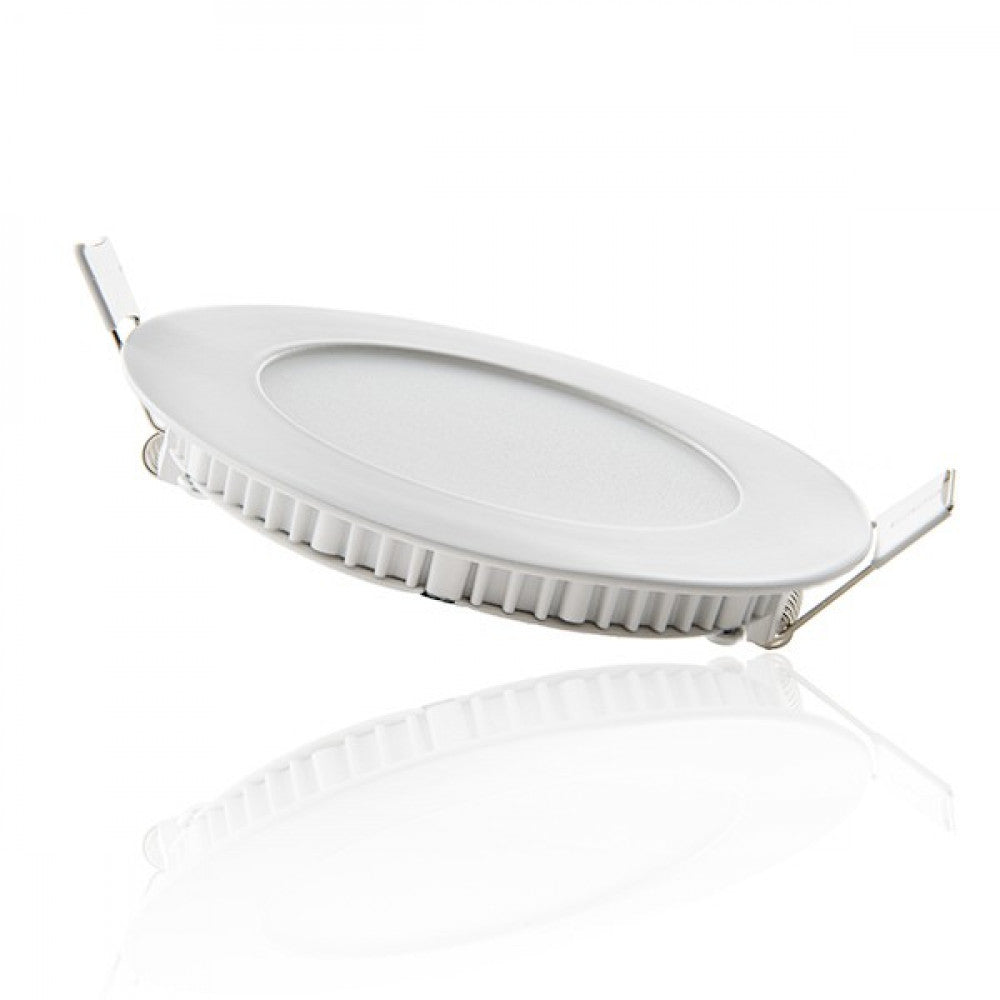

LED Plate 6W 600Lm 2700ºK Circular 40,000H [HO-GP-LZ-1WW]

LED Plate 6W 600Lm 2700ºK Circular 40,000H [HO-GP-LZ-1WW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuHO-GP-LZ-1WW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
3,04€
3,90€ 3,04€ -22%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-22.05%(JL-GP-LZ-1_padreImg_jl_gp_lz_1_0.jpeg)
Warm White
Stock available
Free shipping
3,04€
3,90€ 3,04€ -22%

Accessories

  • (DR-FD-ND-6W_padreImg_dr_fd_nd_6w_0.jpeg) (DR-FD-ND-6W_padreImg_dr_fd_nd_6w_1.jpeg)

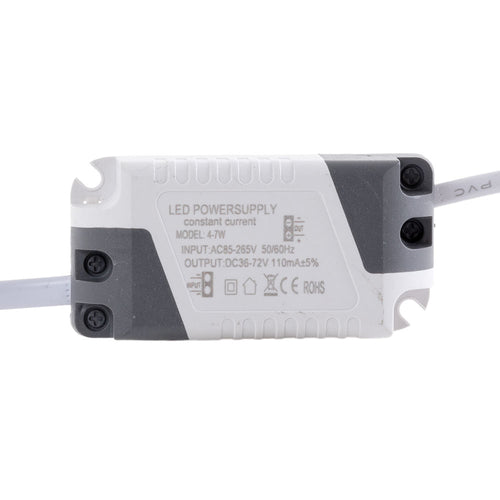

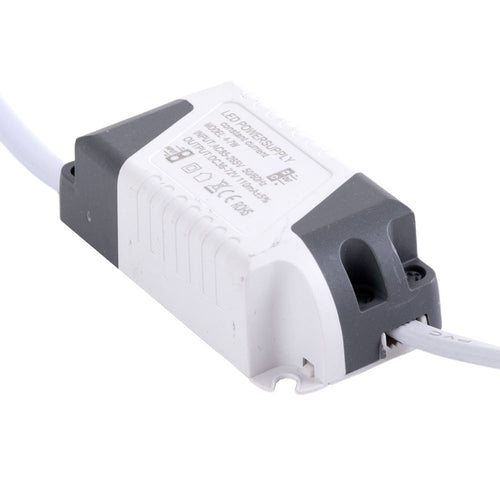

    Driver Non Dimmable Downlight LED 6W

    Offer
    GreenIce

    Driver Non Dimmable Downlight LED 6W

    1,25€
    2,78€ 1,25€ -55%
    Offer
  • (HO-HP-ND-6W_padreImg_ho_hp_nd_6w_0.jpeg) (HO-HP-ND-6W_padreImg_ho_hp_nd_6w_1.jpeg)

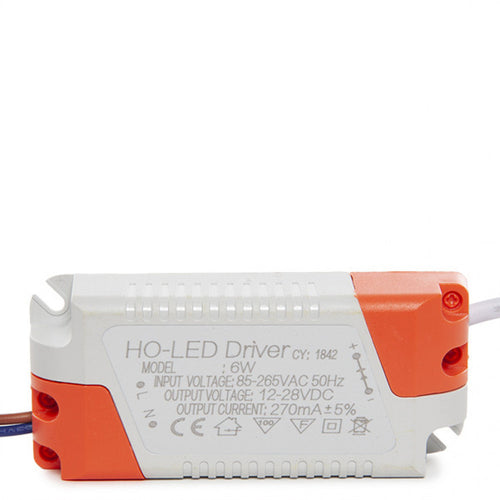

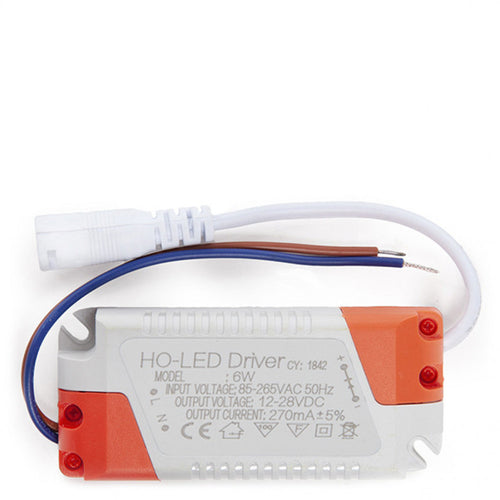

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 6W

    Offer
    GreenIce

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 6W

    1,95€
    2,49€ 1,95€ -21%
    Offer
  • (SB-BS036B_padreImg_sb_bs036b_0.jpeg) (SB-BS036B_padreImg_sb_bs036b_1.jpeg)

    Motion Sensor Surface Mounted 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Surface Mounted 360º ►1200/300W

    8,25€
    8,82€ 8,25€ -6%
    Offer
  • (GR-DALI-6W_padreImg_gr_dali_6w_0.jpeg) (GR-DALI-6W_padreImg_gr_dali_6w_1.jpeg)

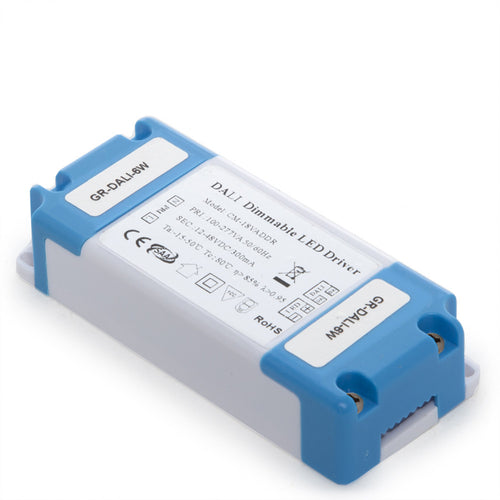

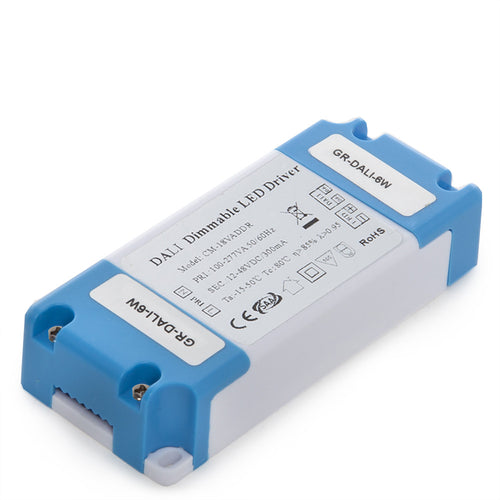

    Driver Adjustable DALI 6W

    Offer
    GreenIce

    Driver Adjustable DALI 6W

    24,54€
    32,72€ 24,54€ -25%
    Offer
  • (BL-KHD220V_padreImg_bl_khd220v_0.jpeg) (BL-KHD220V_padreImg_bl_khd220v_1.jpeg)

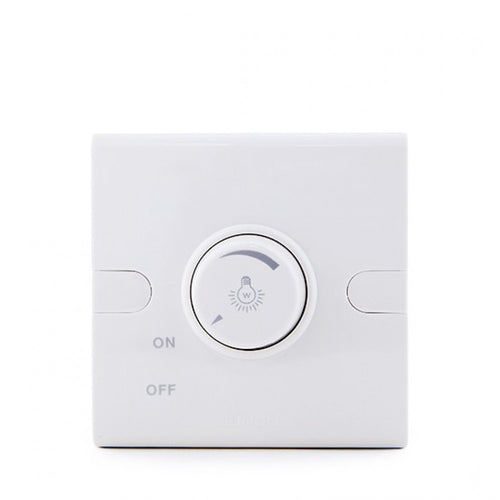

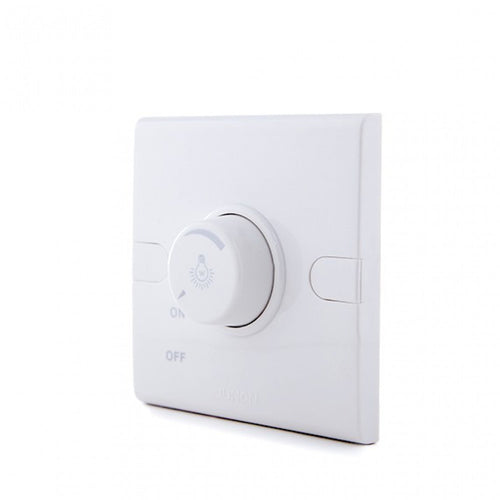

    Dimmer LED 200-250VAC 10-100% ► 630W

    GreenIce

    Dimmer LED 200-250VAC 10-100% ► 630W

    20,80€
    20,80€ 20,80€ %
  • (GR-DRDIM0-10V-6W_padreImg_gr_drdim0_10v_6w_0.jpeg) (GR-DRDIM0-10V-6W_padreImg_gr_drdim0_10v_6w_1.jpeg)

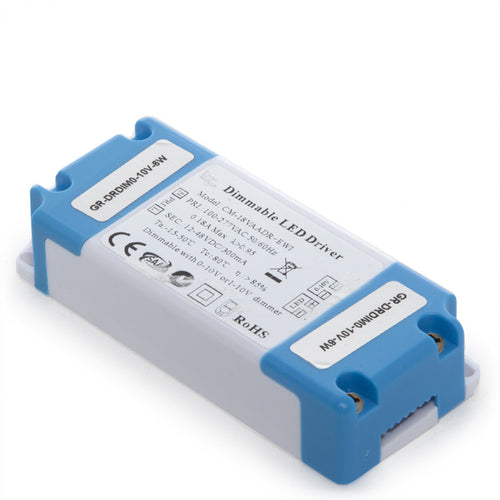

    Driver Adjustable 0-10V Ceiling Light / Placa /Downlight LED 6W

    Offer
    GreenIce

    Driver Adjustable 0-10V Ceiling Light / Placa /Downlight LED 6W

    12,12€
    12,35€ 12,12€ -1%
    Offer
  • (GR-DRDIM-6W_padreImg_gr_drdim_6w_0.jpeg) (GR-DRDIM-6W_padreImg_gr_drdim_6w_1.jpeg)

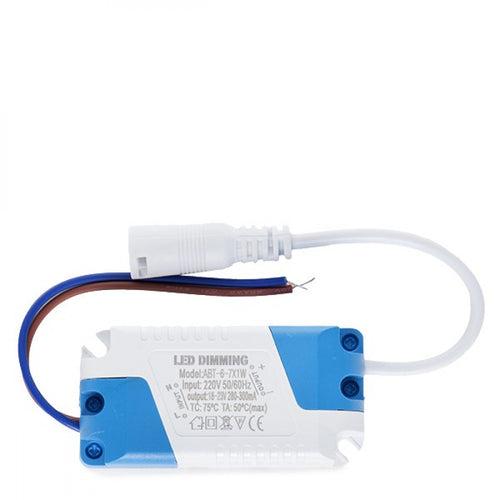

    Driver Dimmable Slimline Downlights 6W

    Offer
    GreenIce

    Driver Dimmable Slimline Downlights 6W

    5,37€
    8,28€ 5,37€ -35%
    Offer

Technical file

Product code
HO-GP-LZ-1WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
6.0
Luminosity (LM)
600
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
30
Measures (mm)
17xØ120
Roof cut (mm)
Ø103
High
17.0
Diameter
Ø120
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC12-21V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
50
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
6.0
Weight (gr)
112
Flicker
0.79
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
12
Minimum cri range
98
Maximum cri range
12
Chromaticity x
0.447
Chromaticity y
0.397
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-GP-LZ-1WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
6.0
Luminosity (LM)
600
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
30
Measures (mm)
17xØ120
Roof cut (mm)
Ø103
High
17.0
Diameter
Ø120
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC12-21V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
50
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
6.0
Weight (gr)
112
Flicker
0.79
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
12
Minimum cri range
98
Maximum cri range
12
Chromaticity x
0.447
Chromaticity y
0.397
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

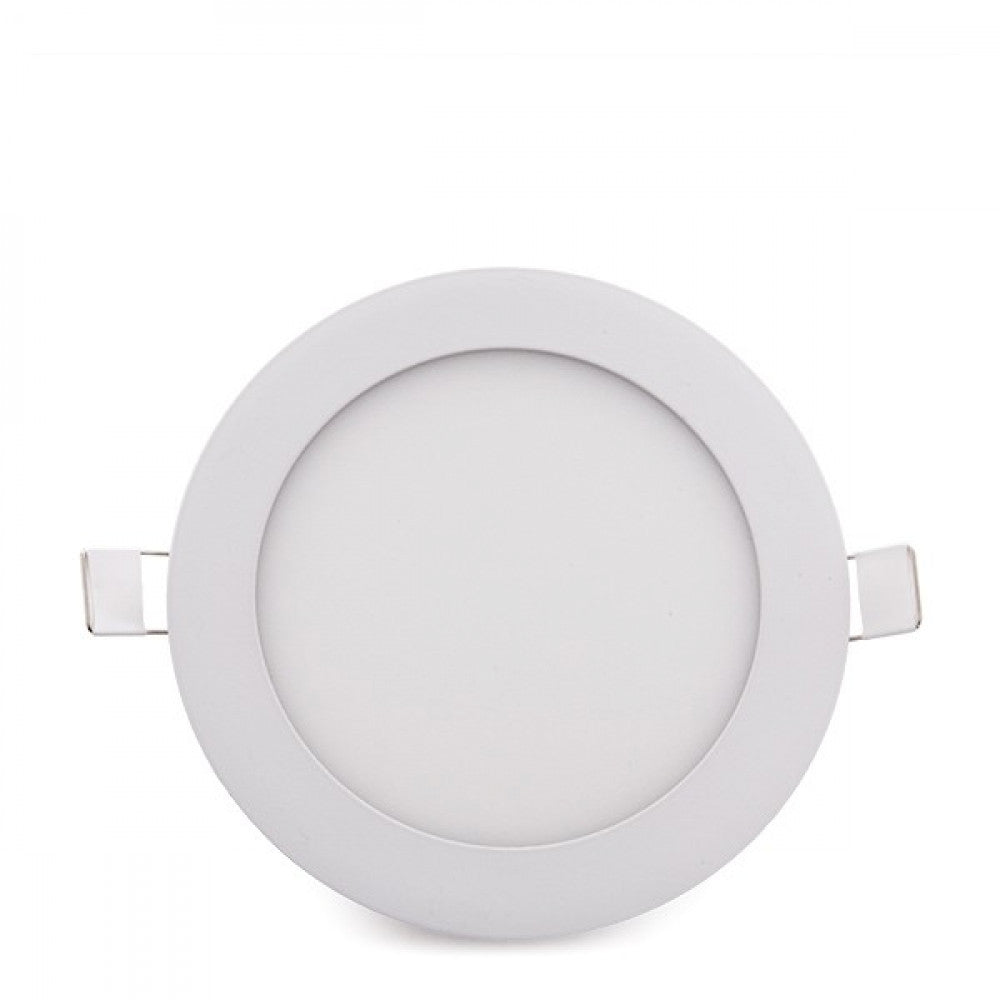

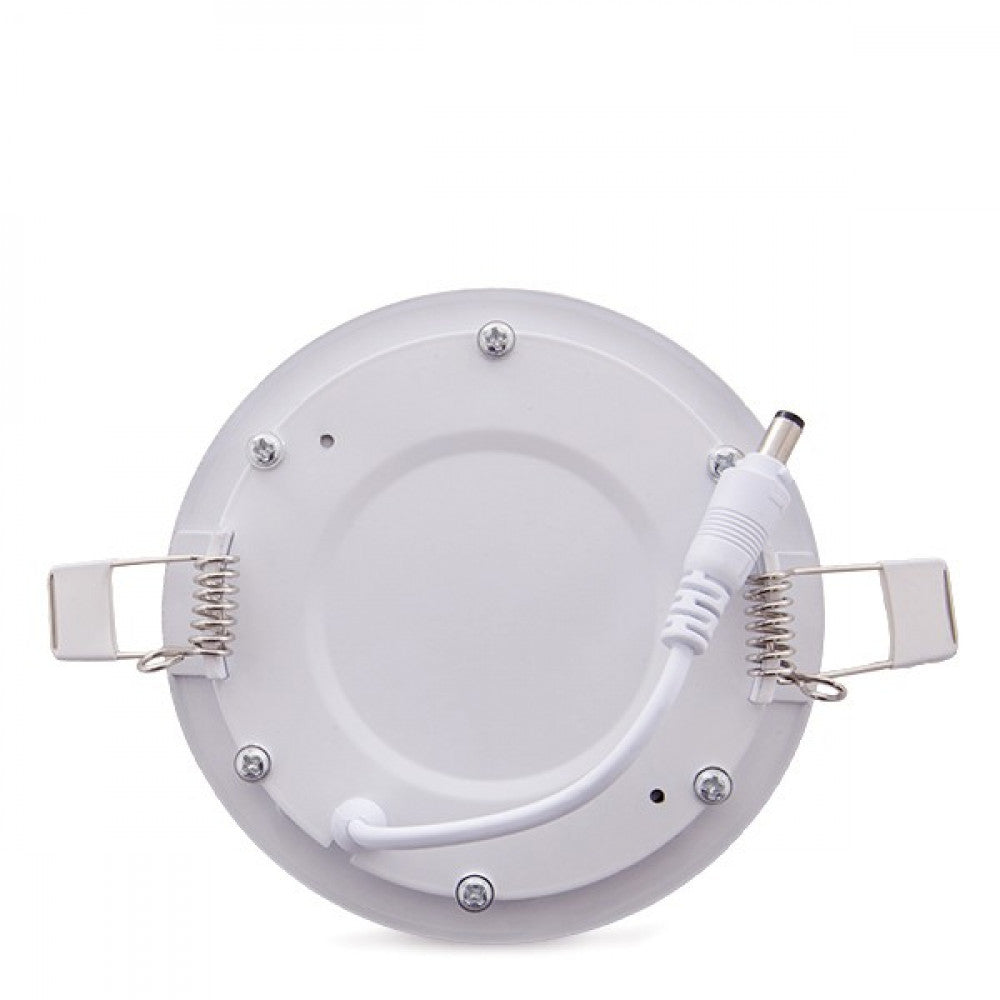

The 120mm diameter circular LED plate with ultra-thin dimensions (18mm), offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to power outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

They have a high efficiency (67 Lm/W) consuming 6W through SMD2835 type LEDs and achieving provide a luminous flux of 400Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 40W incandescent light bulb, its consumption represents a value of 6kWh/1000h , reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

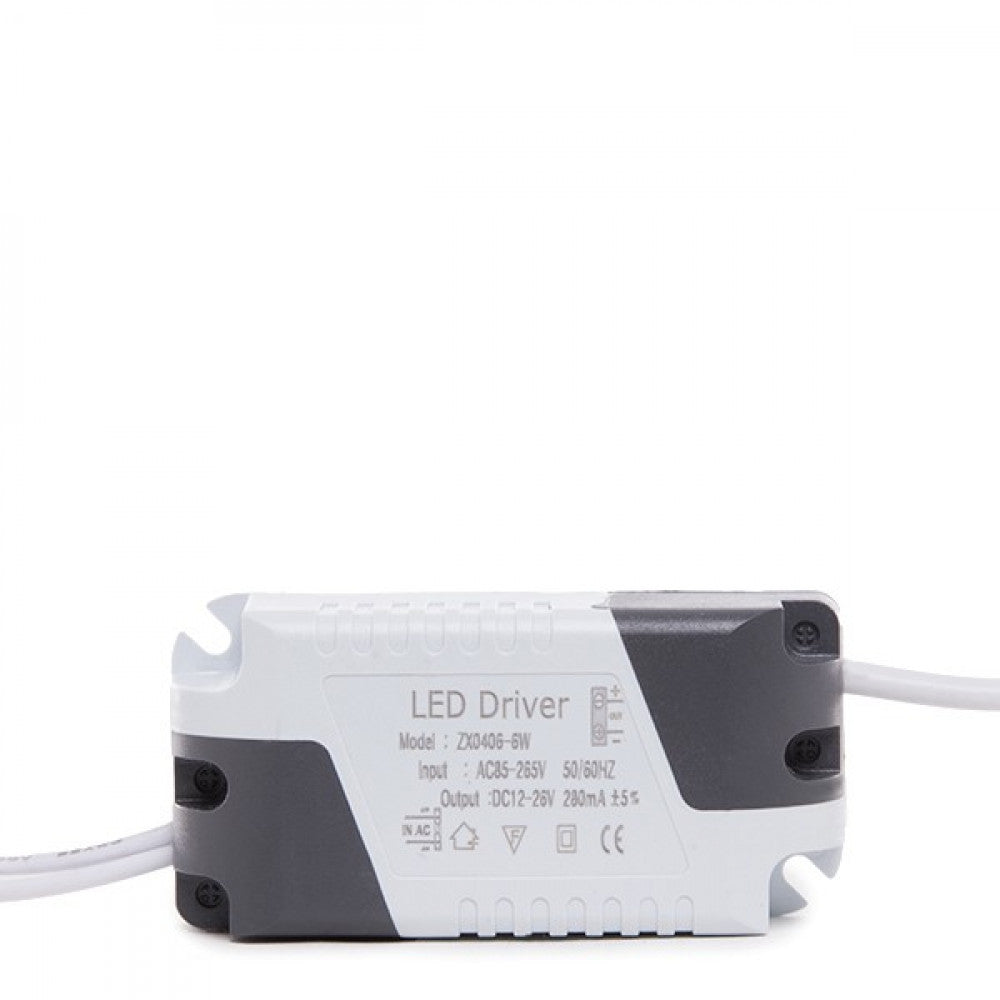

This board is powered by a non-dimmable driver included in the package that must be connected directly to the network, with a output comp Compatible with the connection of the plate (12-28VDC, 300mA), additionally the necessary accessories for the installation of the plate are included.

White finish built with aluminum.The plate has a IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

This plate is available in natural white (4200°K ), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

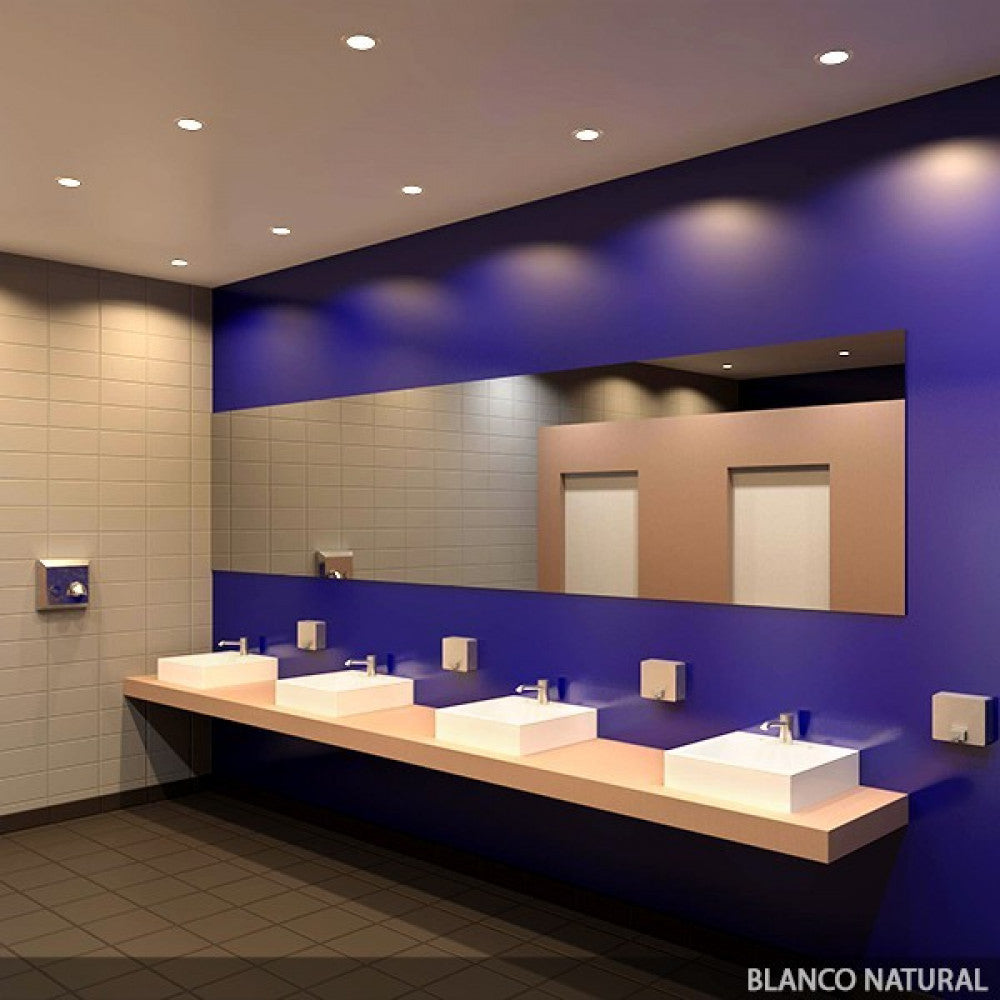

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. They are also very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.
