LED Strip SMD5050 14.4W/M 140Lm/W 24VDC IP20 RGB/CCT Roll 5M

LED Strip SMD5050 14.4W/M 140Lm/W 24VDC IP20 RGB/CCT Roll 5M

See questions and answers

For additional amounts the delivery period is 30 days As of the order date
For additional amounts the delivery period is 30 days As of the order date
  • Brand:Kimera / KIMERA
  • SkuSKY-FSL5050-60L-12mm-RGBCCT-24V-A
  • AAA 2021
Warranty
  • Warranty 5 years
  • 120 º Opening
22,60€
22,60€ 22,60€ %
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(SKY-FSL5050-60L-12mm-RGBCCT-24V-A_padreImg_sky_fsl5050_60l_12mm_rgbcct_24v_a_0.jpeg)
RGB-Cool White / RGB+CCT (3000-6000K)
Stock available
Free shipping
22,60€
22,60€ 22,60€ %

Accessories

  • (CP-300-24_220 IP21_padreImg_cp_300_24_220_ip21_0.jpeg) (CP-300-24_220 IP21_padreImg_cp_300_24_220_ip21_1.jpeg)

    Ultrathin LED Transformer 300W 24VDC_110V-220V/AC IP20

    Offer
    GreenIce

    Ultrathin LED Transformer 300W 24VDC_110V-220V/AC IP20

    25,46€
    31,82€ 25,46€ -19%
    Offer
  • (HZ-MPS-200W24V_padreImg_hz_mps_200w24v_0.jpeg) (HZ-MPS-200W24V_padreImg_hz_mps_200w24v_1.jpeg)

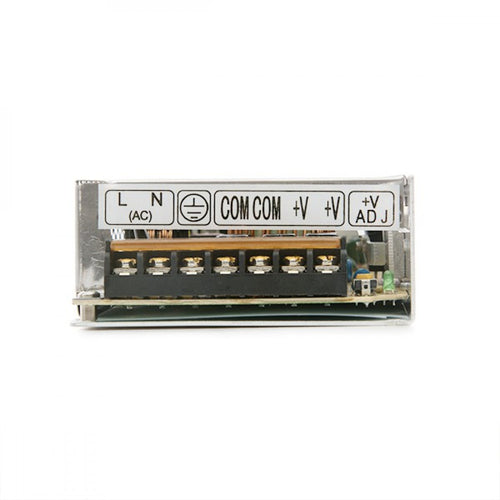

    LED transformer 200W 24VDC 6.5A IP20

    Offer
    GreenIce

    LED transformer 200W 24VDC 6.5A IP20

    18,43€
    22,48€ 18,43€ -18%
    Offer
  • (HLP-FUT037W_padreImg_hlp_fut037w_0.jpeg) (HLP-FUT037W_padreImg_hlp_fut037w_1.jpeg)

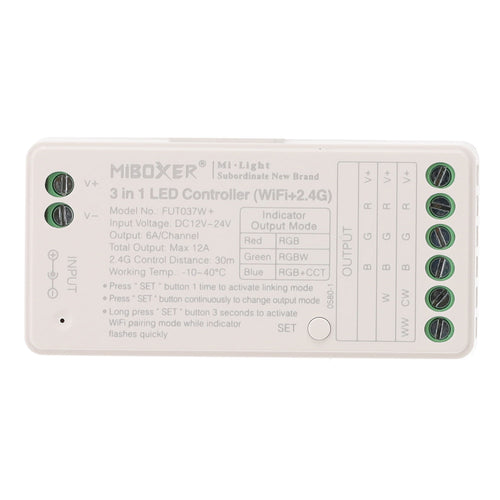

    in 1 Wifi/2.4GHz LED Controller [HLP-FUT037W+]

    Offer
    GreenIce

    in 1 Wifi/2.4GHz LED Controller [HLP-FUT037W+]

    25,70€
    30,24€ 25,70€ -15%
    Offer

Technical file

Product code
SKY-FSL5050-60L-12mm-RGBCCT-24V-A
Light temperature
RGB+CCT (3000-6000K)
Power (W)
14.4
Luminosity (LM)
2016
Luminous efficacy (LM/W)
144
LED efficacy
150
Type of LEDs
SMD5050
Number of LEDs
60/M
Measures (mm)
12x5000x2,5
High
12.0
Long
5000.0
Broad
2.5
CRI
90
Construction
PCB/3M
Opening Angle (º)
120
Facility
IP20
Strain
24VDC
Estimated life (H)
50000
Isolation class
III
Work frequency (Hz)
50/60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
14.4
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
88
Maximum cri range
95

Characteristics

Product code
SKY-FSL5050-60L-12mm-RGBCCT-24V-A
Light temperature
RGB+CCT (3000-6000K)
Power (W)
14.4
Luminosity (LM)
2016
Luminous efficacy (LM/W)
144
LED efficacy
150
Type of LEDs
SMD5050
Number of LEDs
60/M
Measures (mm)
12x5000x2,5
High
12.0
Long
5000.0
Broad
2.5
CRI
90
Construction
PCB/3M
Opening Angle (º)
120
Facility
IP20
Strain
24VDC
Estimated life (H)
50000
Isolation class
III
Work frequency (Hz)
50/60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
14.4
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
88
Maximum cri range
95

Description

RGB+CCT LED strips combine a high-power SMD5050 chip with a SMD5050 RGB LED chip in a single strip. RGB+CCT strips project any color resulting from the mixture of the three primary colors (red, green, and blue), with the ability to vary colors and light intensity using the controller. Dual white colors range from 3000K to 6000K. RGB+CCT LED strips are self-adhesive and ideal for creating decorative ambient effects. This LED strip requires an RGB+CCT controller to operate and a power supply of at least 150W or more and DC24V indoor or outdoor. The flexible LED strip integrates with minimal visual impact into projects, achieving a lighting effect that highlights the architectural form. Its ultra-flat design and easy installation make it ideal for hallways, display cases, and shelves. The Flexible LED strip has a powerful 3M adhesive on the back for easy installation on any surface (previously cleaned for a strong adhesion). The strip is extremely flexible and can be used in tight curves. The power supply is provided through the soldering points. To install an LED strip, you will need a power supply. If you plan to connect more than 8 meters of LED strip, it is recommended to insert a new power supply to avoid voltage drops and maintain the same brightness throughout the entire length. Accessories are also available to connect and splice LED strips quickly and easily. With LED strips, we can decorate and add ambiance to countless projects: • Under-shelf lighting • Highlighting the contours of objects, walls, ceilings, structures, etc. • Providing indirect light in enclosed spaces • Architectural lighting • Outlining circular and square spaces • Lighting showcases, shelves, hallways, and shop windows
