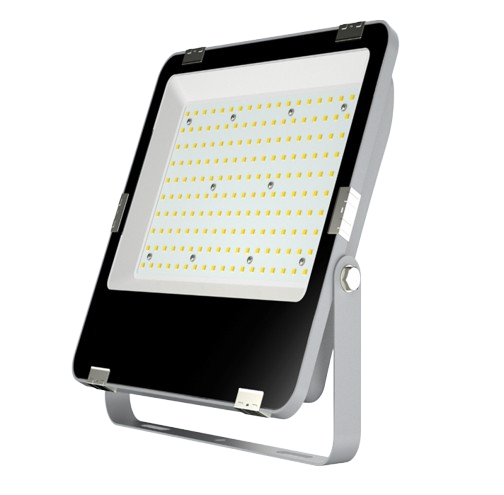

Proyector LED Exterior 200W 100Lm/W 120º SMD5050 RGBW DMX512

Proyector LED Exterior 200W 100Lm/W 120º SMD5050 RGBW DMX512

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Philips Led
  • Sku1916-SLP-FG-TG-BD-200W-RGBW
Energy efficiency
  • AA 2021
Warranty
  • Warranty 7 years

  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening

Usual price 286,71€
Usual price 286,71€ Offer price 286,71€ Discount %
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 7 years

  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening

Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(1916-SLP-FG-TG-BD-200W-RGBW_padreImg_1916_slp_fg_tg_bd_200w_rgbw_0.png)
RGB-Natural
Available
Free shipping
Usual price 286,71€
Usual price 286,71€ Offer price 286,71€ Discount %

Technical file

Product code
1916-SLP-FG-TG-BD-200W-RGBW
Light temperature
RGBW
Power (W)
200.0
Luminosity (LM)
20000
Luminous efficacy (LM/W)
100
LED efficacy
120
Type of LEDs
Lumileds SMD2835
Number of LEDs
360
Measures (mm)
344x301x43
High
344.0
Long
301.0
Broad
43.0
CRI
90
UGR
<23
Power factor (PF)
0.99
Construction
Alu/Cri
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK10
Strain
100-240V AC
Estimated life (H)
100000
Isolation class
I
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+50
Lighting cycles
100000
Energy consumption (kWh/1000h)
200.0
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Minimum cri range
80
Maximum cri range
90
Driver
Meanwell
URL
0%

Drop -down content

Characteristics

Product code
1916-SLP-FG-TG-BD-200W-RGBW
Light temperature
RGBW
Power (W)
200.0
Luminosity (LM)
20000
Luminous efficacy (LM/W)
100
LED efficacy
120
Type of LEDs
Lumileds SMD2835
Number of LEDs
360
Measures (mm)
344x301x43
High
344.0
Long
301.0
Broad
43.0
CRI
90
UGR
<23
Power factor (PF)
0.99
Construction
Alu/Cri
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK10
Strain
100-240V AC
Estimated life (H)
100000
Isolation class
I
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+50
Lighting cycles
100000
Energy consumption (kWh/1000h)
200.0
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Minimum cri range
80
Maximum cri range
90
Driver
Meanwell
URL
0%

Description

Proyector Exterior RGBW con control por cable o inalámbrico DMX512 (configurable como master / esclavo) para la iluminación creativa y proyección de objetos, arte, escenarios, construcciones históricas, museos. Estos proyectores multi LED de alta potencia producen una distribución de luz precisa y uniforme. Es posible conectar en serie múltiples proyectores y controlar todos con un solo controlador DMX512 con el que regular la intensidad, color, efectos, etc.

  • Incluye controlador interno que reproduce una secuencia de colores configurable a través de panel digital incorporado.
  • Alta potencia: 200W
  • Sistema MULTILED, con chip led RGB (rojo, verde, azul) + W (blanco) + A (Ambar)
  • Dispone de conectores DMX de entrada y salida para su conexión a un controlador externo DMX MASTER(no incluido)
  • Fácil instalación
  • Alta eficiencia y ahorro energético.
  • Ecológico: sin mercurio, no hay contaminación, los residuos pueden ser reciclados de manera segura.
  • Luz natural y segura: no hay parpadeo, sin reflejos, sin la radiación UV o infrarrojos.
  • Carcasa de la lámpara y el radiador de extrusión de aluminio industrial: la cubierta de vidrio es de alta intensidad anti-explosión de vidrio.
  • La fuente de alimentación dispone de tecnología de PWM con controlador CV/CC, con alta eficiencia y baja temperatura de funcionamiento

NOTAS:

- Conecta correctamente los cables de entrada de corriente y señal DMX, en el proyector la entrada está indicada en uno de los extremos por la indicación de corriente admitida. Cada proyector incluye clavijas de conexión de 3 pines según el modelo.

- 1 canal DMX512 te permite controlar hasta 170 proyectores.
