Technical file
Product code
JW-DL15W-W
Light temperature
NW
Kelvin º
4000
Power (W)
15.0
Luminosity (LM)
900
Luminous efficacy (LM/W)
60
LED efficacy
110
Type of LEDs
Bridgelux Led
Number of LEDs
1
Measures (mm)
106x124
Roof cut (mm)
95
Long
124.0
Diameter
106
CRI
95
UGR
<15
Power factor (PF)
0.99
Construction
Alu/PC
Opening Angle (º)
36
Facility
IP20
Strain
220-240VAC
Estimated life (H)
50000
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-40+50
Lighting cycles
100000
Energy consumption (kWh/1000h)
15.0
Weight (gr)
1200
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Single CCT
4000
Minimum cri range
90
Maximum cri range
95
Driver
Lifud
Description
General Characteristics
• Luminaire Type: Fixed Recessed LED Downlight
• Rated Power: 15 W
• Luminous Flux: Approx. 1,350 lumens
• Luminous Efficacy: 90 lm/W
• Color Temperature: 4000 K (Natural White – Neutral Tone)
• Color Rendering Index (CRI): > 95
• Excellent color rendering, ideal for spaces where colors must appear true and natural.

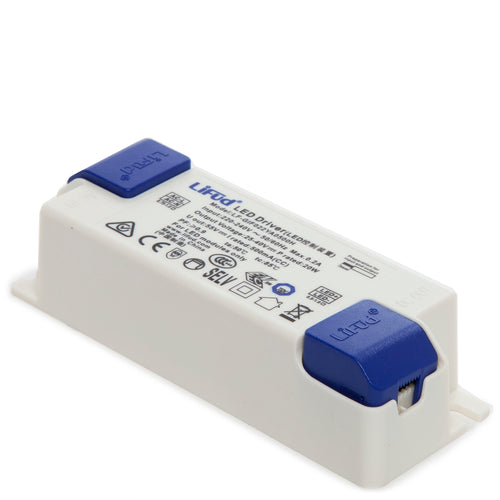

• Driver: High-quality, stable, and efficient Lifud driver.
• Estimated Lifespan: 50,000 hours
• Power Factor (PF): ≥ 0.9
• Input Voltage: 220–240 V AC / 50–60 Hz
• Start-up: Instant-on, flicker-free (depending on driver version).
• Dimmable: Available upon request (optional). Design and Materials
• Installation Type: Recessed in suspended or plasterboard ceilings.
• Body: High-quality die-cast aluminum with excellent heat dissipation.
• Body Color: Matte white.
• Diffuser: Opal or microprismatic for soft, uniform light.
• Adjustable: Fixed (non-adjustable).
Certifications and Warranty
• Certifications: CE, RoHS, ENEC (depending on the manufacturer's version).
• Warranty: 3–5 years.
Recommended Applications
• General lighting in:
o Offices, hotels, clinics, homes, shops, and restaurants.
• Spaces requiring high color fidelity:
o Museums, art galleries, jewelry stores, opticians, and fashion boutiques.
