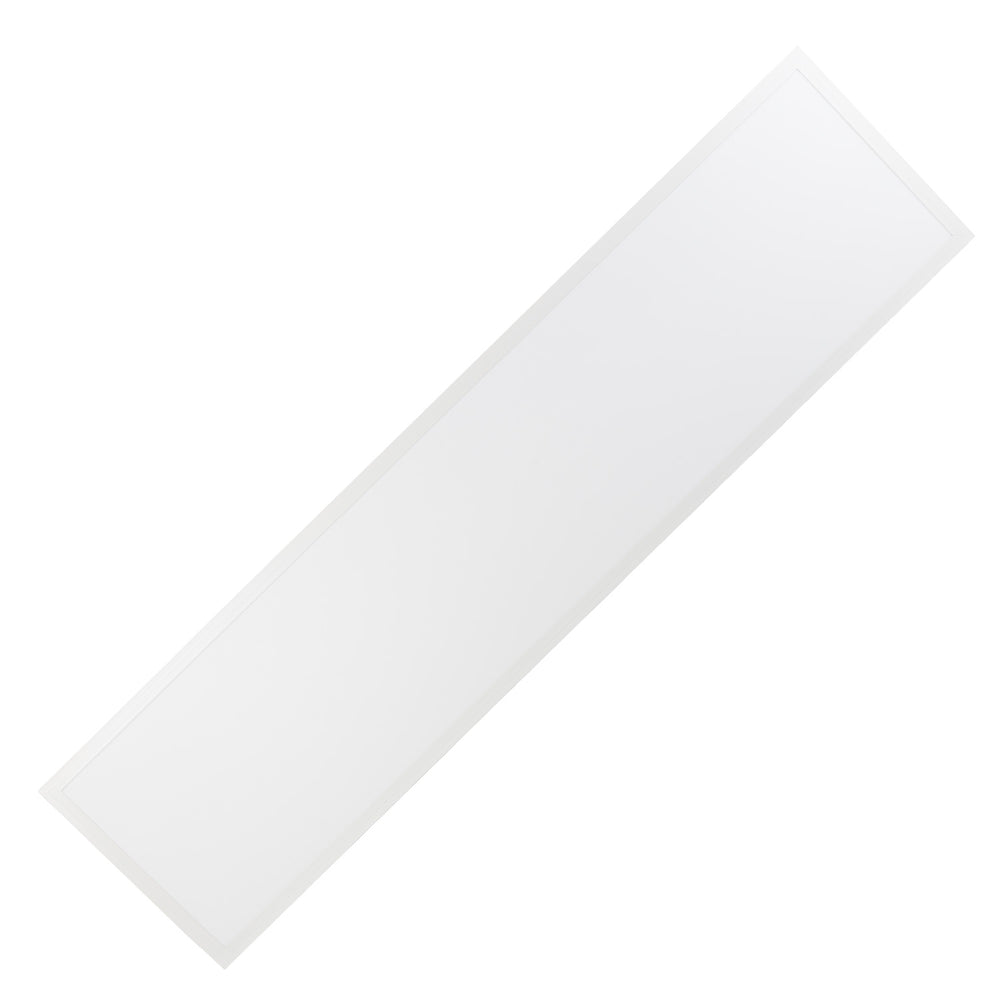

Superslim LED Panel 40W 4000Lm 4200ºK 120x30Cm White Frame Driver Lifud 40,000H [HO-LM5264-W]

Superslim LED Panel 40W 4000Lm 4200ºK 120x30Cm White Frame Driver Lifud 40,000H [HO-LM5264-W]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Lifud Driver
  • SkuHO-LM5264-W
  • AA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
30,04€
30,04€ 30,04€ %
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-LM5264-W_padreImg_ho_lm5264_w_0.jpeg)
Daylight
Available
Free shipping
30,04€
30,04€ 30,04€ %

Accessories

  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    12,81€
    15,71€ 12,81€ -18%
    Offer
  • (HZ-KITUSPENSION_padreImg_hz_kituspension_0.jpeg)

    Suspension Kit 970Mm LED Panels

    Offer
    GreenIce

    Suspension Kit 970Mm LED Panels

    3,79€
    5,07€ 3,79€ -25%
    Offer
  • (HO-KIT-MONSUP_padreImg_ho_kit_monsup_0.jpeg) (HO-KIT-MONSUP_padreImg_ho_kit_monsup_1.jpeg)

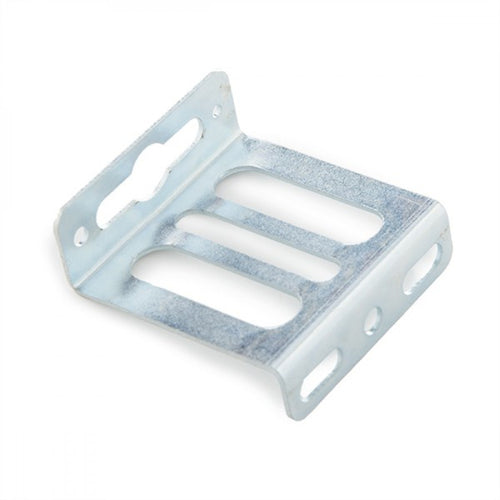

    Surface Mounting Kit for LED Panels

    Offer
    GreenIce

    Surface Mounting Kit for LED Panels

    5,43€
    6,18€ 5,43€ -12%
    Offer
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

    Set of 4 Clips for LED Panel Mounting

    Offer
    GreenIce

    Set of 4 Clips for LED Panel Mounting

    1,84€
    1,89€ 1,84€ -2%
    Offer
  • (CPS-LF-AAD040-42_padreImg_cps_lf_aad040_42_0.jpeg)

    Driver Lifud Adjustable DALI 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Offer
    Lifud Driver

    Driver Lifud Adjustable DALI 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    21,10€
    28,14€ 21,10€ -25%
    Offer
  • (CPS-LF-GSD040YA-40_padreImg_cps_lf_gsd040ya_40_0.jpeg) (CPS-LF-GSD040YA-40_padreImg_cps_lf_gsd040ya_40_1.jpeg)

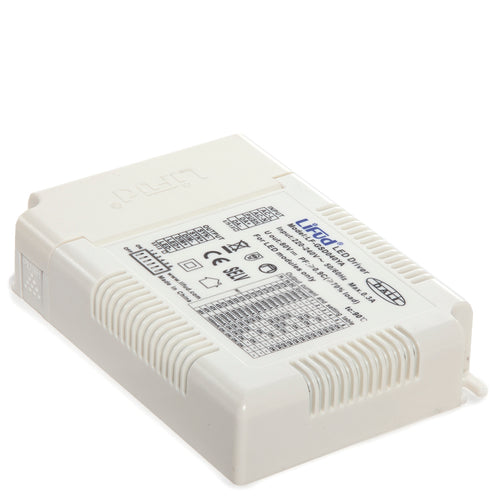

    Driver LIFUD 40W AC220-240V 5 en 1 DIM (Dali/Push/0-10V/PWM/RX) Flicker Free + DIP

    Offer
    Lifud Driver

    Driver LIFUD 40W AC220-240V 5 en 1 DIM (Dali/Push/0-10V/PWM/RX) Flicker Free + DIP

    35,77€
    55,03€ 35,77€ -34%
    Offer
  • (NE-M-P-1200300_padreImg_ne_m_p_1200300_0.jpeg) (NE-M-P-1200300_padreImg_ne_m_p_1200300_1.jpeg)

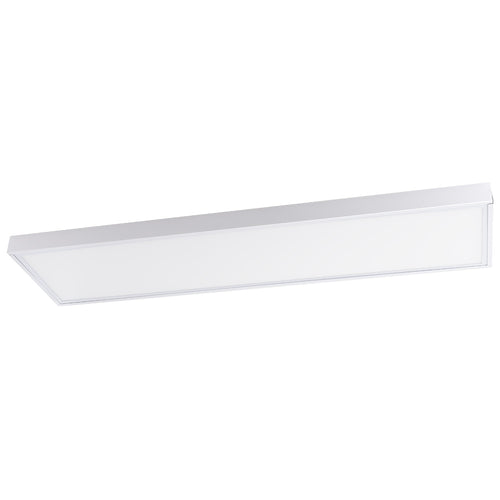

    Mounting Frame Surface Mounted LED Panel 120x30Cm

    Offer
    GreenIce

    Mounting Frame Surface Mounted LED Panel 120x30Cm

    16,69€
    23,84€ 16,69€ -29%
    Offer
  • (HO-AF-1200x300_padreImg_ho_af_1200x300_0.jpeg) (HO-AF-1200x300_padreImg_ho_af_1200x300_1.jpeg)

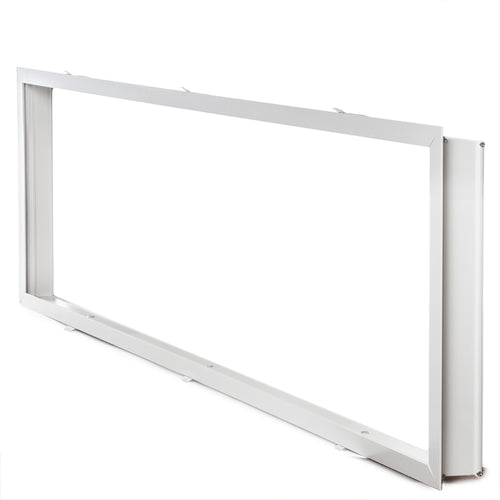

    Frame Aluminum LED Panel 120x30Cm

    Offer
    GreenIce

    Frame Aluminum LED Panel 120x30Cm

    14,21€
    20,29€ 14,21€ -29%
    Offer
  • (CPS-LF-AAA040B-42_padreImg_cps_lf_aaa040b_42_0.jpeg)

    Driver LIFUD Adjustable 0-10V 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Offer
    Lifud Driver

    Driver LIFUD Adjustable 0-10V 40W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    21,74€
    28,99€ 21,74€ -25%
    Offer

Technical file

Product code
HO-LM5264-W
Light temperature
Natural White
Kelvin º
4200
Power (W)
40.0
Luminosity (LM)
4000
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Samsung Led
Number of LEDs
240
Measures (mm)
1195x295x30
High
30.0
Long
1195.0
Broad
295.0
CRI
80
UGR
◄19
Diffuser
Microprismatic
Power factor (PF)
0.99
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP40
Strain
170-265VAC
Driver output
30-42V 1050mA
Estimated life (H)
40000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
40.0
Weight (gr)
2000
Flicker
0.97
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
4
Minimum cri range
95
Maximum cri range
3
Chromaticity x
0.393
Chromaticity y
0.391
Driver
Lifud
Número unidades caja exterior
5.0
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-LM5264-W
Light temperature
Natural White
Kelvin º
4200
Power (W)
40.0
Luminosity (LM)
4000
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Samsung Led
Number of LEDs
240
Measures (mm)
1195x295x30
High
30.0
Long
1195.0
Broad
295.0
CRI
80
UGR
◄19
Diffuser
Microprismatic
Power factor (PF)
0.99
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP40
Strain
170-265VAC
Driver output
30-42V 1050mA
Estimated life (H)
40000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
40.0
Weight (gr)
2000
Flicker
0.97
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
4
Minimum cri range
95
Maximum cri range
3
Chromaticity x
0.393
Chromaticity y
0.391
Driver
Lifud
Número unidades caja exterior
5.0
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

The 120x30Cm rectangular LED panel, has an elegant finish, white lacquered aluminum frame. With an immediate start, without noise and without flickering, this LED Panel is perfect for places in where you want to maximize the illuminated space, projecting light uniformly and without glare.

It offers solutions for offices, factories, supermarkets, shops and for residential use, due to its design and elegant finish it represents an efficient alternative for the most demanding designers. It can be installed directly to outlets supplied by the electrical network (170-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (95 Lm/W) consuming 40W through SMD2835 type LEDs and managing to provide a luminous flux of 2800Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 200W incandescent bulb, its consumption represents a value of 40kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

The panel has a degree of protection IP40 (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

These extra-flat LED screens consume up to 55% less and do not require any type of maintenance, thus avoiding replacements fattening tors or reactances. And having the advantage of being a much lighter and more manageable product.

The led panel can be used supported on Armstrong false ceiling, on plasterboard with the help of the fastening clips for led panels, with which we can embed said panel in the ceiling, or with suspension kits for led panels. These kits are made up of four tensors, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

This panel is available in natural white (4200°K ), cold white (6000°K).The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Documents

Installation_manual
