LED Plate 12W 1200Lm 2700ºK Square Golden 50,000H [GL-CL-S12N-G-WW]

LED Plate 12W 1200Lm 2700ºK Square Golden 50,000H [GL-CL-S12N-G-WW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuGL-CL-S12N-G-WW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
14,14€
23,58€ 14,14€ -40%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-40.03%(GL-CL-S12N-G-WW_padreImg_gl_cl_s12n_g_ww_0.jpeg)
Warm White
There are few
Free shipping
14,14€
23,58€ 14,14€ -40%

Accessories

  • (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_0.jpeg) (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_1.jpeg)

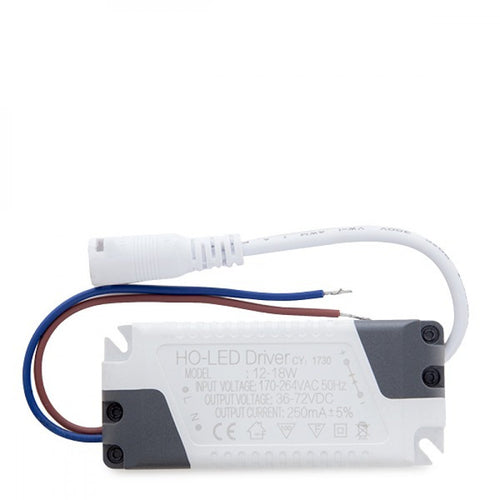

    Driver Non Dimmable Downlight LED 12W

    Offer
    GreenIce

    Driver Non Dimmable Downlight LED 12W

    1,82€
    4,02€ 1,82€ -54%
    Offer
  • (GR-DRDIM-12W_padreImg_gr_drdim_12w_0.jpeg) (GR-DRDIM-12W_padreImg_gr_drdim_12w_1.jpeg)

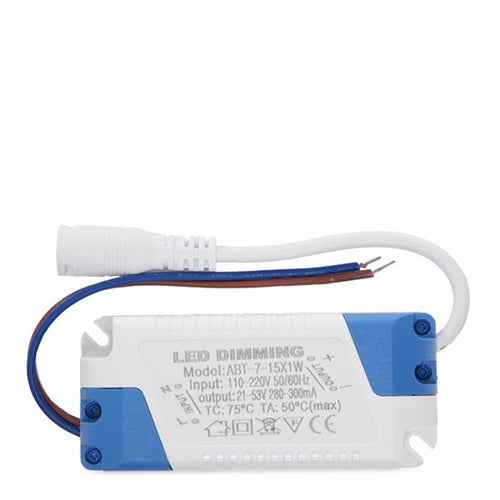

    Driver Dimmable Slimline Downlights 12W

    Offer
    GreenIce

    Driver Dimmable Slimline Downlights 12W

    6,56€
    10,10€ 6,56€ -35%
    Offer
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    12,68€
    15,54€ 12,68€ -18%
    Offer
  • (HO-HP-ND-12W_padreImg_ho_hp_nd_12w_0.jpeg) (HO-HP-ND-12W_padreImg_ho_hp_nd_12w_1.jpeg)

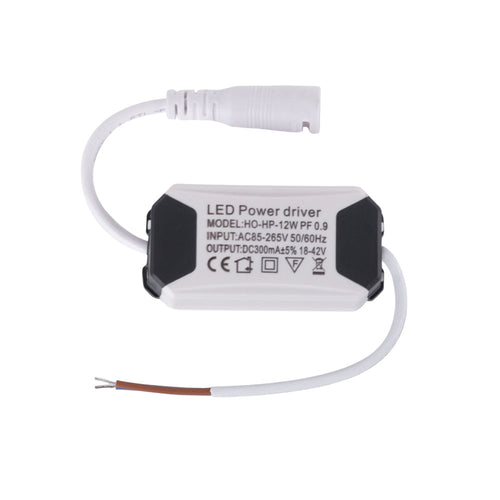

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 12W

    Offer
    GreenIce

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 12W

    1,33€
    1,75€ 1,33€ -24%
    Offer
  • (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_0.jpeg) (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_1.jpeg)

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    Offer
    GreenIce

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    28,81€
    29,60€ 28,81€ -2%
    Offer
  • (GR-DALI-12W_padreImg_gr_dali_12w_0.jpeg) (GR-DALI-12W_padreImg_gr_dali_12w_1.jpeg)

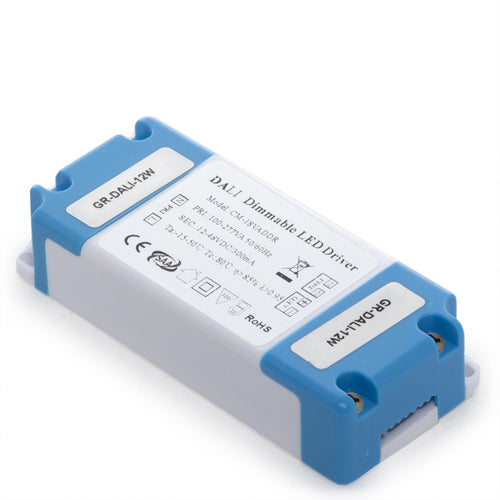

    Driver Adjustable DALI 12W

    Offer
    GreenIce

    Driver Adjustable DALI 12W

    24,45€
    32,61€ 24,45€ -25%
    Offer
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    6,51€
    6,51€ 6,51€ %
  • (CPS-LF-GIF015YA-10_padreImg_cps_lf_gif015ya_10_0.jpeg) (CPS-LF-GIF015YA-10_padreImg_cps_lf_gif015ya_10_1.jpeg)

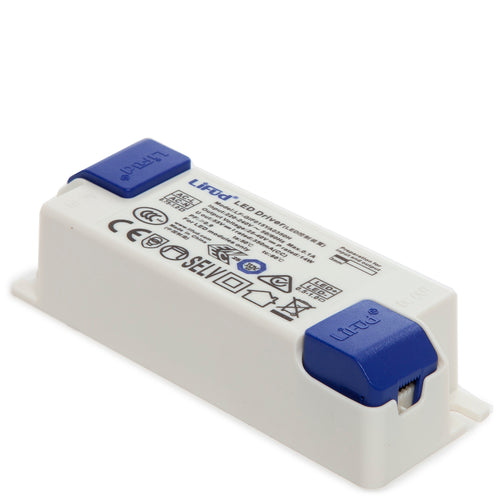

    Driver LIFUD 10W In::220-240VAC Out::25-40VDC Flicker Free

    Offer
    Lifud Driver

    Driver LIFUD 10W In::220-240VAC Out::25-40VDC Flicker Free

    5,77€
    7,70€ 5,77€ -25%
    Offer

Technical file

Product code
GL-CL-S12N-G-WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar Led
Number of LEDs
60
Measures (mm)
172x172
Roof cut (mm)
150x150
High
172.0
Long
172.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
326
Flicker
0.63
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
2
Minimum cri range
97
Maximum cri range
19
Chromaticity x
0.436
Chromaticity y
0.412
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
GL-CL-S12N-G-WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar Led
Number of LEDs
60
Measures (mm)
172x172
Roof cut (mm)
150x150
High
172.0
Long
172.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
326
Flicker
0.63
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
2
Minimum cri range
97
Maximum cri range
19
Chromaticity x
0.436
Chromaticity y
0.412
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 170x170mm square LED plate, with ultra-thin dimensions (20mm), offers solutions for offices, factories, supermarkets, shops and residential use. It can be installed directly to the supplied power sockets by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (72 Lm/W) consuming 12W through SMD2835 type LEDs and managing to provide a luminous flux of 860Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 75W incandescent light bulb, its consumption represents a value of 12kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This board is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (24-42VDC, 300mA), additionally the necessary accessories for the installation of the plate are included. White finish built with aluminum.

The plate has a IP25 degree of protection (valid for dust and humidity indoors),in addition to being robust enough for the required mechanical demands .

This plate is available in warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. They are also very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.
