20W 36º CCT Track Spotlight (Adjustable Light Tone) Black Finish

20W 36º CCT Track Spotlight (Adjustable Light Tone) Black Finish

See questions and answers

For additional amounts the delivery period is 1 days As of the order date
  • + Philips Led
  • Sku:HT-TL04A25-B
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 20-55 º Opening
  • Certificado ENEC
28,97€
28,97€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 20-55 º Opening
  • Certificado ENEC
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HT-TL04A25-B_padreImg_ht_tl04a25_b_0.png)
CCT
Available
Free shipping
28,97€
28,97€ Infinity%

Technical file

Product code
HT-TL04A25-B
Light temperature
CCT
Power (W)
20.0
Luminosity (LM)
2600
Luminous efficacy (LM/W)
130
LED efficacy
140
Type of LEDs
Philips LED
Number of LEDs
1
Measures (mm)
100x100x47
High
100.0
Long
100.0
Broad
47.0
Diameter
Ø100
CRI
95
UGR
◄15
Diffuser
Transparent
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
20-55
Facility
IP20
Strain
AC 230 V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
150
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
620
Flicker
0.48
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Directional
Single/range CCT
CCT
INDEX R9
8
Minimum cri range
96
Maximum cri range
50
Chromaticity x
0.429
Chromaticity y
0.404
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
20.0

Characteristics

Product code
HT-TL04A25-B
Light temperature
CCT
Power (W)
20.0
Luminosity (LM)
2600
Luminous efficacy (LM/W)
130
LED efficacy
140
Type of LEDs
Philips LED
Number of LEDs
1
Measures (mm)
100x100x47
High
100.0
Long
100.0
Broad
47.0
Diameter
Ø100
CRI
95
UGR
◄15
Diffuser
Transparent
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
20-55
Facility
IP20
Strain
AC 230 V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
150
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
620
Flicker
0.48
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Directional
Single/range CCT
CCT
INDEX R9
8
Minimum cri range
96
Maximum cri range
50
Chromaticity x
0.429
Chromaticity y
0.404
Minimum CCT range
2700
Maximum cri range
6000
Número unidades caja exterior
20.0

Description

El Foco Carril LED 20W 36º CCT con acabado negro está diseñado para ofrecer una iluminación profesional, eficiente y versátil en espacios comerciales, escaparates, exposiciones, oficinas y proyectos de interiorismo.

Incorpora tecnología CCT (Correlated Color Temperature), que permite seleccionar la tonalidad de luz y adaptar la iluminación a las necesidades de cada espacio. Esta funcionalidad facilita la gestión de stock al disponer de varias temperaturas de color en una única luminaria.

Su ángulo de apertura de 36° proporciona un haz de luz definido y equilibrado, especialmente indicado para iluminación de acento y para destacar productos, zonas concretas o elementos decorativos.

El cuerpo presenta un acabado negro de diseño moderno y minimalista, integrándose fácilmente en instalaciones contemporáneas. Su instalación sobre carril permite orientar el foco y modificar su posición según las necesidades del proyecto, proporcionando una elevada flexibilidad en la distribución de la iluminación.

Con una potencia de 20W, constituye una solución eficiente para instalaciones profesionales que buscan combinar rendimiento lumínico, versatilidad y una estética cuidada.

Documents

Installation_manual

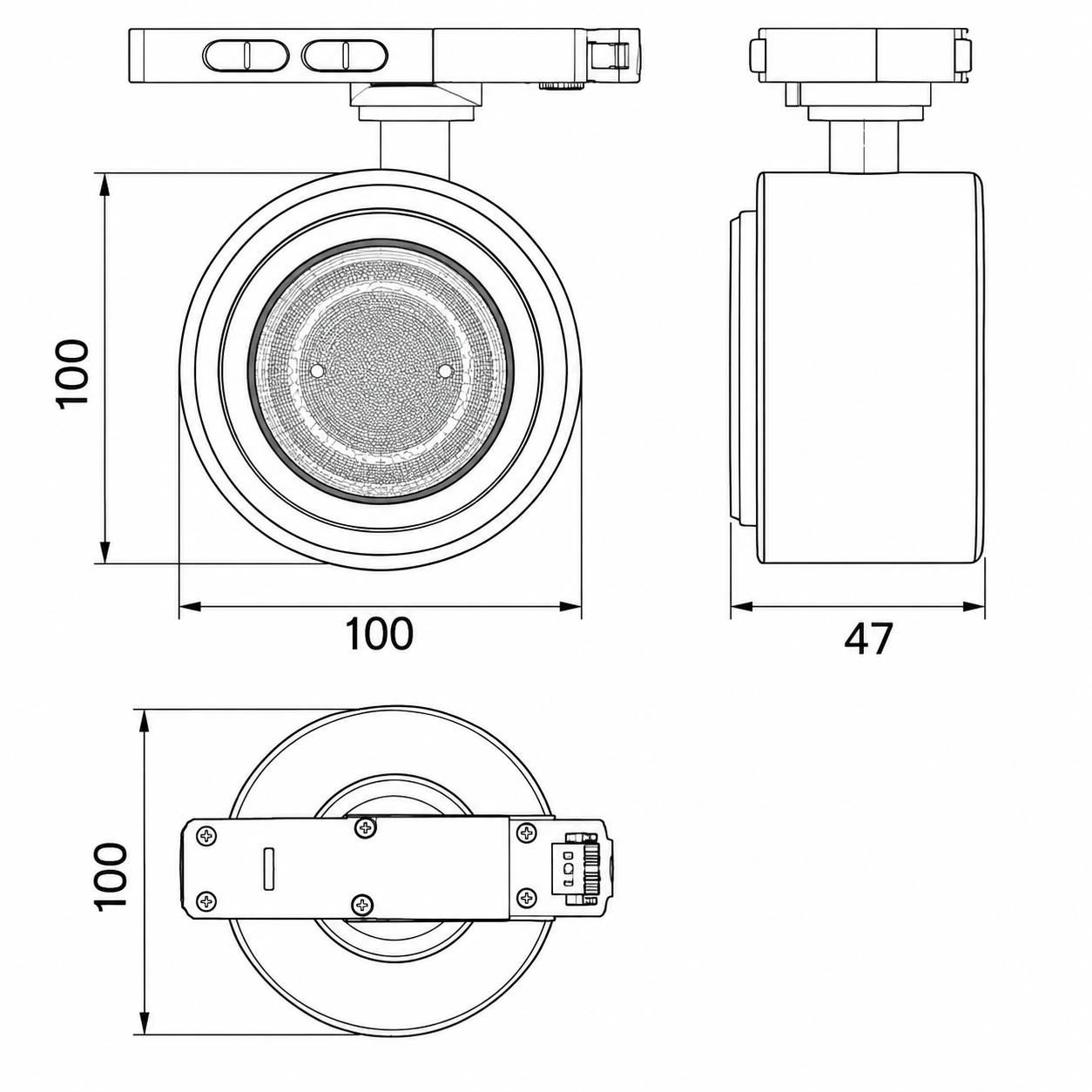

Technical_drawings
