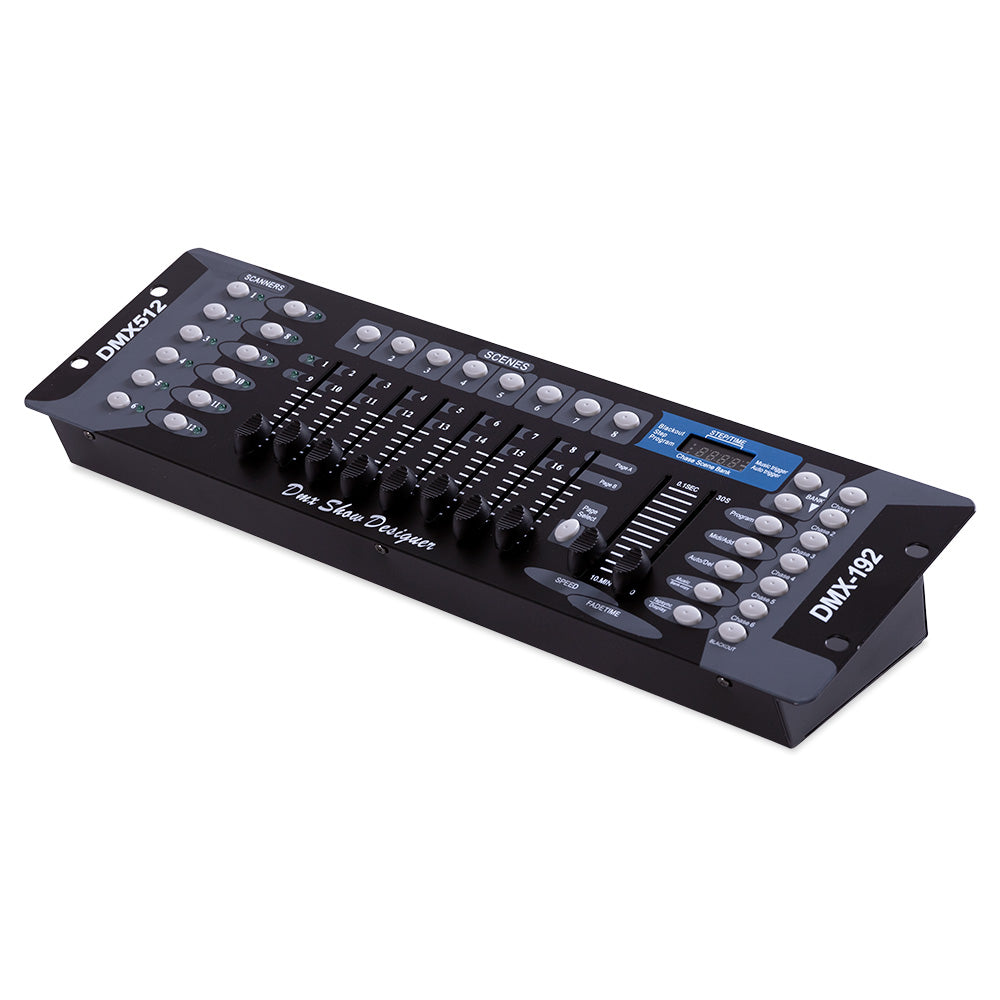

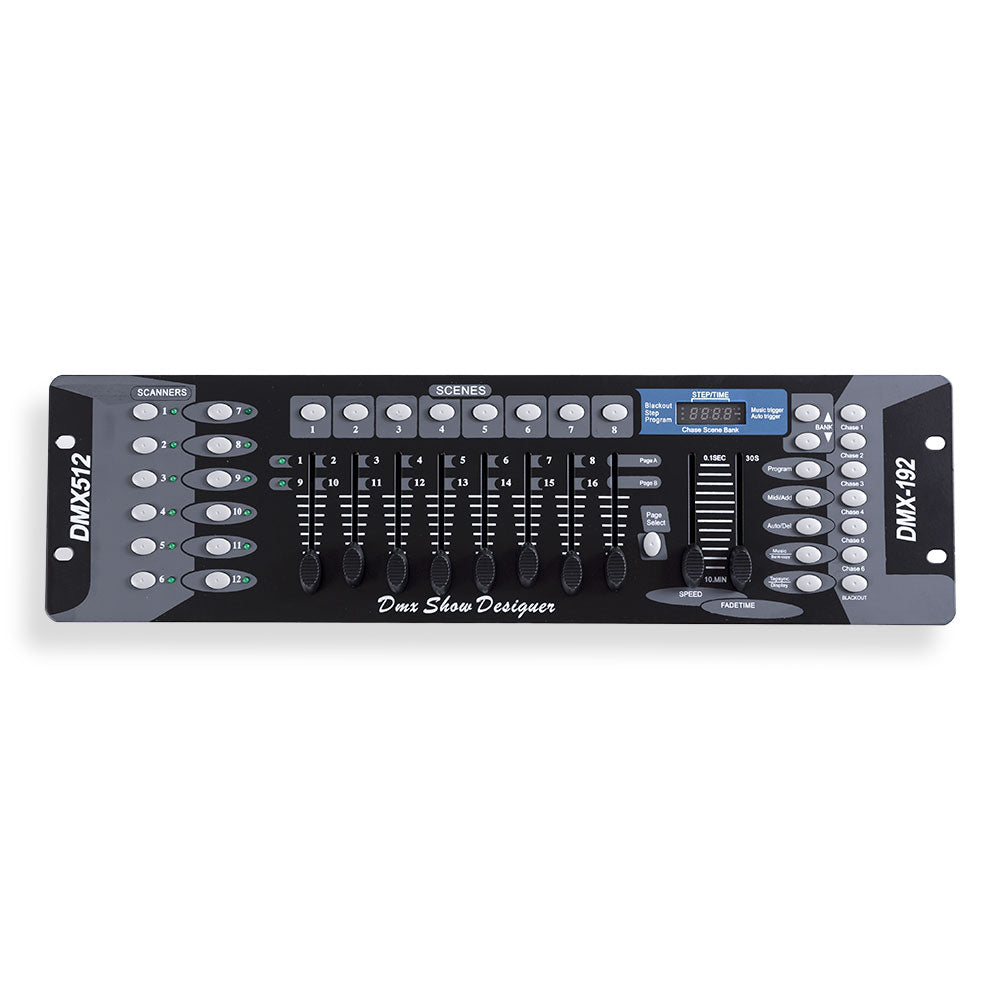

Controller DMX512 9-12VDC 192 Channels

Controller DMX512 9-12VDC 192 Channels

For additional amounts the delivery period is 25 days As of the order date
  • Brand:GreenIce
  • SkuTB-DMX512-192K
Warranty
  • Warranty 3 years
Documents
105,42€
105,42€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(TB-DMX512-192K_padreImg_tb_dmx512_192k_0.jpeg)
##
There are few
Free shipping
105,42€
105,42€ Infinity%

Technical file

Product code
TB-DMX512-192K
Measures (mm)
520x140x90
Construction
Aluminum
Facility
IP20
Strain
9-12VDC
Work frequency (Hz)
50/ 60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +60
Weight (gr)
2500
Additional information
Detailed instructions in "Documents" tab.

Characteristics

Product code
TB-DMX512-192K
Measures (mm)
520x140x90
Construction
Aluminum
Facility
IP20
Strain
9-12VDC
Work frequency (Hz)
50/ 60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +60
Weight (gr)
2500
Additional information
Detailed instructions in "Documents" tab.

Description

Main features:

1. 192DMX channels.

2. 23 banks each made up of 8 programmable scenes.

3. 8 fades out adjusting the output level.

4. Built-in microphone.

5. AUTO mode is controlled by TAPSYNC and controlled by SPEED.

6. MIDI control through the MIDI interface.

7. 4-digit LED display.

8. The first digit of the LED shows CHASES, the second digit of the LED shows scenes.

9. The third and fourth digits of the LED show BANKS.

10. The second, third, fourth digit of the LED shows steps or 0-255 or TIME,

11. Blackout master controlled by M annual or R emotr.

12. CHASE programming and CHASE execution, manual control and remote control.

13. Fade time control.

14. DMX polarity selections.

Technical specifications:

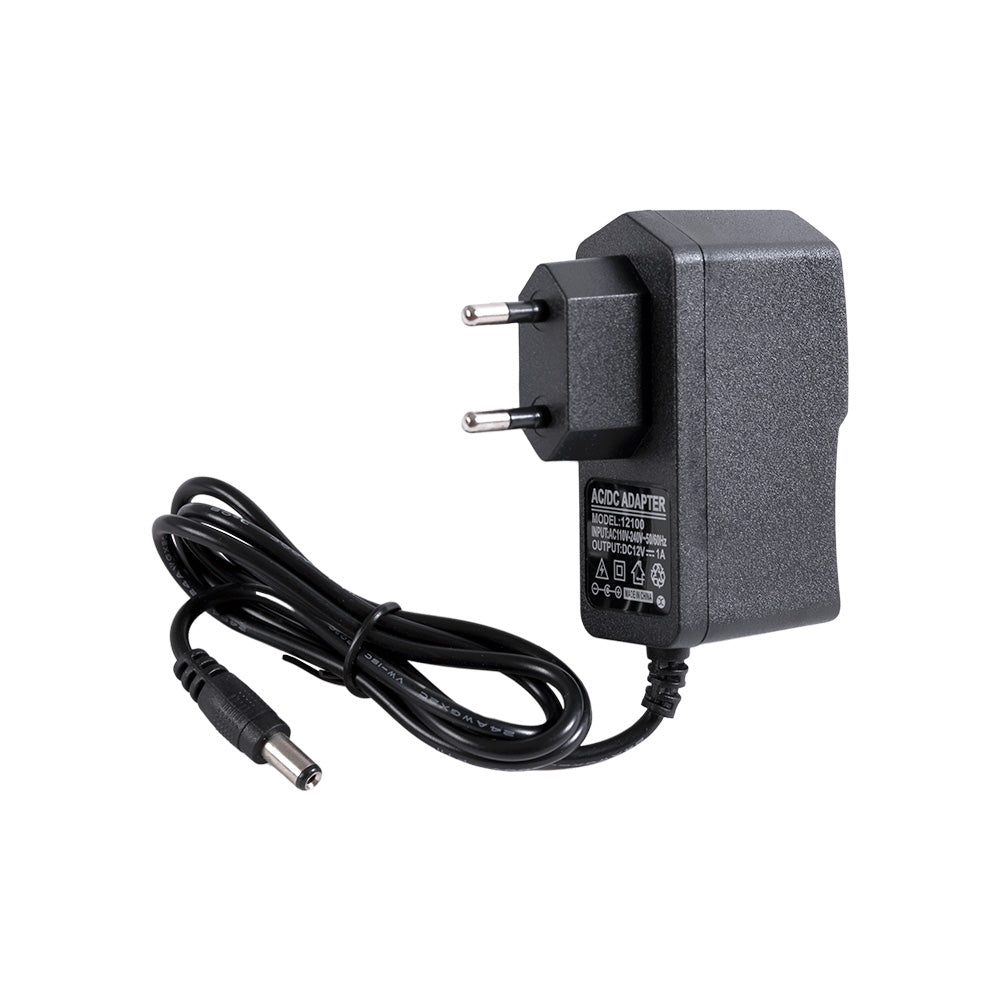

€¢ Power input: DC+9-12V

€¢ Output : 230 V AC ~ 50 Hz (120 V AC ~ 60 Hz) 300 Ma, 9 V DC - 1 A

€¢ Weight: 2.5Kg

General description :

1. There are 192 DMX channels that adjust the output level in each scene.

2. There are 8 scenes available to program for each bank. When a scene is executed, all the scenes in a bank will be executed continuously in a loop.

3. Select the desired bank using the UP and DOWN buttons. You can also select the desired bank using MIDI signals through the MIDI interface, there are a total of 23 banks, once only one can be selected.

4. Scenes can be run automatically. And the duration depends on TAP SYNC. Scenes run under music trigger or NOTE, also press a scene buttons by hand to run scenes.

5. There are a total of 6 chases, each containing 184 scenes. You can choose CHASES.

6. Execution of one or more, and MIDI signal remote control.
