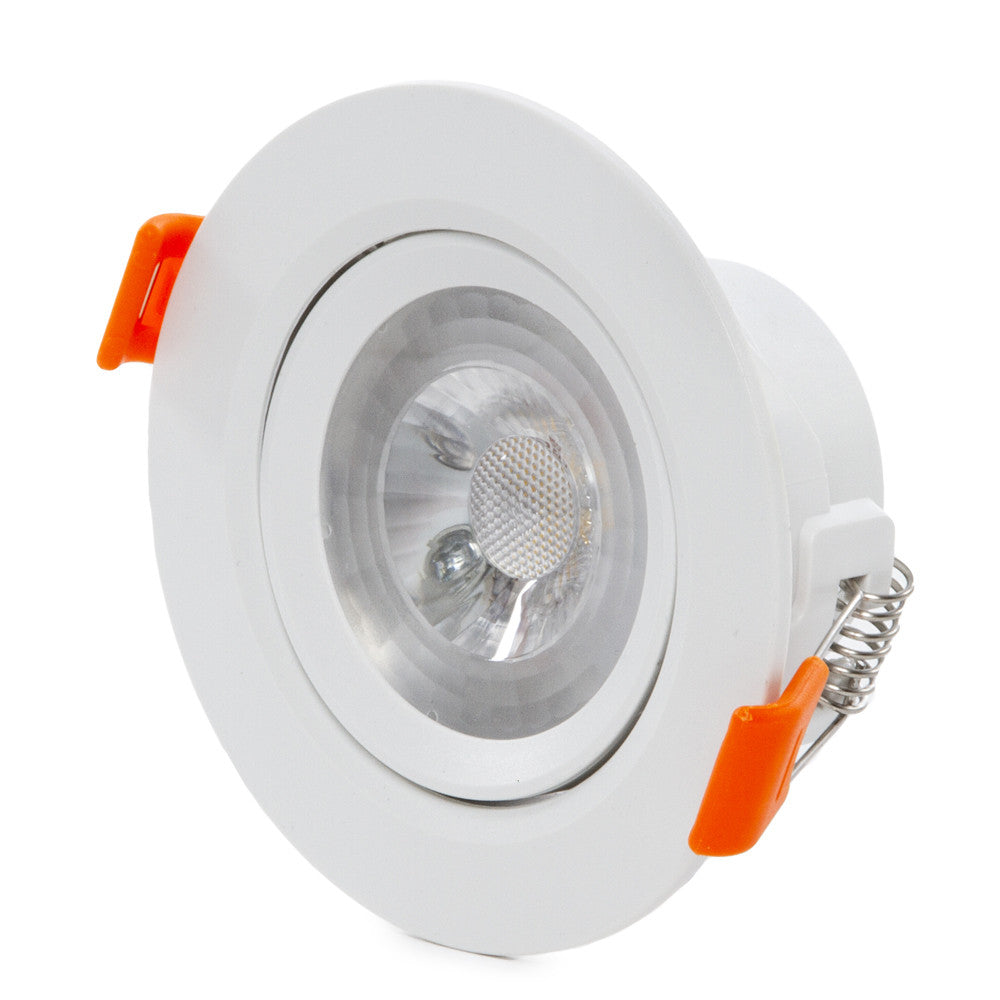

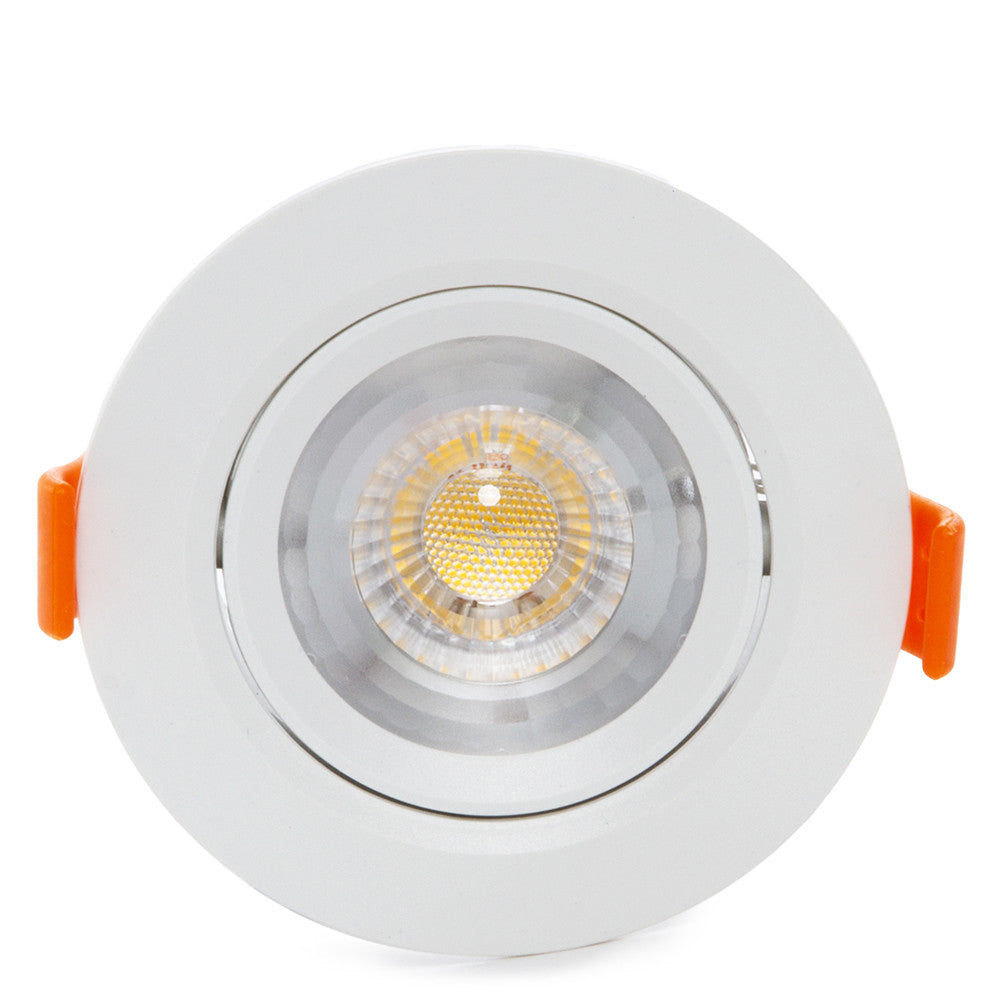

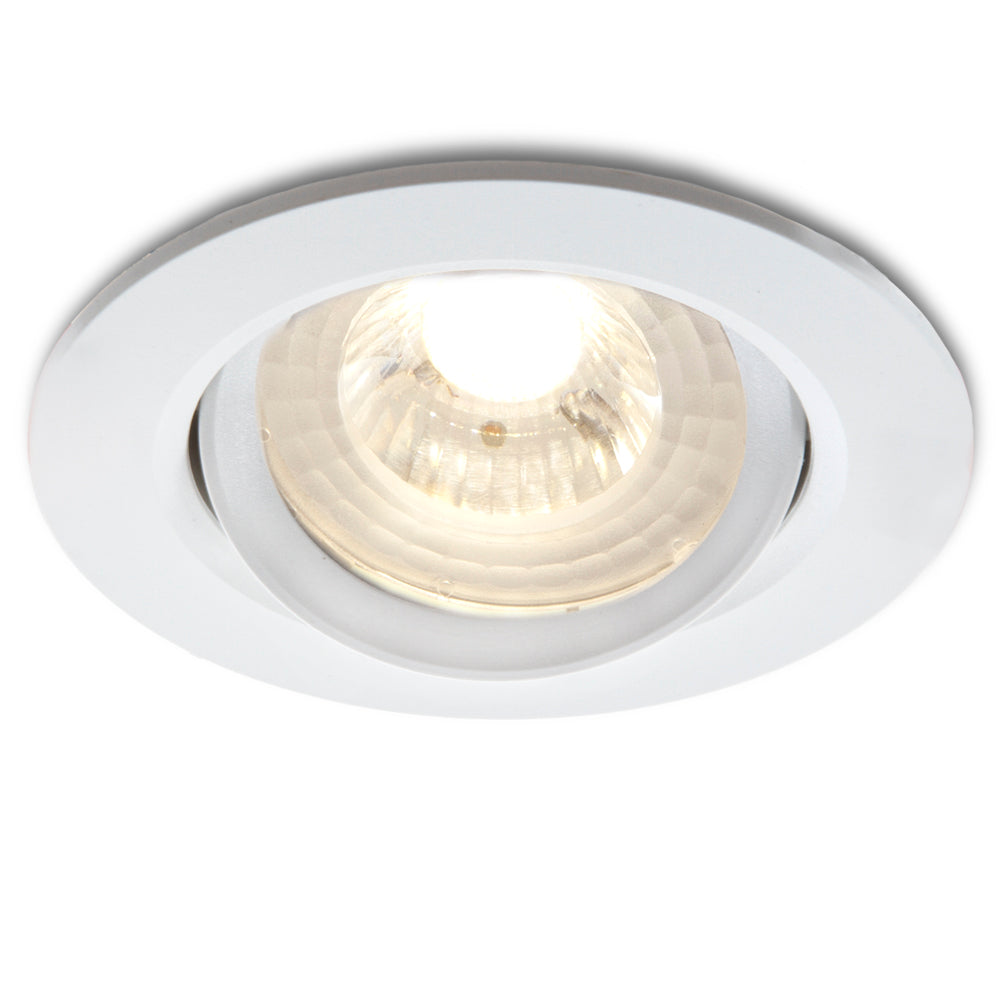

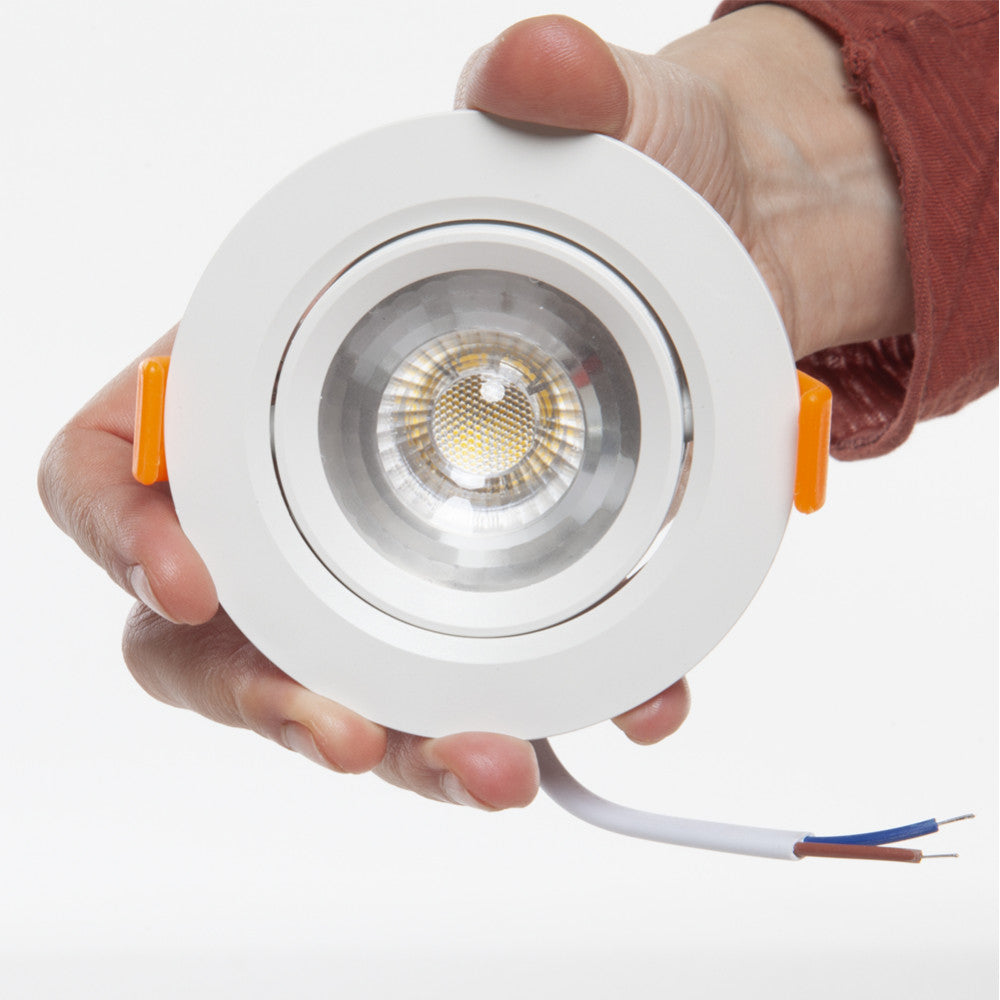

LED Circular Downlight Spotlight 7W 630Lm 6000ºK 40,000H [LM-4203-CW]

LED Circular Downlight Spotlight 7W 630Lm 6000ºK 40,000H [LM-4203-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuLM-4203-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 90 º Opening
3,72€
3,72€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 90 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(LM-4203-CW_padreImg_lm_4203_cw_0.jpeg)
Cool White
Stock available
Free shipping
3,72€
3,72€ Infinity%

Accessories

  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    7,60€
    7,60€ Infinity%
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    4,49€
    4,49€ Infinity%

Technical file

Product code
LM-4203-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
7.0
Luminosity (LM)
630
Luminous efficacy (LM/W)
90
LED efficacy
99
Type of LEDs
Epistar Led
Measures (mm)
90x35
Roof cut (mm)
75
High
35.0
Diameter
90
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
PVC/ ABS
Opening Angle (º)
90
Facility
IP20
Strain
170-265VAC
Driver output
DC28-36V 200ma
Estimated life (H)
40000
Dimable
No
Equivalence (W)
60
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
7.0
Weight (gr)
200
Flicker
0.86
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
88
Maximum cri range
22
Chromaticity x
0.32
Chromaticity y
0.338
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
LM-4203-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
7.0
Luminosity (LM)
630
Luminous efficacy (LM/W)
90
LED efficacy
99
Type of LEDs
Epistar Led
Measures (mm)
90x35
Roof cut (mm)
75
High
35.0
Diameter
90
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
PVC/ ABS
Opening Angle (º)
90
Facility
IP20
Strain
170-265VAC
Driver output
DC28-36V 200ma
Estimated life (H)
40000
Dimable
No
Equivalence (W)
60
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
7.0
Weight (gr)
200
Flicker
0.86
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
88
Maximum cri range
22
Chromaticity x
0.32
Chromaticity y
0.338
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 90mm diameter circular LED downlight with a thickness of (35mm), offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (170-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (90 Lm/W) consuming 7W through a COB type LED and managing to provide a luminous flux of630Lmevenly distributed by an anti-glare opal diffuser of where a color rendering index of 80 is obtained. It provides lighting equivalent to a 50W incandescent bulb, its consumption represents a value of 7kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere .

White finish built with aluminum and polycarbonate. The Downlight has a degree of IP20 protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

It is made of high-quality materials such as aluminium, which ensures the durability of the spotlight. It offers uniform lighting without annoying reflections. In addition, it has the CE and RoHS certificates, which are synonymous with quality and safety.

The Downlight spotlight has a high color rendering index (CRI 80)< /strong> and thus ensures undistorted color reproduction. This factor is key in commercial environments and spaces where products are displayed in general, such as supermarkets, shops, malls, museums, dealerships, restaurants, etc.

This Downlight is available in natural white (4200 °K), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
