LED Panel 40W 5,000Lm 6000ºK 60x60Cm High Lumen UGR19 60,000H [HO-LP-40W-U19-CW]

LED Panel 40W 5,000Lm 6000ºK 60x60Cm High Lumen UGR19 60,000H [HO-LP-40W-U19-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuHO-LP-40W-U19-CW
  • AAA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
19,96€
19,96€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-LP-40W-U19-CW_padreImg_ho_lp_40w_u19_cw_0.jpeg)
Cool White
Stock available
Free shipping
19,96€
19,96€ Infinity%

Accessories

  • (HZ-KITUSPENSION_padreImg_hz_kituspension_0.jpeg)

    Suspension Kit 970Mm LED Panels

    GreenIce

    Suspension Kit 970Mm LED Panels

    2,80€
    2,80€ Infinity%
  • (HO-AF-600x600_padreImg_ho_af_600x600_0.jpeg) (HO-AF-600x600_padreImg_ho_af_600x600_1.jpeg)

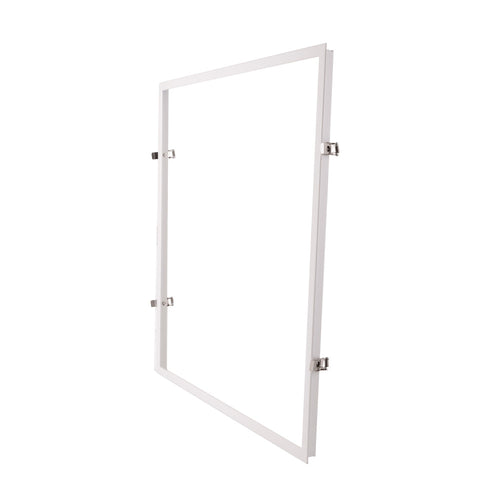

    Frame Aluminum LED Panel 60x60Cm

    GreenIce

    Frame Aluminum LED Panel 60x60Cm

    9,09€
    9,09€ Infinity%
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    9,42€
    9,42€ Infinity%
  • (HO-KIT-MONSUP_padreImg_ho_kit_monsup_0.jpeg) (HO-KIT-MONSUP_padreImg_ho_kit_monsup_1.jpeg)

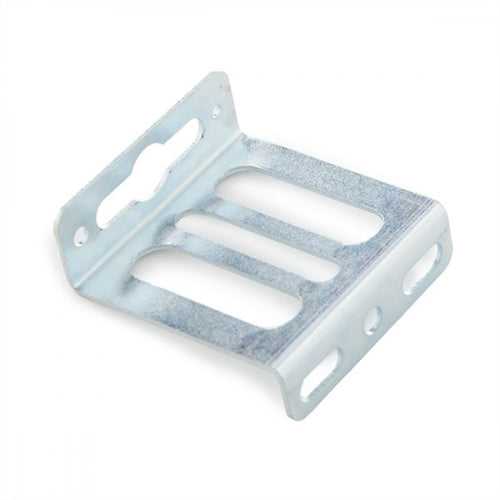

    Surface Mounting Kit for LED Panels

    GreenIce

    Surface Mounting Kit for LED Panels

    3,88€
    3,88€ Infinity%
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

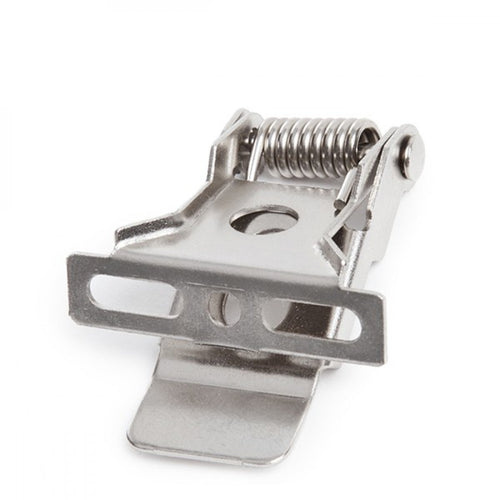

    Set of 4 Clips for LED Panel Mounting

    GreenIce

    Set of 4 Clips for LED Panel Mounting

    1,23€
    1,23€ Infinity%
  • (NE-M-P-600600_padreImg_ne_m_p_600600_0.jpeg) (NE-M-P-600600_padreImg_ne_m_p_600600_1.jpeg)

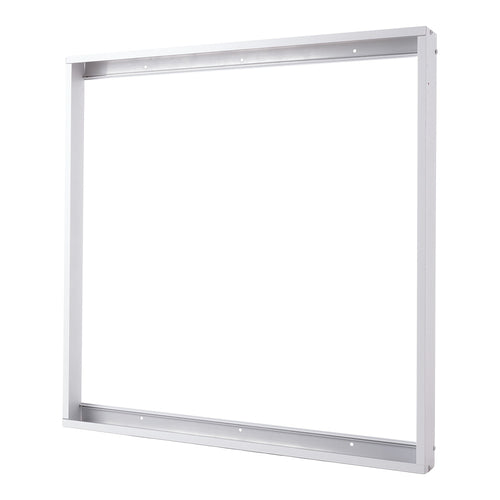

    Mounting Frame Surface Mounted LED Panel 60x60Cm

    GreenIce

    Mounting Frame Surface Mounted LED Panel 60x60Cm

    10,12€
    10,12€ Infinity%

Technical file

Product code
HO-LP-40W-U19-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
40.0
Luminosity (LM)
5000
Luminous efficacy (LM/W)
125
LED efficacy
137
Type of LEDs
Epistar Led
Number of LEDs
48
Measures (mm)
600x600x40
High
40.0
Long
600.0
Broad
600.0
CRI
80
UGR
◄19
Diffuser
Microprismatic
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC
Driver output
DC55-86V
Estimated life (H)
60000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
40.0
Weight (gr)
1440
Flicker
0.96
Half -year useful life (at 3 h/day)
54.79
Half -Year Useful Life (5 h/day)
32.87
Half -year useful life (at 8 h/day)
20.54
Directional
Non-Directional
Single/range CCT
Single Value
Single CCT
6000
INDEX R9
18
Minimum cri range
92
Maximum cri range
14
Chromaticity x
0.323
Chromaticity y
0.353
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-LP-40W-U19-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
40.0
Luminosity (LM)
5000
Luminous efficacy (LM/W)
125
LED efficacy
137
Type of LEDs
Epistar Led
Number of LEDs
48
Measures (mm)
600x600x40
High
40.0
Long
600.0
Broad
600.0
CRI
80
UGR
◄19
Diffuser
Microprismatic
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC
Driver output
DC55-86V
Estimated life (H)
60000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
40.0
Weight (gr)
1440
Flicker
0.96
Half -year useful life (at 3 h/day)
54.79
Half -Year Useful Life (5 h/day)
32.87
Half -year useful life (at 8 h/day)
20.54
Directional
Non-Directional
Single/range CCT
Single Value
Single CCT
6000
INDEX R9
18
Minimum cri range
92
Maximum cri range
14
Chromaticity x
0.323
Chromaticity y
0.353
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

The 60x60cm High Lumen LED Panel has an elegant finish and a white lacquered aluminum frame. With an immediate start-up, without noise and without flickering, this LED Panel is perfect for places where you want to maximize the illuminated space, projecting light uniformly and without glare.

It offers solutions for offices, factories , supermarkets, shops and for residential use, due to its elegant design and finish, it represents an efficient alternative for the most demanding designers. It can be installed directly to outlets supplied by the electrical network (220-240VAC) with a service frequency of 50/60Hz. It has a high efficiency (125 Lm/W) consuming 40W through SMD2835 type LEDs and managing to provide a luminous flux of 5000Lm uniformly distributed through an opalized plastic diffuser from which a color rendering index of 80 is obtained. < /strong>It provides lighting equivalent to a 200W incandescent bulb, its consumption represents a value of 40kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This panel is powered by a non-dimmable driver included in the package that must be connected directly to the network.

White finish made of aluminum. The panel has an IP25 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.

These extra-flat LED screens consume up to 55% less and they do not require any type of maintenance, with which we avoid substitutions of primers or reactances. And having the advantage of being a much lighter and more manageable product.

The led panel can be used supported on Armstrong false ceiling, on plasterboard with the help of the fastening clips for led panels, with which we can embed said panel in the ceiling, or with suspension kits for led panels. These kits are made up of four tensors, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

This panel is available in natural white (4200°K ) and cold white (6000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
