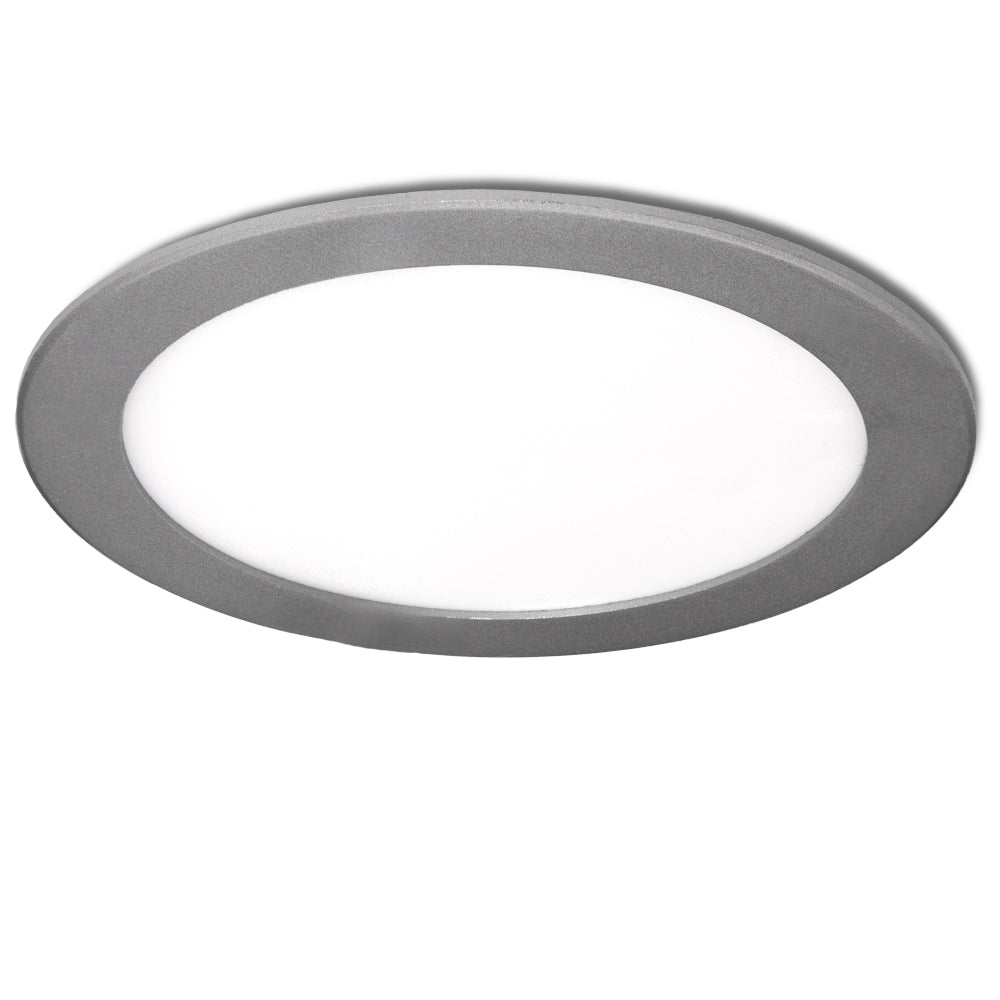

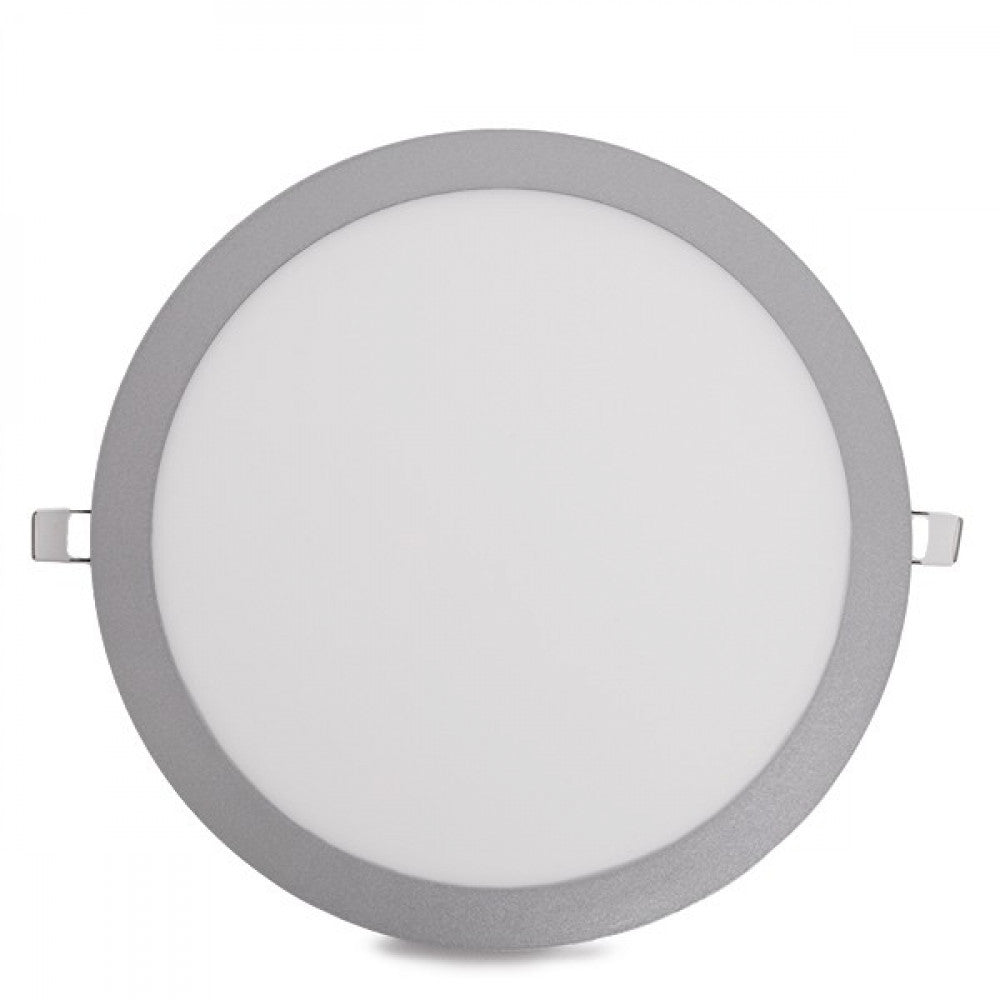

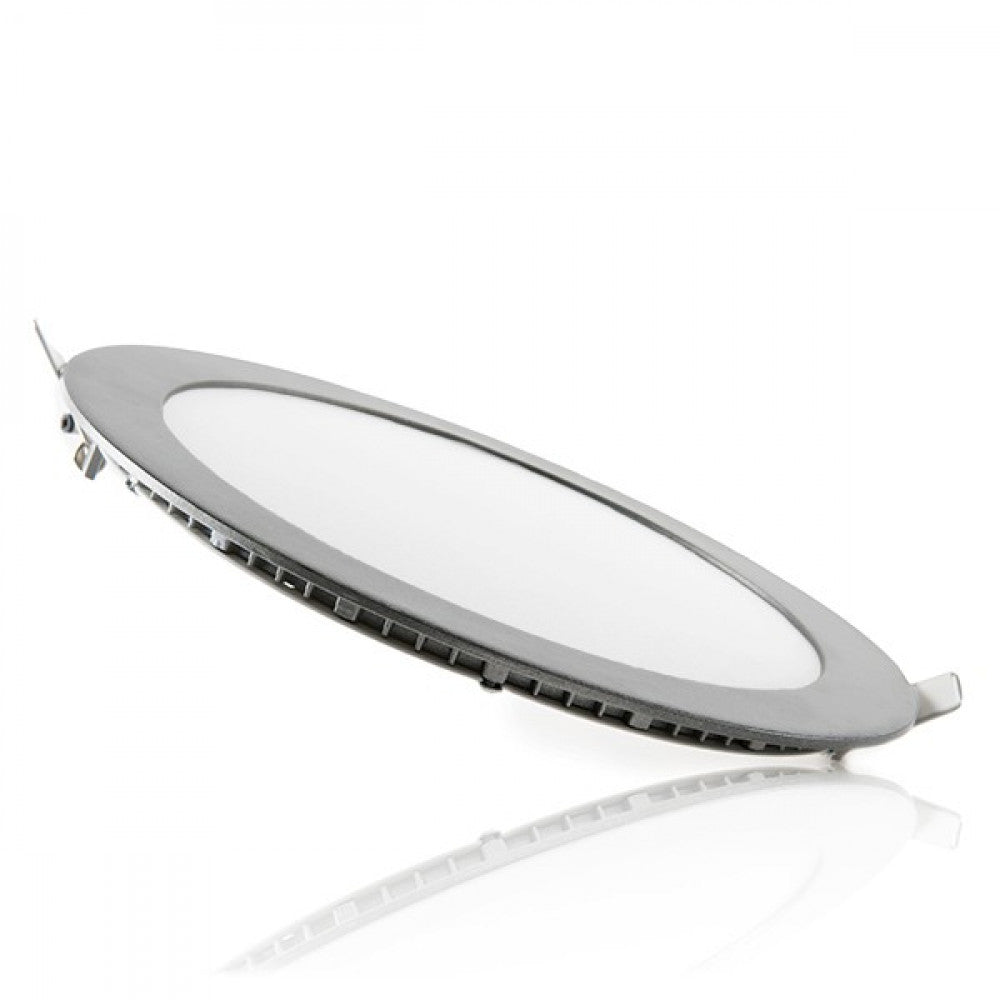

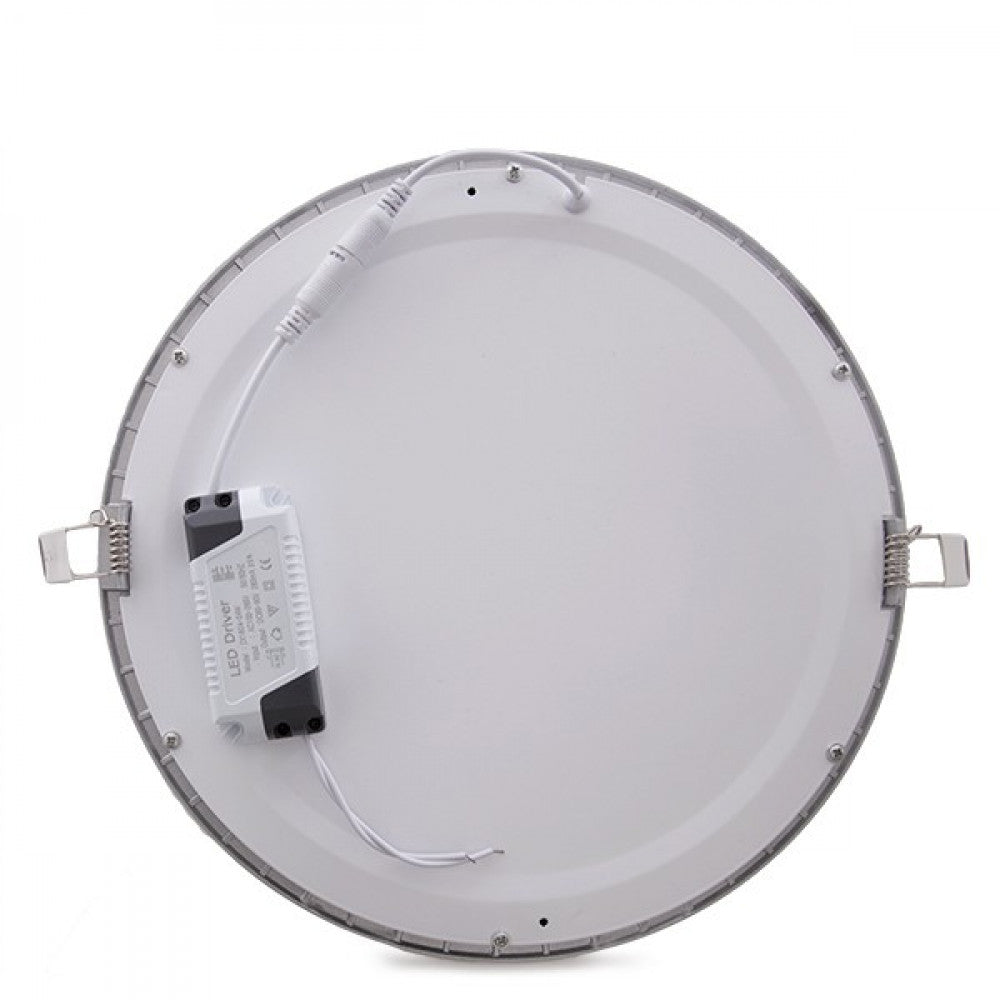

LED Plate 25W 2500Lm 2700ºK Circular 40,000H [GR-RDP16-25W-PL-WW]

LED Plate 25W 2500Lm 2700ºK Circular 40,000H [GR-RDP16-25W-PL-WW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuGR-RDP16-25W-PL-WW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
10,94€
10,94€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
(GR-RDP16-25W-PL-CW_padreImg_gr_rdp16_25w_pl_cw_0.jpeg)
Warm White
There are few
Free shipping
10,94€
10,94€ Infinity%

Accessories

  • (CPS-LF-AAD030_padreImg_cps_lf_aad030_0.jpeg)

    Driver Lifud Adjustable DALI 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Lifud Driver

    Driver Lifud Adjustable DALI 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    16,45€
    16,45€ Infinity%
  • (CPS-LF-GDE030YG_padreImg_cps_lf_gde030yg_0.jpeg)

    Driver LIFUD Adjustable Triac Dim 22-28W In: 220-240V Out: 25-40VDC Flicker Free

    Lifud Driver

    Driver LIFUD Adjustable Triac Dim 22-28W In: 220-240V Out: 25-40VDC Flicker Free

    19,93€
    19,93€ Infinity%
  • (CPS-LF-AAA030_padreImg_cps_lf_aaa030_0.jpeg)

    Driver LIFUD Adjustable 0-10V 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Lifud Driver

    Driver LIFUD Adjustable 0-10V 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    16,74€
    16,74€ Infinity%

Technical file

Product code
GR-RDP16-25W-PL-WW
Light temperature
NW
Kelvin º
2700
Power (W)
25.0
Luminosity (LM)
2500
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar Led
Number of LEDs
120
Measures (mm)
Ø295x17
Roof cut (mm)
Ø275
High
17.0
Diameter
295
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
170
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
25.0
Weight (gr)
620
Flicker
0.89
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
5
Minimum cri range
96
Maximum cri range
7
Chromaticity x
0.392
Chromaticity y
0.379
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Características

Product code
GR-RDP16-25W-PL-WW
Light temperature
NW
Kelvin º
2700
Power (W)
25.0
Luminosity (LM)
2500
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar Led
Number of LEDs
120
Measures (mm)
Ø295x17
Roof cut (mm)
Ø275
High
17.0
Diameter
295
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
170
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
25.0
Weight (gr)
620
Flicker
0.89
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
5
Minimum cri range
96
Maximum cri range
7
Chromaticity x
0.392
Chromaticity y
0.379
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Descripción

LED Plate 25W 2,000Lm 6000ºK Circular 40,000H [GR-RDP16-25W-PL-CW]
