LED Recessed Downlight 24W 2400Lm 2700ºK Rectangular Variable Cut 40,000H [WR-FWWB-F-24W-WW

LED Recessed Downlight 24W 2400Lm 2700ºK Rectangular Variable Cut 40,000H [WR-FWWB-F-24W-WW

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuHO-FWWB-F-24W-WW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
3,25€
3,25€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-FWWB-F-24W-CW_padreImg_ho_fwwb_f_24w_cw_0.jpeg)
Warm White
Stock available
Free shipping
3,25€
3,25€ Infinity%

Accessories

  • (SB-BS036B_padreImg_sb_bs036b_0.jpeg) (SB-BS036B_padreImg_sb_bs036b_1.jpeg)

    Motion Sensor Surface Mounted 360º ►1200/300W

    GreenIce

    Motion Sensor Surface Mounted 360º ►1200/300W

    6,66€
    6,66€ Infinity%
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    4,44€
    4,44€ Infinity%
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    4,49€
    4,49€ Infinity%
  • (H1-C210M_padreImg_h1_c210m_0.jpeg) (H1-C210M_padreImg_h1_c210m_1.jpeg)

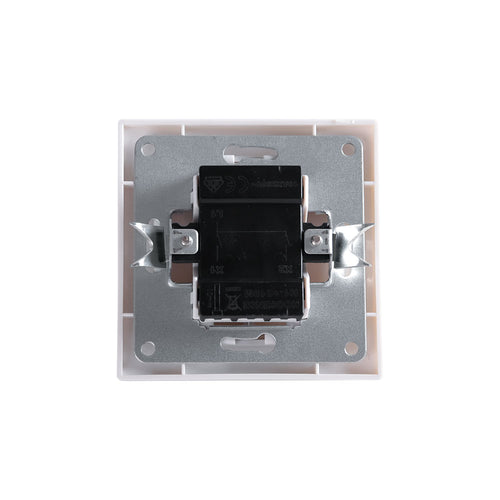

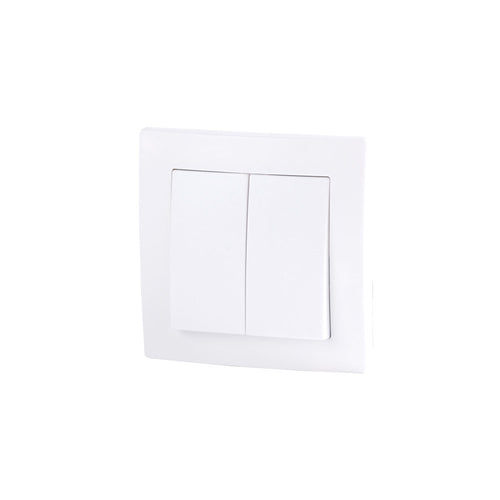

    Switch Double 10A 250V Recessed Terminales Screw White- Con Frame y mecanismo

    GreenIce

    Switch Double 10A 250V Recessed Terminales Screw White- Con Frame y mecanismo

    1,44€
    1,44€ Infinity%

Technical file

Product code
HO-FWWB-F-24W-WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
24.0
Luminosity (LM)
2400
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Measures (mm)
170x170x25
Roof cut (mm)
50-150
CRI
80
Diffuser
Opal
Power factor (PF)
0.9
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24V-80V 280MA
Estimated life (H)
40000
Dimable
No
Equivalence (W)
160
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
290
Flicker
0.8
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
5
Minimum cri range
89
Maximum cri range
7
Chromaticity x
0.446
Chromaticity y
0.401
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-FWWB-F-24W-WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
24.0
Luminosity (LM)
2400
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Measures (mm)
170x170x25
Roof cut (mm)
50-150
CRI
80
Diffuser
Opal
Power factor (PF)
0.9
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24V-80V 280MA
Estimated life (H)
40000
Dimable
No
Equivalence (W)
160
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
290
Flicker
0.8
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
5
Minimum cri range
89
Maximum cri range
7
Chromaticity x
0.446
Chromaticity y
0.401
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The Variable Cut LED Recessed Downlight with ultra-thin dimensions , offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

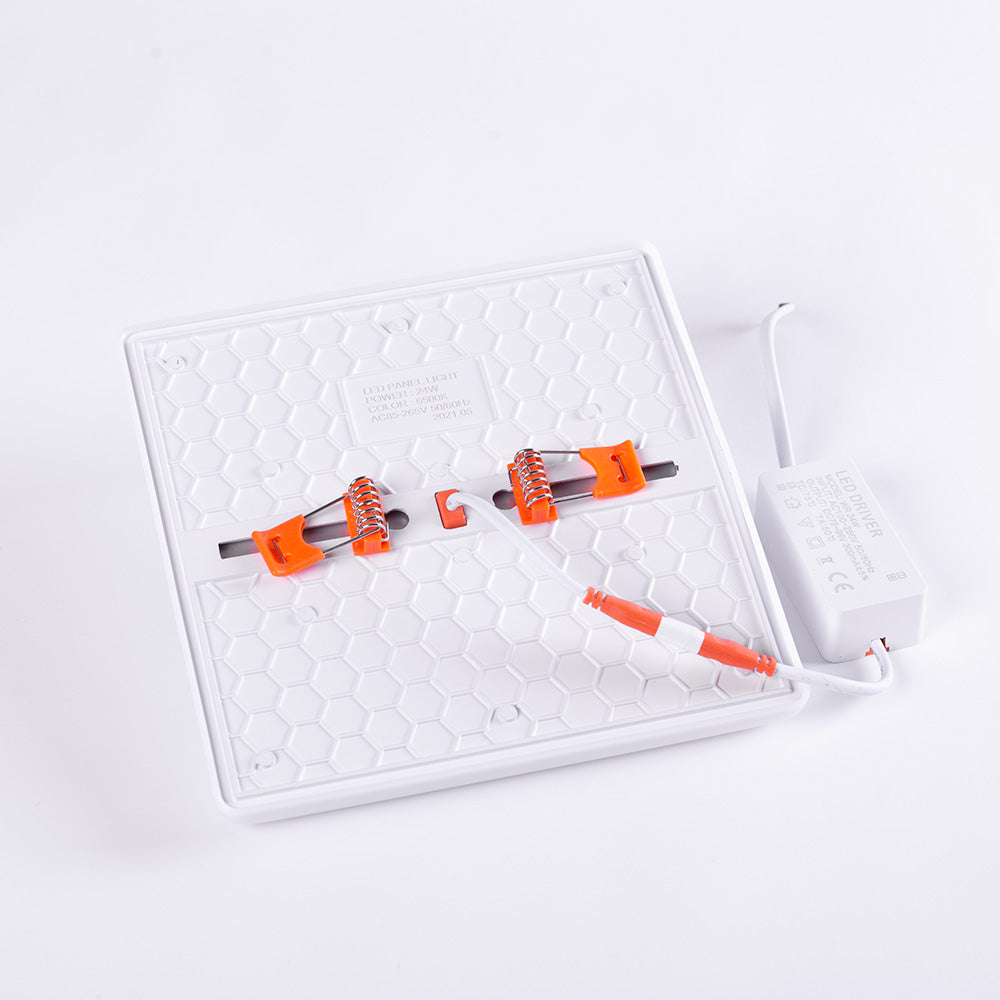

It has a high efficiency (100 Lm/W) .This downlight is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (27-36VDC, 300mA), additionally included the necessary accessories for the installation of the plate.

White finish made of aluminum. The downlight has a IP20 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

This downlight is available in cold white 6000ºK, natural white 4000ºK and warm white 3000ºk. The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. In addition, they are very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.
