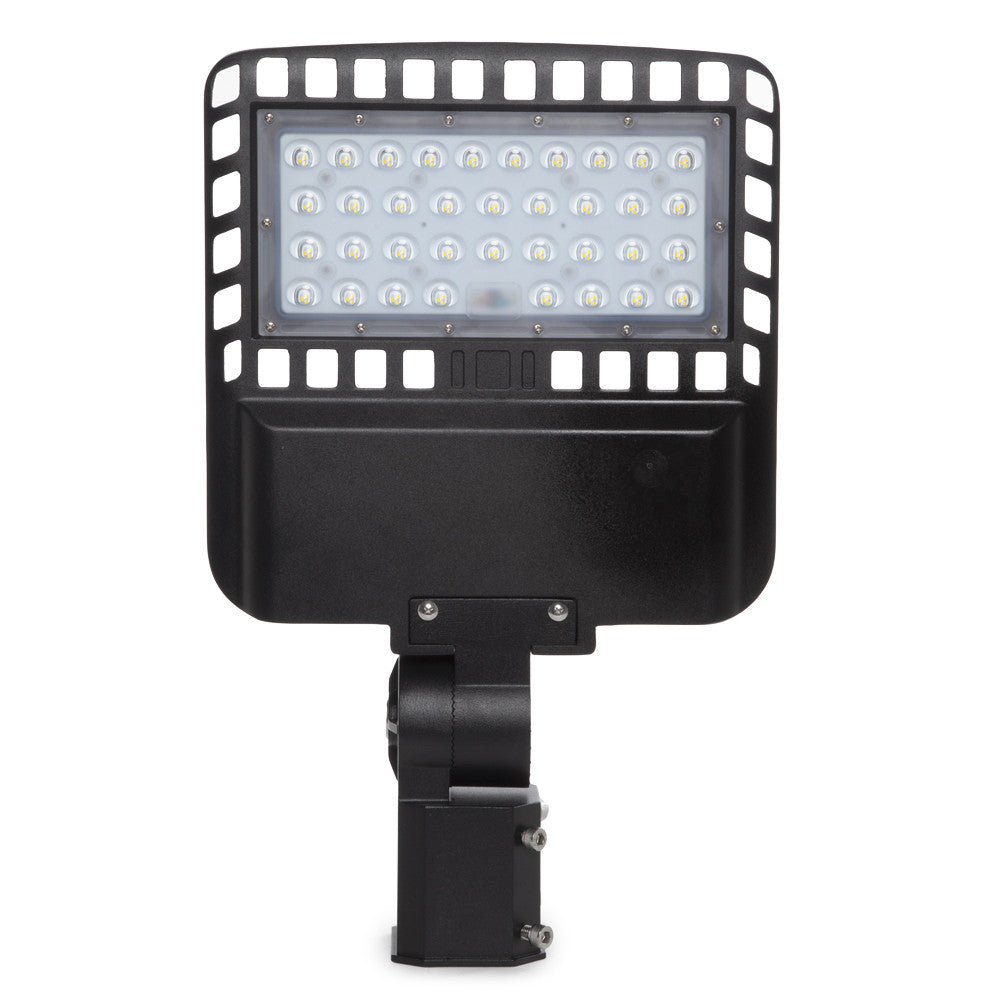

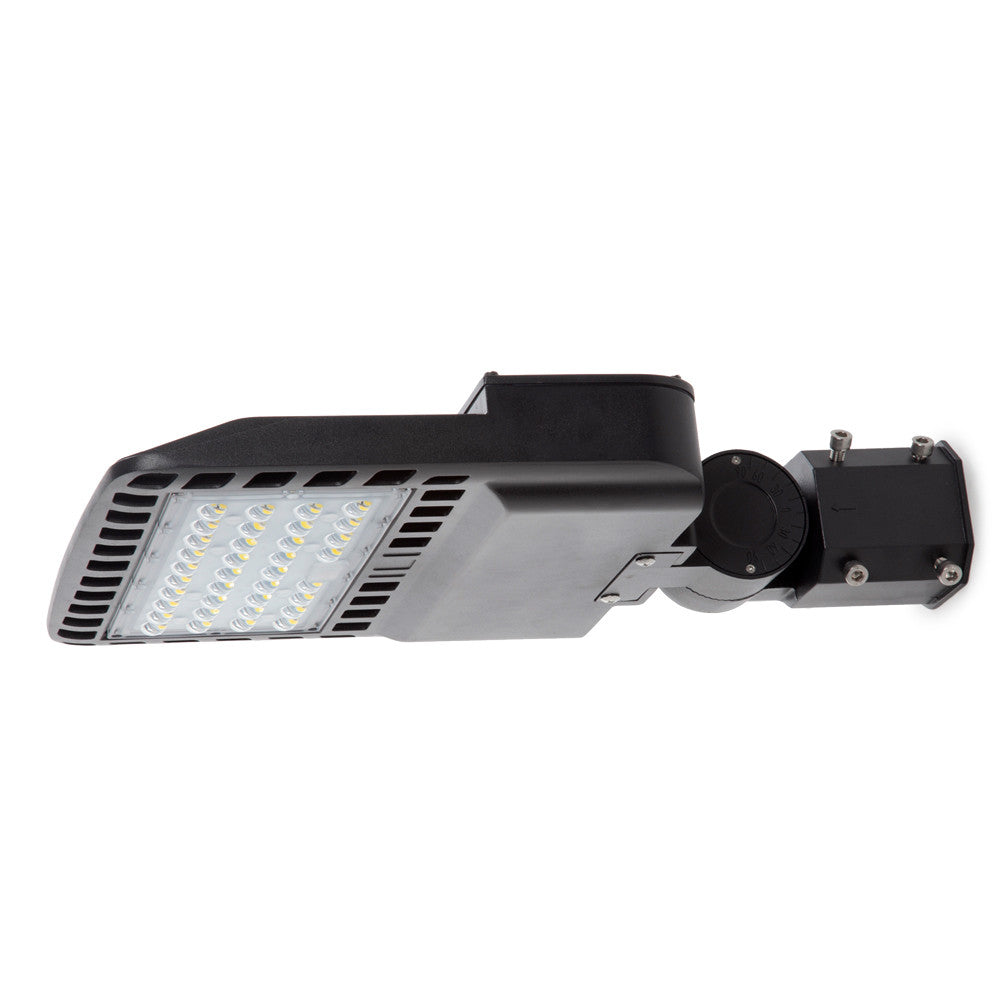

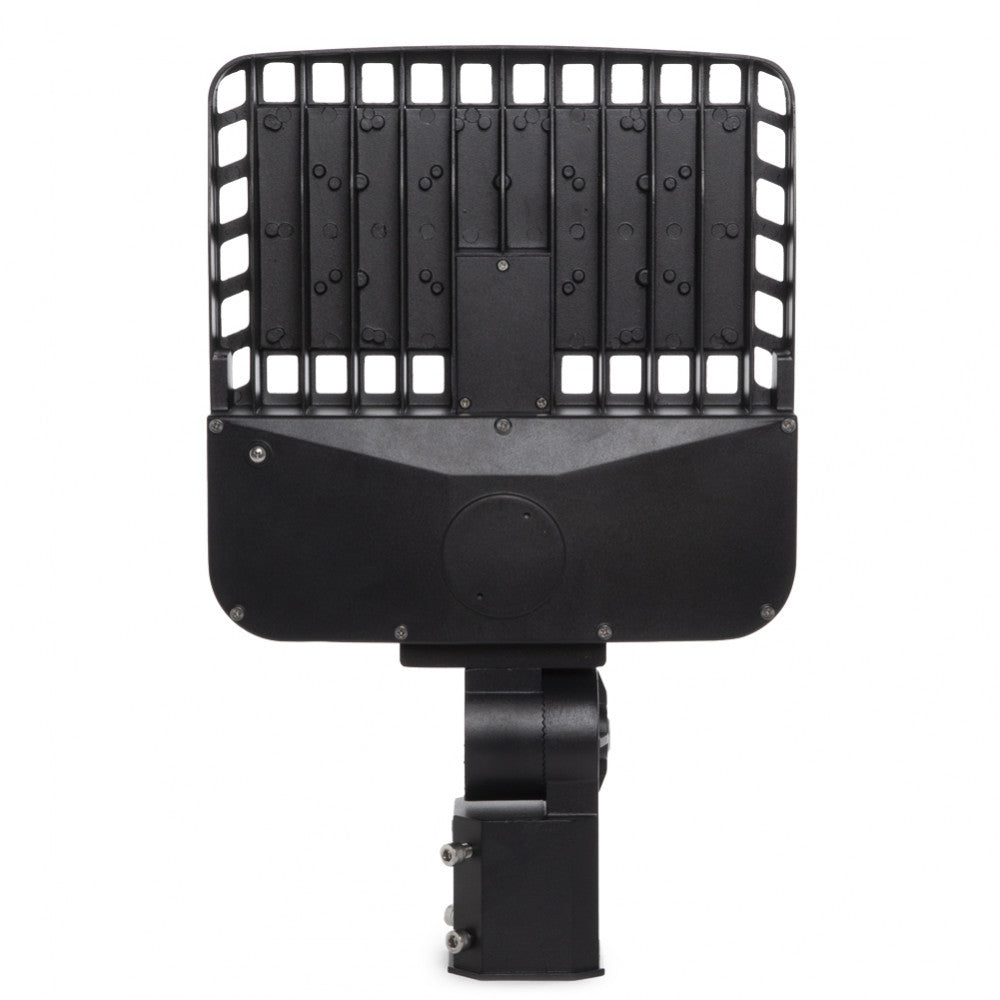

LED Street Light 100W 13,000Lm 6000ºK IP66 PRO SMD3030 Dimmable Meanwell Driver ELG 0-10V 100,000H [GMD-STL05-100W-CW]

LED Street Light 100W 13,000Lm 6000ºK IP66 PRO SMD3030 Dimmable Meanwell Driver ELG 0-10V 100,000H [GMD-STL05-100W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Philips Led
  • SkuGMD-STL05-100W-CW
  • AAA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
129,02€
129,02€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(GMD-STL05-100W-CW_padreImg_gmd_stl05_100w_cw_0.jpeg)
Cool White
Stock available
Free shipping
129,02€
129,02€ Infinity%

Accessories

  • (TB-DIM-0-10V-MD_padreImg_tb_dim_0_10v_md_0.jpeg) (TB-DIM-0-10V-MD_padreImg_tb_dim_0_10v_md_1.jpeg)

    Dimmer/Remote Control Distancia 0-10V 10A 800W

    GreenIce

    Dimmer/Remote Control Distancia 0-10V 10A 800W

    22,61€
    22,61€ Infinity%

Technical file

Product code
GMD-STL05-100W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
100.0
Luminosity (LM)
13000
Luminous efficacy (LM/W)
130
LED efficacy
143
Type of LEDs
Philips Led
Measures (mm)
311x300x72
High
311.0
Long
300.0
Broad
72.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.99
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP66
IK Protection Index
IK08
Strain
100-277V AC
Estimated life (H)
100000
Dimable
Yeah
Equivalence (W)
535
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
100.0
Weight (gr)
4000
Flicker
0.45
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
10
Minimum cri range
96
Maximum cri range
1
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; IEC 62321:2008

Characteristics

Product code
GMD-STL05-100W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
100.0
Luminosity (LM)
13000
Luminous efficacy (LM/W)
130
LED efficacy
143
Type of LEDs
Philips Led
Measures (mm)
311x300x72
High
311.0
Long
300.0
Broad
72.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.99
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP66
IK Protection Index
IK08
Strain
100-277V AC
Estimated life (H)
100000
Dimable
Yeah
Equivalence (W)
535
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
100.0
Weight (gr)
4000
Flicker
0.45
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
10
Minimum cri range
96
Maximum cri range
1
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; IEC 62321:2008

Description

Lumileds 3030 IP66 LED luminaire for street and street lighting. It offers instant ignition and great power, being the ideal replacement for old discharge lamps, improving the quality of light and significantly reducing energy consumption.

Made of die-cast aluminium, it contains an internal hinge and a outer closing tab that manage to improve its aesthetics and functionality. It mounts a multiLED optic protected with tempered glass. Its IP66 protection factor is ideal for outdoors, withstanding atmospheric phenomena.

Equipped with the latest lighting technologies, this streetlight mounts Lumileds Lumileds 3030 2D LEDs >high-power, which provide high light output. In addition, for greater safety, the luminaire has an overvoltage protector.

It has a Power supply of the Meanwell ELG series of type AB, allowing to regulate the light with regulators of 0-10Vdc and with 10V both with PWM and with resistance or potentiometer. p>

Adjustable head.
