LED Track Light 30W 2527Lm CRI90 2700ºK Kayla Three-Phase Variable Aperture 50,000H [GMD-FTL03-T-30-WW]

LED Track Light 30W 2527Lm CRI90 2700ºK Kayla Three-Phase Variable Aperture 50,000H [GMD-FTL03-T-30-WW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuGMD-FTL03-T-30-WW
Eprel file
Warranty
  • Warranty 3 years
  • 38 º Opening
13,10€
13,10€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 38 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(GMD-FTL03-T-30-CW_padreImg_gmd_ftl03_t_30_cw_0.jpeg)
Warm White
Stock available
Free shipping
13,10€
13,10€ Infinity%

Accessories

  • (JL-CON-+-T-W_padreImg_jl_con_t_w_0.jpeg) (JL-CON-+-T-W_padreImg_jl_con_t_w_1.jpeg)

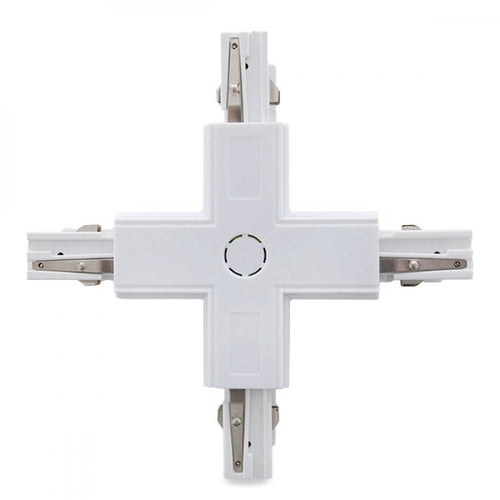

    + Connector 3-Phase Track White

    Stock Explosion
    GreenIce

    + Connector 3-Phase Track White

    3,42€
    3,42€ Infinity%
  • (LM-LM3209_padreImg_lm_lm3209_0.jpeg) (LM-LM3209_padreImg_lm_lm3209_1.jpeg)

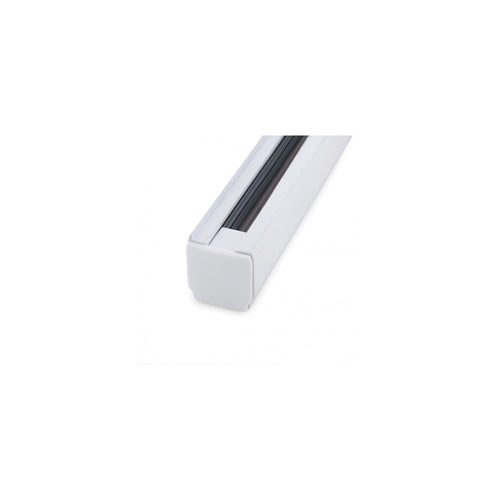

    3-Phase Track 2M

    GreenIce

    3-Phase Track 2M

    26,11€
    26,11€ Infinity%
  • (JL-CON-T-T-W_padreImg_jl_con_t_t_w_0.jpeg) (JL-CON-T-T-W_padreImg_jl_con_t_t_w_1.jpeg)

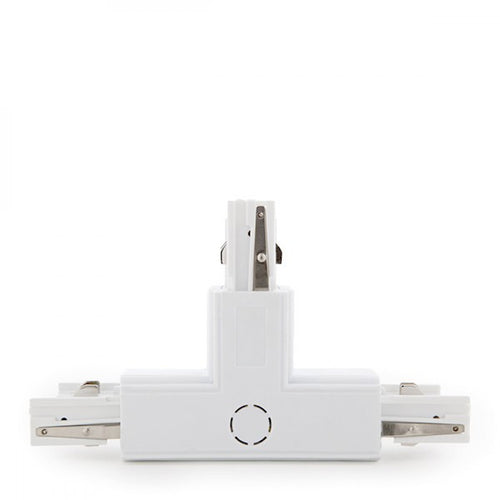

    Connector 3-Phase Track White

    GreenIce

    Connector 3-Phase Track White

    5,22€
    5,22€ Infinity%
  • (JL-CON---T-W_padreImg_jl_con_t_w_0.jpeg) (JL-CON---T-W_padreImg_jl_con_t_w_1.jpeg)

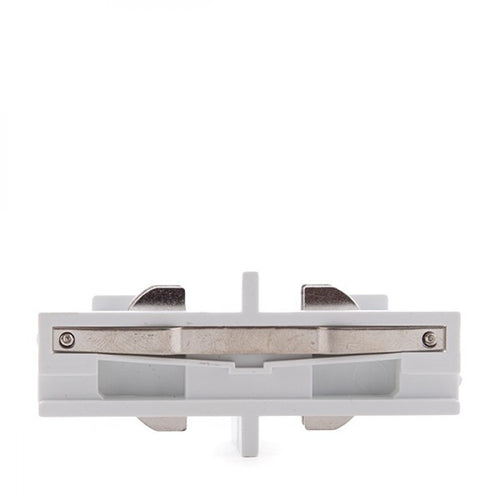

    Straight Connector 3-Phase Track White

    GreenIce

    Straight Connector 3-Phase Track White

    2,86€
    2,86€ Infinity%
  • (JL-CON-L-T-W_padreImg_jl_con_l_t_w_0.jpeg) (JL-CON-L-T-W_padreImg_jl_con_l_t_w_1.jpeg)

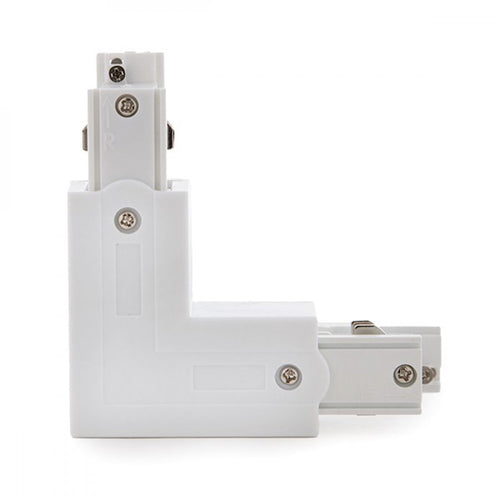

    L Connector 3-Phase Track White

    Stock Explosion
    GreenIce

    L Connector 3-Phase Track White

    1,87€
    1,87€ Infinity%

Technical file

Product code
GMD-FTL03-T-30-WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
30.0
Luminosity (LM)
2527
Luminous efficacy (LM/W)
84
LED efficacy
92
Type of LEDs
Cree Led
Number of LEDs
1
Measures (mm)
Ø94x100x175
High
110.0
Long
175.0
Diameter
94
CRI
90
UGR
◄17
Diffuser
Microprismatic
Power factor (PF)
0.95
Construction
Aluminum
Opening Angle (º)
38
Facility
IP20
Strain
170-265V
Driver output
DC24-48V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
200
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
30.0
Weight (gr)
750
Flicker
0.47
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
8
Minimum cri range
94
Maximum cri range
7
Chromaticity x
0.435
Chromaticity y
0.409
Número unidades caja exterior
20.0
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN61000-3-3:2008; EN 60598-2-1:1989; EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008; EN 62471:2008; EN 62493:2010

Opiniones

Characteristics

Product code
GMD-FTL03-T-30-WW
Light temperature
Warm White
Kelvin º
2700
Power (W)
30.0
Luminosity (LM)
2527
Luminous efficacy (LM/W)
84
LED efficacy
92
Type of LEDs
Cree Led
Number of LEDs
1
Measures (mm)
Ø94x100x175
High
110.0
Long
175.0
Diameter
94
CRI
90
UGR
◄17
Diffuser
Microprismatic
Power factor (PF)
0.95
Construction
Aluminum
Opening Angle (º)
38
Facility
IP20
Strain
170-265V
Driver output
DC24-48V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
200
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
30.0
Weight (gr)
750
Flicker
0.47
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
8
Minimum cri range
94
Maximum cri range
7
Chromaticity x
0.435
Chromaticity y
0.409
Número unidades caja exterior
20.0
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN61000-3-3:2008; EN 60598-2-1:1989; EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008; EN 62471:2008; EN 62493:2010

Description

The 175mm three-phase LED track light, with a white finish, offers solutions for businesses.It provides versatile lighting perfect for ever-changing spaces, where it is necessary to highlight decorative elements or products exposed.

It has a high efficiency (90Lm/m), consuming 30W through 1 state-of-the-art CREE LED, managing to provide a luminous flux of 2700Lm.It has a color rendering index of 90. Its consumption represents a value of 30kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere. Includes three-phase rail connector (four wires). It has an adjustable opening angle that goes from 15º to 60º. The spotlight has a base designed to support its total weight, it has an IP25 degree of protection for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.

It is made of quality materials such as aluminum and incorporates high-performance components. It has a long useful life of 50,000 hours, ten times longer than that of a conventional spotlight.

Its installation on the three-phase track is very simple and allows the luminaire to be moved on the lane. This allows having a very flexible lighting system that adapts to any situation.

Its use is mainly in the tertiary sector in spaces such as shops, exhibition halls, commercial galleries, hotels, etc. etc. Places that require a versatile accent light that adapts to the arrangement of the products on display.

This spotlight is available in cool white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
