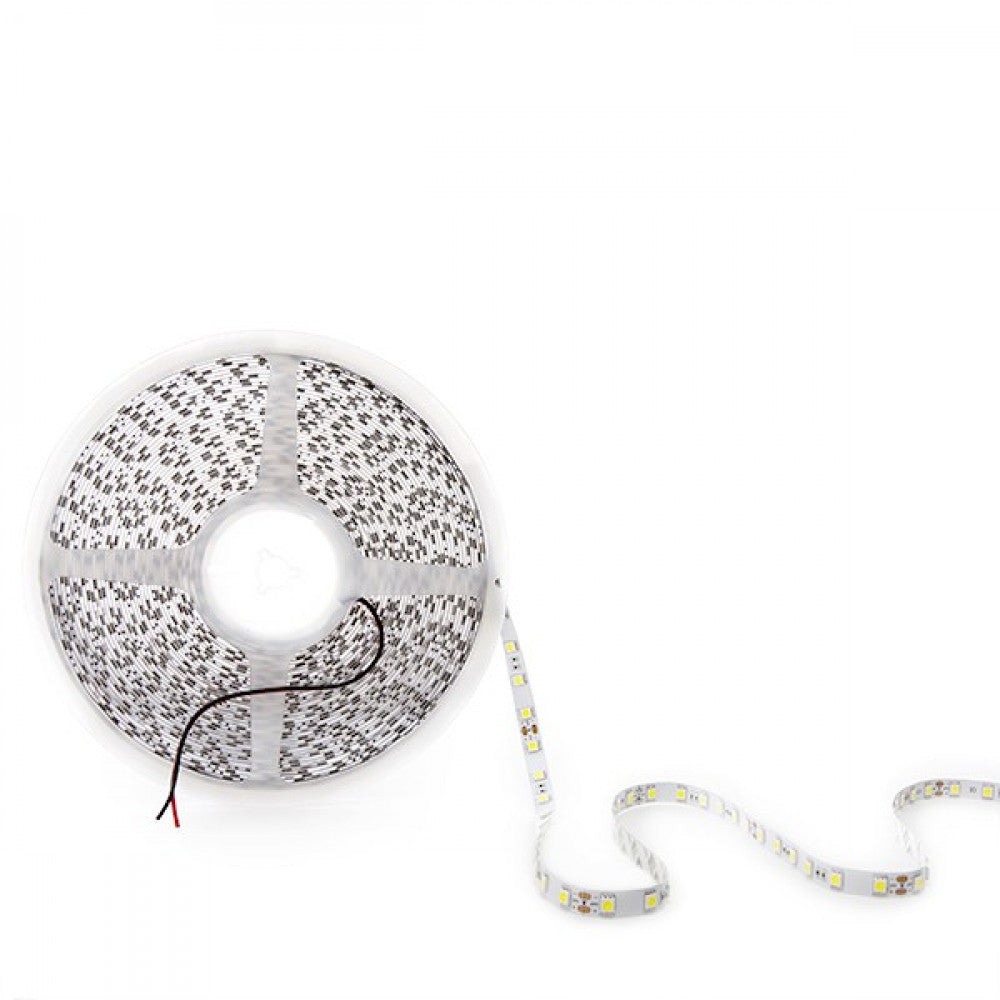

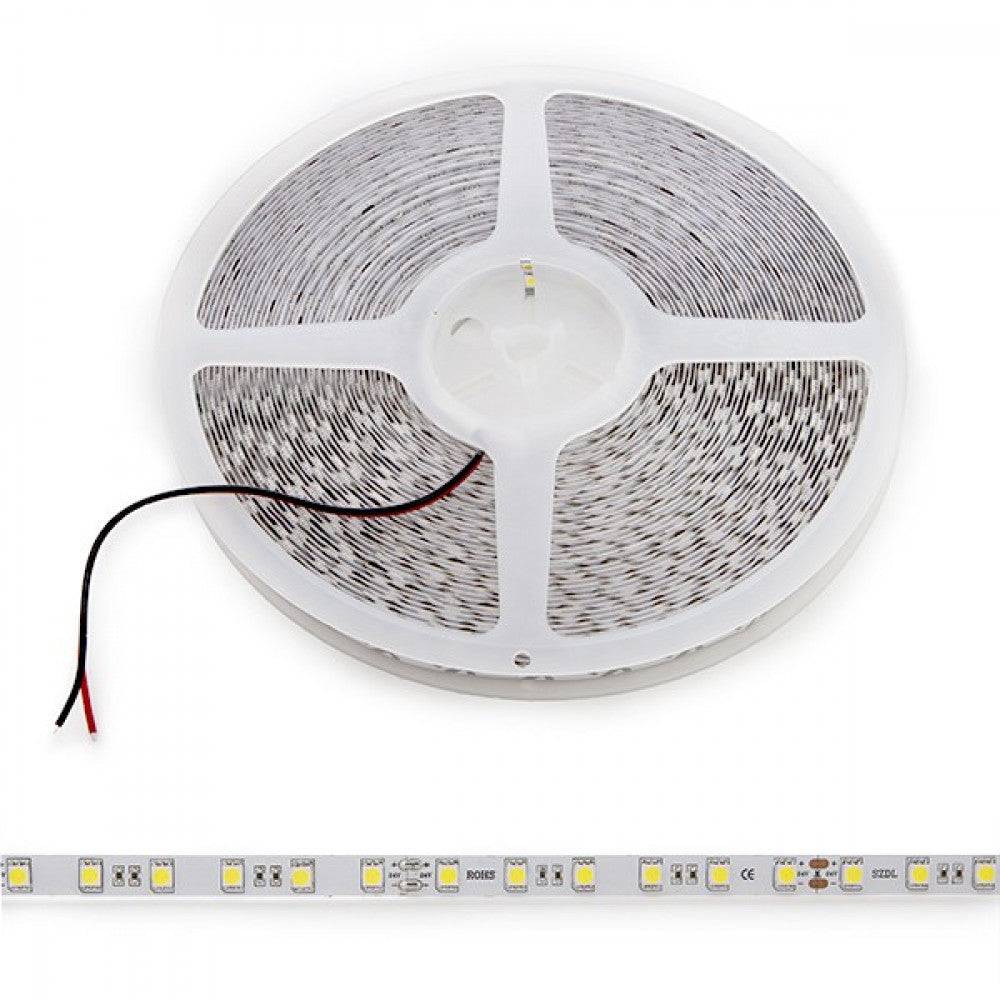

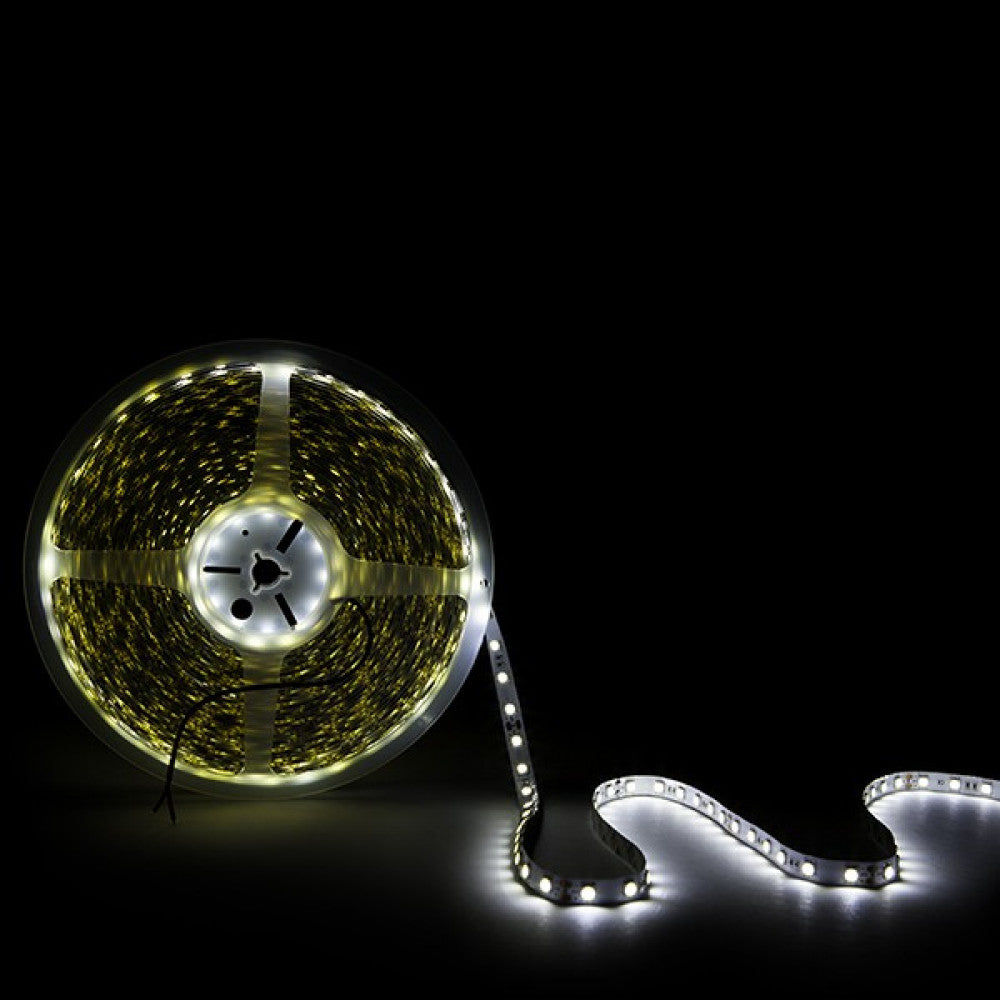

Strip of 60 LEDs/M 14.4W 20,400Lm CRI85 6000ºK SMD5050 24VDC IP20 x20M 40,000H [CA-5050-60-14,4W-20M-CW]-Cold White

Strip of 60 LEDs/M 14.4W 20,400Lm CRI85 6000ºK SMD5050 24VDC IP20 x20M 40,000H [CA-5050-60-14,4W-20M-CW]-Cold White

For additional amounts the delivery period is 25 days As of the order date
  • Brand:GreenIce
  • SkuCA-50506014,4W20MCW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
37,23€
37,23€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(CA-50506014,4W20MCW_padreImg_ca_505060144w20mcw_0.jpeg)
Cool White
There are few
Free shipping
37,23€
37,23€ Infinity%

Accessories

  • (KD-CON5050DOBLE_padreImg_kd_con5050doble_0.jpeg) (KD-CON5050DOBLE_padreImg_kd_con5050doble_1.jpeg)

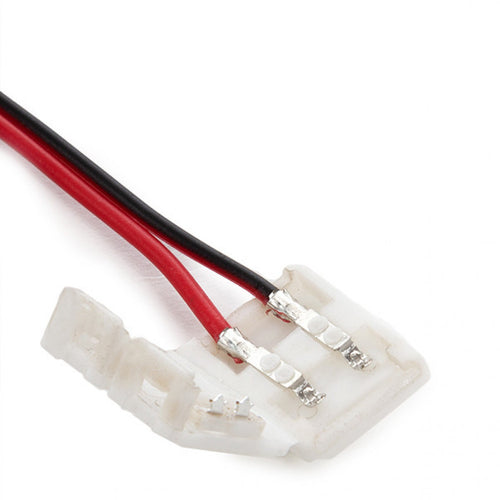

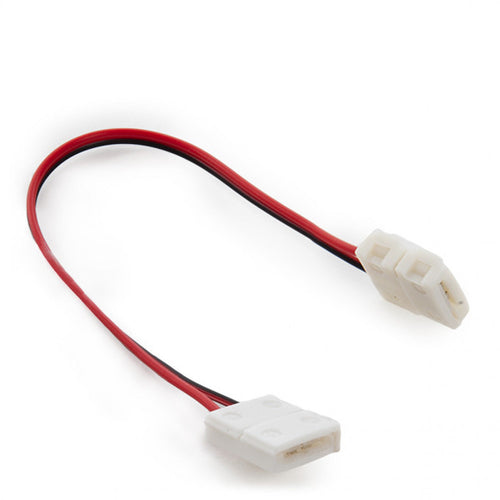

    Connector Strip LED SMD5050/5630 2 Way Double 12/24VDC

    GreenIce

    Connector Strip LED SMD5050/5630 2 Way Double 12/24VDC

    0,66€
    0,66€ Infinity%
  • (KD-AMPLMINI_padreImg_kd_amplmini_0.jpeg) (KD-AMPLMINI_padreImg_kd_amplmini_1.jpeg)

    Amplifier Signal Mini LED Strip 12-24VDC ► 144W

    GreenIce

    Amplifier Signal Mini LED Strip 12-24VDC ► 144W

    1,01€
    1,01€ Infinity%
  • (KD-CONRAP-+-5050_padreImg_kd_conrap_5050_0.jpeg)

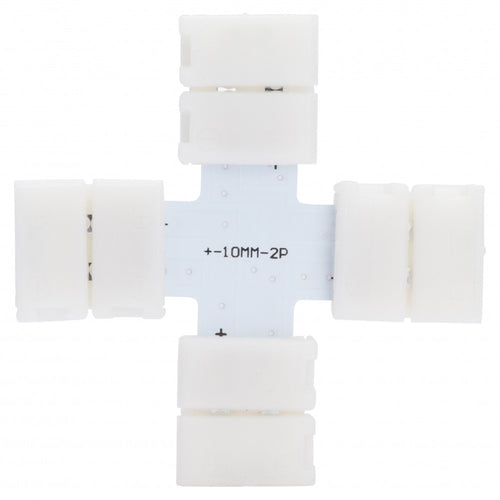

    Quick Connector + LED Strip SMD5050/5630 12/24VDC

    GreenIce

    Quick Connector + LED Strip SMD5050/5630 12/24VDC

    0,38€
    0,38€ Infinity%
  • (KD-DIMCOLOR_padreImg_kd_dimcolor_0.jpeg) (KD-DIMCOLOR_padreImg_kd_dimcolor_1.jpeg)

    Controller-Dimmer Touch LED Strip Single Colour 12-24VDC ► 144/288W

    GreenIce

    Controller-Dimmer Touch LED Strip Single Colour 12-24VDC ► 144/288W

    21,46€
    21,46€ Infinity%
  • (KD-CONRAP-L-5050_padreImg_kd_conrap_l_5050_0.jpeg)

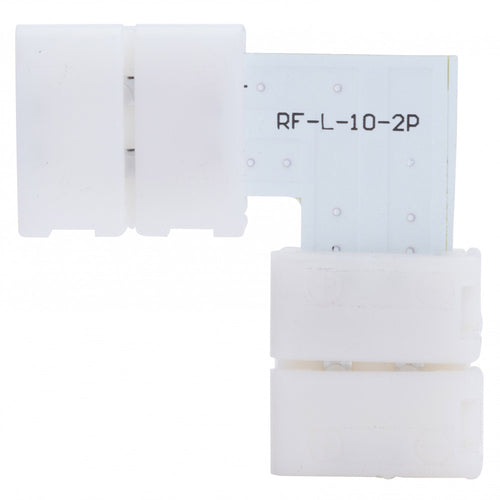

    Quick Connector L LED Strip SMD5050/5630 12/24VDC

    GreenIce

    Quick Connector L LED Strip SMD5050/5630 12/24VDC

    0,82€
    0,82€ Infinity%
  • (GR-CABLEMONO_padreImg_gr_cablemono_0.jpeg)

    Cable Connector Strips Single Colour (Per Meter)

    GreenIce

    Cable Connector Strips Single Colour (Per Meter)

    1,70€
    1,70€ Infinity%
  • (HZ-MPS-350W24V_padreImg_hz_mps_350w24v_0.jpeg)

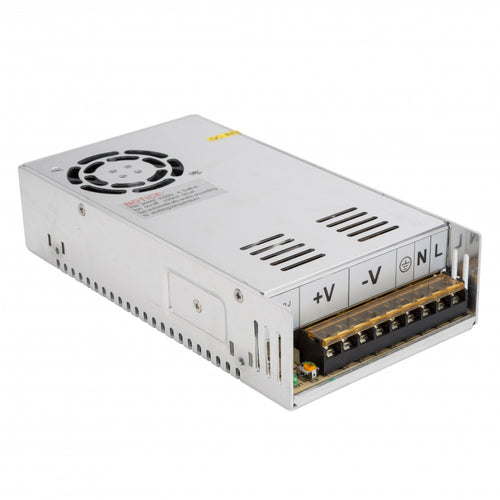

    LED transformer 350W 24VDC 14.6A IP20

    GreenIce

    LED transformer 350W 24VDC 14.6A IP20

    31,94€
    31,94€ Infinity%
  • (KD-CONECTORHDCIP65_padreImg_kd_conectorhdcip65_0.jpeg) (KD-CONECTORHDCIP65_padreImg_kd_conectorhdcip65_1.jpeg)

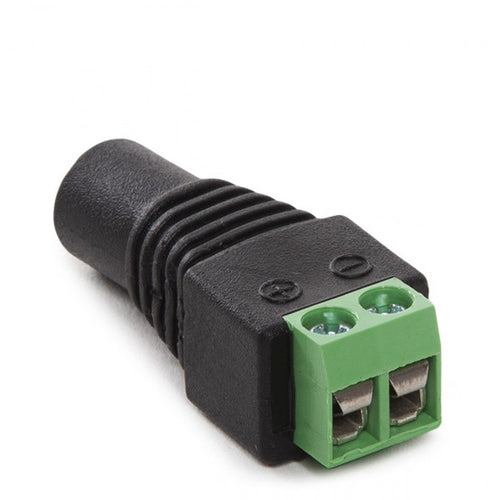

    Connector Dc IP65 Female

    GreenIce

    Connector Dc IP65 Female

    0,33€
    0,33€ Infinity%
  • (KD-CONECTORMDCIP65_padreImg_kd_conectormdcip65_0.jpeg) (KD-CONECTORMDCIP65_padreImg_kd_conectormdcip65_1.jpeg)

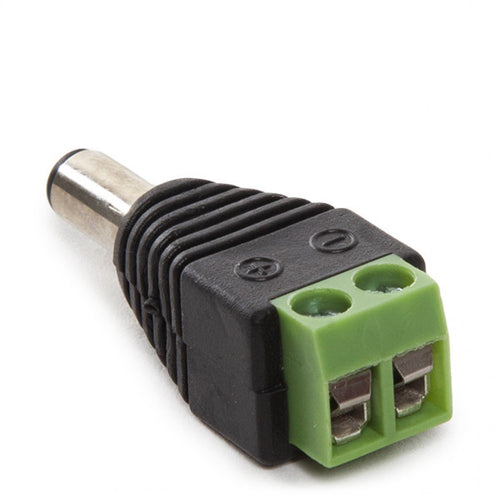

    Connector Dc IP65 Male

    GreenIce

    Connector Dc IP65 Male

    0,33€
    0,33€ Infinity%
  • (KD-CON5050IMPLE_padreImg_kd_con5050imple_0.jpeg)

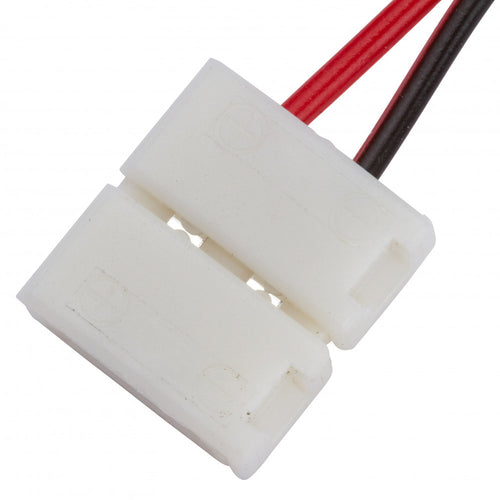

    Connector Strip LED SMD5050/5630 2 Way Single 12/24VDC

    GreenIce

    Connector Strip LED SMD5050/5630 2 Way Single 12/24VDC

    0,33€
    0,33€ Infinity%

Technical file

Product code
CA-5050-60-14,4W-20M-CW
Luminous efficacy (LM/W)
70
Light temperature
Cold white
Kelvin º
6000
Power (W)
288.0
Luminosity (LM)
20400
Measures (mm)
10x20.000
Long
20000.0
Broad
10.0
Number and type of LEDs
SMD 5050
CRI
85
Power factor (PF)
0.8
Construction
PCB/ 3M Tape
Opening Angle (º)
120
Facility
IP20
Strain
24VDC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
100
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Energy consumption (kWh/1000h)
288.0
Weight (gr)
600
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
1
Minimum cri range
85
Maximum cri range
11
Chromaticity x
0.304
Chromaticity y
0.312
Additional information
Transformer required in the "Accessories" tab
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007; IEC 62321:2008

Characteristics

Product code
CA-5050-60-14,4W-20M-CW
Luminous efficacy (LM/W)
70
Light temperature
Cold white
Kelvin º
6000
Power (W)
288.0
Luminosity (LM)
20400
Measures (mm)
10x20.000
Long
20000.0
Broad
10.0
Number and type of LEDs
SMD 5050
CRI
85
Power factor (PF)
0.8
Construction
PCB/ 3M Tape
Opening Angle (º)
120
Facility
IP20
Strain
24VDC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
100
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Energy consumption (kWh/1000h)
288.0
Weight (gr)
600
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
1
Minimum cri range
85
Maximum cri range
11
Chromaticity x
0.304
Chromaticity y
0.312
Additional information
Transformer required in the "Accessories" tab
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007; IEC 62321:2008

Description

The LED strip is integrated with the minimum visual impact in all types of projects, achieving effect lighting. Its extra-flat line and easy installation make it ideal for corridors, showcases, shelves.

SMD5050 strips are high power and bright. They are also known as triple core strips (because of the three different areas that can be identified when looking closely at the LED). SMD3528, making the LEDSMD5050 strip more suitable for areas that require higher levels of ambient light.

Installation:

Strip LED Flexible has a powerful 3M adhesive on the back for a very simple installation on any surface (previously cleaned so that it sticks well). The strip is extremely flexible and can be used around tight bends. The power supply can be soldered to the LED strip directly.

To install an LED strip you will need: A controller, a power supply either inside or outside. It also has accessories to connect and splice LED strips, in case you want to join more than 8 meters of LED strip you will need an amplifier.

It is recommended not to exceed 8 meters of LED strip length if only one power supply is available, as it loses intensity. In the event that more length is necessary, an amplifier and a power supply will be needed every 8 meters to prevent the installation from losing intensity.

Ideal for: strong>

  • Under shelf lighting
  • Highlight contours of objects, walls, ceilings, etc.
  • Provide indirect light in closed spaces.
  • Outline circular and square spaces.
  • Lighting showcases, shelves, corridors and shop windows
