Superslim LED Panel 22W 2,100Lm 6000ºK 60x30Cm 40,000H [HO-PAN30060022W-CW]

Superslim LED Panel 22W 2,100Lm 6000ºK 60x30Cm 40,000H [HO-PAN30060022W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuHO-PAN30060022W-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
21,86€
21,86€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-PAN30060022W-CW_padreImg_ho_pan30060022w_cw_0.jpeg)
Cool White
Available
Free shipping
21,86€
21,86€ Infinity%

Accessories

  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    10,27€
    10,27€ Infinity%
  • (NE-M-P-600300_padreImg_ne_m_p_600300_0.jpeg) (NE-M-P-600300_padreImg_ne_m_p_600300_1.jpeg)

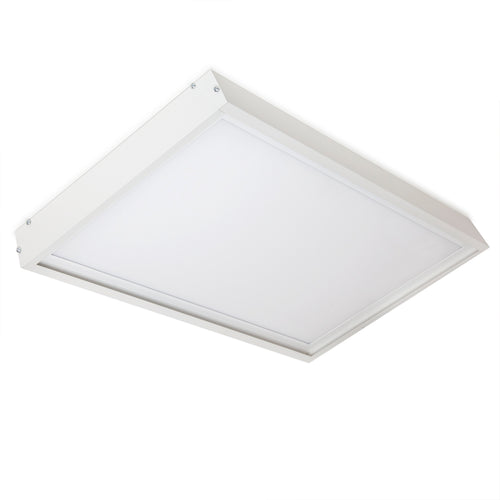

    Mounting Frame Surface Mounted LED Panel 60X30Cm

    GreenIce

    Mounting Frame Surface Mounted LED Panel 60X30Cm

    8,17€
    8,17€ Infinity%
  • (HO-KIT-MONSUP_padreImg_ho_kit_monsup_0.jpeg) (HO-KIT-MONSUP_padreImg_ho_kit_monsup_1.jpeg)

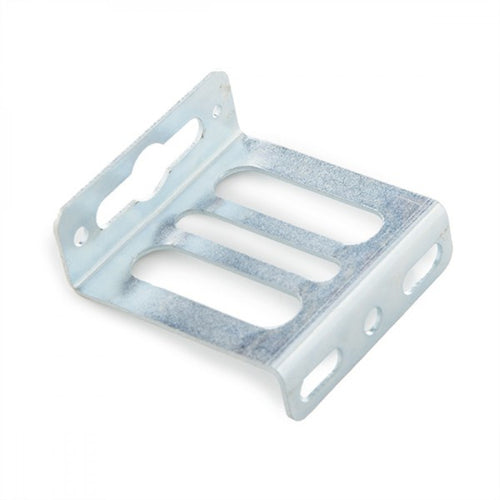

    Surface Mounting Kit for LED Panels

    GreenIce

    Surface Mounting Kit for LED Panels

    4,35€
    4,35€ Infinity%
  • (CPS-LF-AAA030B-42_padreImg_cps_lf_aaa030b_42_0.jpeg)

    Driver LIFUD Adjustable 0-10V 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Lifud Driver

    Driver LIFUD Adjustable 0-10V 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    16,74€
    16,74€ Infinity%
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

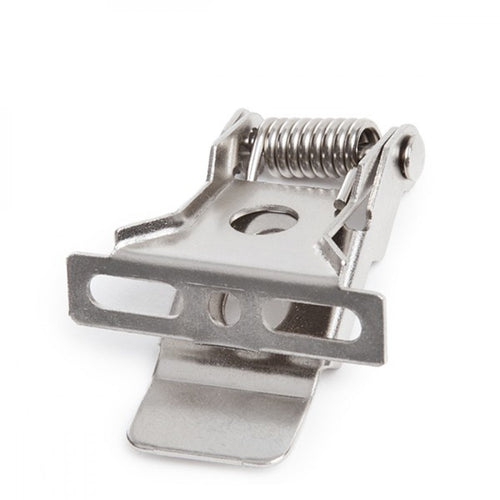

    Set of 4 Clips for LED Panel Mounting

    GreenIce

    Set of 4 Clips for LED Panel Mounting

    1,48€
    1,48€ Infinity%
  • (CPS-LF-AAD030-42_padreImg_cps_lf_aad030_42_0.jpeg)

    Driver Lifud Adjustable DALI 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Lifud Driver

    Driver Lifud Adjustable DALI 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    16,45€
    16,45€ Infinity%

Technical file

Product code
HO-PAN30060022W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
22.0
Luminosity (LM)
2100
Luminous efficacy (LM/W)
95
LED efficacy
104
Type of LEDs
Epistar Led
Number of LEDs
120
Measures (mm)
300x600x12
High
12.0
Long
600.0
Broad
300.0
CRI
80
UGR
◄19
Diffuser
Microprismatic
Power factor (PF)
0.99
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC36-80V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
150
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
22.0
Weight (gr)
1700
Flicker
0.86
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
90
Maximum cri range
25
Chromaticity x
0.319
Chromaticity y
0.338
Additional information

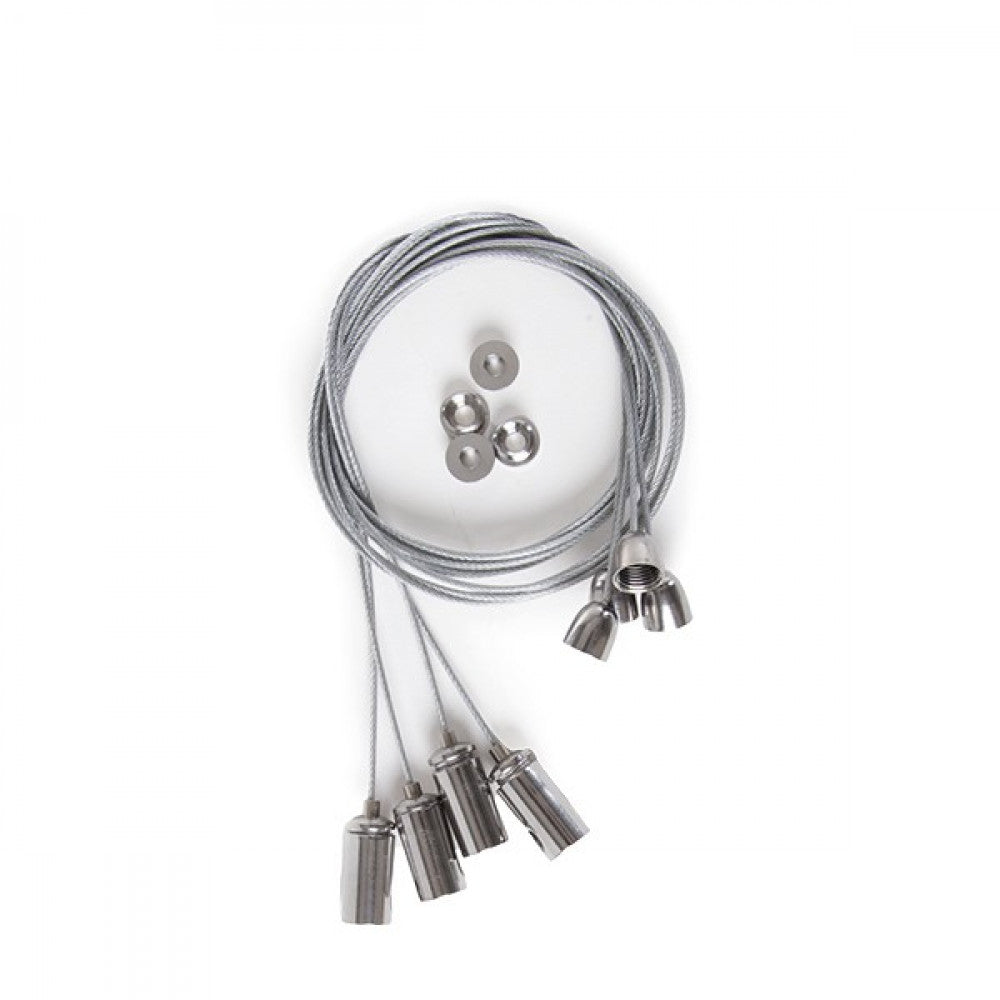

Supplied with a suspension kit, reference HZ-KITUSPENSION
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-PAN30060022W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
22.0
Luminosity (LM)
2100
Luminous efficacy (LM/W)
95
LED efficacy
104
Type of LEDs
Epistar Led
Number of LEDs
120
Measures (mm)
300x600x12
High
12.0
Long
600.0
Broad
300.0
CRI
80
UGR
◄19
Diffuser
Microprismatic
Power factor (PF)
0.99
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC36-80V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
150
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
22.0
Weight (gr)
1700
Flicker
0.86
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
90
Maximum cri range
25
Chromaticity x
0.319
Chromaticity y
0.338
Additional information
Supplied with a suspension kit, reference HZ-KITUSPENSION
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

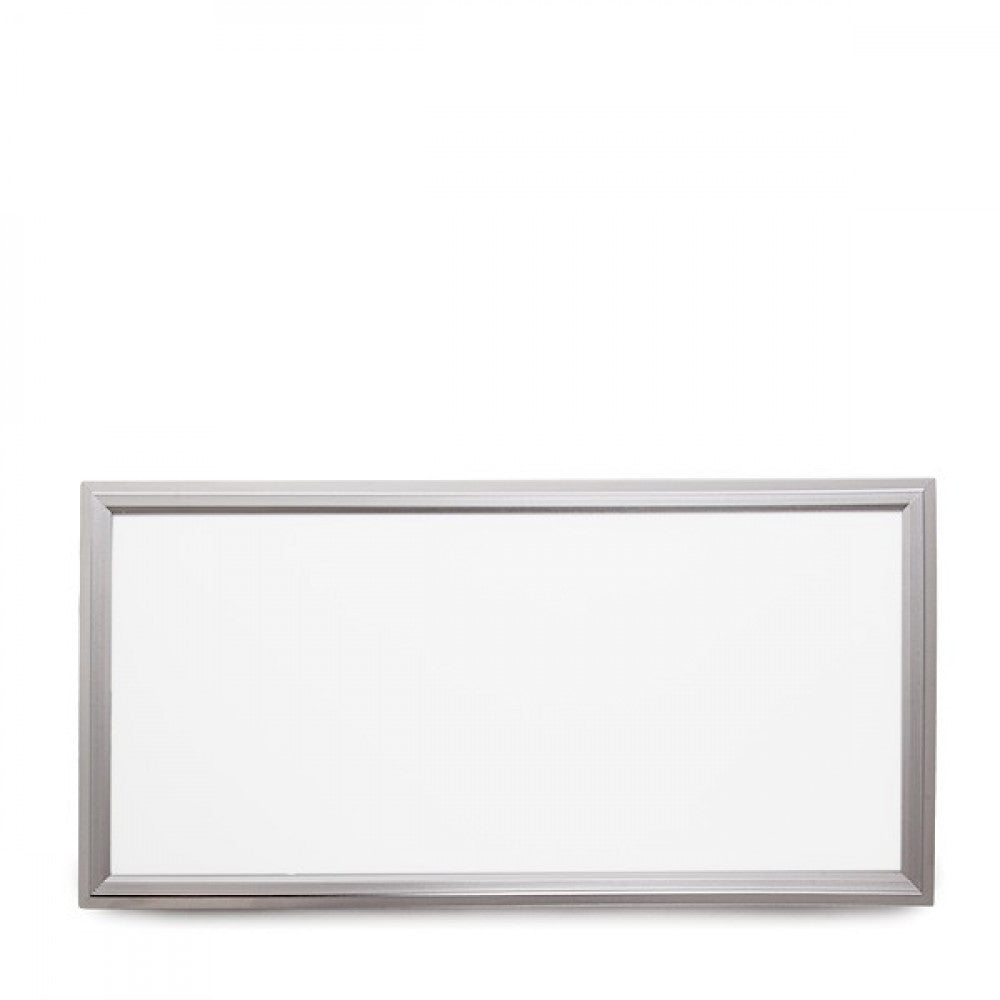

The 300x600mm rectangular LED panel has an elegant finish, a silver lacquered aluminum frame and an ultra-thin design of only 12mm. immediate start-up, without noise and without flickering, this LED Panel is perfect for places where you want to maximize the illuminated space, projecting light uniformly and without glare.

It offers solutions for offices, factories, supermarkets , stores and for residential use, due to its design and elegant finish, it represents an efficient alternative for the most demanding designers. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (95 Lm/W) consuming 22W through 190 SMD3014 type LEDs and managing to provide a luminous flux of 2100Lm uniformly distributed through an opalized plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 120W incandescent bulb, its consumption represents a value of 22kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

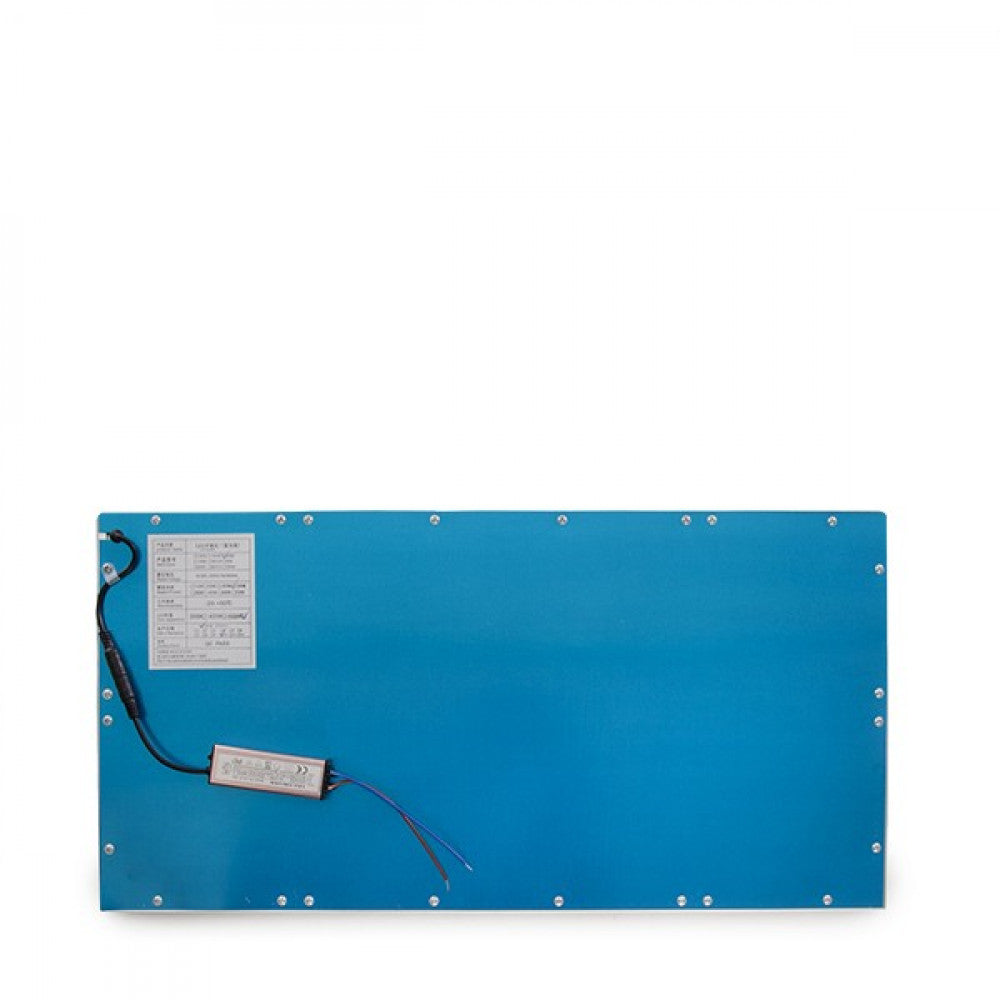

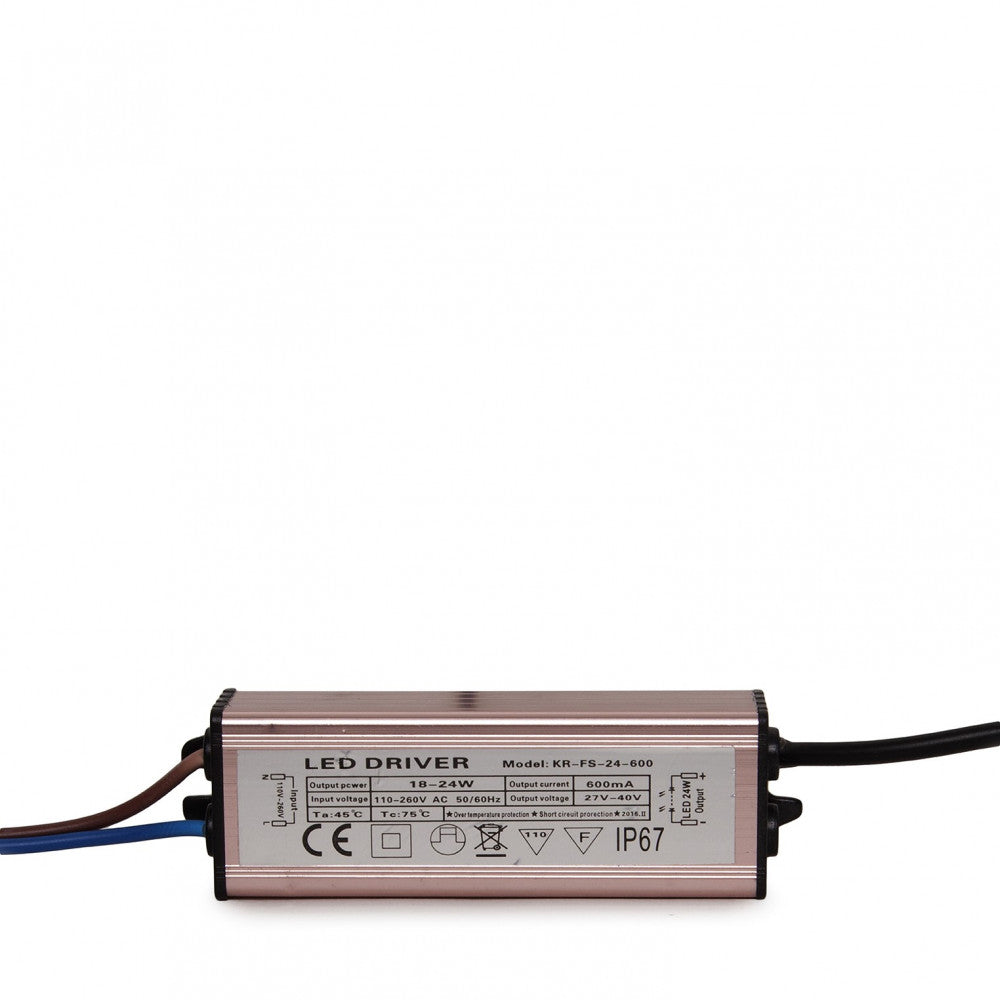

This panel is powered by a Non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the panel (27-40VDC, 600mA), the accessories necessary for the installation of the panel on the surface are optionally offered . Gray finish built with aluminum. The panel has an IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical requirements.

These extra-flat LED screens consume up to 55% less and they do not require any type of maintenance, with which we avoid substitutions of primers or reactances. And having the advantage of being a much lighter and more manageable product.

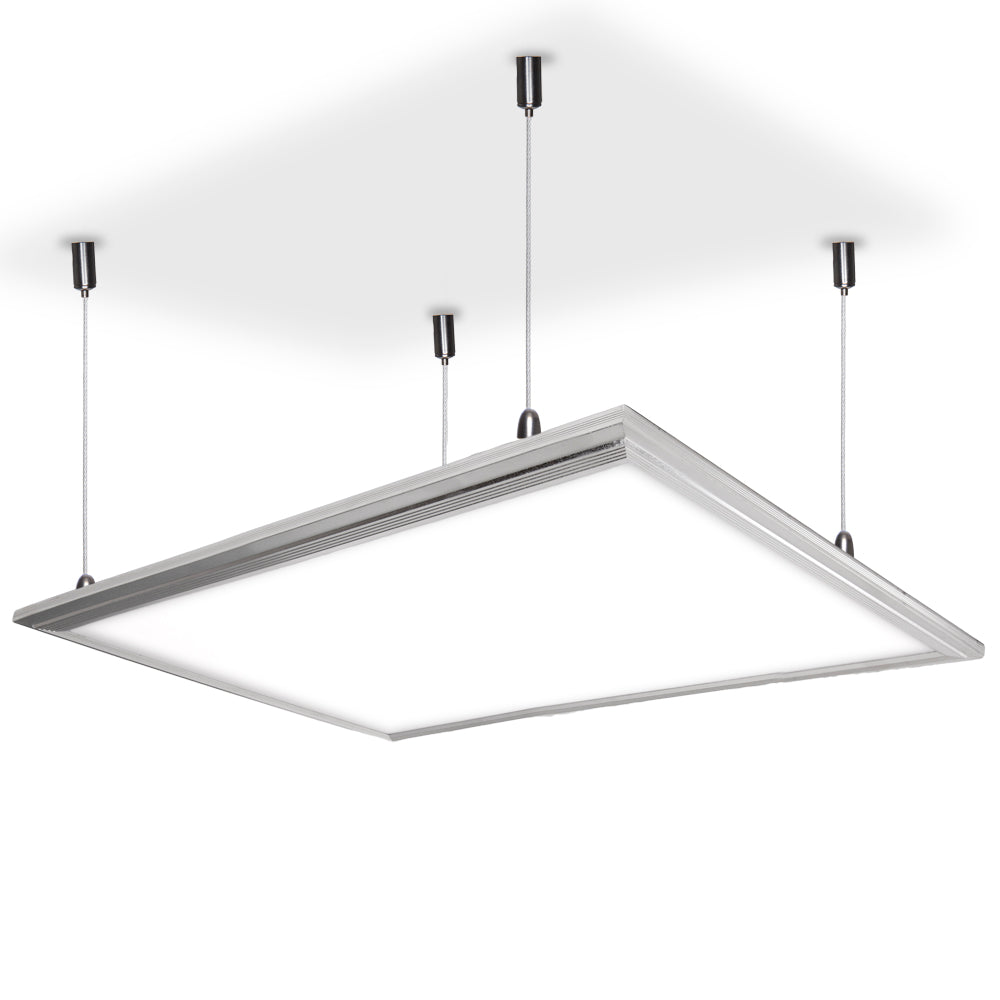

The led panel can be used supported on Armstrong false ceiling, on plasterboard with the help of the fastening clips for led panels, with which we can embed said panel in the ceiling, or with suspension kits for led panels. These kits are made up of four tensors, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

This panel is available in natural white (4200°K ), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
