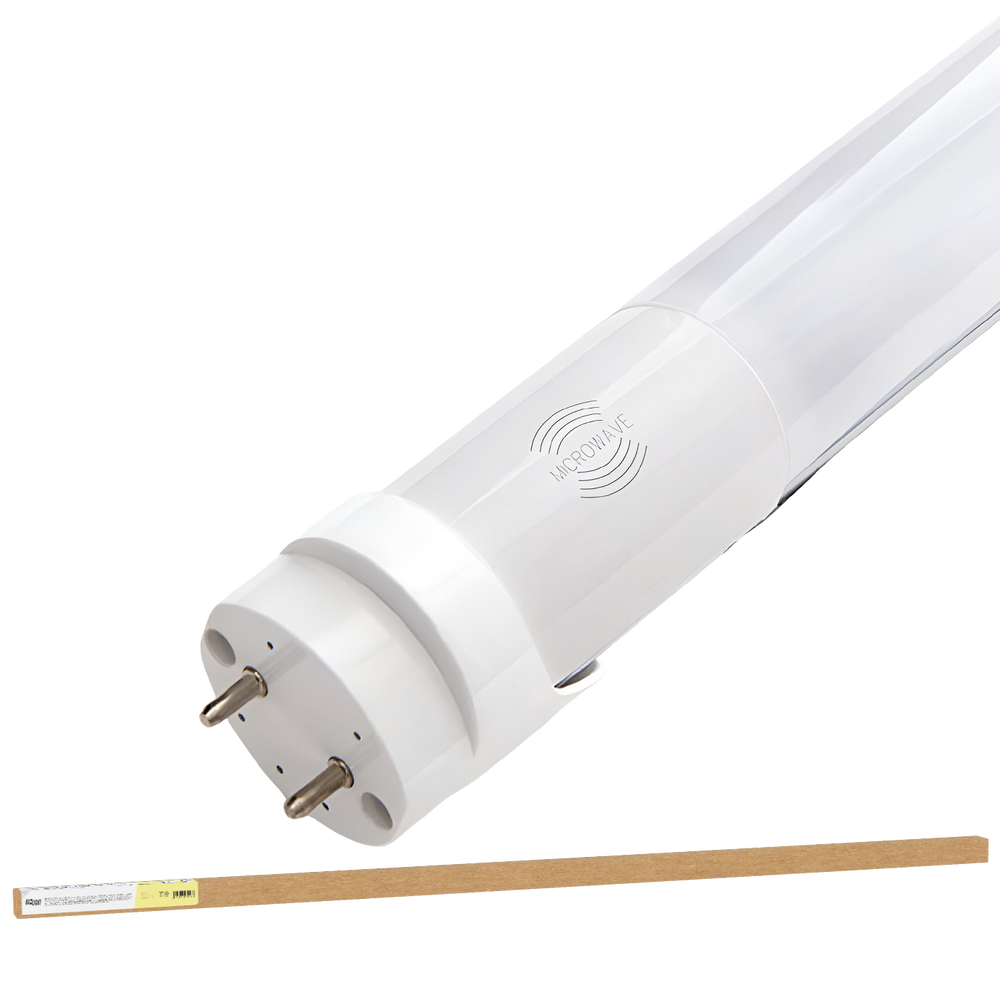

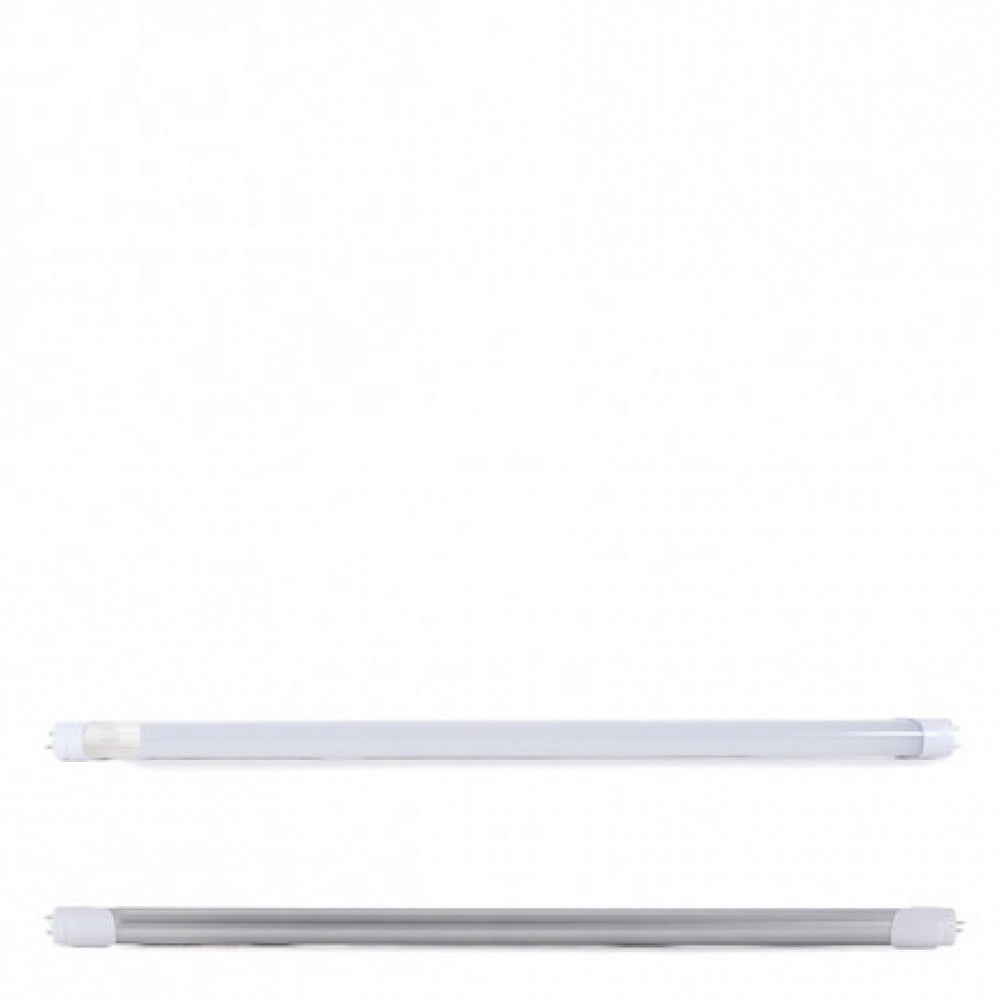

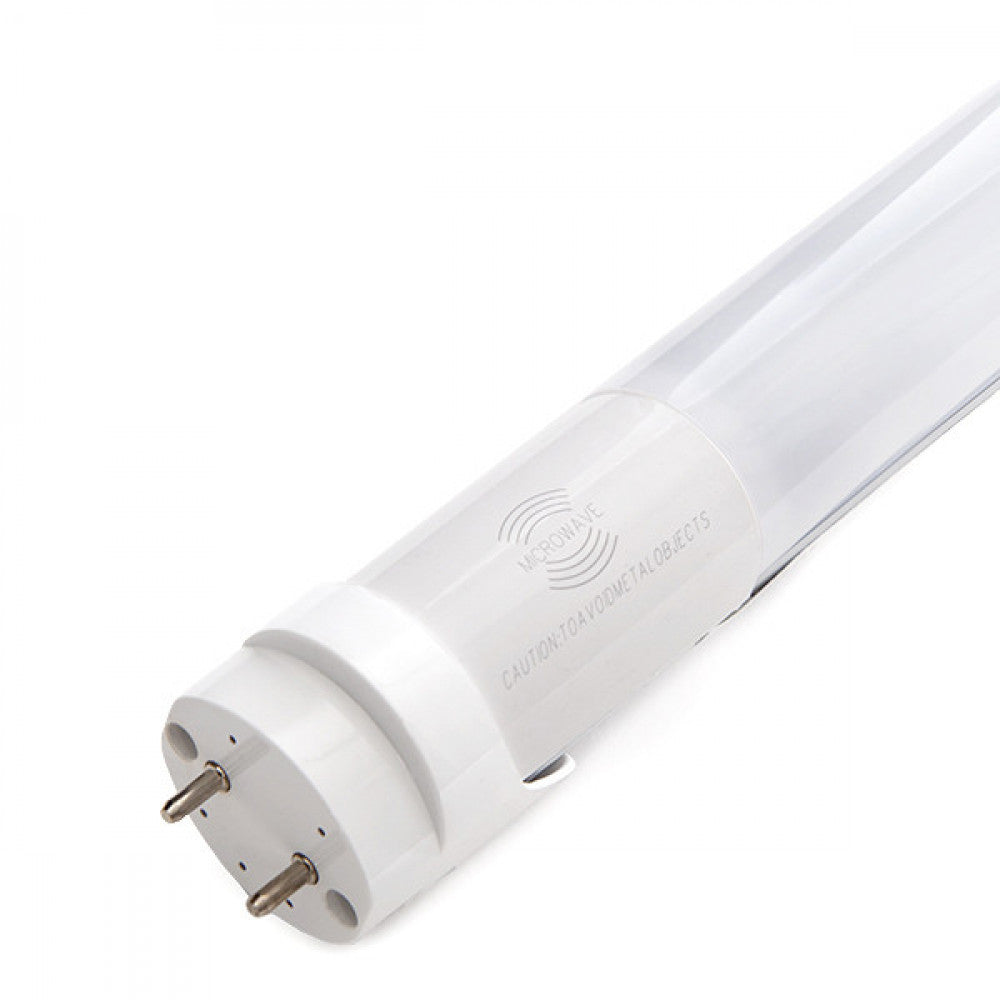

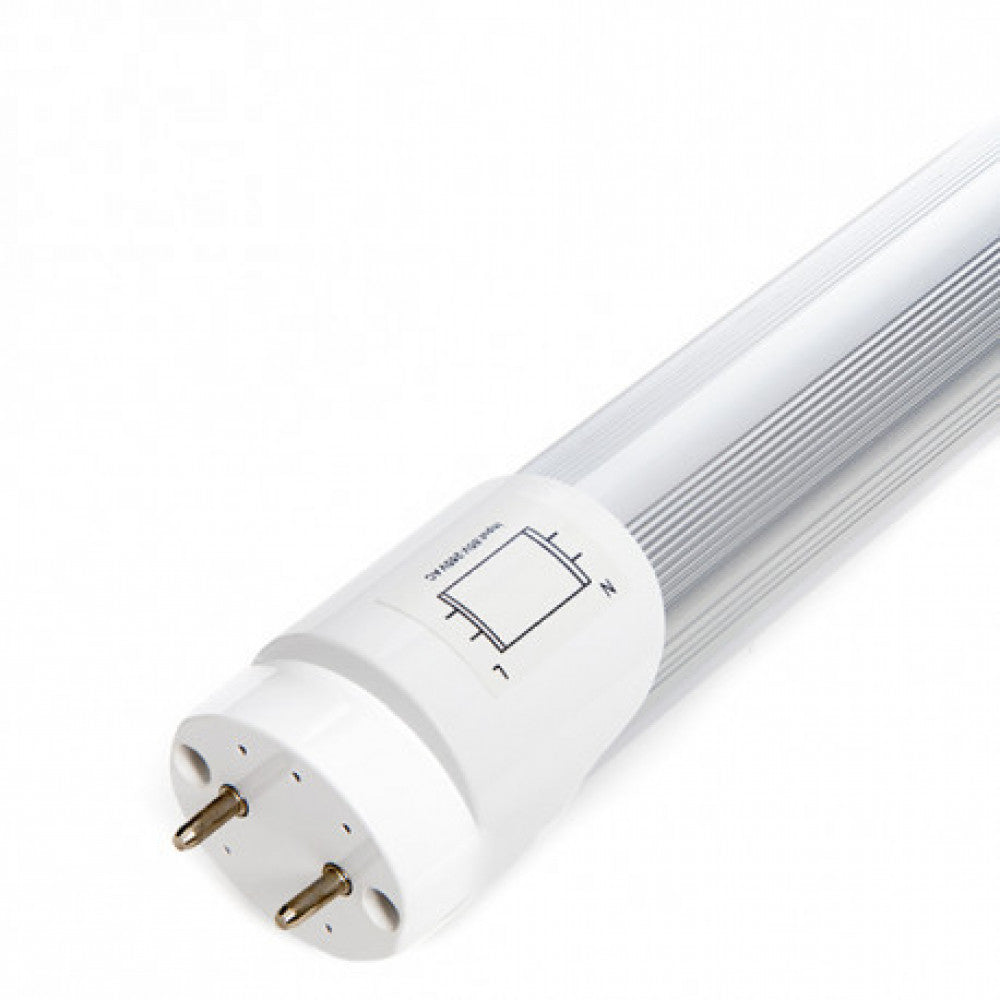

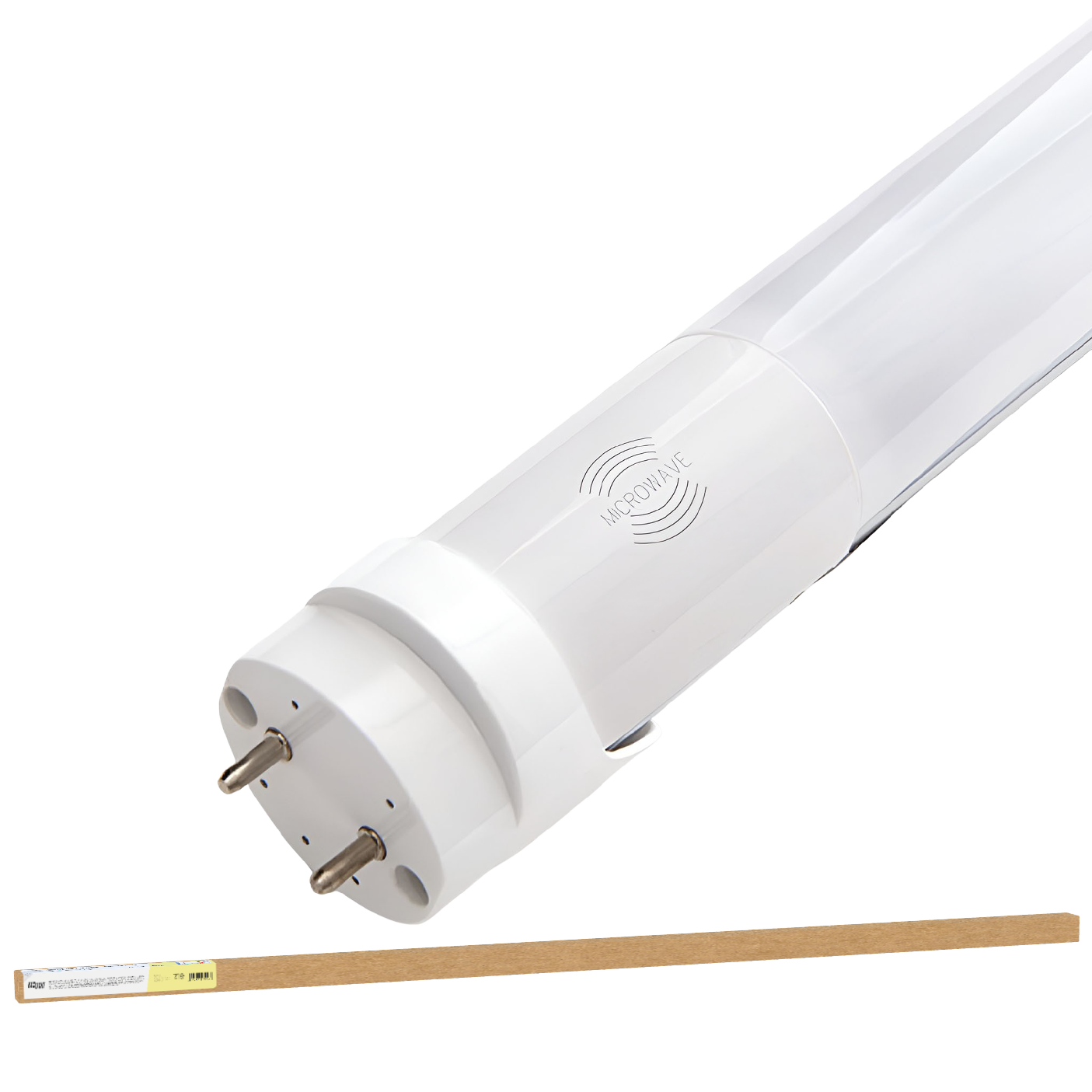

T8 LED Tube 18W 1,800Lm 6000ºK 120Cm Microwave Proximity Sensor 40,000H [BX3-T8-06F-120-O-CW]

T8 LED Tube 18W 1,800Lm 6000ºK 120Cm Microwave Proximity Sensor 40,000H [BX3-T8-06F-120-O-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:BX3 LIGHT
  • SkuBX3-T8-06F-120-O-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
11,05€
11,05€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(BX3-T8-06F-120-O-CW_padreImg_bx3_t8_06f_120_o_cw_0.png)
Cool White
Stock available
Free shipping
11,05€
11,05€ Infinity%

Technical file

Product code
BX3-T8-06F-120-O-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar Led
Number of LEDs
96
Measures (mm)
Ø26x1200
High
1200.0
Diameter
26
CRI
80
Diffuser
Opal
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP25
Strain
85-265VAC
Estimated life (H)
40000
Dimable
Forks
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T8
Temperature range (ºC)
-40 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
340
Flicker
0.81
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
6000
INDEX R9
26
Minimum cri range
92
Maximum cri range
3
Chromaticity x
0.308
Chromaticity y
0.312
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000:2008; EN 60598:2008; EN 62471:2008

Characteristics

Product code
BX3-T8-06F-120-O-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar Led
Number of LEDs
96
Measures (mm)
Ø26x1200
High
1200.0
Diameter
26
CRI
80
Diffuser
Opal
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP25
Strain
85-265VAC
Estimated life (H)
40000
Dimable
Forks
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T8
Temperature range (ºC)
-40 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
340
Flicker
0.81
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
6000
INDEX R9
26
Minimum cri range
92
Maximum cri range
3
Chromaticity x
0.308
Chromaticity y
0.312
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000:2008; EN 60598:2008; EN 62471:2008

Description

The BX3 LIGHT T8 18W LED Tube with Microwave Proximity Sensor is an efficient and intelligent lighting solution designed to optimize energy consumption through automatic presence detection.

Thanks to its integrated sensor, the tube activates upon detecting movement, providing light only when needed.

Technical Specifications:

  • Rated Power: 18W
  • Luminous Flux: 1,800 lumens
  • Length: 120 cm
  • Format: T8
  • Detection Technology: Microwave (radar)
  • Estimated Lifespan: 40,000 hours
  • Instant flicker-free start
  • LED Technology: High efficiency

Main features:

  • Automatic motion-activated
  • Greater sensitivity compared to traditional PIR sensors
  • Significant energy savings
  • Direct replacement for 36W fluorescent tubes
  • Ideal for parking garages, warehouses, hallways, storage rooms, and common areas

Manufactured to BX3 LIGHT quality standards, guaranteeing stable light output, energy efficiency, and reduced maintenance costs in professional installations.
