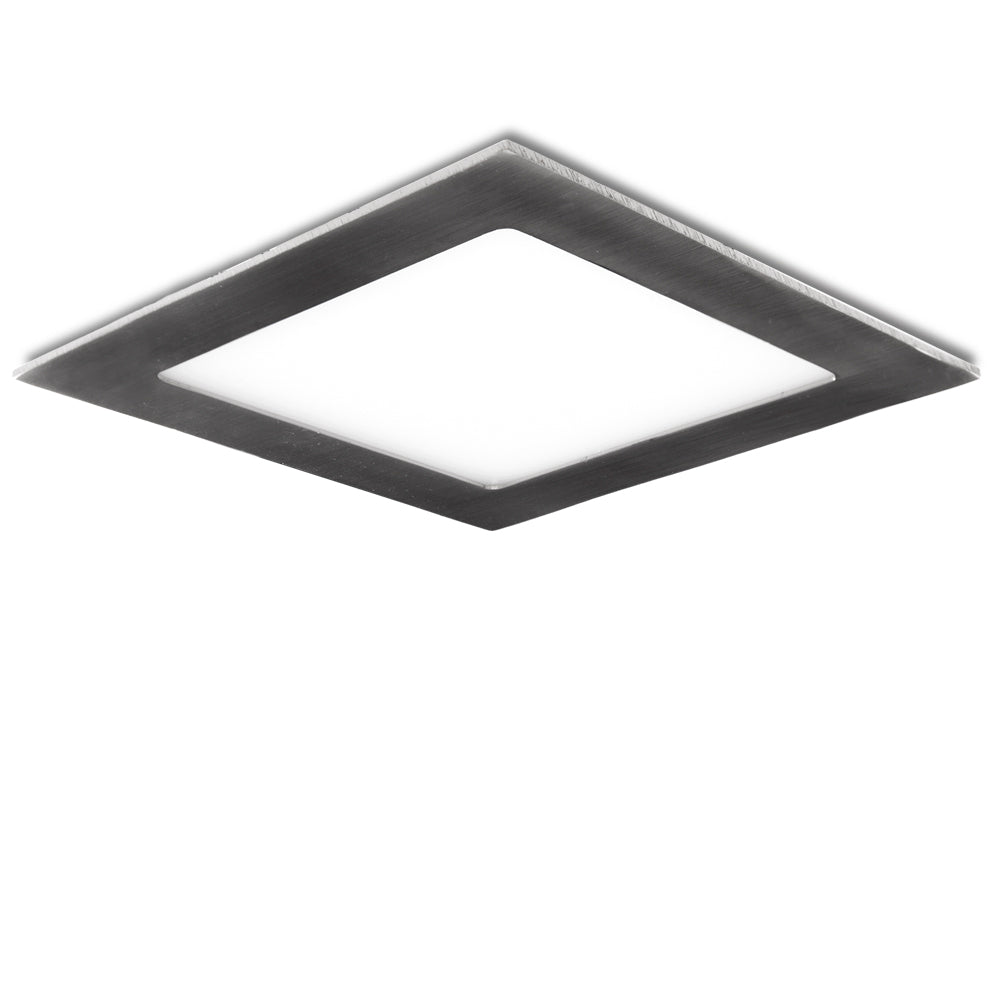

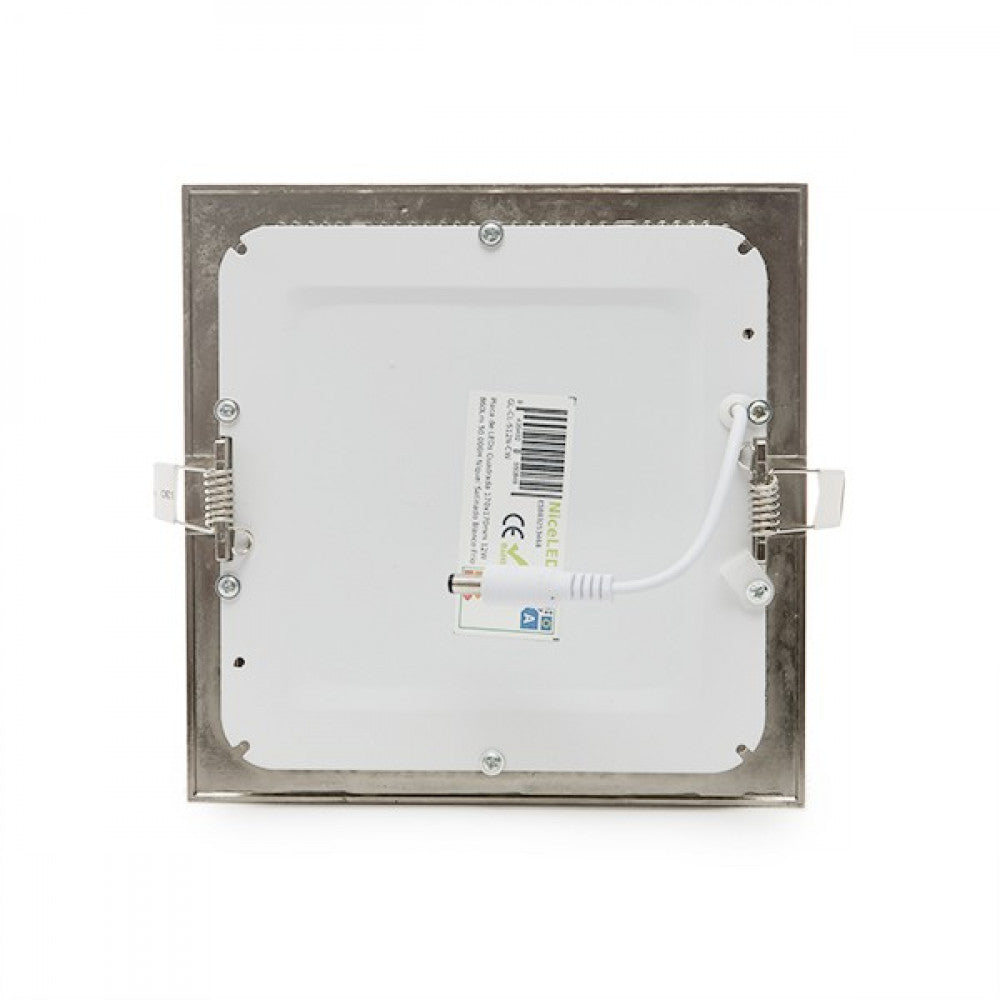

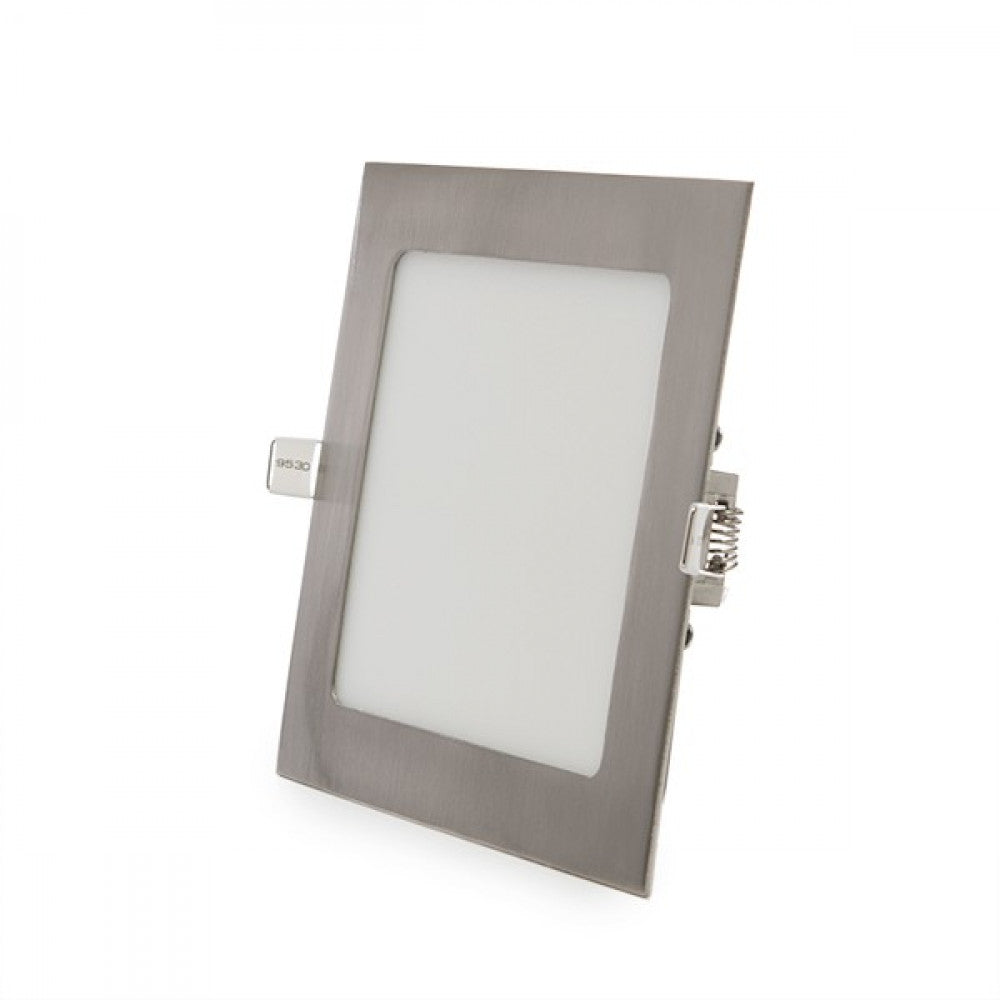

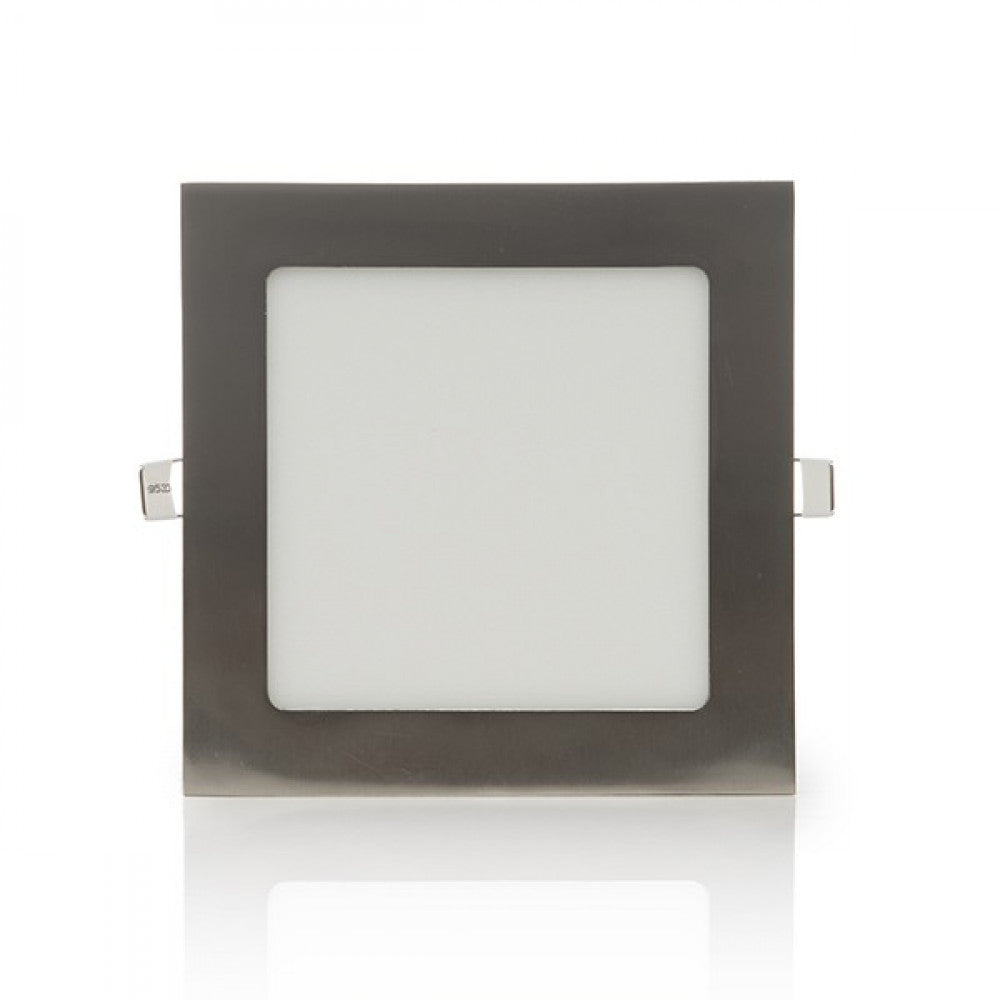

12W 1200Lm 6000ºK Square Satin Nickel LED Panel 50,000H [GL-CL-S12N-CW]

12W 1200Lm 6000ºK Square Satin Nickel LED Panel 50,000H [GL-CL-S12N-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuGL-CL-S12N-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
5,36€
5,36€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(GL-CL-S12N-CW_padreImg_gl_cl_s12n_cw_0.jpeg)
Cool White
Stock available
Free shipping
5,36€
5,36€ Infinity%

Accessories

  • (GR-DALI-12W_padreImg_gr_dali_12w_0.jpeg) (GR-DALI-12W_padreImg_gr_dali_12w_1.jpeg)

    Driver Adjustable DALI 12W

    GreenIce

    Driver Adjustable DALI 12W

    26,75€
    26,75€ Infinity%
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    9,60€
    9,60€ Infinity%

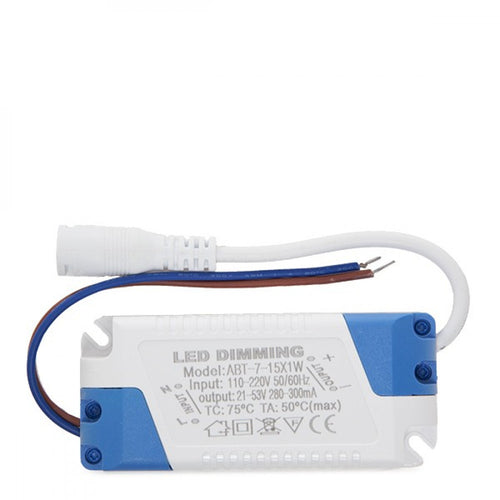

  • (GR-DRDIM-12W_padreImg_gr_drdim_12w_0.jpeg) (GR-DRDIM-12W_padreImg_gr_drdim_12w_1.jpeg)

    Driver Dimmable Slimline Downlights 12W

    GreenIce

    Driver Dimmable Slimline Downlights 12W

    5,93€
    5,93€ Infinity%

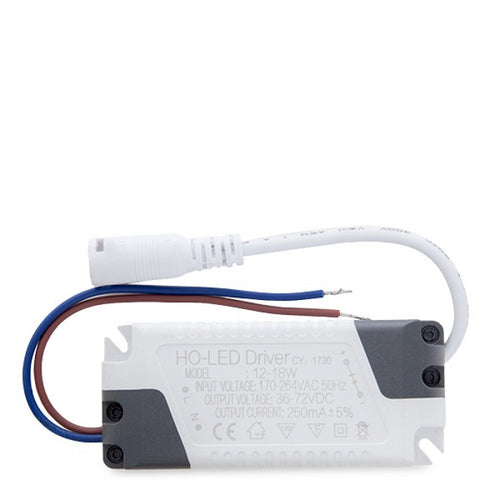

  • (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_0.jpeg) (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_1.jpeg)

    Driver Non Dimmable Downlight LED 12W

    GreenIce

    Driver Non Dimmable Downlight LED 12W

    1,99€
    1,99€ Infinity%
  • (CPS-LF-GIF015YA-10_padreImg_cps_lf_gif015ya_10_0.jpeg) (CPS-LF-GIF015YA-10_padreImg_cps_lf_gif015ya_10_1.jpeg)

    Driver LIFUD 10W In::220-240VAC Out::25-40VDC Flicker Free

    Lifud Driver

    Driver LIFUD 10W In::220-240VAC Out::25-40VDC Flicker Free

    4,53€
    4,53€ Infinity%
  • (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_0.jpeg) (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_1.jpeg)

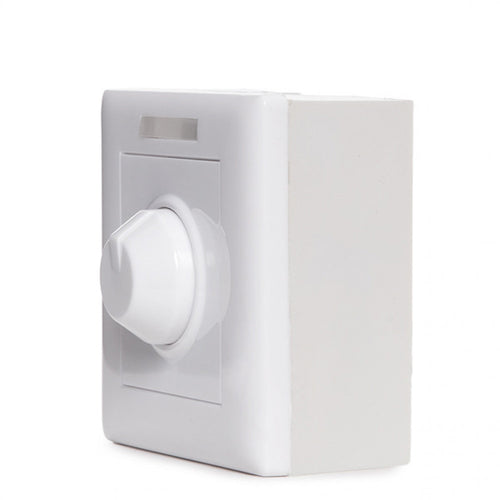

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    GreenIce

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    25,24€
    25,24€ Infinity%
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    5,12€
    5,12€ Infinity%
  • (HO-HP-ND-12W_padreImg_ho_hp_nd_12w_0.jpeg) (HO-HP-ND-12W_padreImg_ho_hp_nd_12w_1.jpeg)

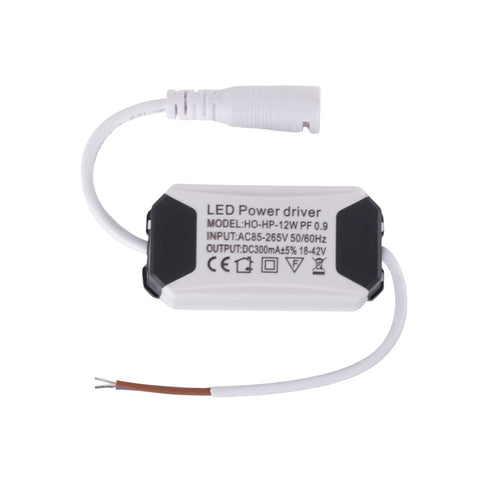

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 12W

    GreenIce

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 12W

    1,99€
    1,99€ Infinity%

Technical file

Product code
GL-CL-S12N-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Measures (mm)
170x170
Roof cut (mm)
150x150
High
170.0
Long
170.0
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
12.0
Weight (gr)
325
Flicker
0.63
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
94
Maximum cri range
17
Chromaticity x
0.322
Chromaticity y
0.35
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Driver output
DC24-48V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
GL-CL-S12N-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Measures (mm)
170x170
Roof cut (mm)
150x150
High
170.0
Long
170.0
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
12.0
Weight (gr)
325
Flicker
0.63
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
94
Maximum cri range
17
Chromaticity x
0.322
Chromaticity y
0.35
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Driver output
DC24-48V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

LED Plate 12W 860Lm 6000ºK Square Satin Nickel 50,000H [GL-CL-S12N-CW]
