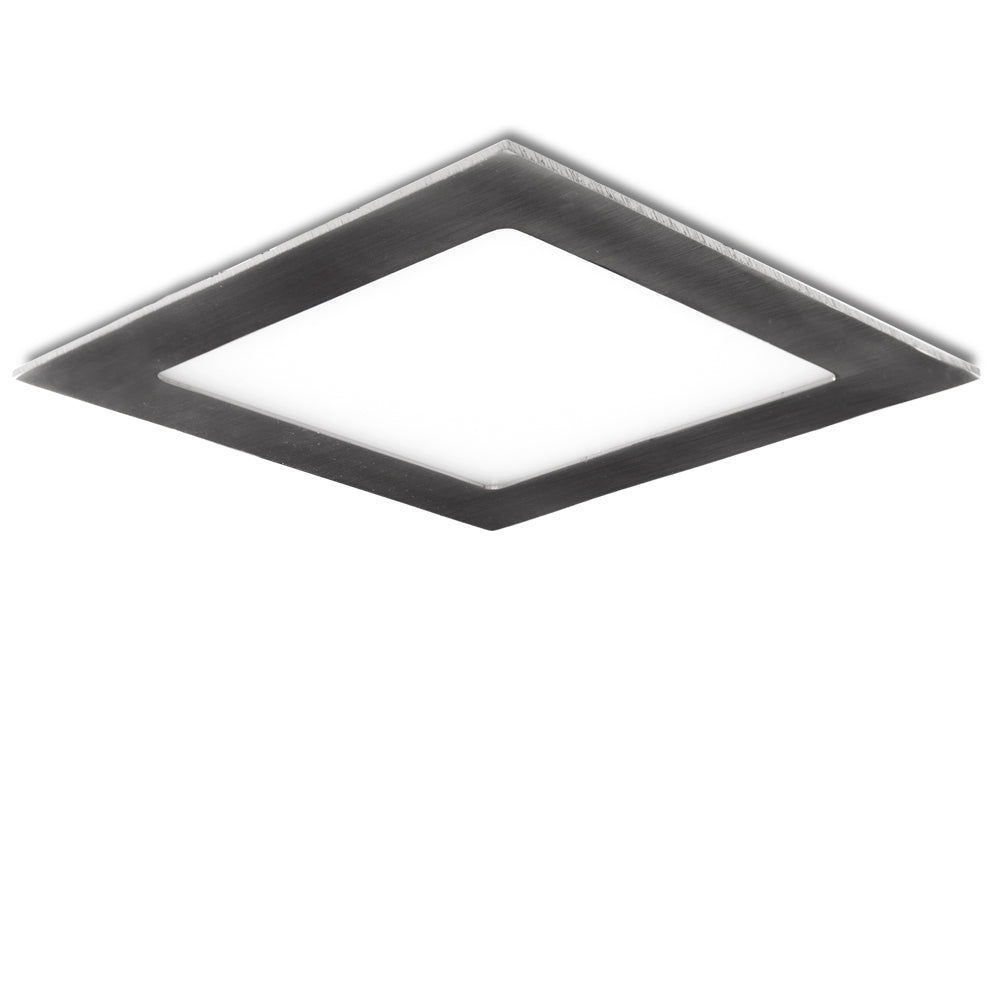

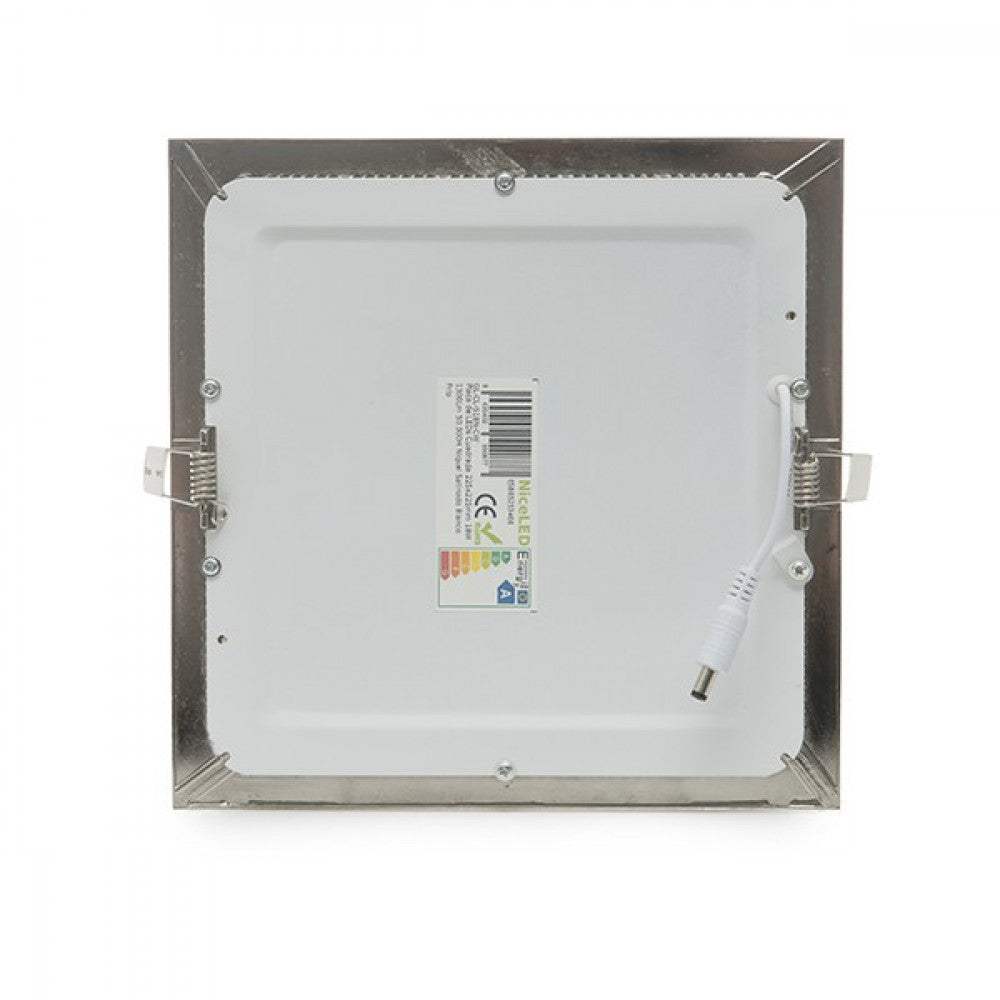

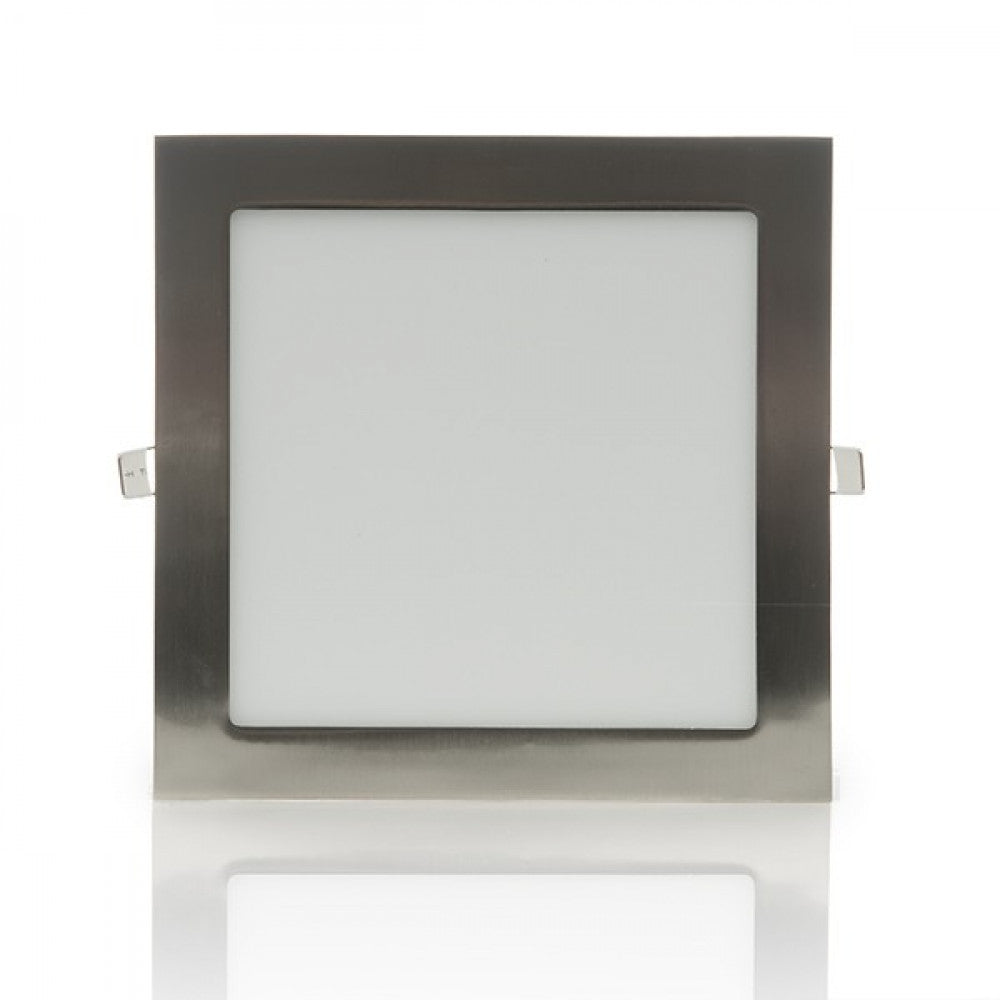

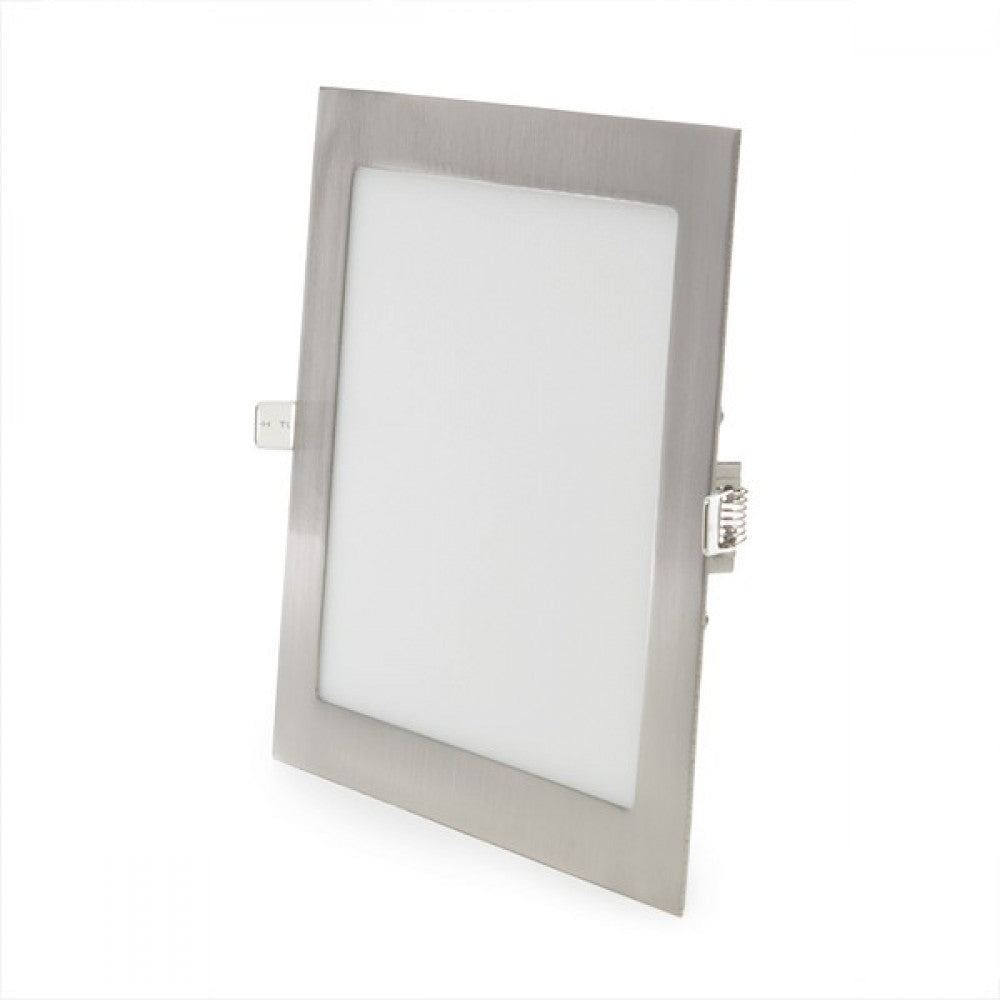

18W 1800Lm 6000ºK Square Satin Nickel LED Panel 50,000H [GL-CL-S18N-CW]

18W 1800Lm 6000ºK Square Satin Nickel LED Panel 50,000H [GL-CL-S18N-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuGL-CL-S18N-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
6,84€
6,84€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(GL-CL-S18N-CW_padreImg_gl_cl_s18n_cw_0.jpeg)
Cool White
Stock available
Free shipping
6,84€
6,84€ Infinity%

Accessories

  • (CPS-LF-AAA020_padreImg_cps_lf_aaa020_0.jpeg)

    Driver LIFUD Adjustable 0-10V 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Lifud Driver

    Driver LIFUD Adjustable 0-10V 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    13,81€
    13,81€ Infinity%
  • (CPS-LF-GDE020YG_padreImg_cps_lf_gde020yg_0.jpeg)

    Driver LIFUD Adjustable Triac Dim 16-22W In: 220-240V Out: 25-40VDC Flicker Free

    Lifud Driver

    Driver LIFUD Adjustable Triac Dim 16-22W In: 220-240V Out: 25-40VDC Flicker Free

    19,45€
    19,45€ Infinity%
  • (CPS-LF-AAD020_padreImg_cps_lf_aad020_0.jpeg)

    Driver Lifud Adjustable DALI 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Lifud Driver

    Driver Lifud Adjustable DALI 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    19,59€
    19,59€ Infinity%

Technical file

Product code
GL-CL-S18N-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Measures (mm)
223x223
Roof cut (mm)
200x200
High
223.0
Long
223.0
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
527
Flicker
0.58
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
92
Maximum cri range
2
Chromaticity x
0.323
Chromaticity y
0.353
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Driver output
30-42 V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
GL-CL-S18N-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Measures (mm)
223x223
Roof cut (mm)
200x200
High
223.0
Long
223.0
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
527
Flicker
0.58
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
92
Maximum cri range
2
Chromaticity x
0.323
Chromaticity y
0.353
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Driver output
30-42 V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

LED Plate 18W 1,300Lm 6000ºK Square Satin Nickel 50,000H [GL-CL-S18N-CW]
