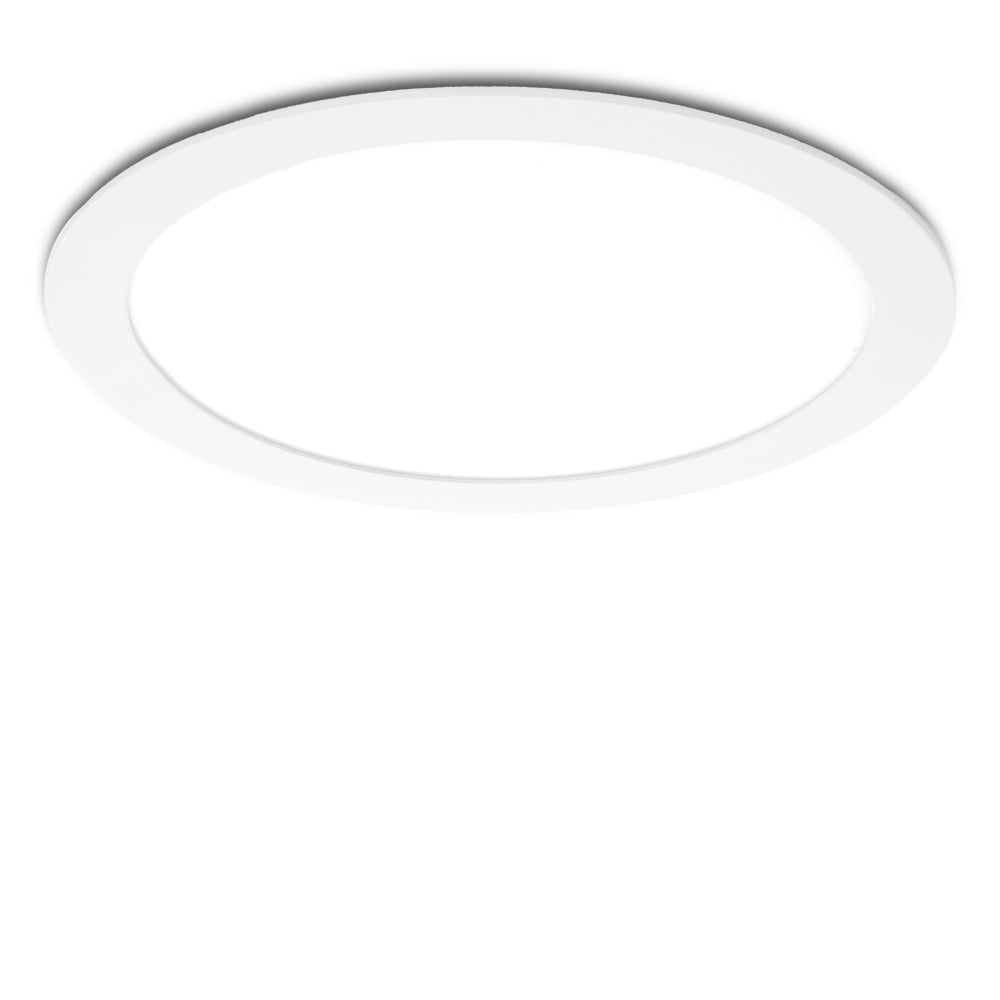

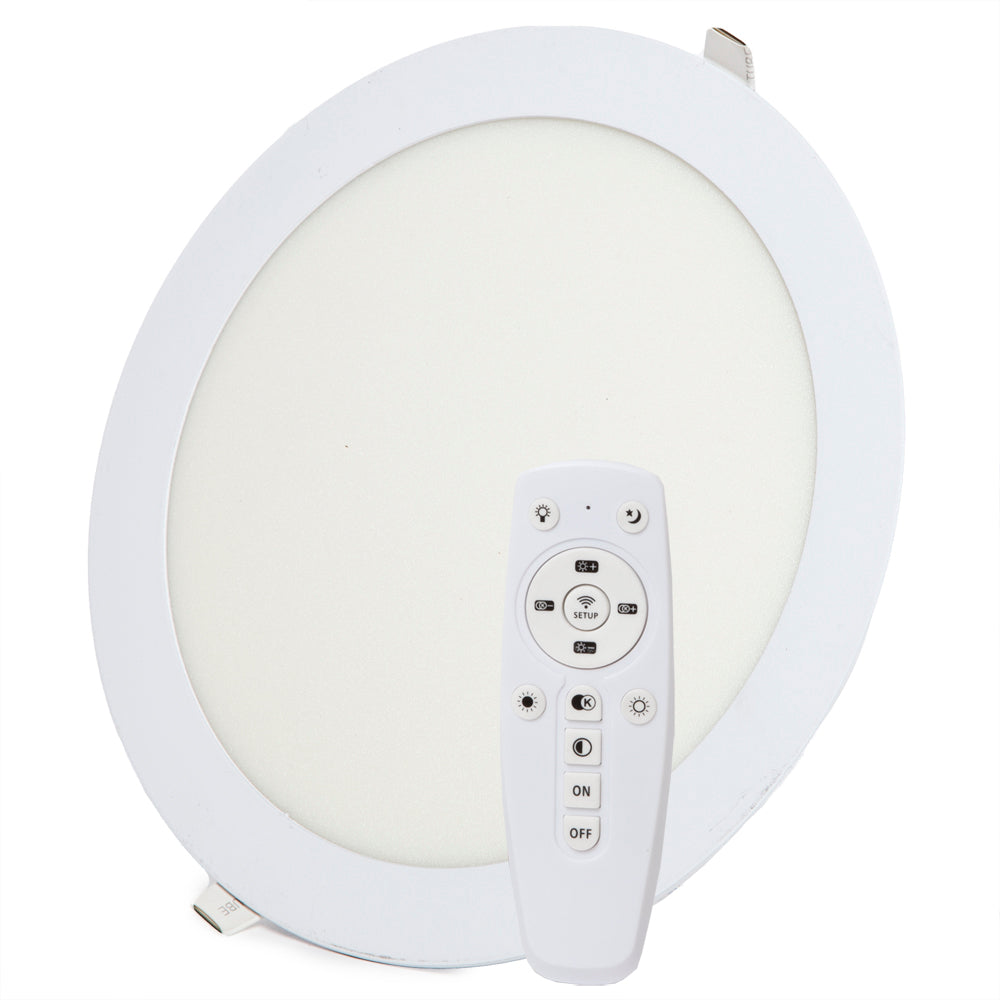

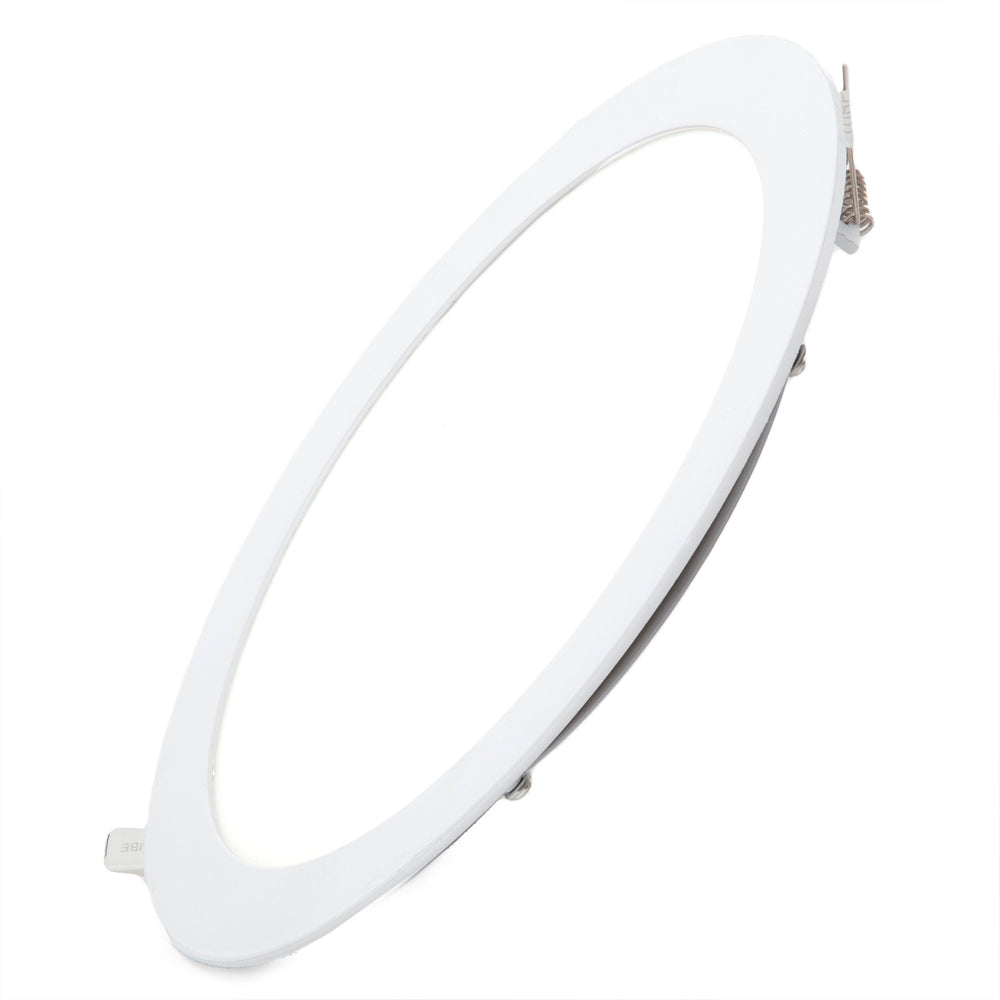

18W LED Panel 1,800Lm Remote Control (Intensity-CCT) 40,000H [HO-PL-18W-RC]

18W LED Panel 1,800Lm Remote Control (Intensity-CCT) 40,000H [HO-PL-18W-RC]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuHO-PL-18W-RC
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Documents
16,88€
16,88€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Documents
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
(HO-PL-18W-RC_padreImg_ho_pl_18w_rc_0.jpeg)
Cold/Natural/Warm
Stock available
Free shipping
16,88€
16,88€ Infinity%

Accessories

  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    3,20€
    3,20€ Infinity%
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

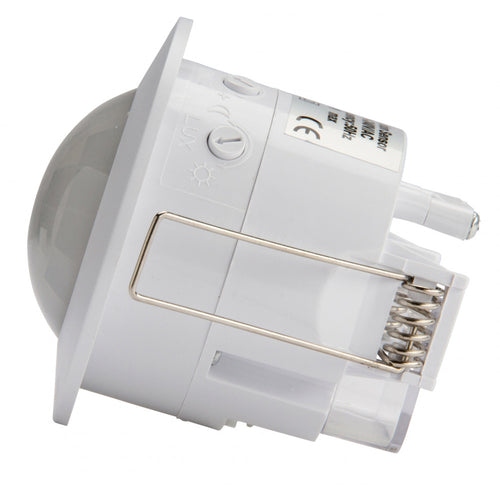

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    10,17€
    10,17€ Infinity%
  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    7,45€
    7,45€ Infinity%
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

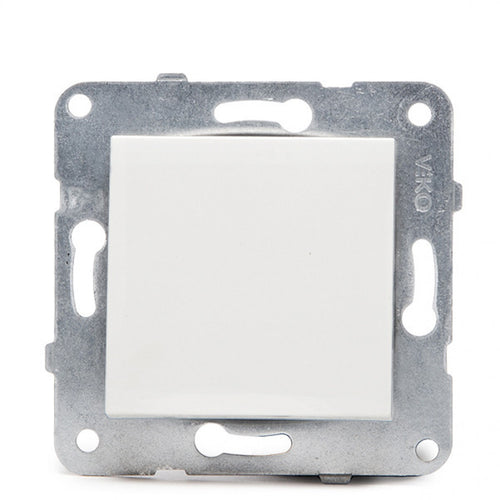

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    4,44€
    4,44€ Infinity%
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    4,48€
    4,48€ Infinity%
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    5,21€
    5,21€ Infinity%

Technical file

Product code
HO-PL-18W-RC
Light temperature
Cold/Natural/Warm
Power (W)
18.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
90
Measures (mm)
Ø220x17
Roof cut (mm)
Ø200
High
17.0
Diameter
220
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC180-210V
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
390
Flicker
0.75
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
INDEX R9
8
Minimum cri range
92
Maximum cri range
1
Chromaticity x
0.323
Chromaticity y
0.353
Additional information
Detailed instructions in the "Documents" tab
Minimum CCT range
3000
Maximum cri range
6000
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001
