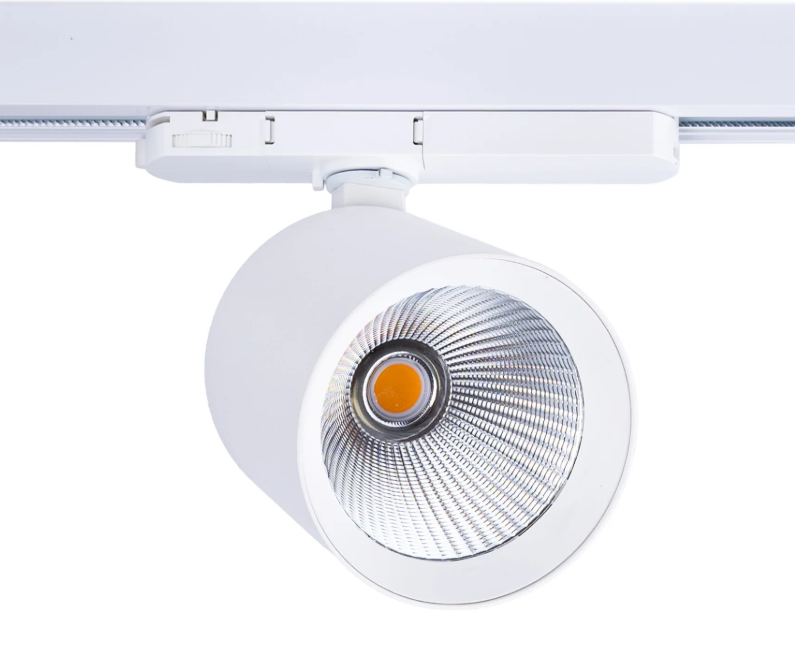

40W three-phase track LED projector for butcher shops, Lifud Flicker Free driver

40W three-phase track LED projector for butcher shops, Lifud Flicker Free driver

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Lifud Driver
  • SkuJW-TR40W-CAR
  • AA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 38 º Opening
38,32€
38,32€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 38 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(JW-TR40W-CAR_padreImg_jw_tr40w_car_0.png)
Pink
Available
Free shipping
38,32€
38,32€ Infinity%

Technical file

Product code
JW-TR40W-CAR
Light temperature
Pink
Power (W)
40.0
Luminosity (LM)
4000
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Bridgelux Led
Number of LEDs
1
Measures (mm)
Ø110x105
Roof cut (mm)
Ø110
High
105.0
Diameter
110
CRI
90
UGR
◄17
Diffuser
Transparent
Power factor (PF)
0.98
Construction
Aluminum/Glass
Opening Angle (º)
38
Facility
IP20
Strain
220-240VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
40.0
Weight (gr)
1200
Flicker
0.5
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non Directional
Single/range CCT
Only
INDEX R9
4
Minimum cri range
85
Maximum cri range
90
Driver
Lifud
Número unidades caja exterior
20.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JW-TR40W-CAR
Light temperature
Pink
Power (W)
40.0
Luminosity (LM)
4000
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Bridgelux Led
Number of LEDs
1
Measures (mm)
Ø110x105
Roof cut (mm)
Ø110
High
105.0
Diameter
110
CRI
90
UGR
◄17
Diffuser
Transparent
Power factor (PF)
0.98
Construction
Aluminum/Glass
Opening Angle (º)
38
Facility
IP20
Strain
220-240VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
40.0
Weight (gr)
1200
Flicker
0.5
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non Directional
Single/range CCT
Only
INDEX R9
4
Minimum cri range
85
Maximum cri range
90
Driver
Lifud
Número unidades caja exterior
20.0
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

Downlight LED Orientable 40W 100Lm/ W UGR19 50000H
