Cardan LED Downlight Spotlight 12W 1,200Lm 6000ºK CREE RA►90 40,000H [JW-CAR-LED-1x12W-CW]

Cardan LED Downlight Spotlight 12W 1,200Lm 6000ºK CREE RA►90 40,000H [JW-CAR-LED-1x12W-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Cree Led
  • SkuJW-CAR-LED-1x12W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 24 º Opening
24,71€
24,71€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 24 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(JW-CAR-LED-1x12W-CW_padreImg_jw_car_led_1x12w_cw_0.jpeg)
Cool White
There are few
Free shipping
24,71€
24,71€ Infinity%

Accessories

  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

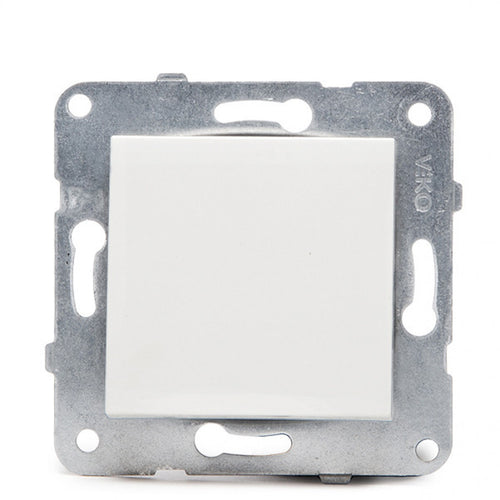

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    4,37€
    4,37€ Infinity%
  • (CPS-LF-GIR015YM_padreImg_cps_lf_gir015ym_0.jpeg)

    Driver LIFUD 14W In: 220-240V Out: 25-40VDC

    Lifud Driver

    Driver LIFUD 14W In: 220-240V Out: 25-40VDC

    6,76€
    6,76€ Infinity%
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    2,94€
    2,94€ Infinity%

Technical file

Product code
JW-CAR-LED-1x12W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold white
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Measures (mm)
Ø225x105
Roof cut (mm)
160x160
High
105.0
Long
190.0
Broad
190.0
Diameter
225
Number and type of LEDs
Cree Led
CRI
90
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
24
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Energy consumption (kWh/1000h)
12.0
Weight (gr)
1000
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
89
Maximum cri range
19
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JW-CAR-LED-1x12W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold white
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Measures (mm)
Ø225x105
Roof cut (mm)
160x160
High
105.0
Long
190.0
Broad
190.0
Diameter
225
Number and type of LEDs
Cree Led
CRI
90
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
24
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Transparent
Energy consumption (kWh/1000h)
12.0
Weight (gr)
1000
Flicker
0.93
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
89
Maximum cri range
19
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

This 12W Cree COB Addressable LED Spotlight AR111 driver liifud integrates a light source with COB technology that has a luminosity of 1200 lm. It provides, at an angle of 24º, a high-quality light that ensures a very natural reproduction of colors.

This type of light perfectly complements the general lighting of any space. They are flush mounted in a hole with the cutout dimensions indicated. The driver comes pre-wired making installation of this spotlight a simple task. The focus can rotate up to 350º on its axis.
