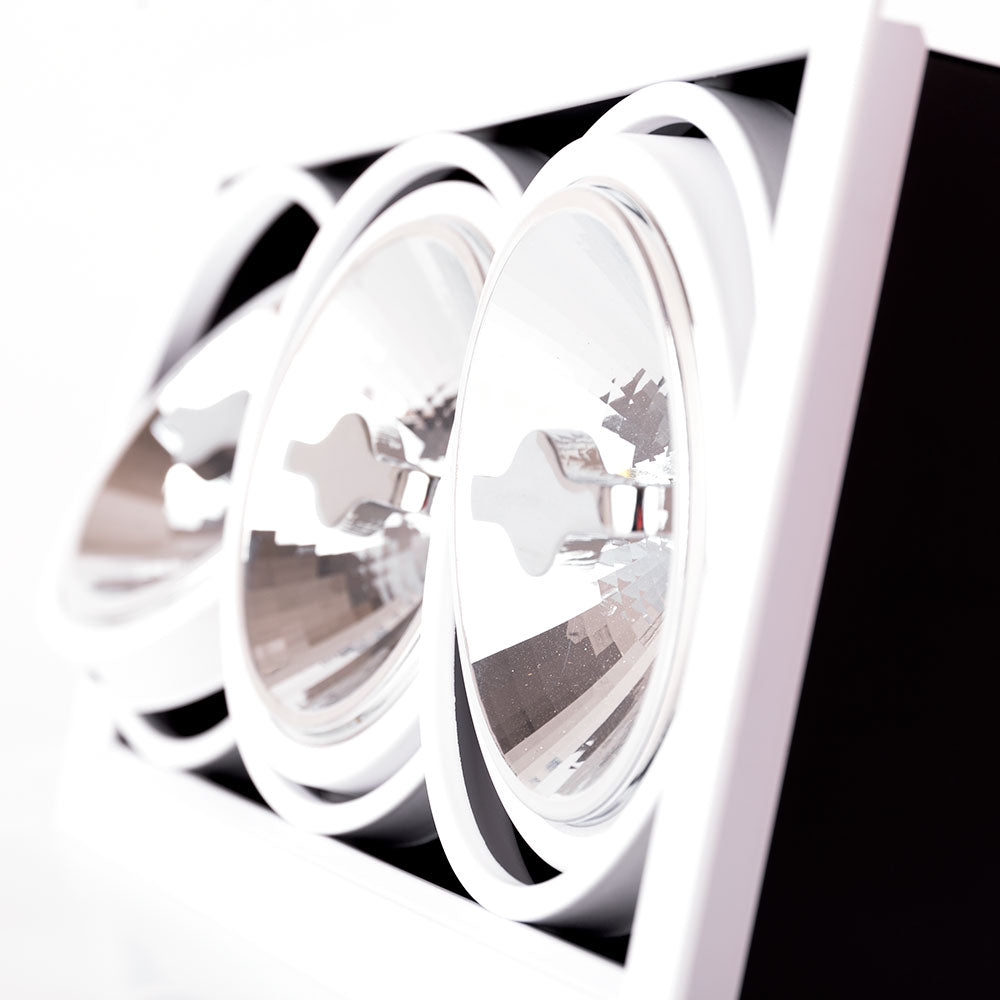

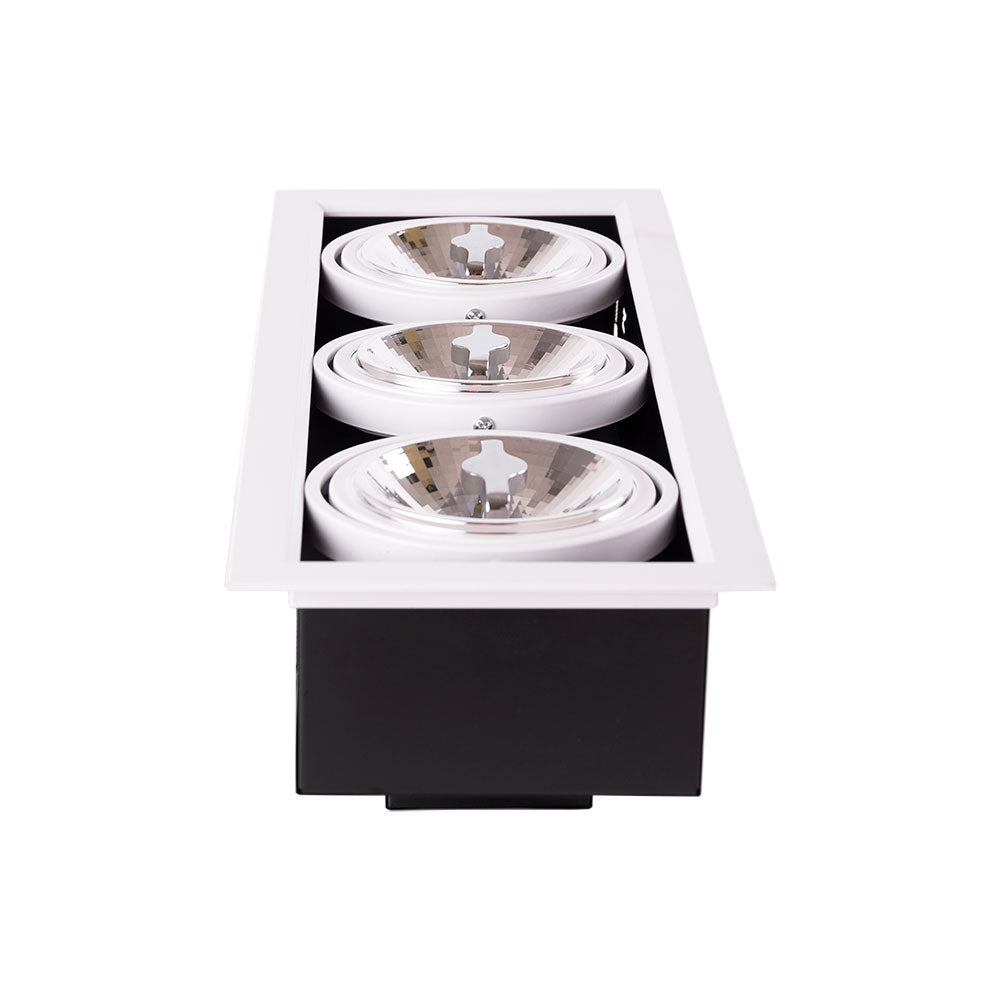

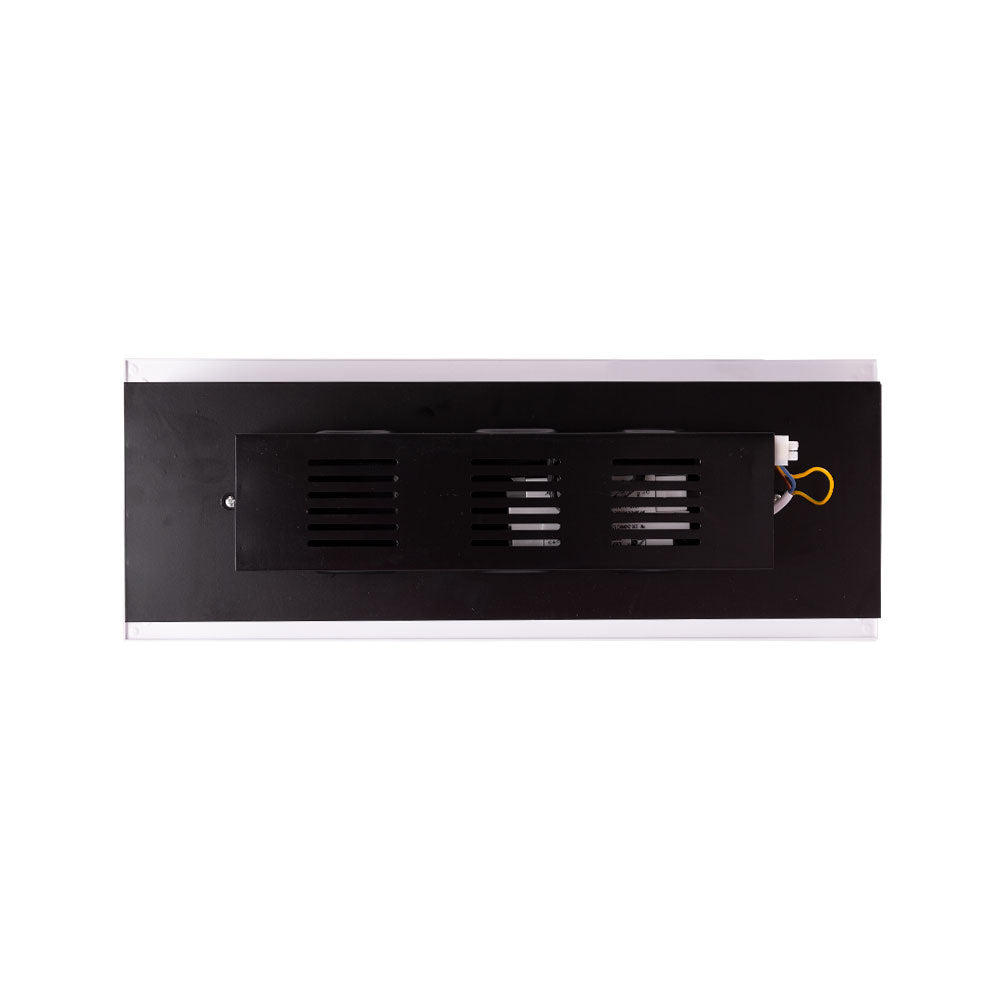

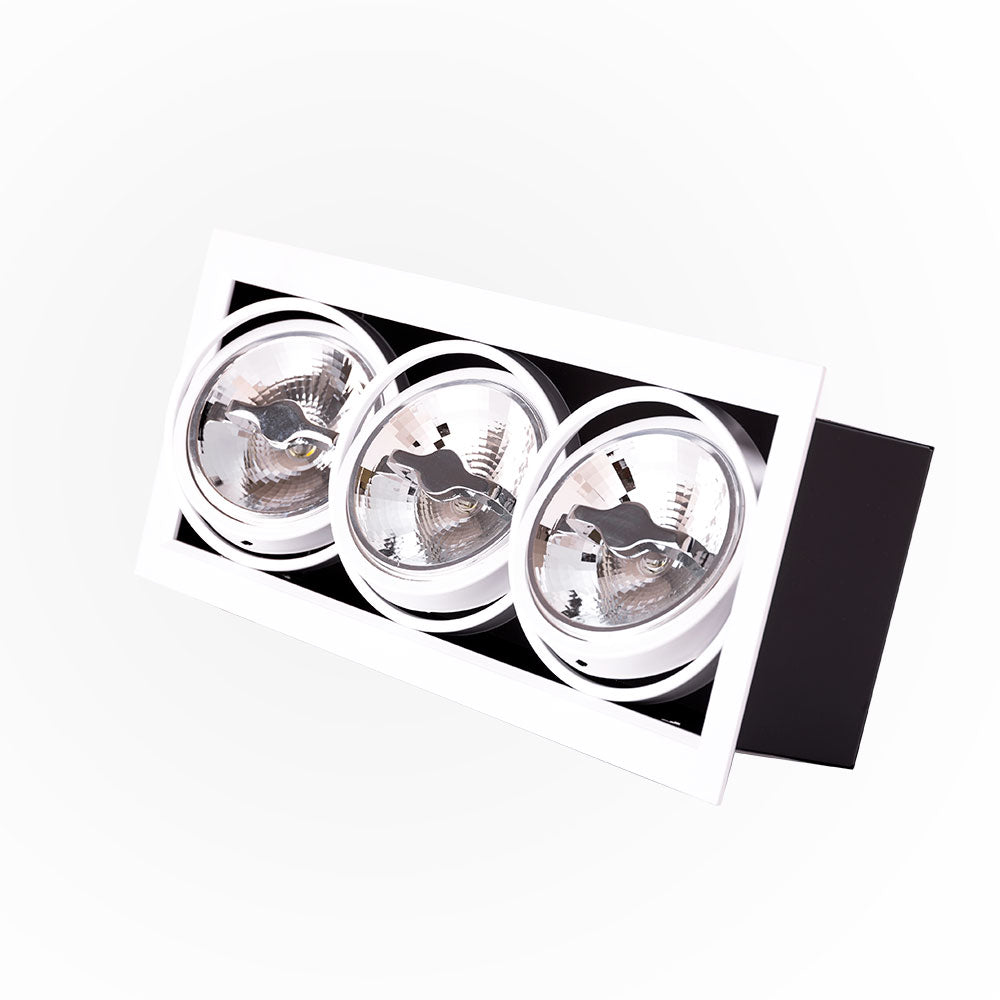

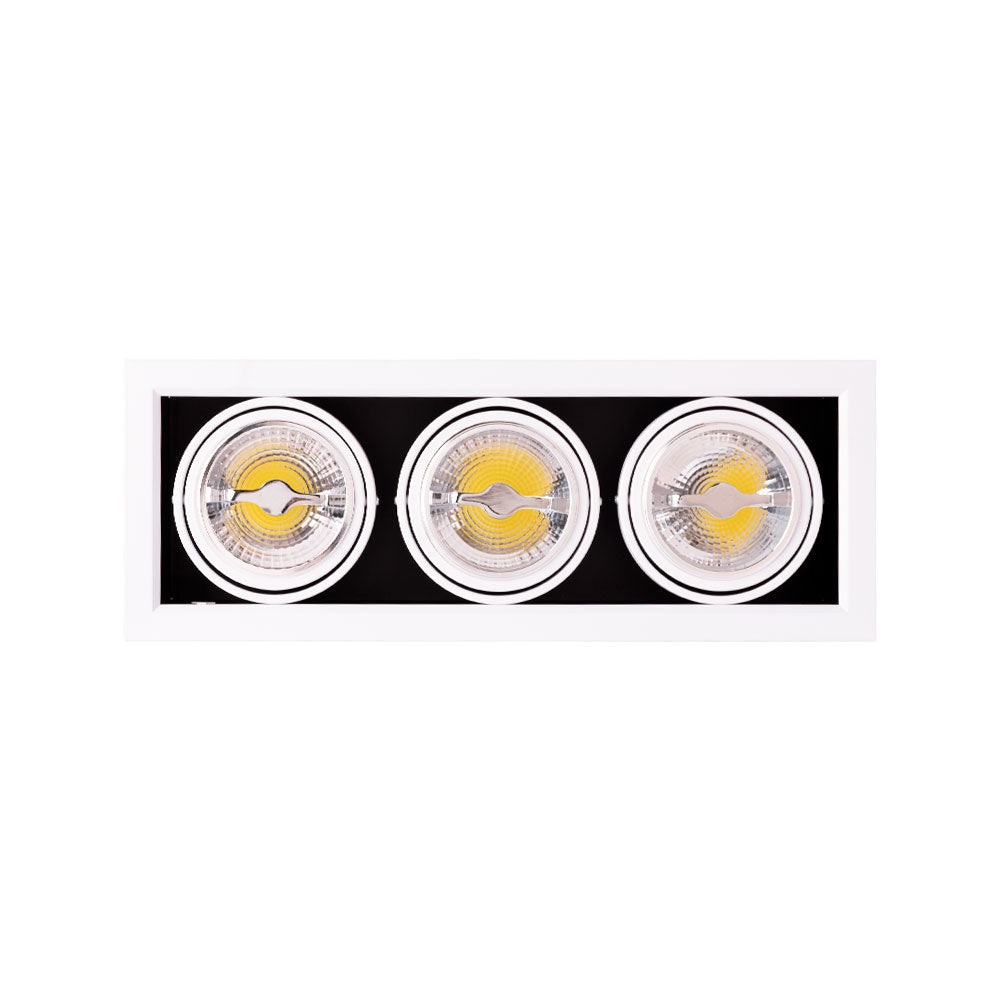

Cardan LED Downlight Spotlight 36W 3,600Lm 6000ºK CREE RA►90 40,000H [JW-CAR-LED-3x12W-CW]

Cardan LED Downlight Spotlight 36W 3,600Lm 6000ºK CREE RA►90 40,000H [JW-CAR-LED-3x12W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:Kimera / Cree Led
  • SkuJW-CAR-LED-3x12W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 24 º Opening
67,09€
67,09€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 24 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(JW-CAR-LED-3x12W-CW_padreImg_jw_car_led_3x12w_cw_0.jpeg)
Cool White
There are few
Free shipping
67,09€
67,09€ Infinity%

Accessories

  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

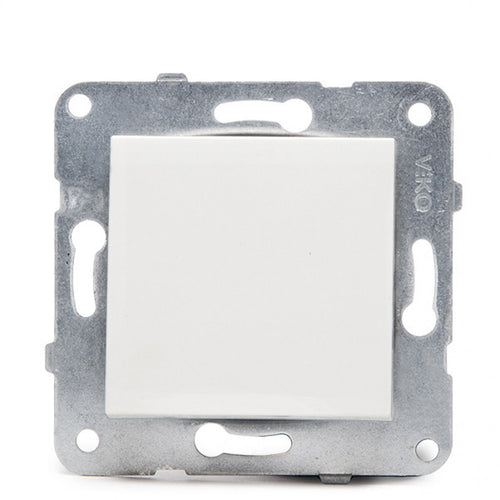

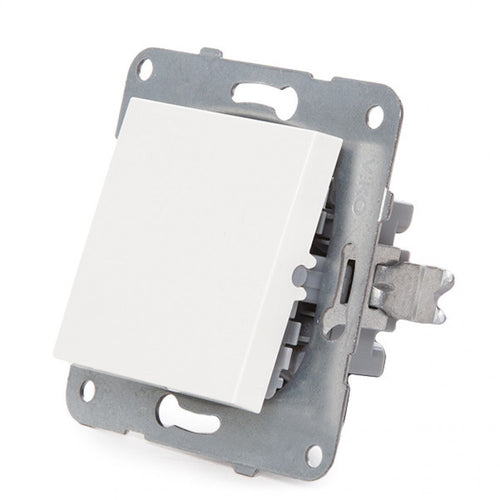

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    4,33€
    4,33€ Infinity%
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

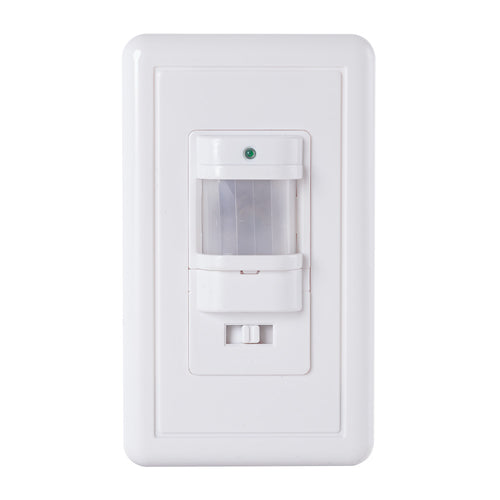

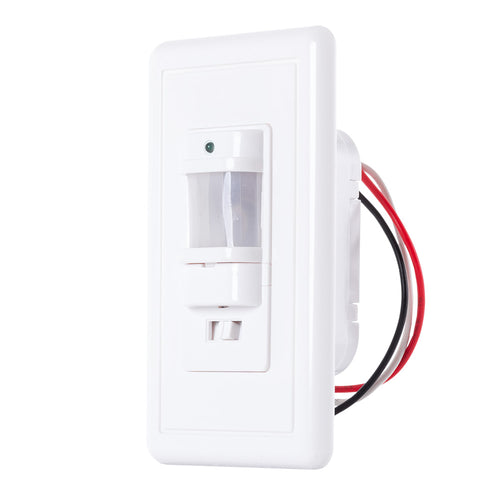

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    4,30€
    4,30€ Infinity%

Technical file

Product code
JW-CAR-LED-3x12W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
36.0
Luminosity (LM)
3600
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Cree Led
Number of LEDs
3
Measures (mm)
Ø225x105
Roof cut (mm)
460x155
High
105.0
Long
585.0
Broad
185.0
Diameter
225
CRI
90
Diffuser
Transparent
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
24
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
36.0
Weight (gr)
2000
Flicker
0.77
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
22
Minimum cri range
85
Maximum cri range
10
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JW-CAR-LED-3x12W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
36.0
Luminosity (LM)
3600
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Cree Led
Number of LEDs
3
Measures (mm)
Ø225x105
Roof cut (mm)
460x155
High
105.0
Long
585.0
Broad
185.0
Diameter
225
CRI
90
Diffuser
Transparent
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
24
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
36.0
Weight (gr)
2000
Flicker
0.77
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
22
Minimum cri range
85
Maximum cri range
10
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

This 36W Cree COB Addressable LED Spotlight AR111 lifud driver integrates a light source with COB technology that has a luminosity of 3600 lm. It provides, at an angle of 24º, a high-quality light that ensures a very natural reproduction of colors.

This type of light perfectly complements the general lighting of any space. They are flush mounted in a hole with the cutout dimensions indicated. The driver comes pre-wired making installation of this spotlight a simple task. The focus can rotate up to 350º on its axis.
