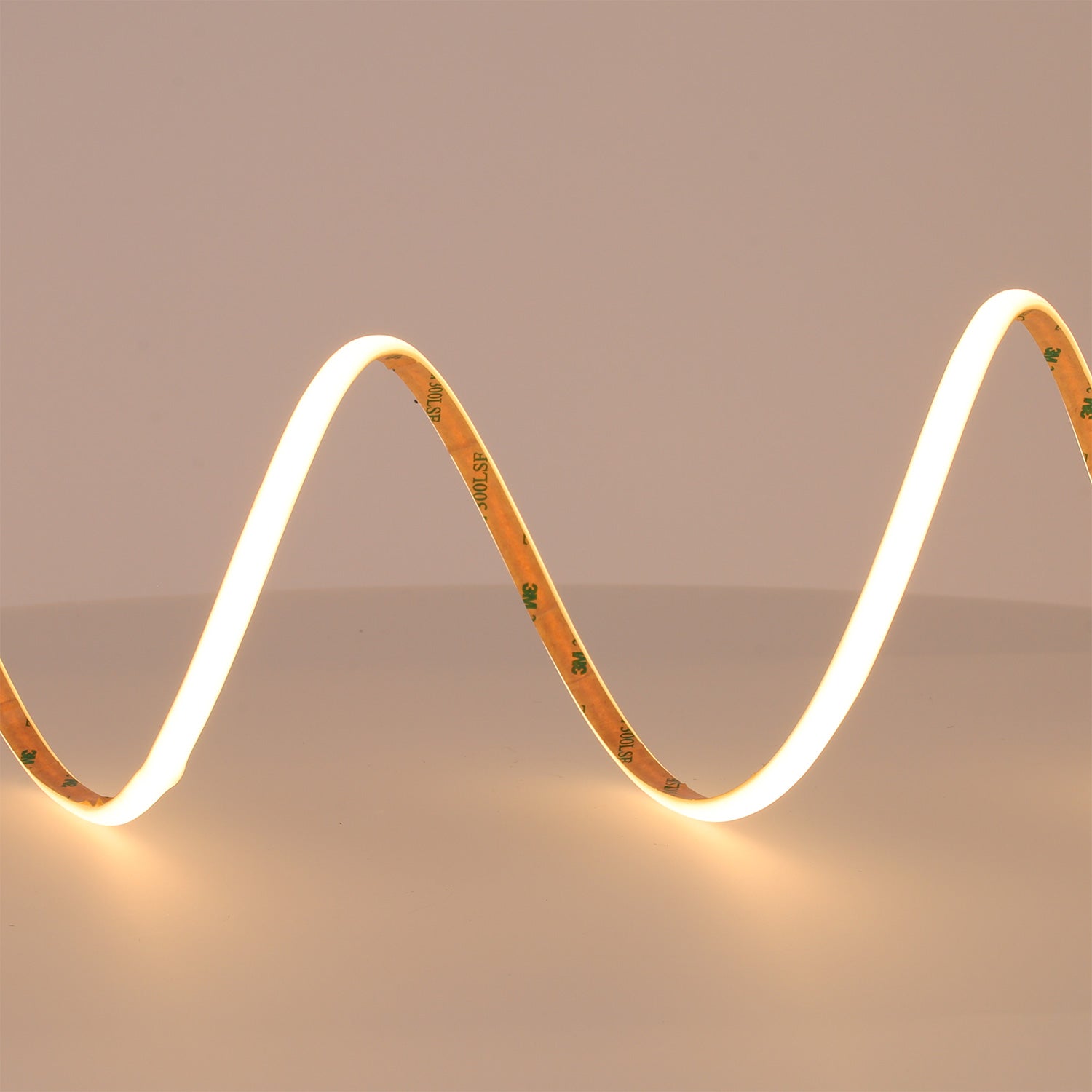

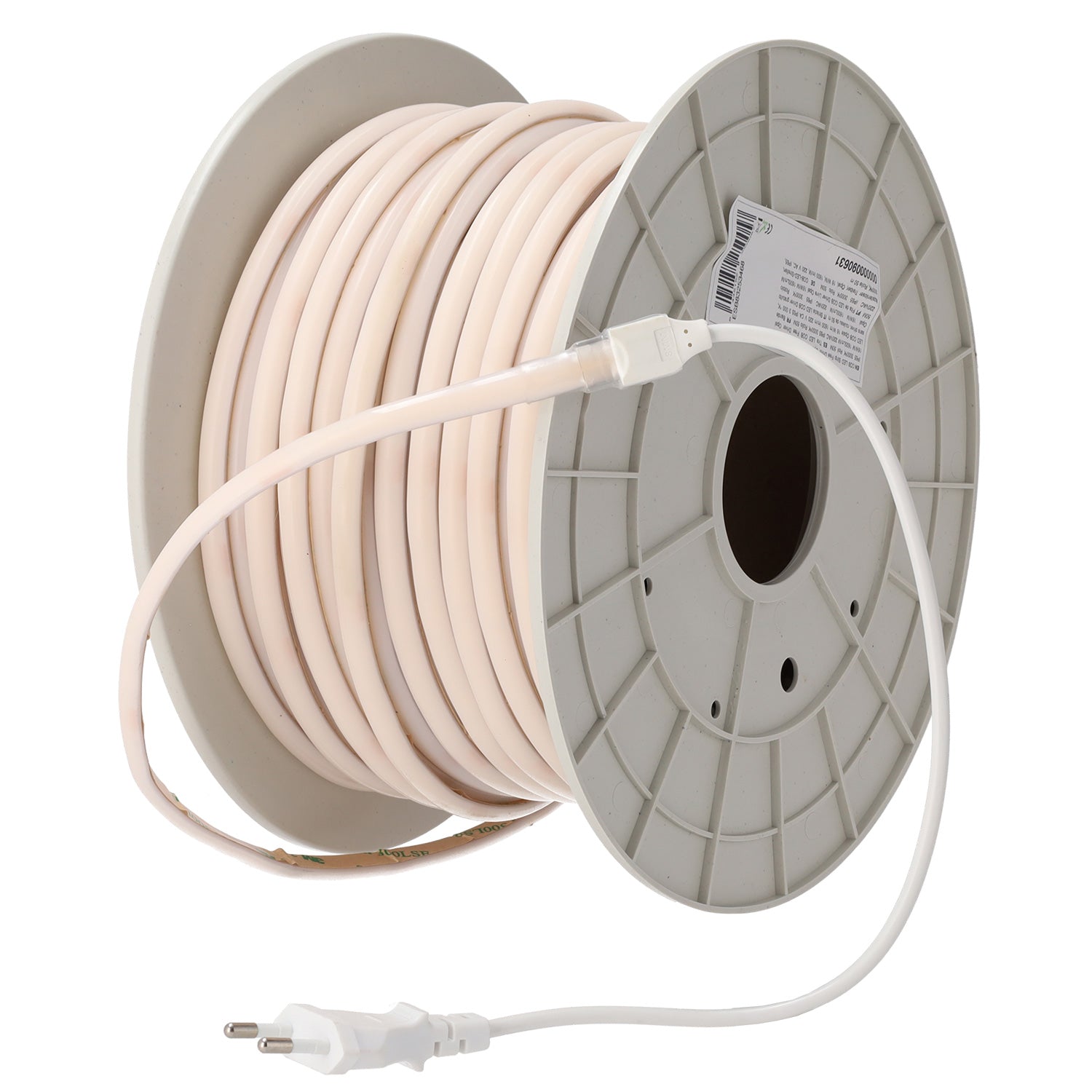

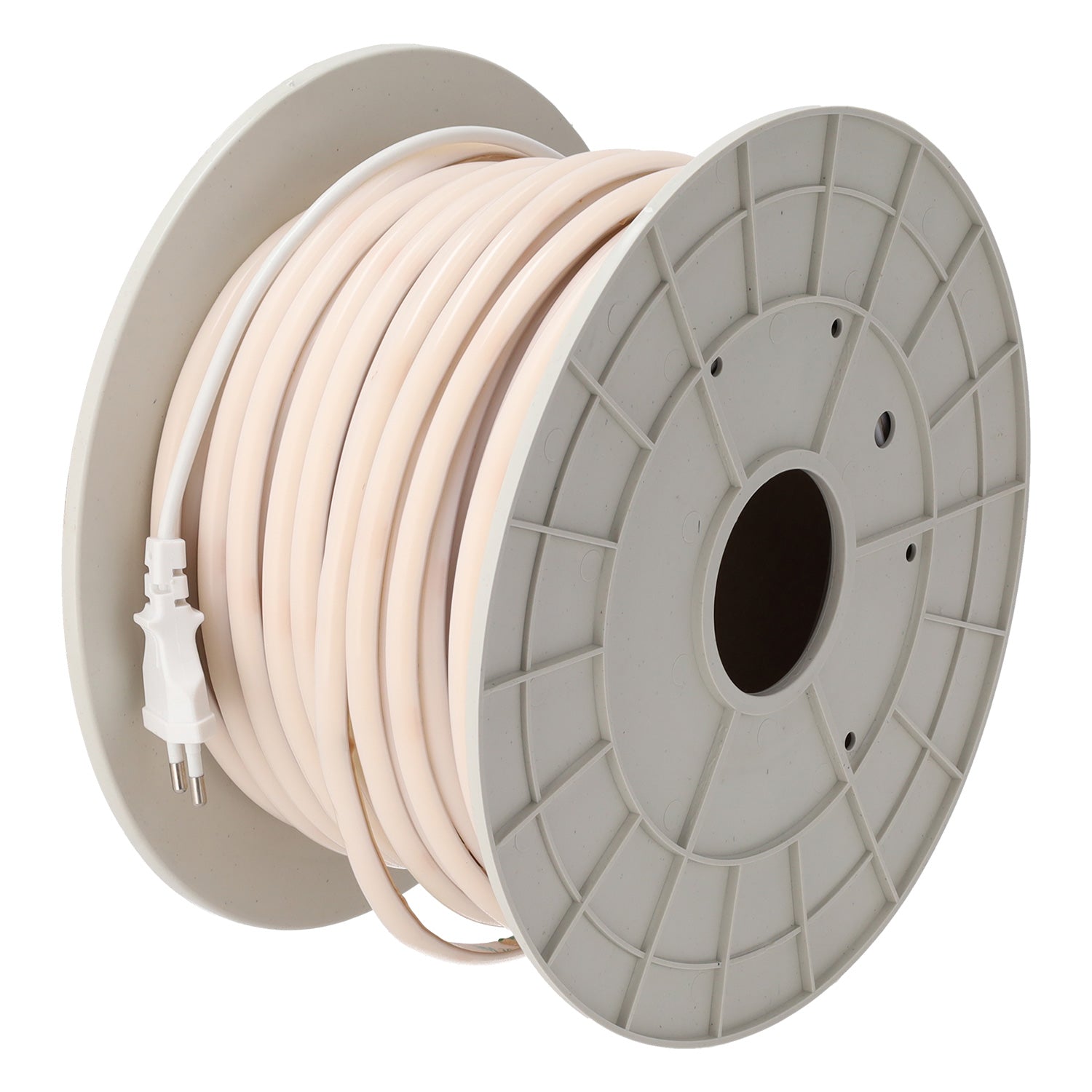

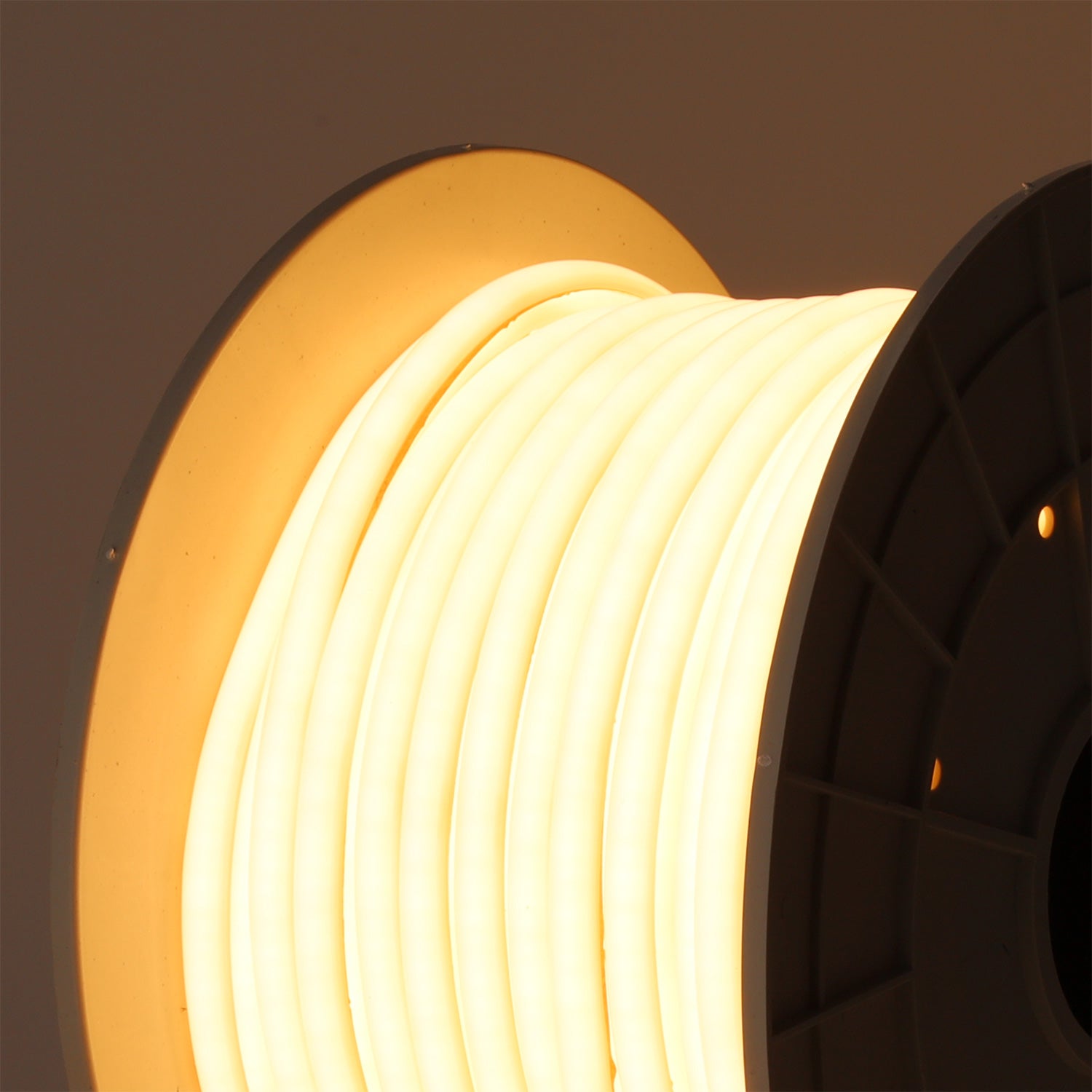

COB LED Strip Free Driver Opal 16W/M 1600Lm/M 220VAC IP65 6000ºK Roll 50M

COB LED Strip Free Driver Opal 16W/M 1600Lm/M 220VAC IP65 6000ºK Roll 50M

See questions and answers

For additional amounts the delivery period is 25 days As of the order date
  • Brand:Kimera / KIMERA
  • SkuSKY-SHVC-COB-560L-MC-CW
  • AA 2021
Warranty
  • Warranty 5 years
  • 120 º Opening
175,84€
175,84€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(SKY-SHVC-COB-560L-MC-CW_padreImg_sky_shvc_cob_560l_mc_cw_0.jpeg)
Cool White
Stock available
Free shipping
175,84€
175,84€ Infinity%

Accessories

  • (SKY-ED-10mm_padreImg_sky_ed_10mm_0.jpeg)

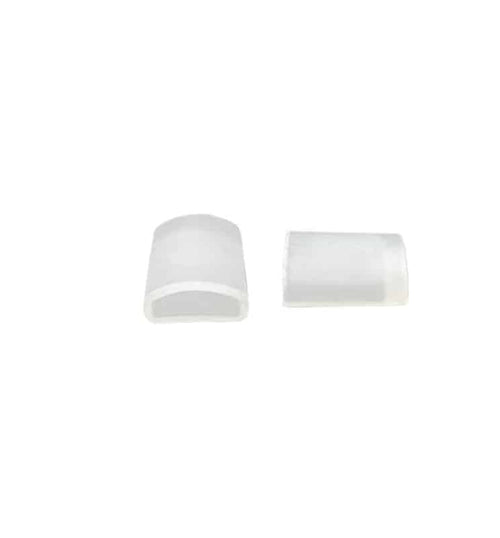

    End cap SKY-SHVC-COB-560L-MC

    GreenIce

    End cap SKY-SHVC-COB-560L-MC

    0,33€
    0,33€ Infinity%
  • (SKY-PC-10mm_padreImg_sky_pc_10mm_0.png)

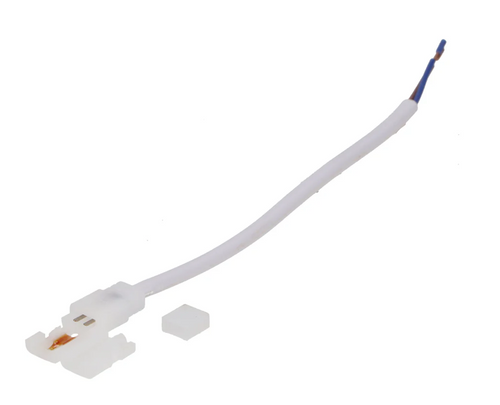

    Plug connector SKY-SHVC-COB-560L-MC

    GreenIce

    Plug connector SKY-SHVC-COB-560L-MC

    3,63€
    3,63€ Infinity%
  • (SKY-Md-10mm_padreImg_sky_md_10mm_0.png)

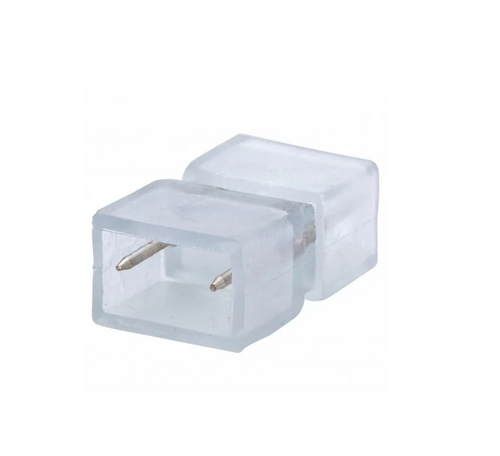

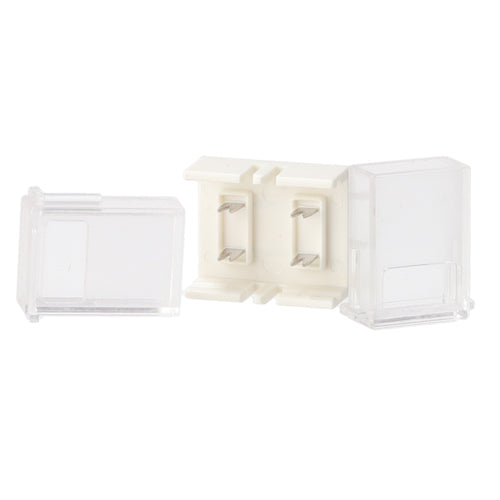

    Connector SKY-SHVC-COB-560L-MC

    GreenIce

    Connector SKY-SHVC-COB-560L-MC

    1,33€
    1,33€ Infinity%

Technical file

Product code
SKY-SHVC-COB-560L-MC-CW
Light temperature
CW
Kelvin º
6000
Power (W)
16.0
Luminosity (LM)
1600
Luminous efficacy (LM/W)
100
Type of LEDs
COB
Number of LEDs
560/M
Measures (mm)
10x5x50000
High
10.0
Long
50000.0
Broad
5.0
CRI
90
Power factor (PF)
0.9
Construction
PCB/Epoxy/3M
Opening Angle (º)
120
Facility
IP65
Strain
170-265V AC
Estimated life (H)
100000
Dimable
Yeah
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+50
Lighting cycles
100000
Energy consumption (kWh/1000h)
16.0
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Single CCT
6000
Minimum cri range
88
Maximum cri range
95

Characteristics

Product code
SKY-SHVC-COB-560L-MC-CW
Light temperature
CW
Kelvin º
6000
Power (W)
16.0
Luminosity (LM)
1600
Luminous efficacy (LM/W)
100
Type of LEDs
COB
Number of LEDs
560/M
Measures (mm)
10x5x50000
High
10.0
Long
50000.0
Broad
5.0
CRI
90
Power factor (PF)
0.9
Construction
PCB/Epoxy/3M
Opening Angle (º)
120
Facility
IP65
Strain
170-265V AC
Estimated life (H)
100000
Dimable
Yeah
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+50
Lighting cycles
100000
Energy consumption (kWh/1000h)
16.0
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Single CCT
6000
Minimum cri range
88
Maximum cri range
95

Description

The Opal Diffuser COB Self-Rectifying Dimmable LED Strip Reel does not require any type of power supply as it connects directly to the mains. Its flexibility allows it to adapt to almost any surface. This reel integrates highly efficient COB technology LEDs, distributing the light evenly and achieving higher lm/W output for the same power as traditional SMD LEDs. Therefore, it consumes only 16W per meter. Furthermore, due to its extremely high color rendering index (CRI) of 90, it displays colors very naturally. It is worth noting that natural daylight has a CRI of 90, so a high CRI is highly recommended for lighting in clothing stores, photography studios, or designers, for example. This LED strip stands out for its TRIAC dimming capability, which allows you to adjust the light intensity to your liking, creating personalized ambiances for every moment. Made with premium materials, it offers maximum protection against solid external agents and magnificent protection against liquids, resulting in an IP65 protection rating that makes it suitable for both indoor and outdoor use. Its great flexibility allows it to adapt to the specific needs of the space or element to be illuminated, although right or sharp angles cannot be created. Includes 3M self-adhesive. Cut every 10 cm. The versatility of this type of LED lighting makes it widely used as secondary lighting and/or decorative element on facades, ceilings, display cases and cabinets, shelves, shop windows, paintings and mirrors, and even for marking stairs and hallways. The options are endless.

Documents

Installation_manual
Spanish_technical_data
