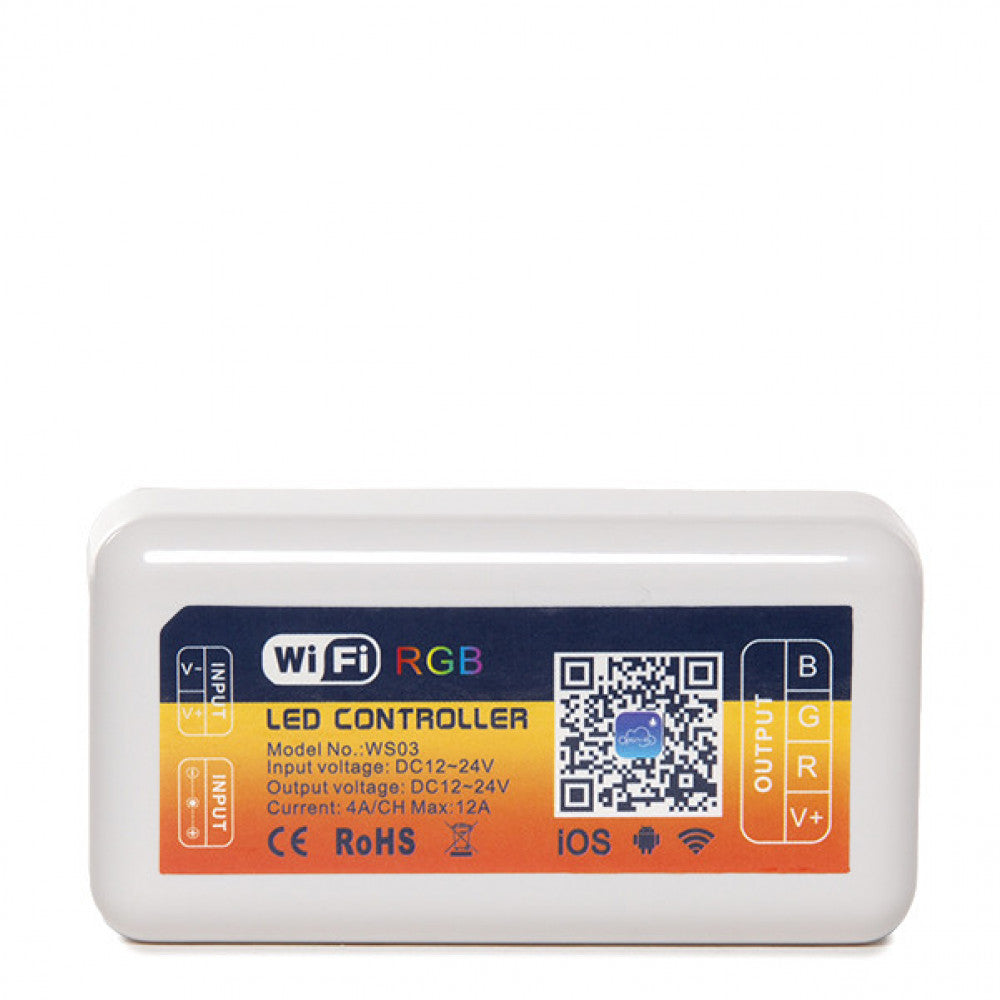

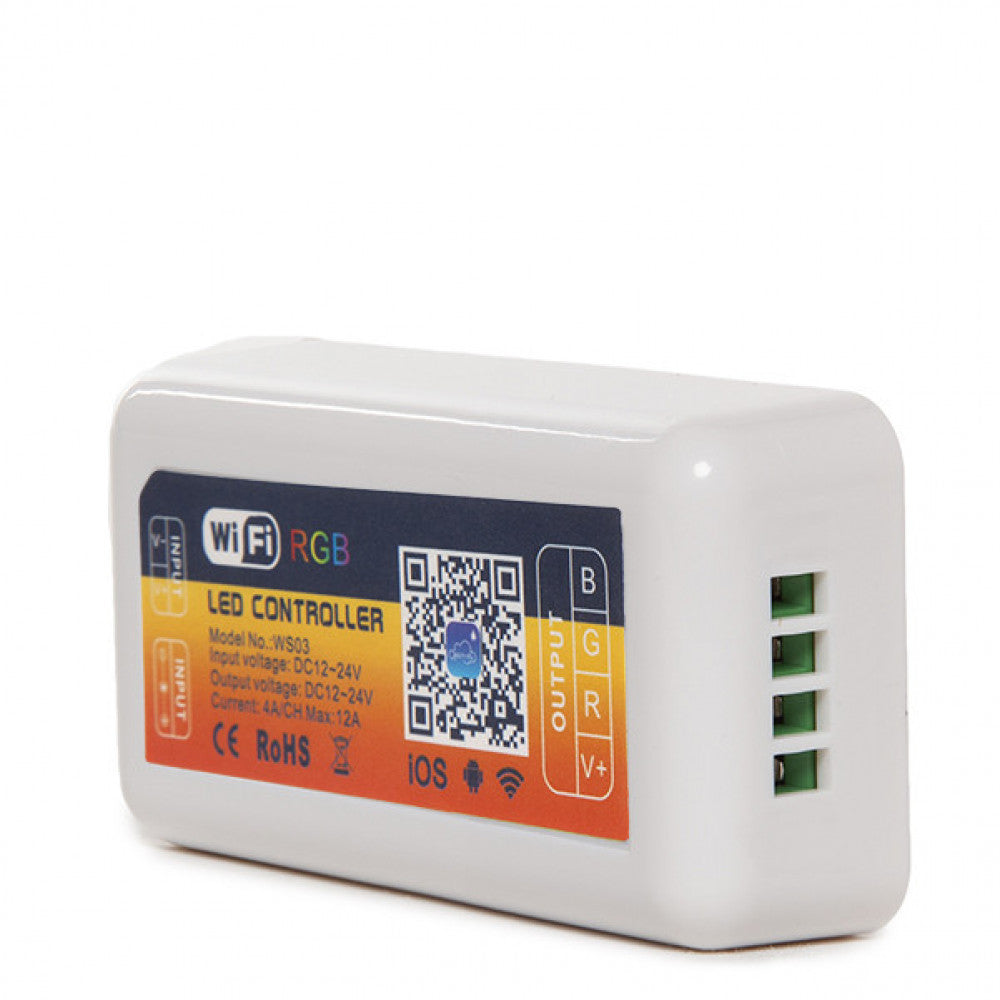

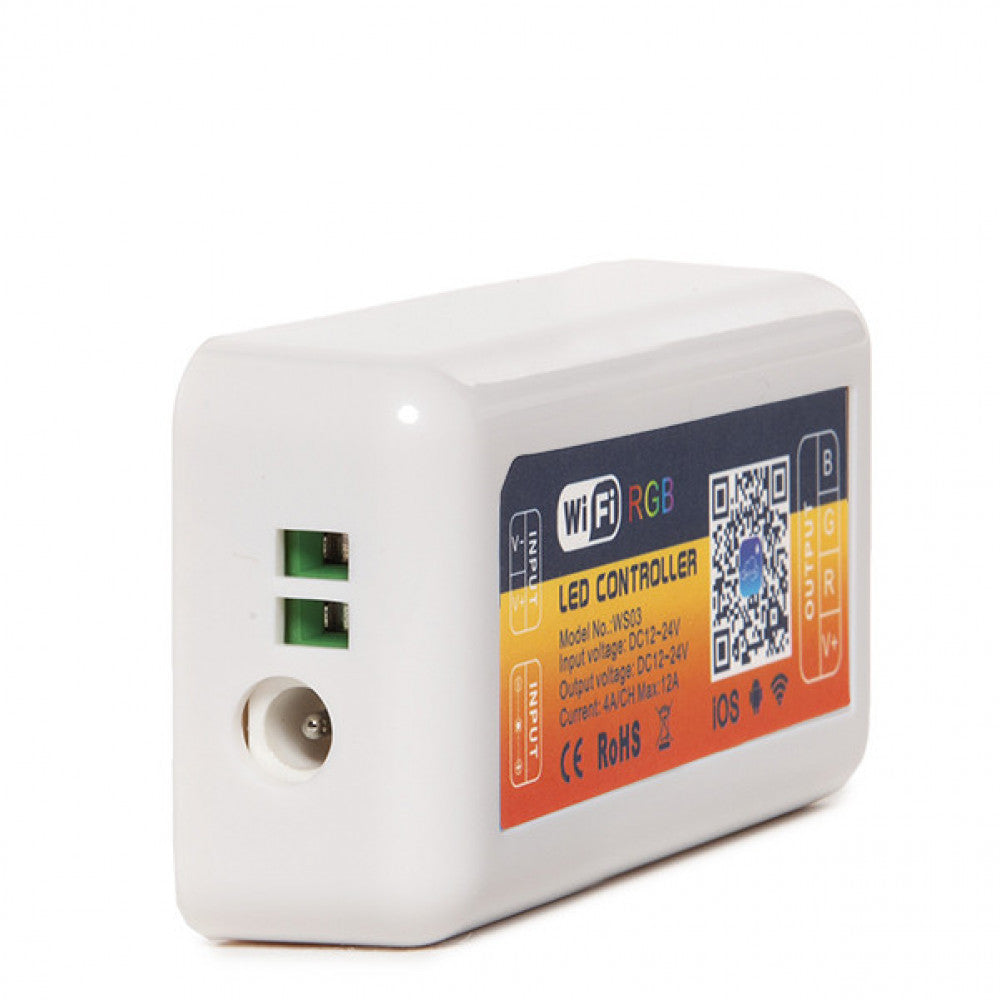

Controller Wifi LED Strip RGB - Compatible Alexa

Controller Wifi LED Strip RGB - Compatible Alexa

For additional amounts the delivery period is 25 days As of the order date
  • Brand:GreenIce
  • SkuCA-WS03
Warranty
  • Warranty 3 years
22,41€
22,41€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(CA-WS03_padreImg_ca_ws03_0.jpeg)
##
Stock available
Free shipping
22,41€
22,41€ Infinity%

Technical file

Product code
CA-WS03
Measures (mm)
85x45x23
High
23.0
Long
85.0
Broad
45.0
Construction
PVC/ ABS
Facility
IP20
Strain
12-24VDC
Work frequency (Hz)
50/60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 + 60
Weight (gr)
100
Additional information
Detailed specifications in "description"

Characteristics

Product code
CA-WS03
Measures (mm)
85x45x23
High
23.0
Long
85.0
Broad
45.0
Construction
PVC/ ABS
Facility
IP20
Strain
12-24VDC
Work frequency (Hz)
50/60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 + 60
Weight (gr)
100
Additional information
Detailed specifications in "description"

Description

Product characteristics:

  • Works in both 12VDC and 24VDC.
  • Main function: timer, groups, scenes, reminders of calls.
  • 1.6 billion colors can be selected, special operation for color change and saturation.
  • It has a timer.
  • Compatible with Amazon Alexa.< /li>
  • LAN and long distance control available.
  • Power supply voltage: 12-24VDC
  • Working temperature: -30 €“ 55„ƒ
  • No load consumption: 1W
  • Connection mode: common node
  • Dimensions: 85x45x23mm
  • Net weight: 45g
  • Current output: 4A/CH max: 12A
  • Output power: 12V: 144W 24V: 288W

Configuration:

Install the power supply, controller and LED luminaire, then power on the circuit, and open the wifi network on the mobile phone.

Search the QR code to download the APP, or directly search €œOPEN-LIT€ in the App Store or Google Play, start the App, click on €œRegister€ at the top right, enter the email and assign a password and click on €œRegister€

After logging in, enter in the €œDevice€ interface, click €œ+€ to add a new device, then click €œAdd WiFi device€ to start the configuration.

Input the WiFi network and password, click click “Configure†, then the App will remind you that the configuration will be completed in 40 seconds.

After configuration, click “Back†and the App will enter the interface, click € œContinue to configure€ if the configuration fails or if you want to configure a new device.

Open the interface of the œDevice€ , and there you can perform the operations and controls you want.

Factory reset

The device requires a factory reset if it has been configured with another user account previously or if setup failed many times.

Steps:

Turn on the device, then turn off the device more than 5 seconds.

Turn on and turn off the device 4 times , each step of power on and off needs 5 seconds, then the lights will flash indicating that the device has been rebooted.

"

Documents

Installation_manual
