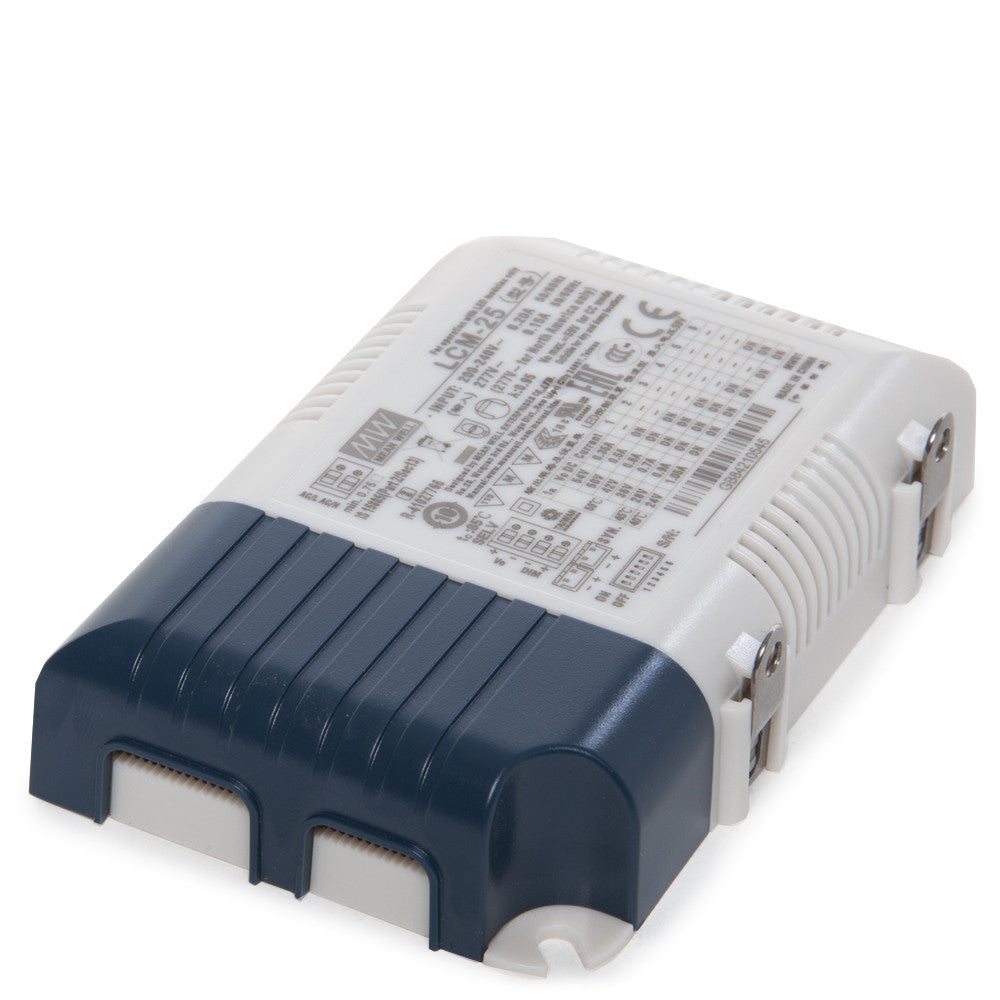

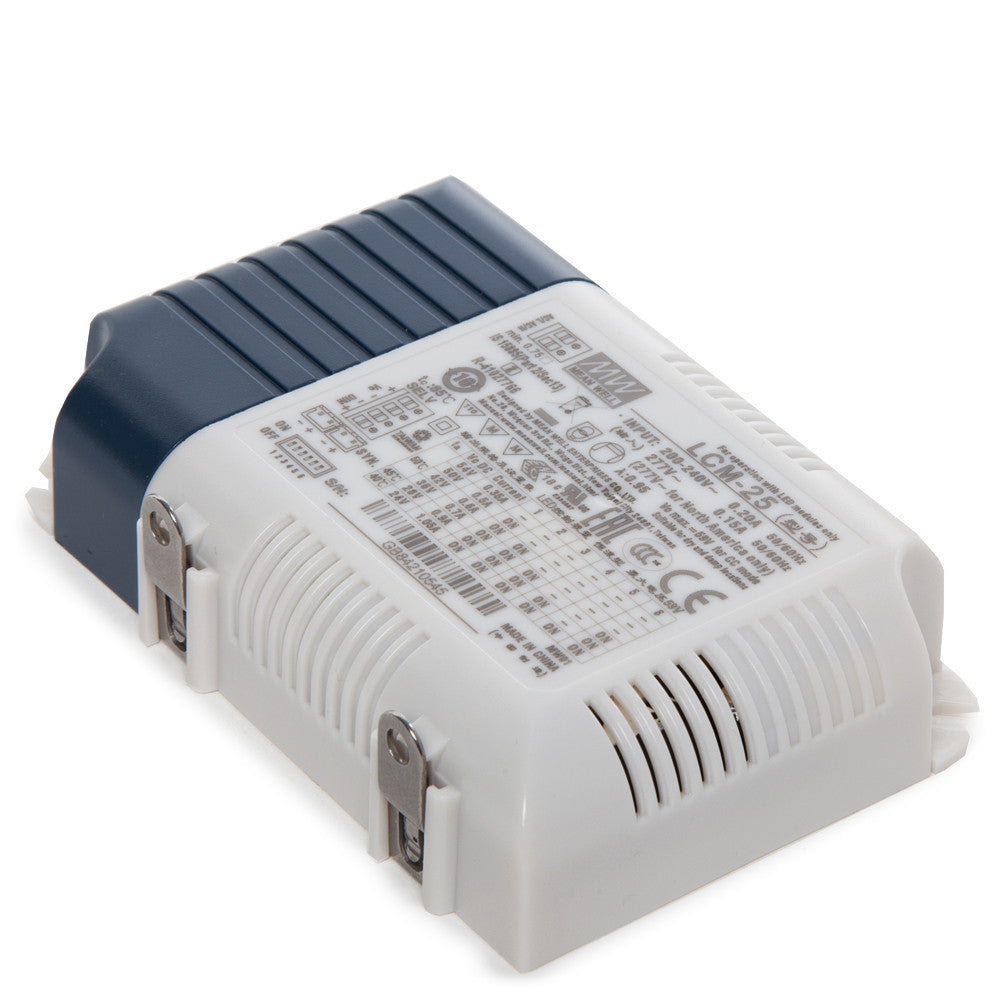

Driver Meanwell Downlights 25W Smart Adjustable0-10V IP20

Driver Meanwell Downlights 25W Smart Adjustable0-10V IP20

See questions and answers

For additional amounts the delivery period is 5 days As of the order date
  • Brand:GreenIce / MEANWELL
  • SkuOL-LCM-25
Warranty
  • Warranty 5 years
  • Tüv Süd TUV SUD
Documents
35,96€
35,96€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 5 years
  • Tüv Süd TUV SUD
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(OL-LCM-25_padreImg_ol_lcm_25_0.jpeg)
##
Available
Free shipping
35,96€
35,96€ Infinity%

Accessories

  • (HO-PLAF-R-24W-CW_padreImg_ho_plaf_r_24w_cw_0.jpeg) (HO-PLAF-R-24W-CW_padreImg_ho_plaf_r_24w_cw_1.jpeg)

    LED Ceiling Light 24W 2400Lm 6000ºK Square 40,000H [HO-PLAF-R-24W-CW]

    Osram Led

    LED Ceiling Light 24W 2400Lm 6000ºK Square 40,000H [HO-PLAF-R-24W-CW]

    10,89€
    10,89€ Infinity%
    See product
  • (GR-RDP16-25W-PL-CW_padreImg_gr_rdp16_25w_pl_cw_0.jpeg) (GR-RDP16-25W-PL-CW_padreImg_gr_rdp16_25w_pl_cw_1.jpeg)

    LED Plate 25W 2500Lm 6000ºK Circular 40,000H [GR-RDP16-25W-PL-CW

    Epistar Led

    LED Plate 25W 2500Lm 6000ºK Circular 40,000H [GR-RDP16-25W-PL-CW

    10,83€
    10,83€ Infinity%
    See product
  • (HO-RDP-25W-CW_padreImg_ho_rdp_25w_cw_0.jpeg) (HO-RDP-25W-CW_padreImg_ho_rdp_25w_cw_1.jpeg)

    LED Plate 25W 2500Lm 6000ºK Square 40,000H [HO-RDP-25W-CW]

    Osram Led

    LED Plate 25W 2500Lm 6000ºK Square 40,000H [HO-RDP-25W-CW]

    10,19€
    10,19€ Infinity%
    See product
  • (HO-PLAF-C-24W-CW_padreImg_ho_plaf_c_24w_cw_0.jpeg) (HO-PLAF-C-24W-CW_padreImg_ho_plaf_c_24w_cw_1.jpeg)

    LED ceiling light 24W 2400Lm 6000ºK Circular 40,000H [HO-PLAF-C-24W-CW]

    Osram Led

    LED ceiling light 24W 2400Lm 6000ºK Circular 40,000H [HO-PLAF-C-24W-CW]

    10,42€
    10,42€ Infinity%
    See product
  • (TB-DIM-0-10V-MD_padreImg_tb_dim_0_10v_md_0.jpeg) (TB-DIM-0-10V-MD_padreImg_tb_dim_0_10v_md_1.jpeg)

    Dimmer/Remote Control Distancia 0-10V 10A 800W

    GreenIce

    Dimmer/Remote Control Distancia 0-10V 10A 800W

    23,78€
    23,78€ Infinity%
  • (HO-RDP16-25W-CW_padreImg_ho_rdp16_25w_cw_0.jpeg) (HO-RDP16-25W-CW_padreImg_ho_rdp16_25w_cw_1.jpeg)

    LED Plate 25W 2500Lm 6000ºK Circular 40,000H [HO-RDP16-25W-CW]

    Osram Led

    LED Plate 25W 2500Lm 6000ºK Circular 40,000H [HO-RDP16-25W-CW]

    8,08€
    8,08€ Infinity%
    See product

Technical file

Product code
OL-LCM-25
Measures (mm)
105x68x23
High
68.0
Long
105.0
Broad
23.0
Construction
PVC/ ABS
Facility
IP20
Strain
180-277Vca
Dimable
Yes
Work frequency (Hz)
47-63
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-30+85
Weight (gr)
190
Additional information
Detailed instructions in "Documents" tab.

Characteristics

Product code
OL-LCM-25
Measures (mm)
105x68x23
High
68.0
Long
105.0
Broad
23.0
Construction
PVC/ ABS
Facility
IP20
Strain
180-277Vca
Dimable
Yes
Work frequency (Hz)
47-63
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-30+85
Weight (gr)
190
Additional information
Detailed instructions in "Documents" tab.

Description

This source is designed to work directly with LEDs (LED plates or COBs), not with LED strips. They must be equipment that feeds in constant current.

This source works in Constant Current mode when we connect the LEDs directly that have a voltage within the Output Voltage Range in Constant Current mode and an equal working current to the output current. Be sure to set the desired output current using the current selector. For more information, see the technical sheet in the attached section.

With a plastic casing designed for LED and architectural lighting applications. Suitable for interior lighting, offices and LED panels. Low ripple current, flicker-free.

It can be regulated with active or passive regulators of 0-10V or 1-10V, 10V PWM signal from 100Hz to 3KHz or by resistance of 0 at 100K Ohms. Will not work with phase cut Triac dimmers. (Not to be confused with TRIACs, phase cut dimmers. This driver cannot be dimmed with a Triac). With active potentiometers that can give 0V, it allows turning off the output without the need for a switch. With 1-10V regulators we can only reach 10% regulation without turning off the output.

Compatible with any 0-10V or 1-10V regulator on the market, both active and passive.
