LED Ceiling Light 24W 2400Lm 6000ºK Square 40,000H [HO-PLAF-R-24W-CW]

LED Ceiling Light 24W 2400Lm 6000ºK Square 40,000H [HO-PLAF-R-24W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuHO-PLAF-R-24W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
11,18€
11,18€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-PLAF-R-24W-CW_padreImg_ho_plaf_r_24w_cw_0.jpeg)
Cool White
Stock available
Free shipping
11,18€
11,18€ Infinity%

Accessories

  • (CPS-LF-AAD030_padreImg_cps_lf_aad030_0.jpeg)

    Driver Lifud Adjustable DALI 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Lifud Driver

    Driver Lifud Adjustable DALI 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    16,45€
    16,45€ Infinity%
  • (CPS-LF-GDE030YG_padreImg_cps_lf_gde030yg_0.jpeg)

    Driver LIFUD Adjustable Triac Dim 22-28W In: 220-240V Out: 25-40VDC Flicker Free

    Lifud Driver

    Driver LIFUD Adjustable Triac Dim 22-28W In: 220-240V Out: 25-40VDC Flicker Free

    19,93€
    19,93€ Infinity%
  • (CPS-LF-AAA030_padreImg_cps_lf_aaa030_0.jpeg)

    Driver LIFUD Adjustable 0-10V 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Lifud Driver

    Driver LIFUD Adjustable 0-10V 30W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    16,74€
    16,74€ Infinity%

Technical file

Product code
HO-PLAF-R-24W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
24.0
Luminosity (LM)
2400
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
120
Measures (mm)
297x297x37
High
37.0
Long
297.0
Broad
297.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
160
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
870
Flicker
0.78
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
36
Minimum cri range
89
Maximum cri range
22
Chromaticity x
0.316
Chromaticity y
0.334
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
HO-PLAF-R-24W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
24.0
Luminosity (LM)
2400
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
120
Measures (mm)
297x297x37
High
37.0
Long
297.0
Broad
297.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
160
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
870
Flicker
0.78
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
36
Minimum cri range
89
Maximum cri range
22
Chromaticity x
0.316
Chromaticity y
0.334
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

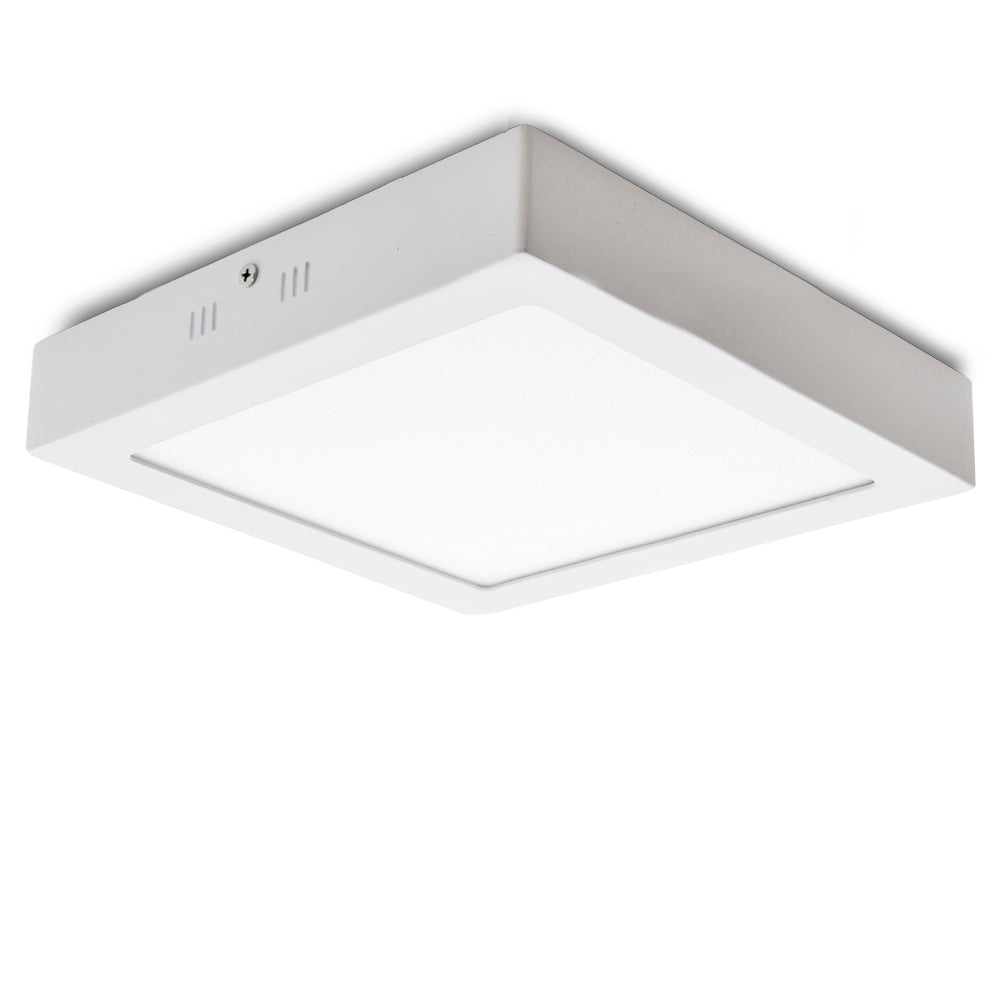

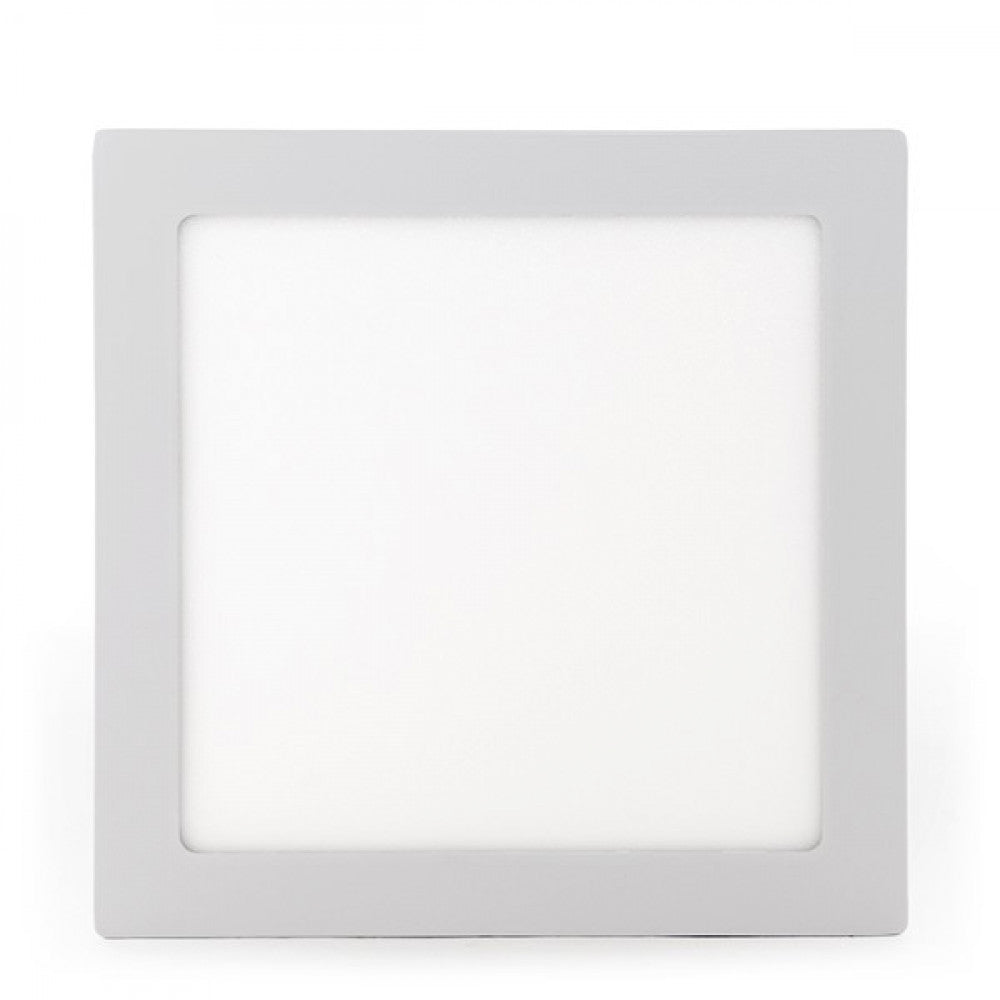

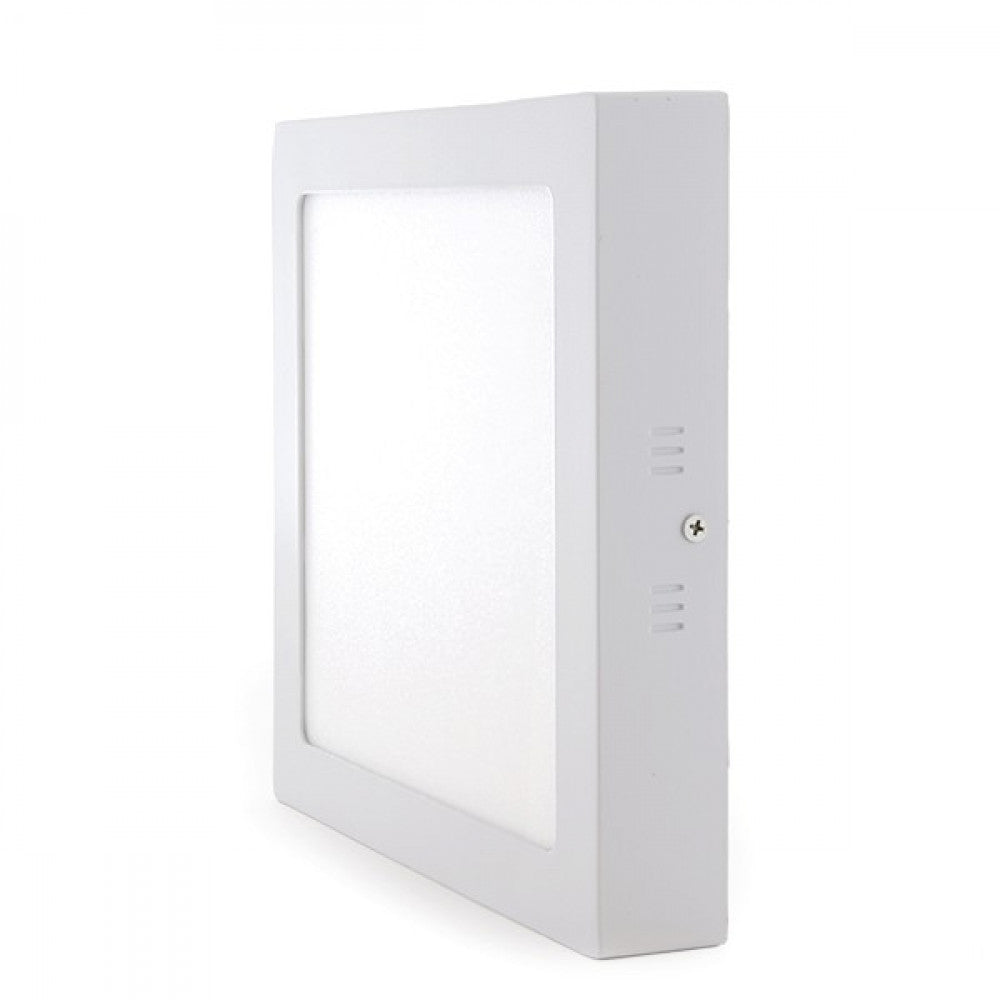

The 300x300mm square LED ceiling light, with 37mm thickness, offers solutions for offices, factories, supermarkets, shops and for residential use.

It can be installed directly to the outlets supplied by the electrical network (85-256VAC) with a service frequency of 50/60Hz. It has a high efficiency (79 Lm/W) consuming 24W through SMD2835 type LEDs and managing to provide a luminous flux of 1900Lm uniformly distributed through an opalized plastic diffuser from which a color rendering index of 80 is obtained.< /strong>

Provides lighting equivalent to a 150W incandescent bulb, its consumption represents a value of 24kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

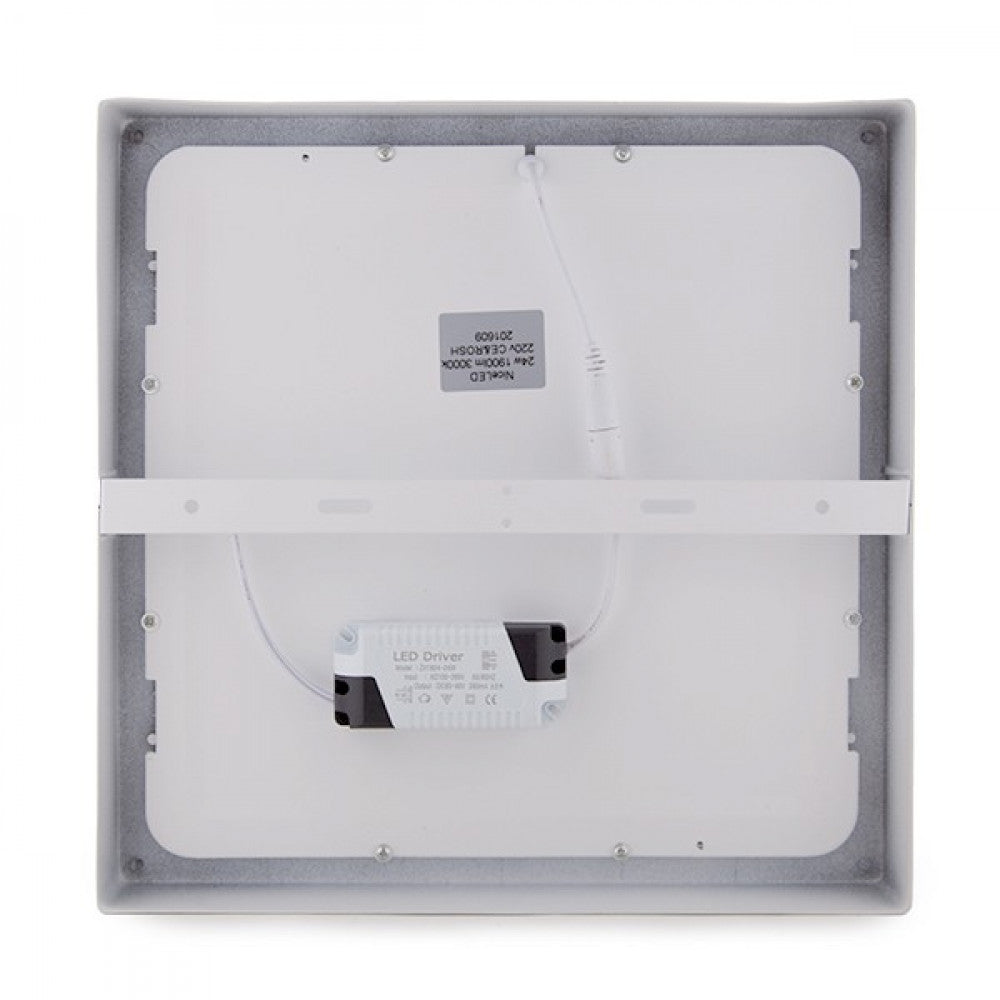

This luminaire is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (60-90VDC, 280mA), additionally the accessories necessary for the installation of the luminaire. White finish built with aluminum.

This surface ceiling light has an IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the demands required mechanics.

Ideal to replace traditional halogen, reaching savings of up to 90% and conventional low consumption downlight, reaching savings of up to 60% with which a high energy efficiency is achieved .

Easy installation, long life of the led luminaire, more than 30,000 hours and maintenance free.

The perfect solution to create an elegant environment, in new construction or rehabilitation, to replace the current spotlights, for the home, offices, receptions, museums, bars, etc.

This luminaire is available in natural white (4200°K), white cold (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
