Furniture Surface LED Plate 4.5W 360Lm Dimable Driver

Furniture Surface LED Plate 4.5W 360Lm Dimable Driver

See questions and answers

For additional amounts the delivery period is 30 days As of the order date
  • Brand:GreenIce
  • SkuSU-SSC-D115-350-W
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
10,95€
10,95€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
(SU-SSC-D115-350-W_padreImg_su_ssc_d115_350_w_0.jpeg)
Daylight
Stock available
Free shipping
10,95€
10,95€ Infinity%

Accessories

  • (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_0.jpeg) (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_1.jpeg)

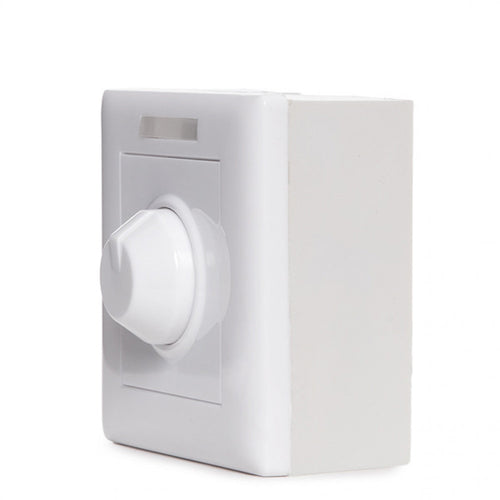

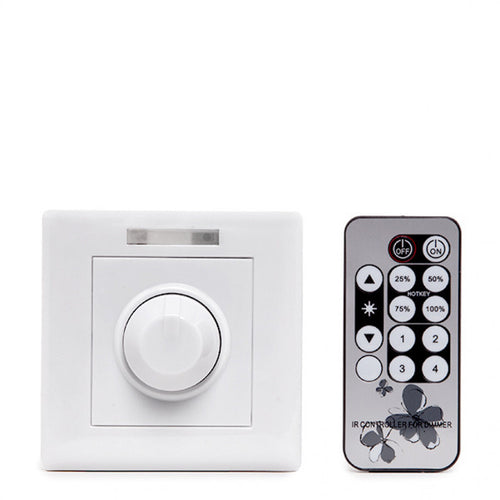

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    GreenIce

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    23,11€
    23,11€ Infinity%

Technical file

Product code
SU-SSC-D115-350-W
Light temperature
Natural White
Kelvin º
6000
Power (W)
4.5
Luminosity (LM)
360
Luminous efficacy (LM/W)
90
LED efficacy
99
Type of LEDs
SMD2835
Measures (mm)
Ø115
Diameter
115
CRI
85
Diffuser
Milky
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
30
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
4.5
Weight (gr)
180
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
1
Chromaticity x
0.323
Chromaticity y
0.352

Características

Product code
SU-SSC-D115-350-W
Light temperature
Natural White
Kelvin º
6000
Power (W)
4.5
Luminosity (LM)
360
Luminous efficacy (LM/W)
90
LED efficacy
99
Type of LEDs
SMD2835
Measures (mm)
Ø115
Diameter
115
CRI
85
Diffuser
Milky
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
30
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
4.5
Weight (gr)
180
Flicker
0.95
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
1
Chromaticity x
0.323
Chromaticity y
0.352

Descripción

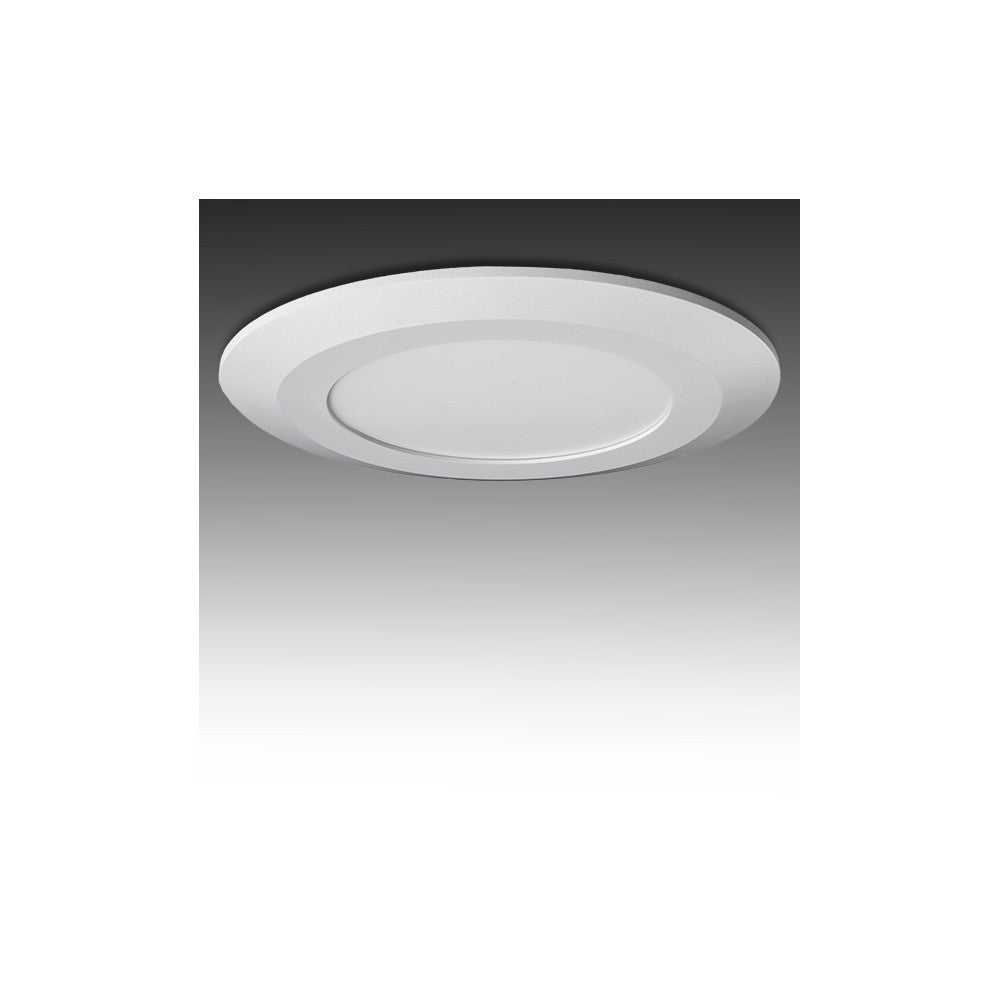

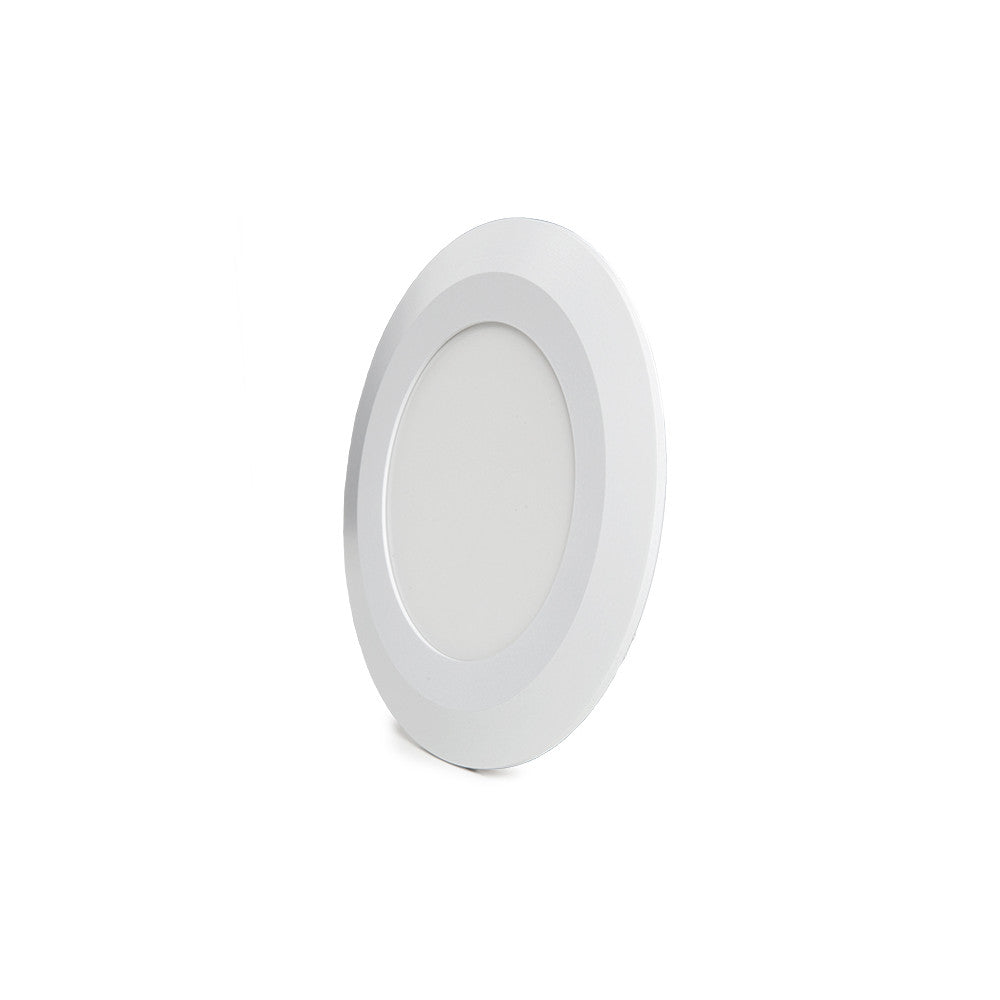

The LED plate with a circular surface of 115mm in diameter with an ultra-thin thickness of 7mm to be installed in furniture, offers solutions for offices, factories and residential use. to be installed directly to the electrical network (100-240VAC) with a service frequency of (50/60Hz).

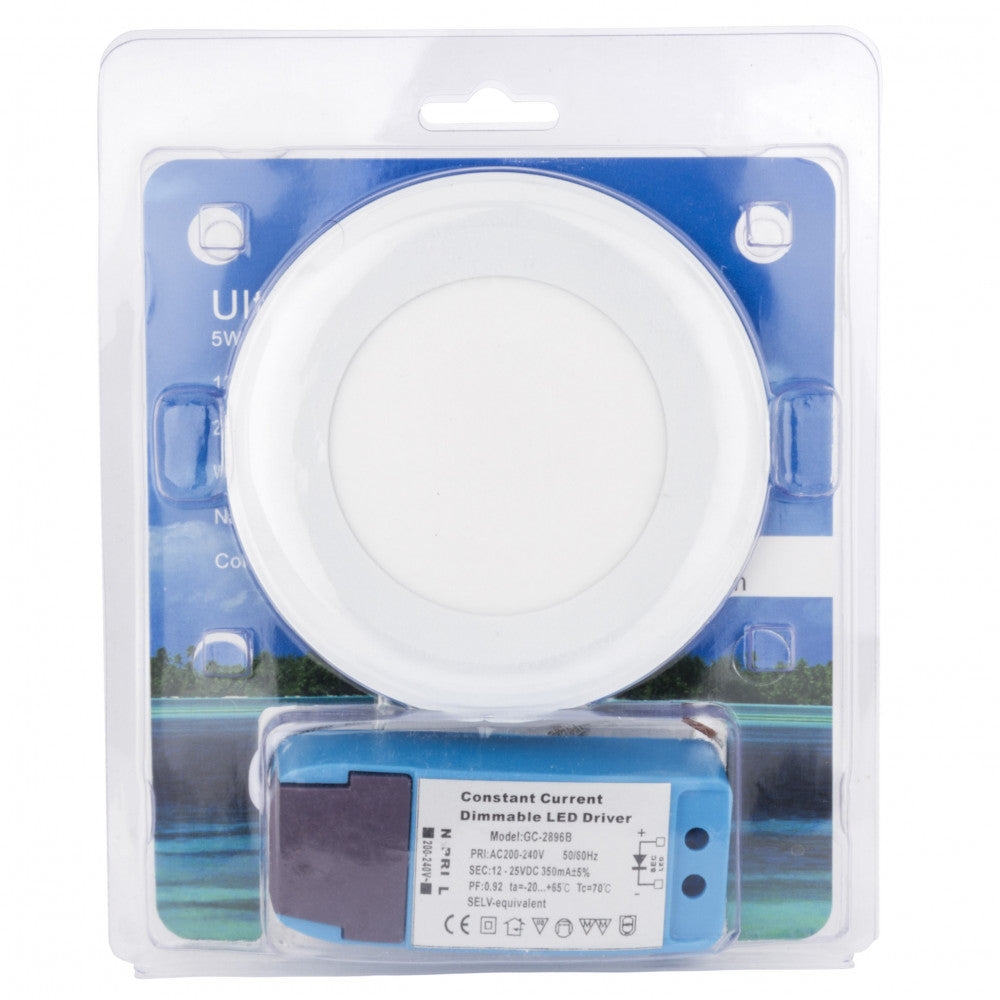

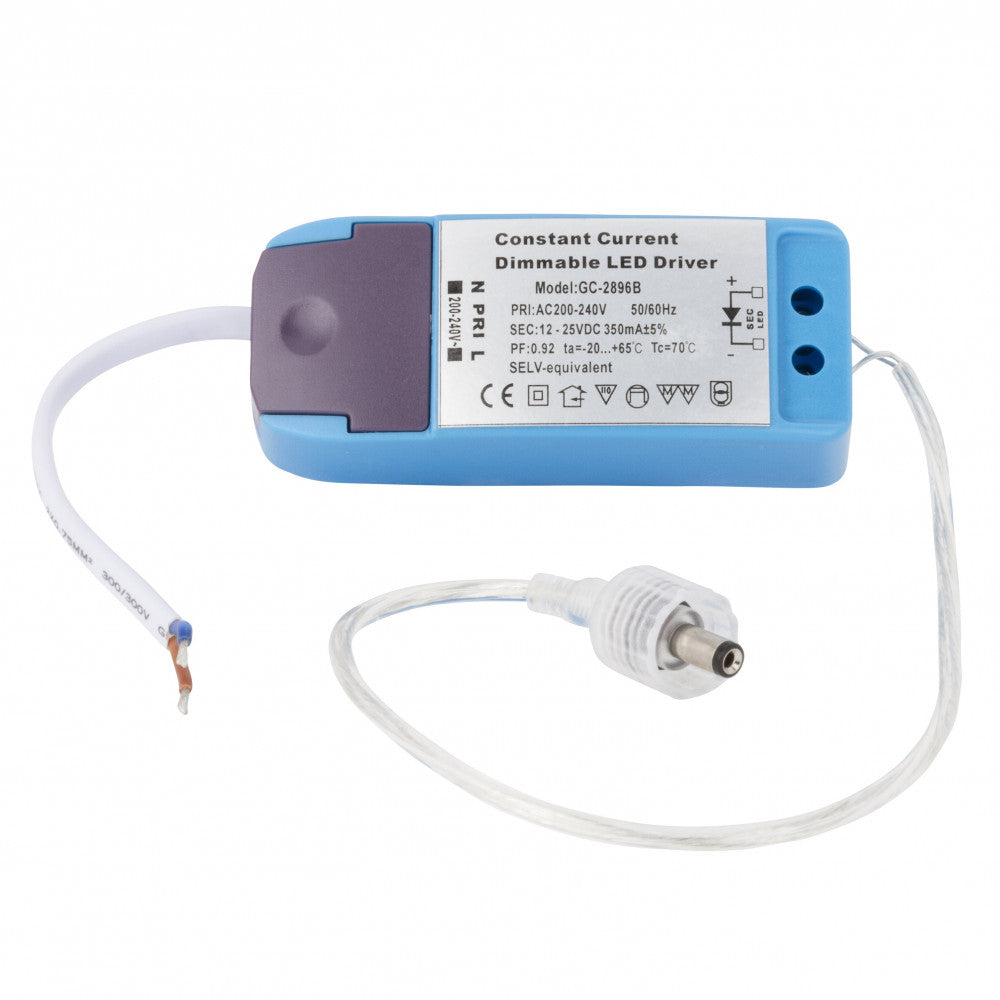

It has a high efficacy (80 Lm/W) consuming 4.5W through SMD2835 LEDs , managing to provide a luminous flux of 360Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. Its consumption represents a value of 4.5kWh/1000h, reducing the amount of energy billed and emissions of polluting gases into the atmosphere. This board is powered by a dimmable driver included in the package, which must be connected directly to the network, additionally the necessary accessories for the installation of the board are included. White finish built with aluminum. The plate has an IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands. This sheet is available in natural white (4200°K).

The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
