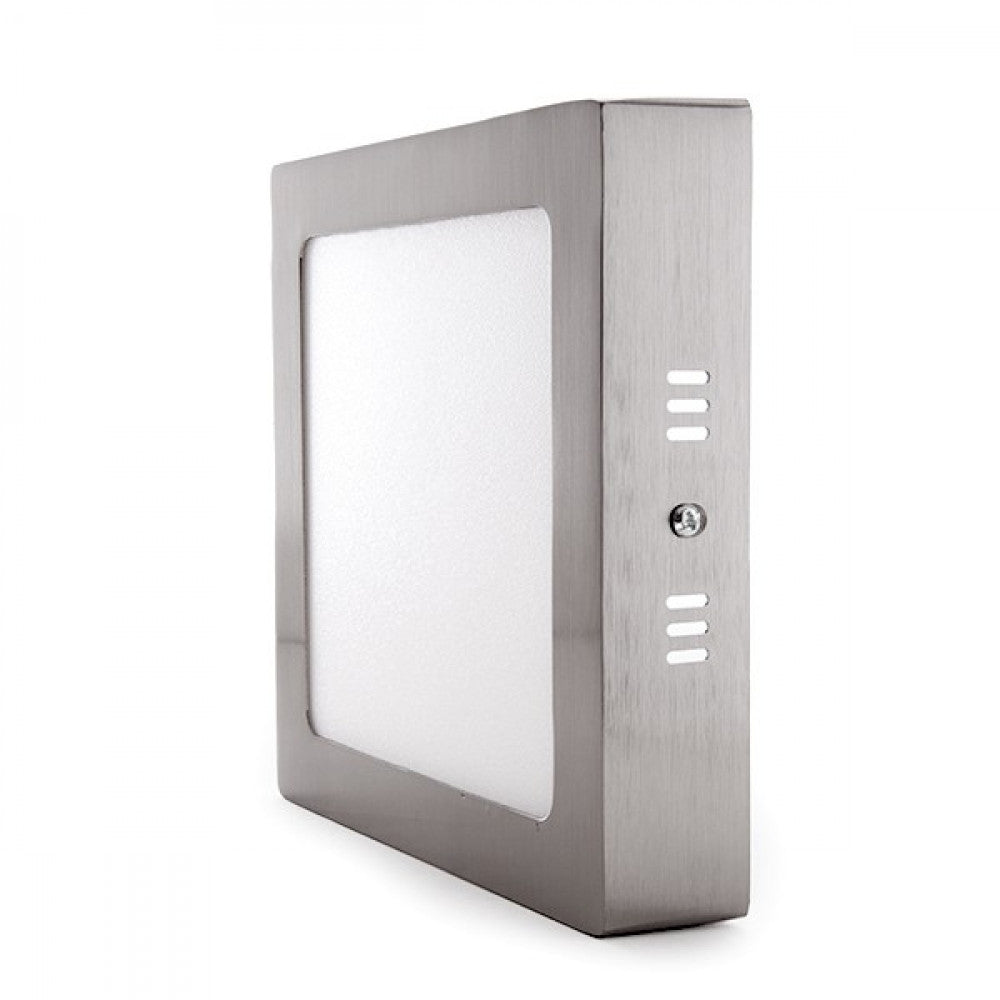

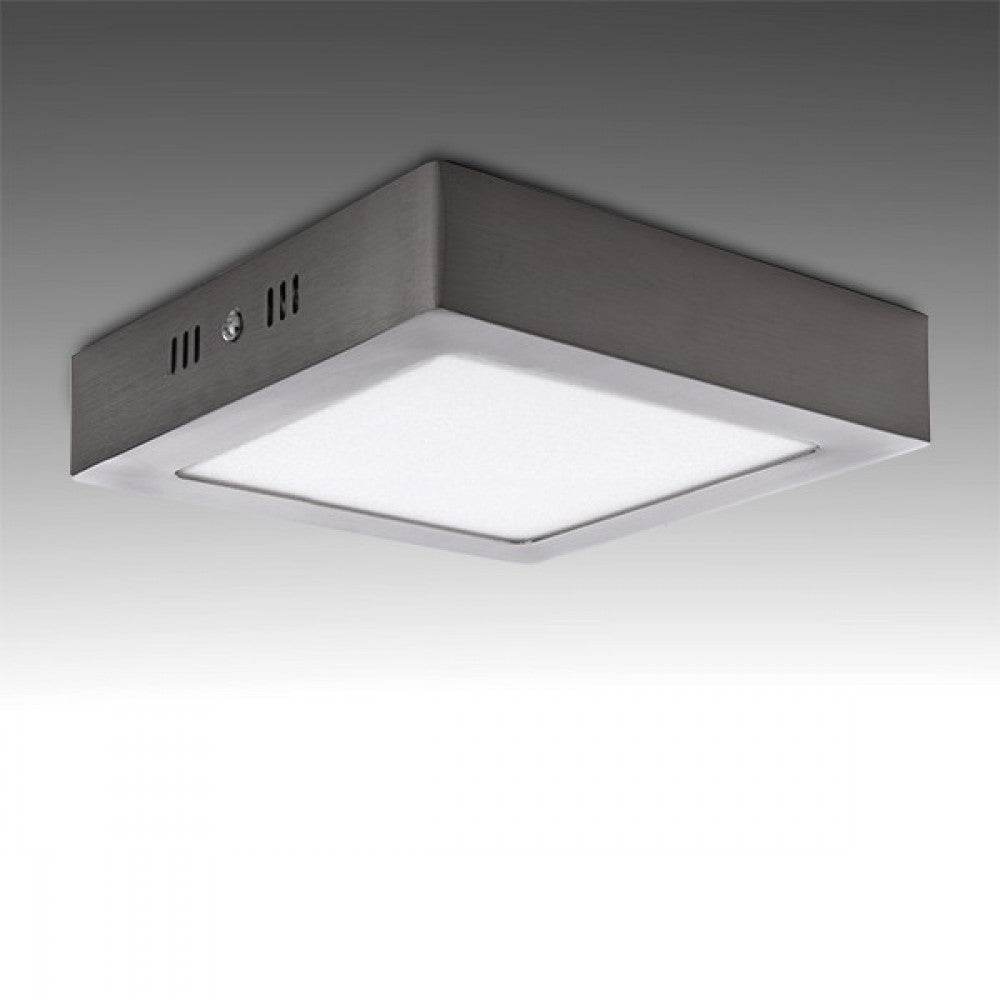

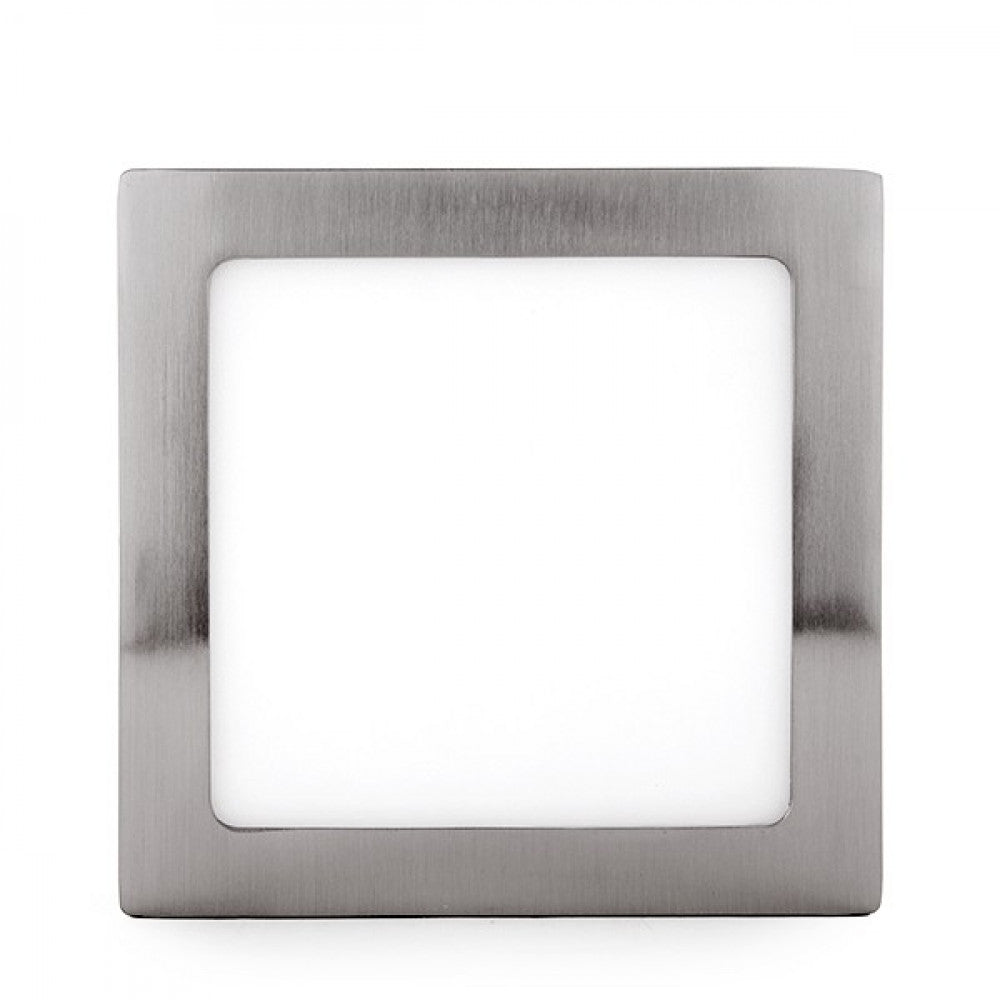

LED Ceiling Light 12W 1200Lm 6000ºK Square Satin Nickel 50,000H [GL-PL SM12SN-CW]

LED Ceiling Light 12W 1200Lm 6000ºK Square Satin Nickel 50,000H [GL-PL SM12SN-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuGL-PL SM12SN-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
8,44€
8,44€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(GL-PL SM12SN-CW_padreImg_gl_pl_sm12sn_cw_0.jpeg)
Cool White
There are few
Free shipping
8,44€
8,44€ Infinity%

Accessories

  • (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_0.jpeg) (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_1.jpeg)

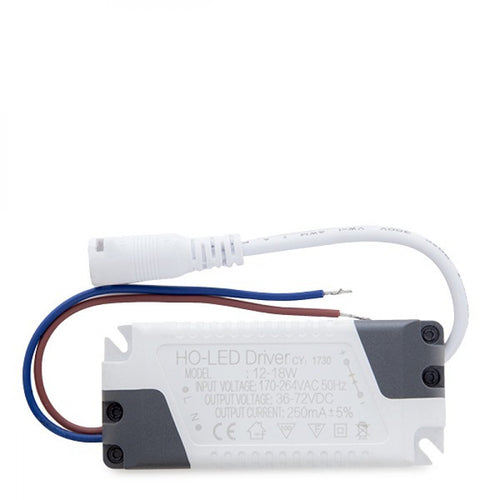

    Driver Non Dimmable Downlight LED 12W

    GreenIce

    Driver Non Dimmable Downlight LED 12W

    1,46€
    1,46€ Infinity%
  • (GR-DRDIM-12W_padreImg_gr_drdim_12w_0.jpeg) (GR-DRDIM-12W_padreImg_gr_drdim_12w_1.jpeg)

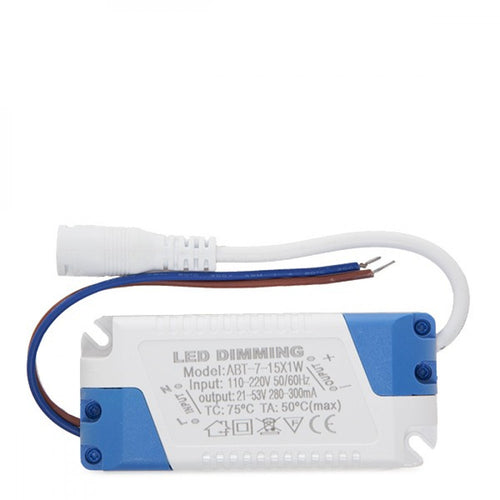

    Driver Dimmable Slimline Downlights 12W

    GreenIce

    Driver Dimmable Slimline Downlights 12W

    4,85€
    4,85€ Infinity%
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

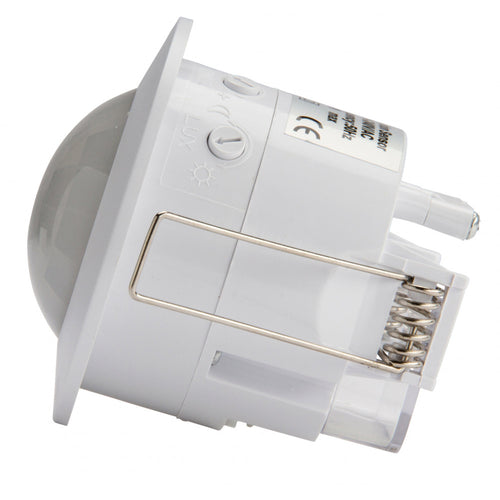

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    10,21€
    10,21€ Infinity%

Technical file

Product code
GL-PL SM12SN-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
60
Measures (mm)
170x170x35
High
170.0
Long
170.0
Broad
35.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
300
Flicker
0.62
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
94
Maximum cri range
1
Chromaticity x
0.322
Chromaticity y
0.35
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
GL-PL SM12SN-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
1200
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
60
Measures (mm)
170x170x35
High
170.0
Long
170.0
Broad
35.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
50000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
12.0
Weight (gr)
300
Flicker
0.62
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
94
Maximum cri range
1
Chromaticity x
0.322
Chromaticity y
0.35
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

The 180x180mm square LED ceiling light, with 35mm thickness, offers solutions for offices, factories, supermarkets, shops and for residential use. 265VAC) with a service frequency of 50/60Hz.

It has a high efficacy (72 Lm/W) consuming 12W through SMD2835 type LEDs and managing to provide a luminous flux of 860Lm evenly distributed by a diffuser made of opalized plastic from which a color rendering index of 80 is obtained. It provides lighting equivalent to an 80W incandescent bulb, its consumption represents a value of 12kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases to the atmosphere.

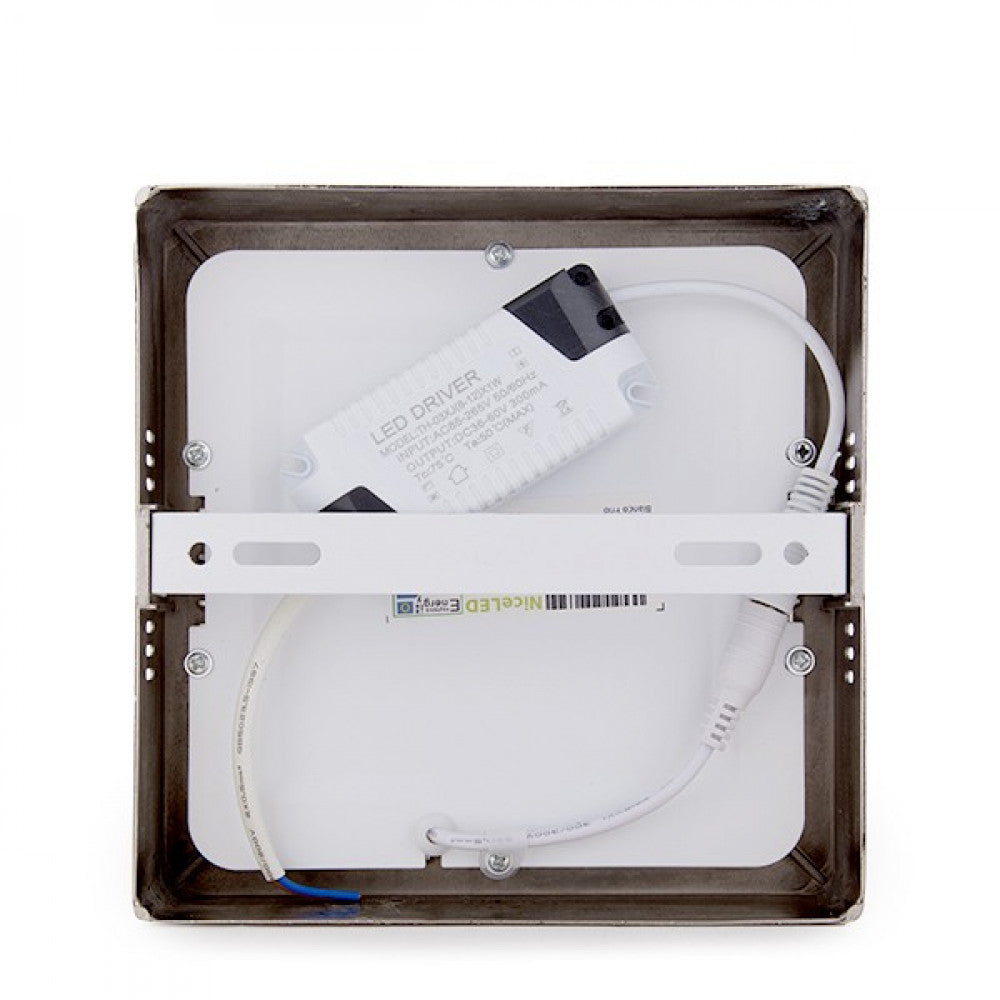

This luminaire is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (35-4 0VDC, 300mA), additionally the necessary accessories for the installation of the luminaire are included. Satin nickel silver finish.This surface ceiling light has an IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

Ideal to replace the traditional halogen, reaching savings of up to 90% and conventional low consumption downlights, reaching savings of up to 60% with which high energy efficiency is achieved.

Easy installation, long life of the led luminaire, more than 30,000 hours and maintenance free.

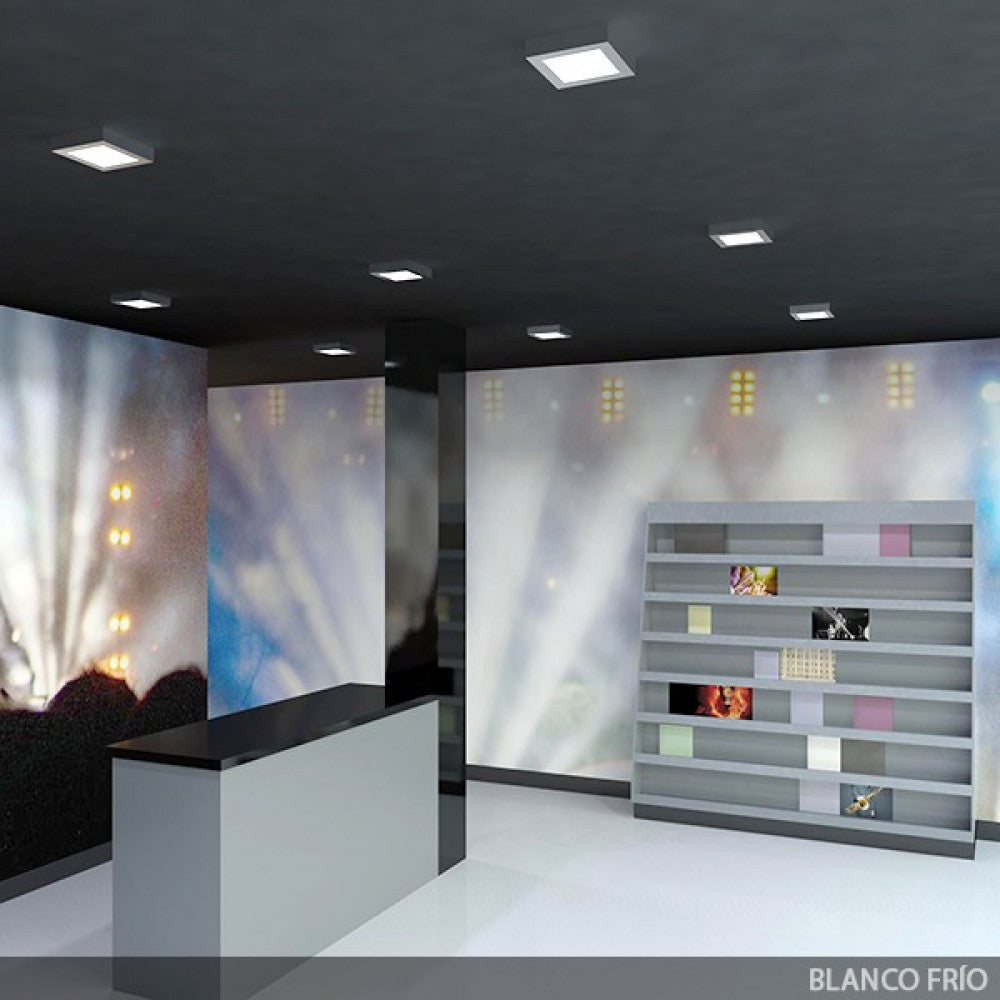

The perfect solution to create an elegant environment, in new construction or rehabilitation, to replace the current spotlights, for the home, offices, receptions, museums, bars, etc.

This luminaire is available in cool white (6000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Documents

Installation_manual

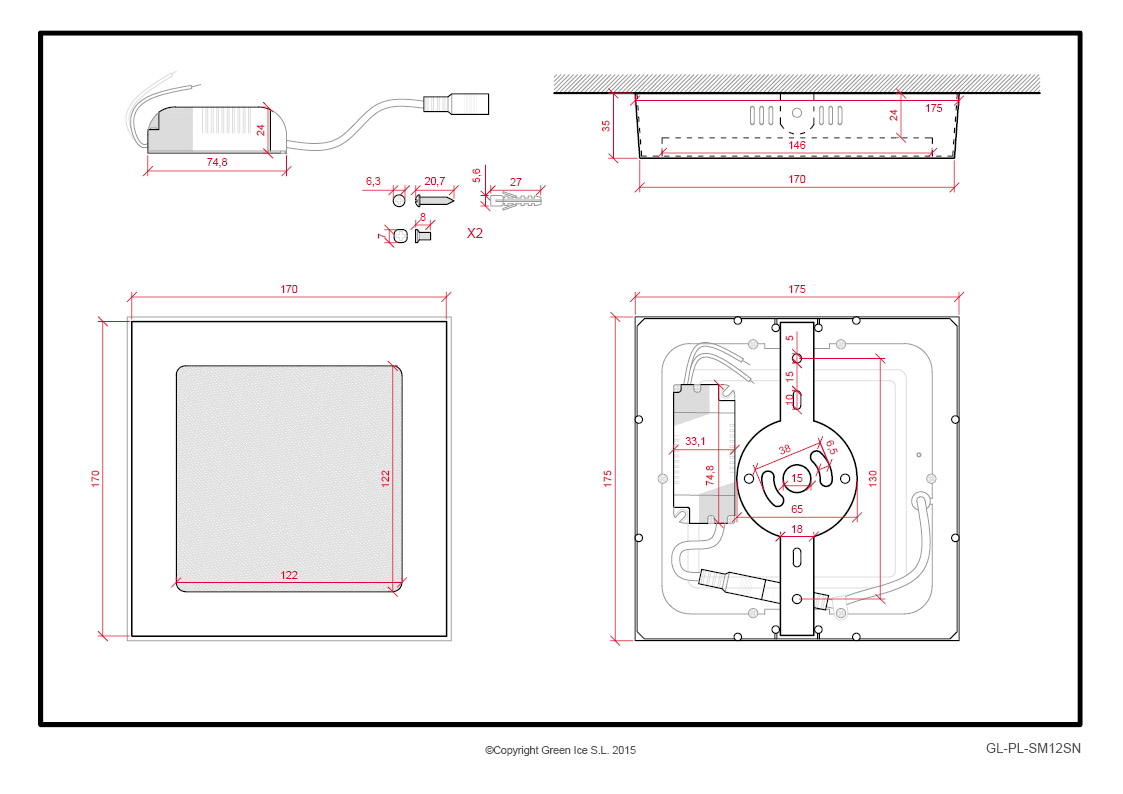

Technical_drawings
