LED Ceiling Light 12W 930Lm 6000ºK Circular Custom Case 40,000H [GR-MZMD01-12W-CW-EP02]

LED Ceiling Light 12W 930Lm 6000ºK Circular Custom Case 40,000H [GR-MZMD01-12W-CW-EP02]

For additional amounts the delivery period is 8 days As of the order date
  • Brand:GreenIce
  • SkuGR-MZMD01-12W-CW-EP02
  • A 2021
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
5,72€
5,72€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(GR-MZMD01-12W-CW-EP02_padreImg_gr_mzmd01_12w_cw_ep02_0.jpeg)
Cool White
Stock available
Free shipping
5,72€
5,72€ Infinity%

Accessories

  • (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_0.jpeg) (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_1.jpeg)

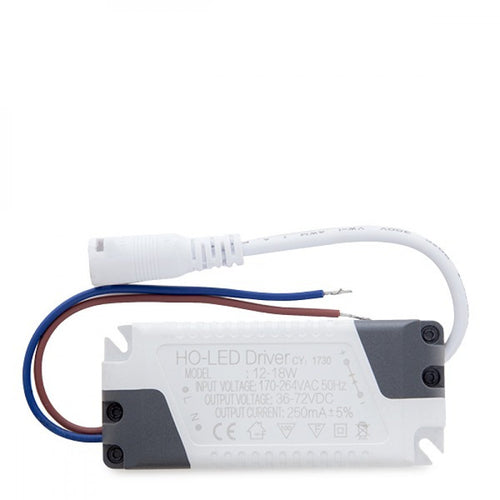

    Driver Non Dimmable Downlight LED 12W

    GreenIce

    Driver Non Dimmable Downlight LED 12W

    1,96€
    1,96€ Infinity%
  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    3,15€
    3,15€ Infinity%
  • (SB-BS036B_padreImg_sb_bs036b_0.jpeg) (SB-BS036B_padreImg_sb_bs036b_1.jpeg)

    Motion Sensor Surface Mounted 360º ►1200/300W

    GreenIce

    Motion Sensor Surface Mounted 360º ►1200/300W

    6,71€
    6,71€ Infinity%
  • (GR-DRDIM-12W_padreImg_gr_drdim_12w_0.jpeg) (GR-DRDIM-12W_padreImg_gr_drdim_12w_1.jpeg)

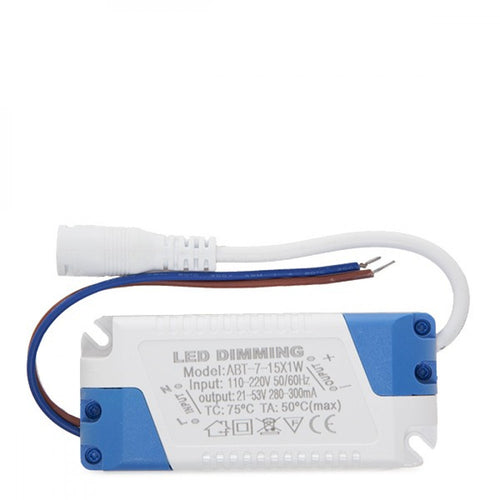

    Driver Dimmable Slimline Downlights 12W

    GreenIce

    Driver Dimmable Slimline Downlights 12W

    5,83€
    5,83€ Infinity%
  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    6,72€
    6,72€ Infinity%
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    4,37€
    4,37€ Infinity%
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    2,95€
    2,95€ Infinity%
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    5,12€
    5,12€ Infinity%

Technical file

Product code
GR-MZMD01-12W-CW-EP02
Luminous efficacy (LM/W)
77
Light temperature
Cold white
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
930
Measures (mm)
Ø160x30
High
30.0
Diameter
160
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
12.0
Weight (gr)
300
Flicker
0.89
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
88
Maximum cri range
26
Chromaticity x
0.319
Chromaticity y
0.338
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
GR-MZMD01-12W-CW-EP02
Luminous efficacy (LM/W)
77
Light temperature
Cold white
Kelvin º
6000
Power (W)
12.0
Luminosity (LM)
930
Measures (mm)
Ø160x30
High
30.0
Diameter
160
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
12.0
Weight (gr)
300
Flicker
0.89
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
88
Maximum cri range
26
Chromaticity x
0.319
Chromaticity y
0.338
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

The 169mm diameter, 40mm thick circular LED ceiling light offers solutions for offices, factories, supermarkets, shops and residential use. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (78 Lm/W ) consuming 12W through SMD2835 type LEDs and managing to provide a luminous flux of 930Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to an 80W incandescent bulb, its consumption represents a value of 12kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This luminaire is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (25-45VDC, 280mA), additionally the necessary accessories for the installation of the luminaire are included. White finish built with aluminum. This surface ceiling lighthas an IP25 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands.

Ideal to replace the traditional halogen, reaching savings of up to 90% and conventional low consumption downlights, reaching savings of up to 60% with which high energy efficiency is achieved.

Easy installation, long life of the led luminaire, more than 30,000 hours and maintenance free.

The perfect solution to create an elegant environment, in new construction or rehabilitation, to replace the current spotlights, for the home , offices, receptions, museums, bars, etc.

This luminaire is available in natural white (4200°K), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
