LED ceiling light 18W 1,800Lm 2700ºK Circular Bicolor "Veronica" 40,000H [HO-PL-BI-18W-03-WW]

LED ceiling light 18W 1,800Lm 2700ºK Circular Bicolor "Veronica" 40,000H [HO-PL-BI-18W-03-WW]

Warm White
Delivery in 48 h ... if you ask before

Stock available

For additional amounts the delivery period is 60 days As of the order date
19,84€
19,84€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

  • Brand:GreenIce
  • SkuHO-PL-BI-18W-03-WW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
(HO-PL-BI-18W-03-WW_padreImg_ho_pl_bi_18w_03_ww_0.jpeg)
Warm White
Stock available
Free shipping
19,84€
19,84€ Infinity%

Technical file

Product code
HO-PL-BI-18W-03-WW
Luminous efficacy (LM/W)
100
Light temperature
NW
Kelvin º
2700
Power (W)
18.0
Luminosity (LM)
1800
Measures (mm)
Ø300x50
High
50.0
Diameter
300
Number and type of LEDs
SMD2835
CRI
80
Power factor (PF)
0.9
Construction
Wood/Metal
Opening Angle (º)
120
Facility
IP25
Strain
220-240VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
460
Flicker
0.84
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Range
Single CCT
2700
INDEX R9
8
Minimum cri range
96
Maximum cri range
4
Chromaticity x
0.376
Chromaticity y
0.384
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
HO-PL-BI-18W-03-WW
Luminous efficacy (LM/W)
100
Light temperature
NW
Kelvin º
2700
Power (W)
18.0
Luminosity (LM)
1800
Measures (mm)
Ø300x50
High
50.0
Diameter
300
Number and type of LEDs
SMD2835
CRI
80
Power factor (PF)
0.9
Construction
Wood/Metal
Opening Angle (º)
120
Facility
IP25
Strain
220-240VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
460
Flicker
0.84
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Range
Single CCT
2700
INDEX R9
8
Minimum cri range
96
Maximum cri range
4
Chromaticity x
0.376
Chromaticity y
0.384
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

The Bicolor Surface Circular LED Ceiling Light is widely used in all types of rooms and is extremely easy to install.

The Bicolor Surface Circular LED Ceiling Light has used quality materials such as Metal. This type of materials facilitate the dissipation of the heat generated, improving the performance of the luminaire.

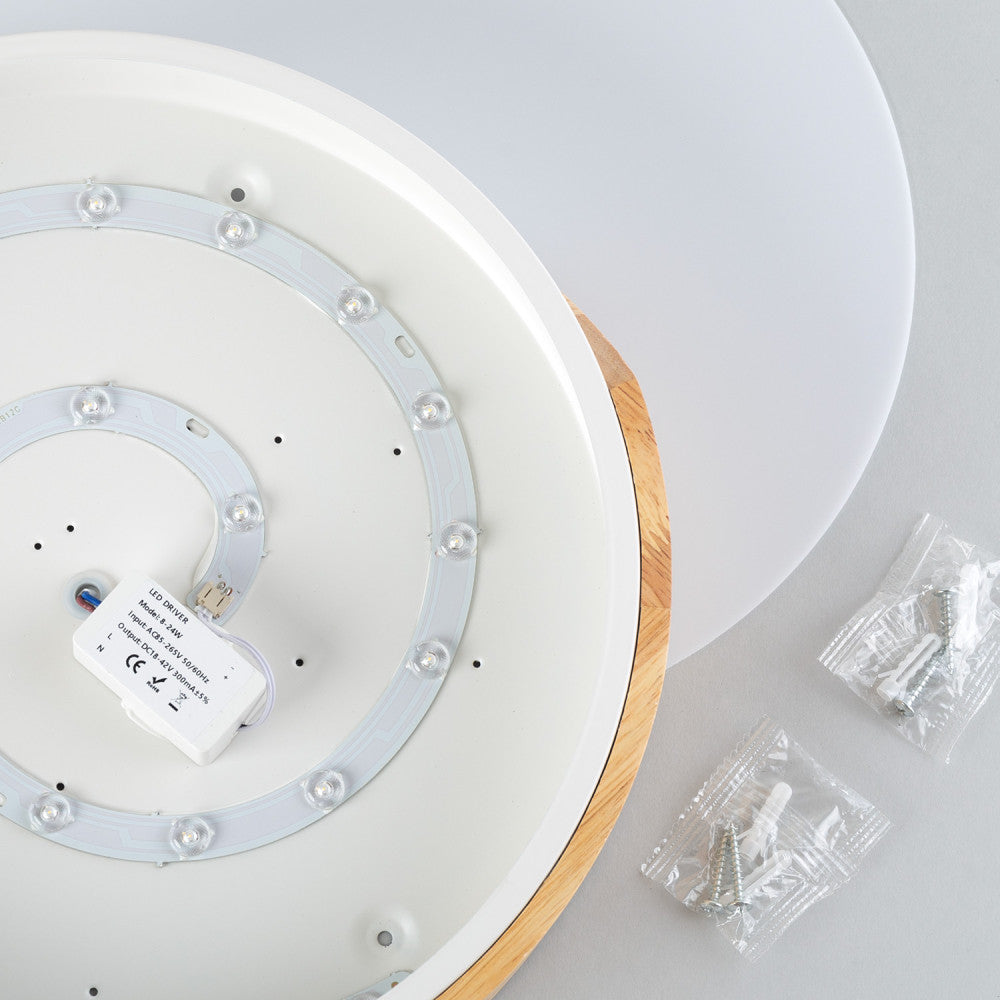

This luminaire is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the board (12-28VDC, 300mA), additionally the necessary accessories for the installation are included. installation of the luminaire. White finish built with aluminum. This surface ceiling light has an IP20 protection degree (valid for dust and humidity indoors), in addition to being sufficiently robust for the required mechanical demands.

Ideal for replacing traditional halogens, reaching savings of up to 90%, and conventional low-consumption downlights, reaching savings of up to 60%, achieving high energy efficiency.

Easy installation, long life of the LED luminaire, more than 40,000 hours and maintenance free.

The perfect solution to create an elegant environment, in new construction or renovation, to replace current spotlights, for the home, offices, receptions, museums, bars, etc.

This luminaire is available in warm white (3000°K). The indicated color temperature may vary within a tolerance of 7%.

Documents

Installation_manual
Technical_drawings
