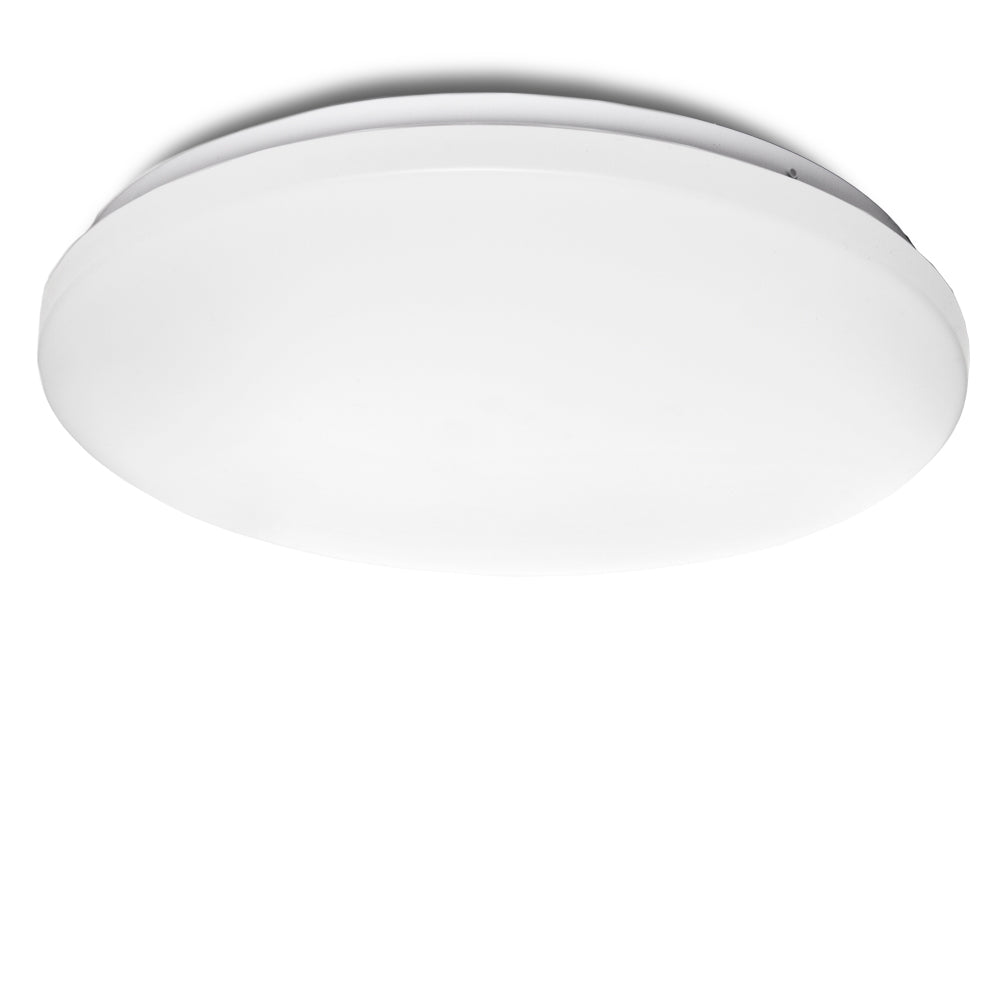

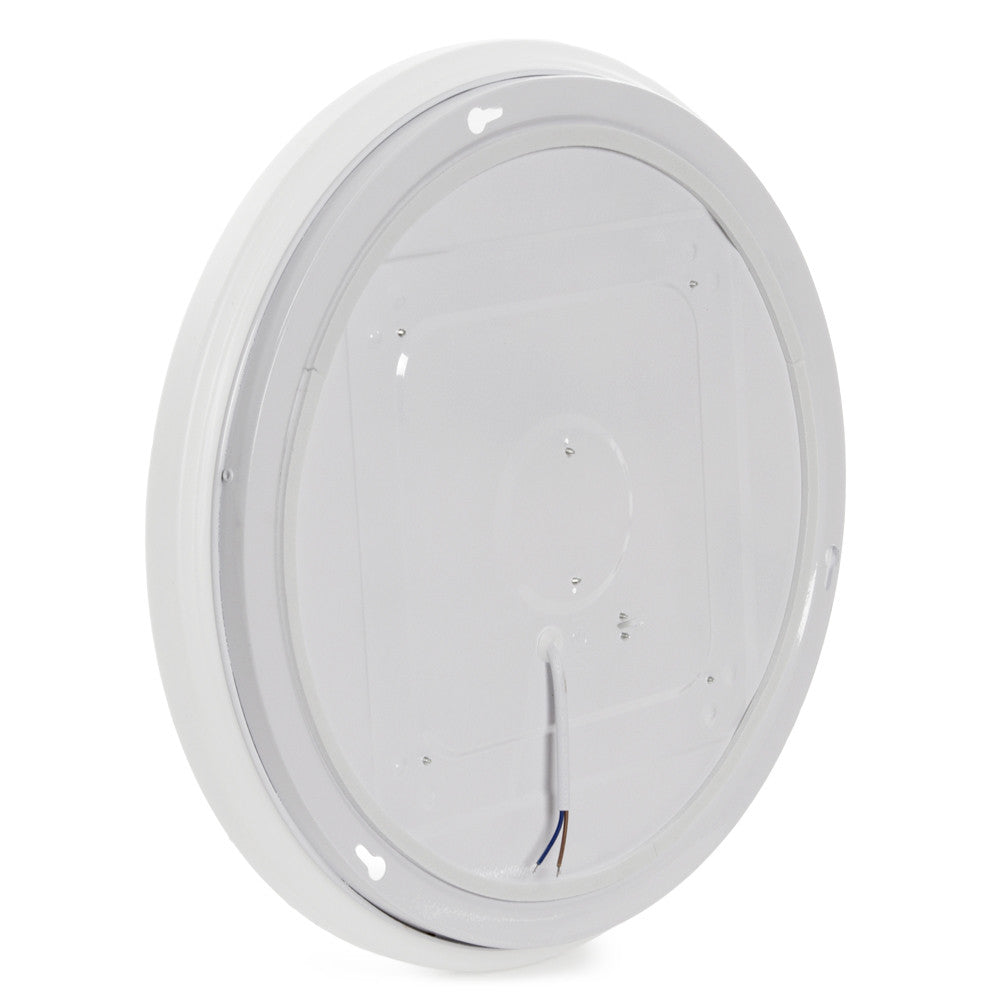

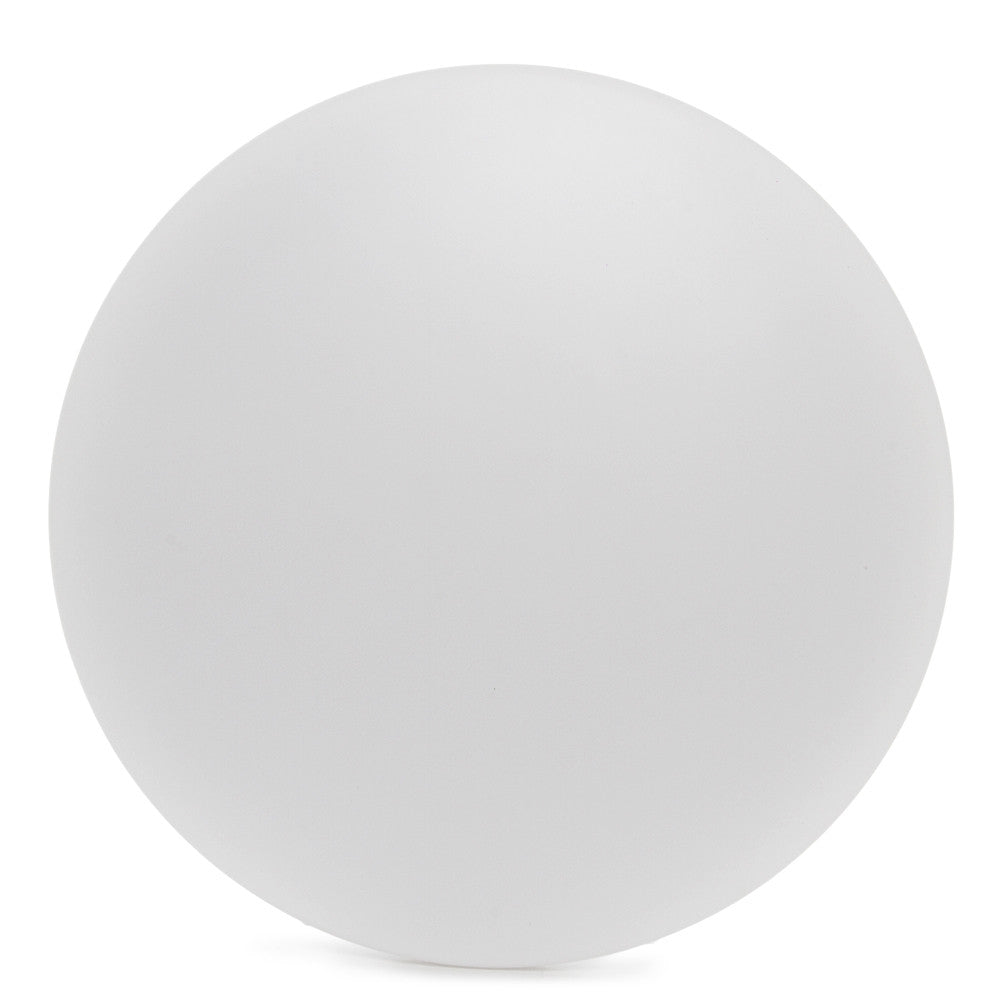

LED ceiling light 36W 4320Lm 6000ºK Circular 40,000H [HO-8207-CW]

LED ceiling light 36W 4320Lm 6000ºK Circular 40,000H [HO-8207-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuHO-8207-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
16,70€
16,70€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-8207-CW_padreImg_ho_8207_cw_0.jpeg)
Cool White
Stock available
Free shipping
16,70€
16,70€ Infinity%

Accessories

  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    9,53€
    9,53€ Infinity%

Technical file

Product code
HO-8207-CW
Luminous efficacy (LM/W)
120
Light temperature
Cold White
Kelvin º
6000
Power (W)
36.0
Luminosity (LM)
4320
Measures (mm)
390x65
High
65.0
Diameter
390
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
170-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
36.0
Weight (gr)
300
Flicker
0.89
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
22
Minimum cri range
91
Maximum cri range
20
Chromaticity x
0.317
Chromaticity y
0.338
Driver output
DC28-36V 200ma
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
HO-8207-CW
Luminous efficacy (LM/W)
120
Light temperature
Cold White
Kelvin º
6000
Power (W)
36.0
Luminosity (LM)
4320
Measures (mm)
390x65
High
65.0
Diameter
390
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
170-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
190
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
36.0
Weight (gr)
300
Flicker
0.89
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
22
Minimum cri range
91
Maximum cri range
20
Chromaticity x
0.317
Chromaticity y
0.338
Driver output
DC28-36V 200ma
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

The 390mm diameter round LED ceiling light, 65mm thick, offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (170-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (83.3 Lm/ W) consuming 36W through SMD2835 type LEDs and managing to provide a luminous flux of 3000Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to an incandescent bulb of 200W, its consumption represents a value of 36kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This surface ceiling light has a degree of protection IP20 (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

Ideal for replacing traditional halogen lamps, achieving savings of up to 90% and low conventional consumption es, reaching savings of up to 60% with which high energy efficiency is achieved.

Easy installation, long life of the LED luminaire, more than 30,000 hours and maintenance free.< /strong>

The perfect solution to create an elegant environment, in new construction or rehabilitation, to replace the current spotlights, for the home, offices, receptions, museums, bars, etc.

< p>This luminaire is available in cool white (6000°K) and natural white (4000ºK).The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Documents

Installation_manual
Eu_certificates

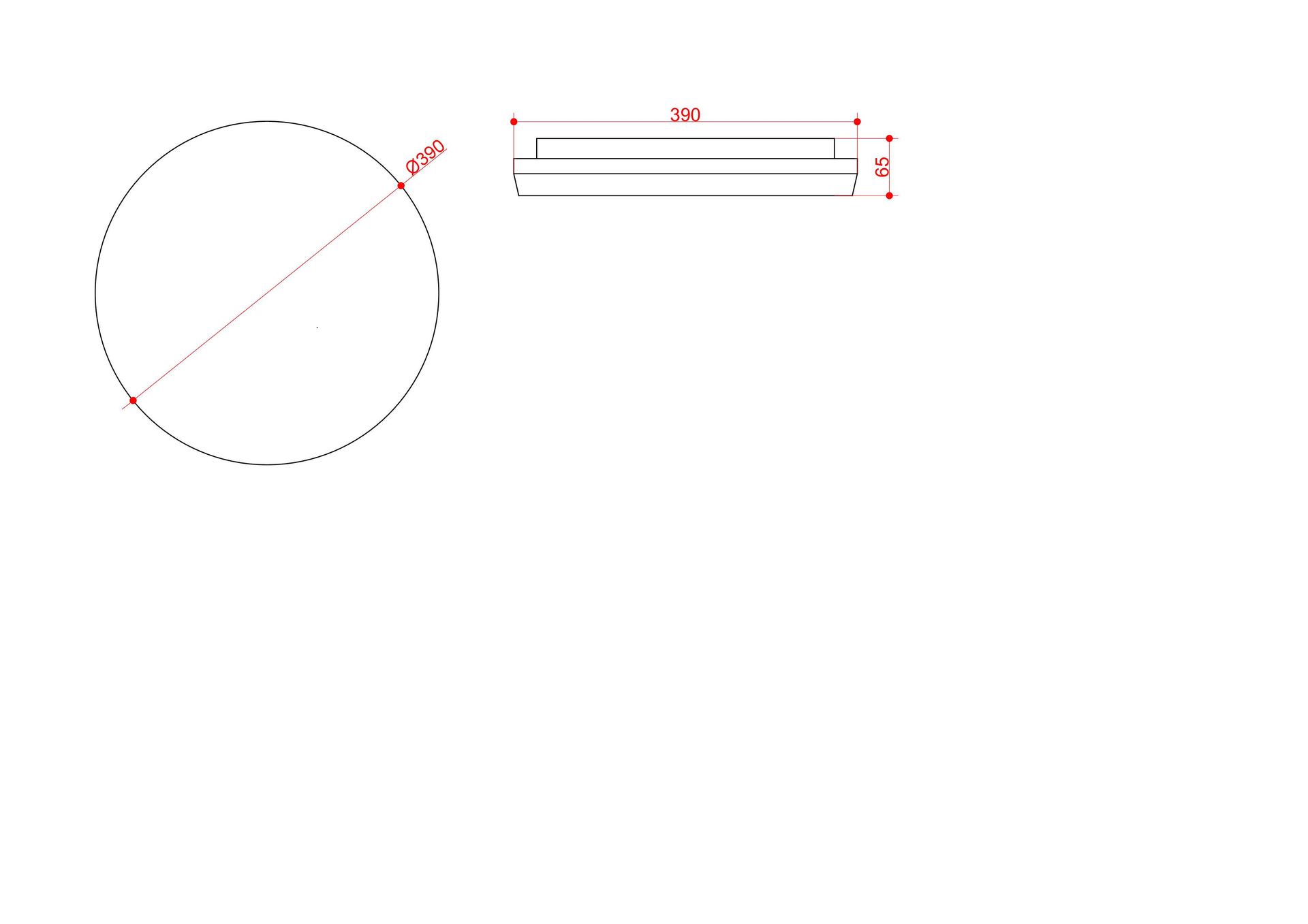

Technical_drawings
