Technical file
Product code
HO-DL-AD-20W-B-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
20.0
Luminosity (LM)
2000
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Philips Led
Measures (mm)
95xØ190
Roof cut (mm)
Ø160
High
95.0
Diameter
Ø190
CRI
80
UGR
◄19
Power factor (PF)
0.95
Construction
Al/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Estimated life (H)
40000
Equivalence (W)
135
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
625
Flicker
0.81
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single CCT
6000
INDEX R9
25
Minimum cri range
93
Maximum cri range
2
Chromaticity x
0.322
Chromaticity y
0.349
Driver
Lifud
Description
The 190mm diameter circular LED downlight with a thickness of (95mm) offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly into mains-powered sockets (85-265VAC) with a service frequency of 50/60Hz.
It has a high efficiency (100 Lm/W) consuming 20W through a SMD2835 type LED and managing to provide a luminous flux of 2000Lm evenly distributed by an anti-glare opal diffuser from which a colour rendering index of 80 is obtained. It provides lighting equivalent to a 160W incandescent bulb, its consumption represents a value of 20kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

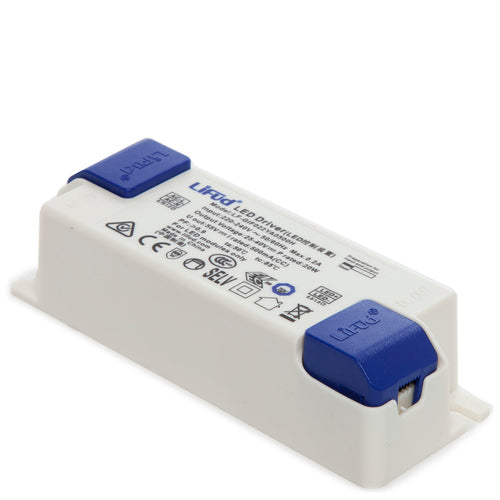

This downlight is powered by a non-dimmable driver included in the package that must be connected directly to the mains, with an output connector compatible with the downlight connection (20-42VDC, 300mA). Additionally, the necessary accessories for the installation of the downlight are included. Finished in white, it is built with aluminium and polycarbonate. The downlight has an IP20 protection rating (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.
It is made of high-quality materials such as aluminium, which guarantees the durability of the spotlight. It offers uniform lighting without annoying reflections. In addition, it has CE and RoHS certificates, which are synonymous with quality and safety.
The downlight spotlight has a high colour rendering index (CRI 80) and therefore guarantees colour reproduction without distortions. This factor is key in commercial environments and spaces where products are displayed in general, such as supermarkets, shops, shopping centres, museums, dealerships, restaurants, etc.
This downlight is available in natural white (4200°K), cool white (6000°K) and warm white (2700°K). The indicated colour temperature may fluctuate within a tolerance of 7%.
