LED Circular Downlight Spotlight 7W 980Lm 6000ºK Anti-Glare UGR19 40,000H [HO-DL-AD-COB-7W-CW]

LED Circular Downlight Spotlight 7W 980Lm 6000ºK Anti-Glare UGR19 40,000H [HO-DL-AD-COB-7W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Philips Led
  • SkuHO-DL-AD-COB-7W-CW
  • AAA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
5,34€
5,34€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-DL-AD-COB-7W-CW_padreImg_ho_dl_ad_cob_7w_cw_0.jpeg)
Cool White
Stock available
Free shipping
5,34€
5,34€ Infinity%

Accessories

  • (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_0.jpeg) (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_1.jpeg)

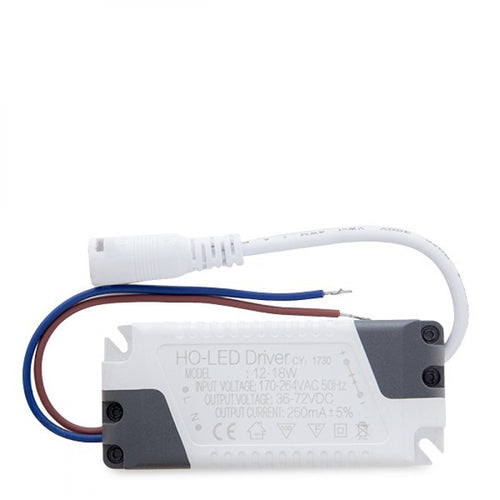

    Driver Non Dimmable Downlight LED 12W

    GreenIce

    Driver Non Dimmable Downlight LED 12W

    1,39€
    1,39€ Infinity%
  • (GR-DRDIM-12W_padreImg_gr_drdim_12w_0.jpeg) (GR-DRDIM-12W_padreImg_gr_drdim_12w_1.jpeg)

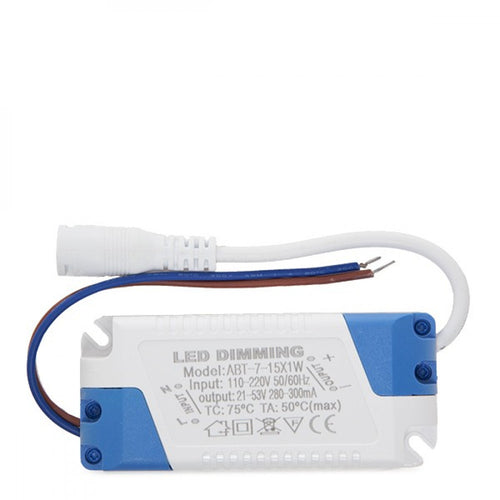

    Driver Dimmable Slimline Downlights 12W

    GreenIce

    Driver Dimmable Slimline Downlights 12W

    5,43€
    5,43€ Infinity%

Technical file

Product code
HO-DL-AD-COB-7W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
7.0
Luminosity (LM)
980
Luminous efficacy (LM/W)
140
LED efficacy
154
Type of LEDs
Philips Led
Measures (mm)
Ø100x50
Roof cut (mm)
Ø80
High
50.0
Diameter
100
CRI
80
UGR
◄19
Diffuser
Transparent
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-245VAC
Driver output
DC12-24V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
60
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
7.0
Weight (gr)
236
Flicker
0.86
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
92
Maximum cri range
14
Chromaticity x
0.31
Chromaticity y
0.336
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-DL-AD-COB-7W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
7.0
Luminosity (LM)
980
Luminous efficacy (LM/W)
140
LED efficacy
154
Type of LEDs
Philips Led
Measures (mm)
Ø100x50
Roof cut (mm)
Ø80
High
50.0
Diameter
100
CRI
80
UGR
◄19
Diffuser
Transparent
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-245VAC
Driver output
DC12-24V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
60
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
7.0
Weight (gr)
236
Flicker
0.86
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
92
Maximum cri range
14
Chromaticity x
0.31
Chromaticity y
0.336
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 99mm diameter circular LED Downlight with a thickness of (49mm),offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (86-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (140 Lm/W) consuming 7W through an SMD2835 type LED and managing to provide a luminous flux of 980Lm uniformly distributed through an anti-glare opal diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 50W incandescent bulb, its consumption represents a value of 7kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This downlight is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the downlight (12-28VDC, 300mA), additionally the necessary accessories for the installation of the downlight are included. White finish built with aluminum and polycarbonate. The Downlight has an IP20 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

It is made of high-quality materials such as aluminium, which ensures the durability of the spotlight. It offers uniform lighting without annoying reflections. In addition, it has the CE and RoHS certificates, which are synonymous with quality and safety.

The Downlight spotlight has a high color rendering index (CRI 80) and, therefore, , ensures distortion-free color reproduction. This factor is key in commercial environments and spaces where products are displayed in general, such as supermarkets, shops, malls, museums, dealerships, restaurants, etc.

This Downlight It is available in natural white (4200°K), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Documents

Installation_manual
Technical_drawings
