LED Cord 1M 3525Lm 2700ºK 24xF3/M 220VAC IP65 Warm White 40,000H [CA-COR-220-WW]

LED Cord 1M 3525Lm 2700ºK 24xF3/M 220VAC IP65 Warm White 40,000H [CA-COR-220-WW]

For additional amounts the delivery period is 25 days As of the order date
  • Brand:GreenIce
  • SkuCA-COR-220-WW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • 360 º Opening
Documents
5,66€
5,66€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 360 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(CA-COR-220-WW_padreImg_ca_cor_220_ww_0.jpeg)
Warm White
Stock available
Free shipping
5,66€
5,66€ Infinity%

Accessories

  • (CA-COR-TAP_padreImg_ca_cor_tap_0.jpeg) (CA-COR-TAP_padreImg_ca_cor_tap_1.jpeg)

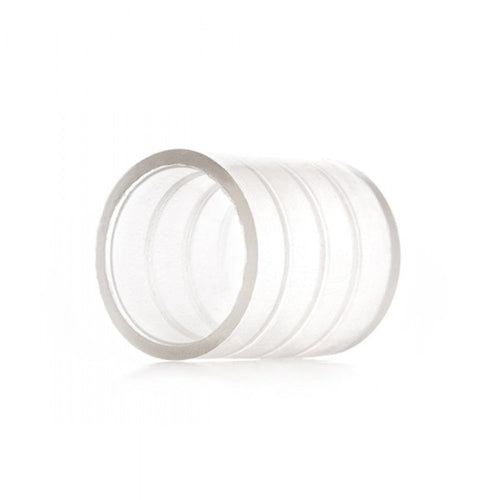

    End Cap Rope 24 LED F3/M 220VAC IP65

    GreenIce

    End Cap Rope 24 LED F3/M 220VAC IP65

    0,22€
    0,22€ Infinity%
  • (CA-COR-ENCH_padreImg_ca_cor_ench_0.jpeg) (CA-COR-ENCH_padreImg_ca_cor_ench_1.jpeg)

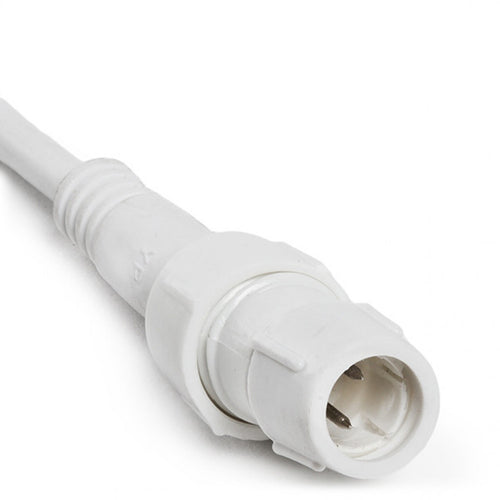

    Plug Connector Rope 24 LED F3/M 220VAC IP65

    GreenIce

    Plug Connector Rope 24 LED F3/M 220VAC IP65

    1,62€
    1,62€ Infinity%

Technical file

Product code
CA-COR-220-WW
Luminous efficacy (LM/W)
84
Light temperature
NW
Kelvin º
2700
Power (W)
6.0
Luminosity (LM)
508
Measures (mm)
Ø10x100000
Long
100000.0
Broad
10.0
Number and type of LEDs
F3
CRI
85
Power factor (PF)
0.8
Construction
Epoxy
Opening Angle (º)
360
Facility
IP65
Strain
220-240VAC
Estimated life (H)
40000
Dimable
Yes
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +60
Diffuser
Transparent
Energy consumption (kWh/1000h)
6.0
Weight (gr)
120
Flicker
0.85
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
15
Minimum cri range
87
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Additional information
Supplied without accessories / See "accessories" tab
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007

Characteristics

Product code
CA-COR-220-WW
Luminous efficacy (LM/W)
84
Light temperature
NW
Kelvin º
2700
Power (W)
6.0
Luminosity (LM)
508
Measures (mm)
Ø10x100000
Long
100000.0
Broad
10.0
Number and type of LEDs
F3
CRI
85
Power factor (PF)
0.8
Construction
Epoxy
Opening Angle (º)
360
Facility
IP65
Strain
220-240VAC
Estimated life (H)
40000
Dimable
Yes
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +60
Diffuser
Transparent
Energy consumption (kWh/1000h)
6.0
Weight (gr)
120
Flicker
0.85
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
2700
INDEX R9
15
Minimum cri range
87
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Additional information
Supplied without accessories / See "accessories" tab
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007

Description

The LED String is connected directly to the 220V electrical network through a feeder. It is made with high quality components, allows high heat dissipation and is waterproof thanks to the transparent PVC cover.

Using this roll of cords it is possible to make installations of up to 50 meters per feeder , without risk of voltage drops. It does not require additional transformers, amplifiers or adapters, achieving great savings in materials and labor compared to 12/24V LED strips or cords.

Every meter can be cut, so the 220V LED cords significantly reduce the probability of failures, they use series/parallel circuits, if one zone is damaged (each zone 1 meter) it does not affect the others. >

Due to its flexibility and high luminosity, it is ideal for creating quality lighting in all types of environments, both indoors and outdoors.

Ideal for lighting :

  • Facade lighting, ceilings, residences and all kinds of and decoration
  • Bridges, monuments, stairs
  • Spectacular lighting, theaters, outdoor areas
  • Emergency lighting, path markings
  • Lighting environmental
  • Lighting for showcases, commercial lighting and shop windows

It is supplied in meters or a roll of 100 meters depending on the quantity. It should not be connected with the rolled strip.
