Technical file
Product code
HO-CCTDL-20W
Light temperature
CCT
Power (W)
20.0
Luminosity (LM)
2400
Luminous efficacy (LM/W)
120
LED efficacy
160
Type of LEDs
Bridgelux LED
Number of LEDs
1
Measures (mm)
140x57
Roof cut (mm)
120
Broad
57.0
Diameter
140
CRI
95
UGR
◄17
Diffuser
Micro
Power factor (PF)
0.99
Construction
Alu/PC
Opening Angle (º)
60
Facility
IP20
IK Protection Index
IK08
Strain
220V AC
Driver output
36V
Estimated life (H)
100000
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
C
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
INDEX R9
10
Minimum cri range
90
Maximum cri range
95
Minimum CCT range
3000
Maximum cri range
6000
Driver
Lifud
Description
This 140Lm/W Flicker-Free 4-CCT LIFUD LED Downlight is the perfect solution for lighting commercial and professional spaces. Its tilting design allows for precise light direction, ideal for highlighting products in display cases, counters, or shop windows.
High-quality lighting: Features Bridgelux SMD2835 LED chips with a high color rendering index (CRI>90), ensuring faithful color reproduction.

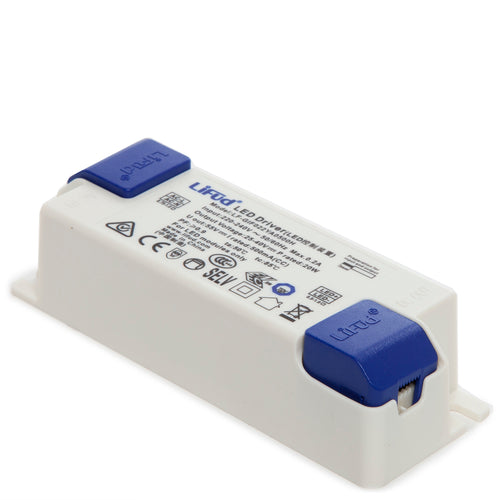

LIFUD Driver Included: Equipped with a high-quality LIFUD driver, ensuring stable and efficient performance.
CCT System: Allows you to select between 3000K (warm white), 4000K (neutral white), 5000K (cool white), and 6000K (cool white) using a switch, adapting the lighting to the desired environment.
Premium Aluminum Housing: Made of aluminum with a white finish, ensuring optimal heat dissipation, extending the product's lifespan. Available in white (see related products).
Wide beam angle: Its 60° beam angle provides uniform, shadow-free illumination over large areas.
Applications:
• Display and shop window lighting.
• Commercial spaces, offices, hotels, and museums.
• Home lighting.
This 140Lm/W Flicker-Free 4-CCT LIFUD LED Downlight is the perfect solution for lighting commercial and professional spaces. Its tilting design allows for precise light direction, ideal for highlighting products in display cases, counters, or shop windows.
High-quality lighting: Features Bridgelux SMD2835 LED chips with a high color rendering index (CRI>90), ensuring faithful color reproduction.
LIFUD Driver Included: Equipped with a high-quality LIFUD driver, ensuring stable and efficient performance.
CCT System: Allows you to select between 3000K (warm white), 4000K (neutral white), 5000K (cool white), and 6000K (cool white) using a switch, adapting the lighting to the desired environment.
Premium Aluminum Housing: Made of aluminum with a white finish, ensuring optimal heat dissipation, extending the product's lifespan. Available in white (see related products).
Wide beam angle: Its 60° beam angle provides uniform, shadow-free illumination over large areas.
Applications:
• Display and shop window lighting.
• Commercial spaces, offices, hotels, and museums.
• Home lighting.
