LED Downlight Spotlight 15W 1,350Lm 6000ºK IP65 Bathrooms/Kitchens 50,000H [SL-DLFS03-15W-CW]

LED Downlight Spotlight 15W 1,350Lm 6000ºK IP65 Bathrooms/Kitchens 50,000H [SL-DLFS03-15W-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuSL-DLFS03-15W-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
8,32€
8,32€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(SL-DLFS03-15W-CW_padreImg_sl_dlfs03_15w_cw_0.jpeg)
Cool White
Stock available
Free shipping
8,32€
8,32€ Infinity%

Accessories

  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    6,73€
    6,73€ Infinity%
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    2,96€
    2,96€ Infinity%

Technical file

Product code
SL-DLFS03-15W-CW
Luminous efficacy (LM/W)
90
Light temperature
Cold white
Kelvin º
6000
Power (W)
15.0
Luminosity (LM)
1350
Measures (mm)
Ø108x51
Roof cut (mm)
Ø92
High
51.0
Diameter
108
Number and type of LEDs
Epistar Led
CRI
80
UGR
◄19
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
Strain
85-265VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
100
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
15.0
Weight (gr)
380
Flicker
0.62
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
22
Chromaticity x
0.313
Chromaticity y
0.337
Driver output
DC72-96V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
SL-DLFS03-15W-CW
Luminous efficacy (LM/W)
90
Light temperature
Cold white
Kelvin º
6000
Power (W)
15.0
Luminosity (LM)
1350
Measures (mm)
Ø108x51
Roof cut (mm)
Ø92
High
51.0
Diameter
108
Number and type of LEDs
Epistar Led
CRI
80
UGR
◄19
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
Strain
85-265VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
100
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
15.0
Weight (gr)
380
Flicker
0.62
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
22
Chromaticity x
0.313
Chromaticity y
0.337
Driver output
DC72-96V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

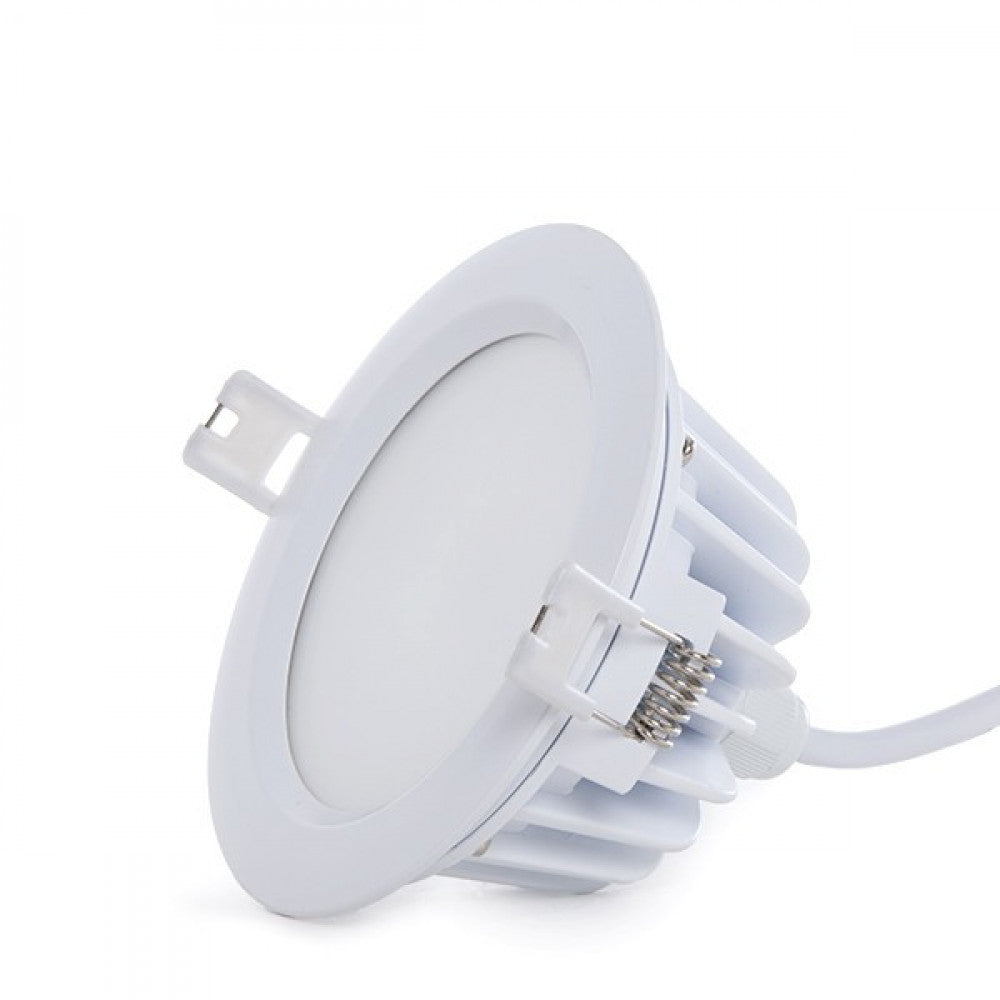

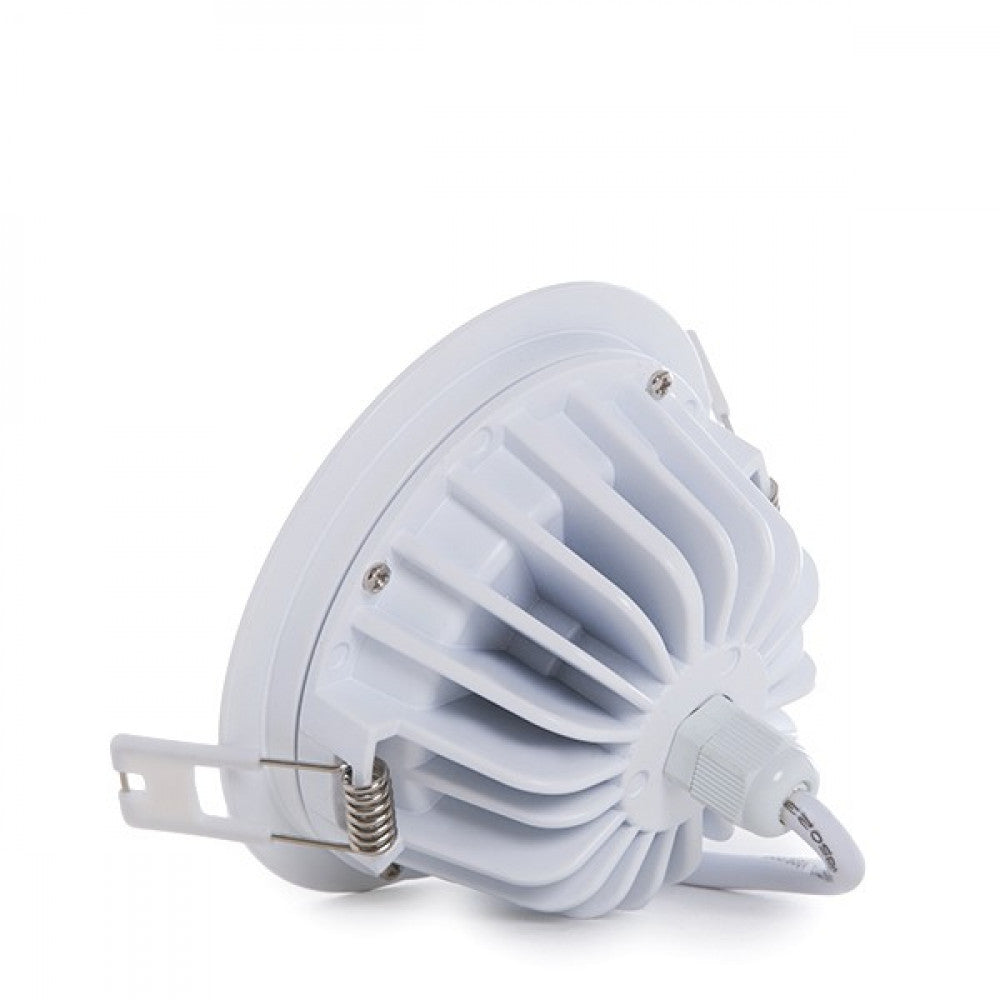

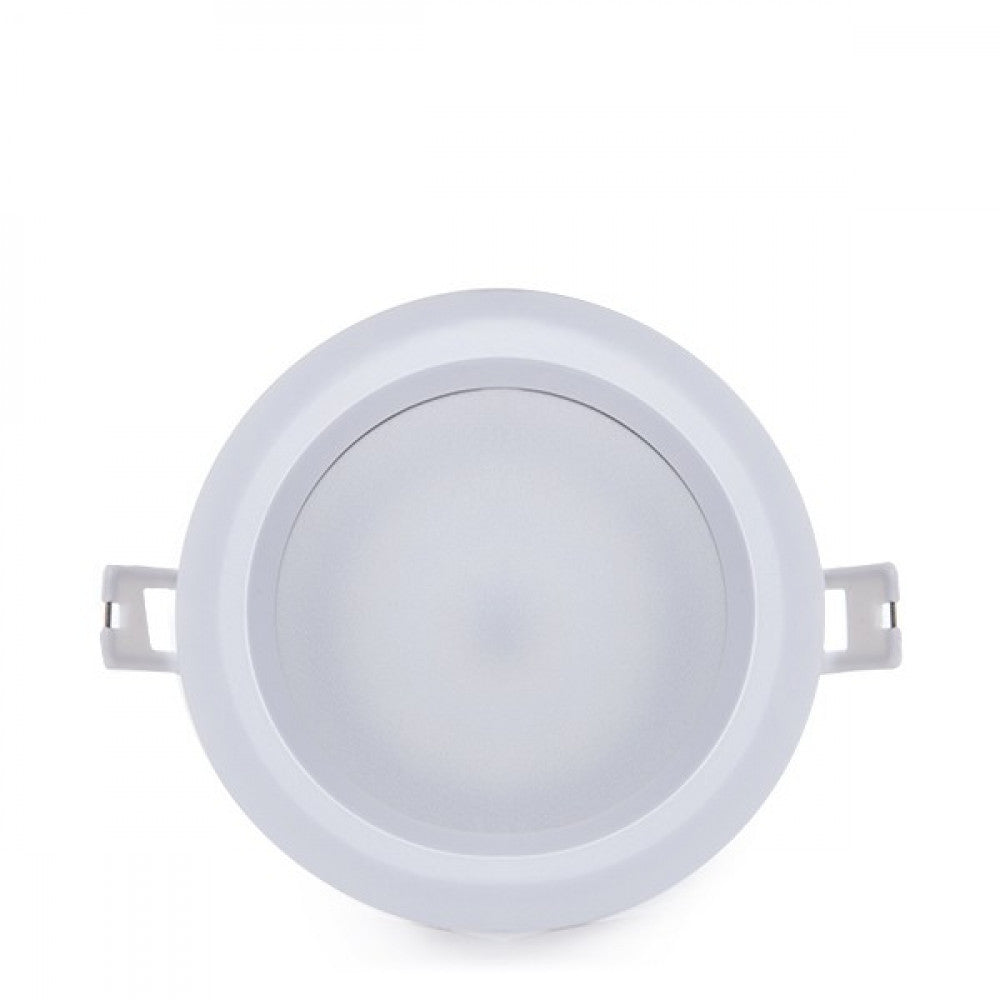

The circular LED downlight with a diameter of 108mm, with a thickness of 51mm and a cut of 92mm, offers solutions for both interiors and exteriors. It can be installed directly to power outlets supplied by the network electrical (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (90 Lm/W) consuming 15W through LEDs, providing a luminous flux of 1350Lm evenly distributed by an opalized plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 100W incandescent bulb, its consumption represents a value of 15kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

Manufactured in PC and installation recessed, this LED spotlight is designed for both indoors, especially for bathrooms and rooms that are usually damp, and outdoors, always under covered areas, thanks to its IP65 protection factor. It has a useful life of 30,000 hours.

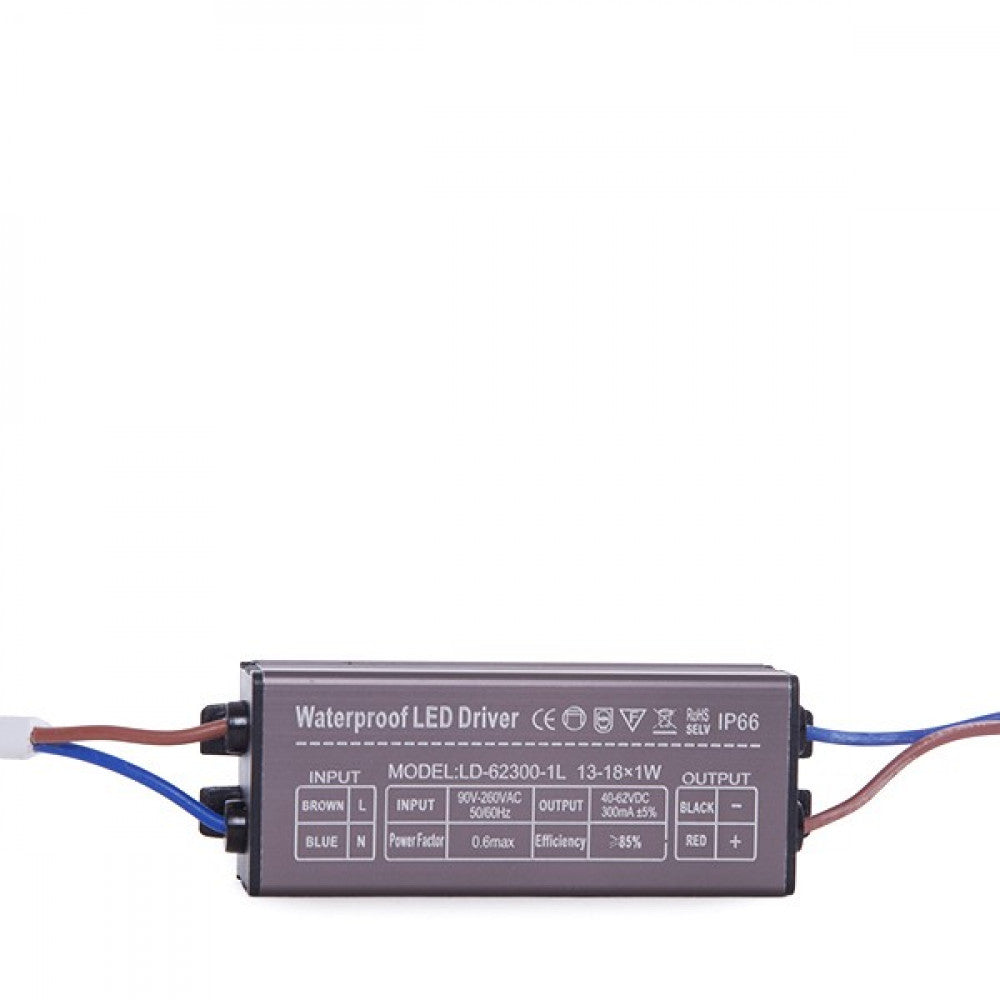

This downlight is powered by a driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (40-62VDC, 300mA), additionally included the necessary accessories for the installation of the plate. White finish built with aluminium. The downlight has an IP65 degree of protection (valid for dust and humidity outdoors), as well as being robust enough for the required mechanical demands.

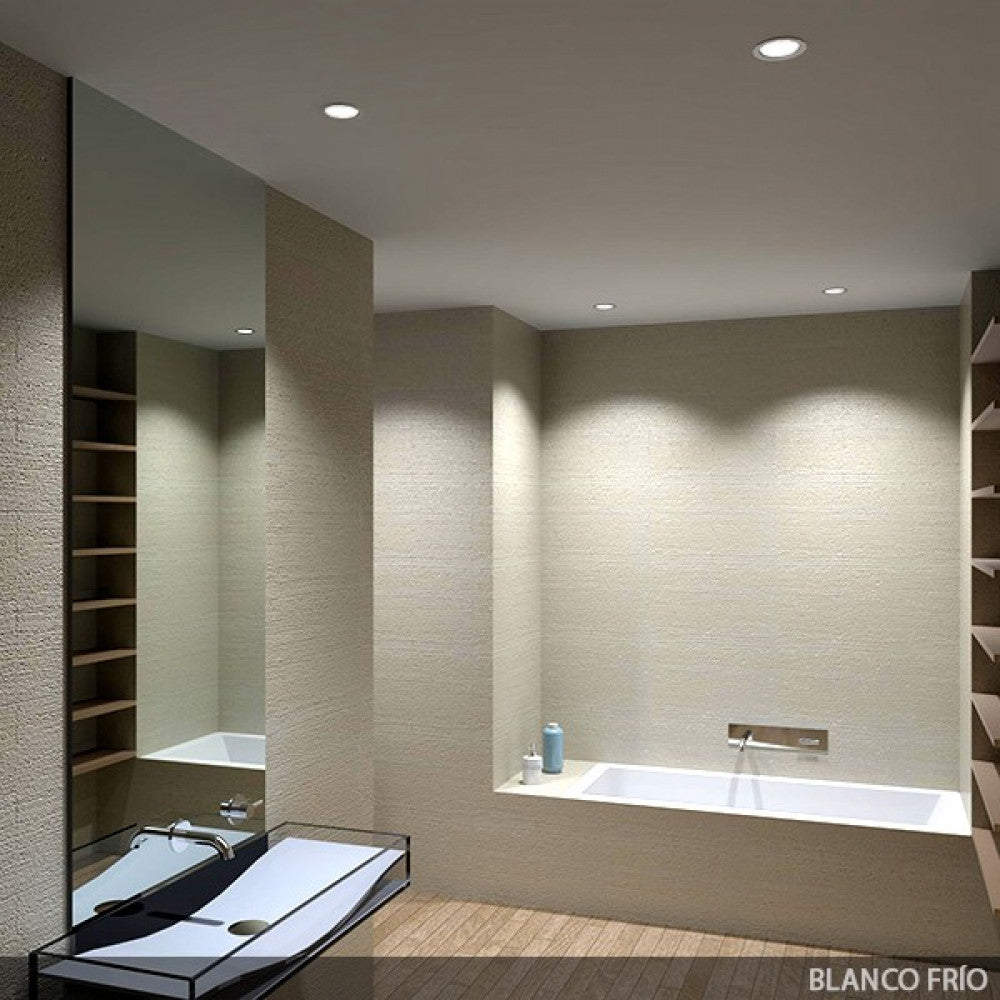

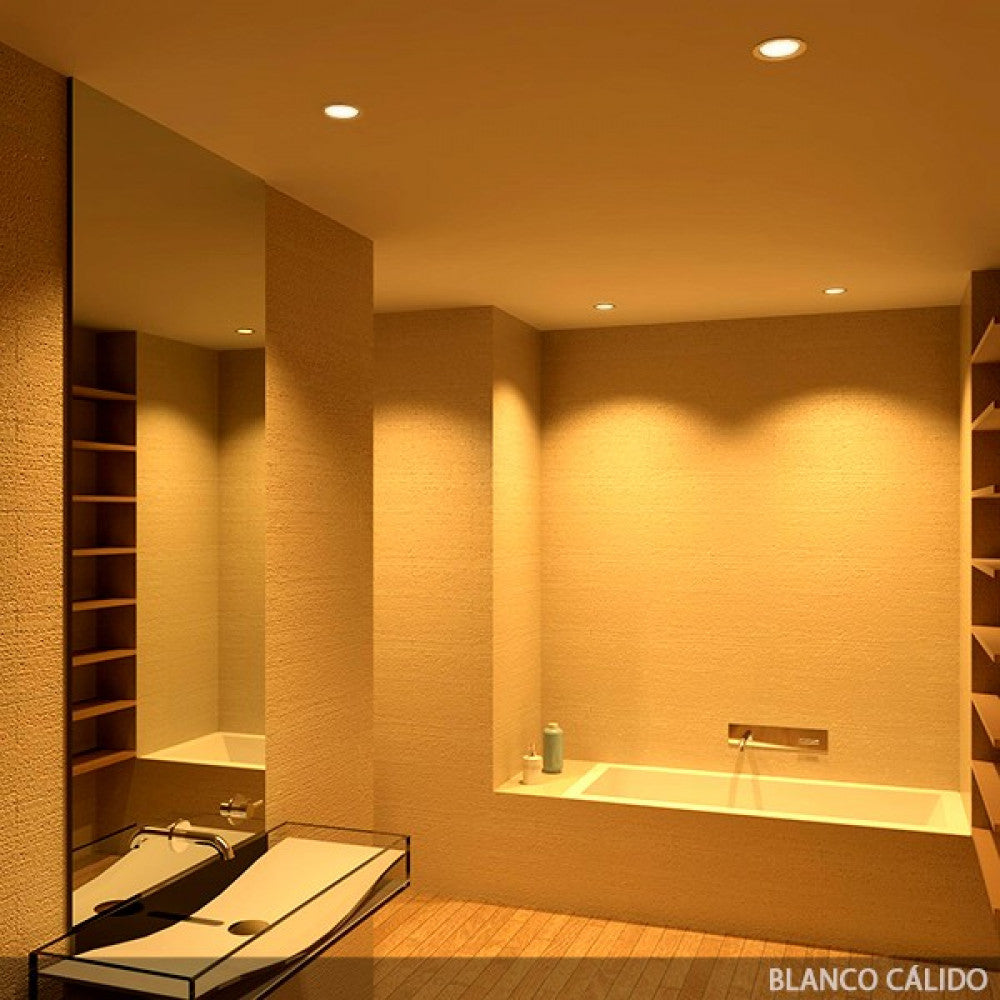

< p>This downlight is available in cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
