LED Downlight Spotlight 18W 1800Lm 6000ºK Circular Glass Ø200Mm 40,000H [HO-MB01-O-18W-CW]

LED Downlight Spotlight 18W 1800Lm 6000ºK Circular Glass Ø200Mm 40,000H [HO-MB01-O-18W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuHO-MB01-O-18W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
14,02€
14,02€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-MB01-O-18W-CW_padreImg_ho_mb01_o_18w_cw_0.jpeg)
Cool White
Stock available
Free shipping
14,02€
14,02€ Infinity%

Accessories

  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

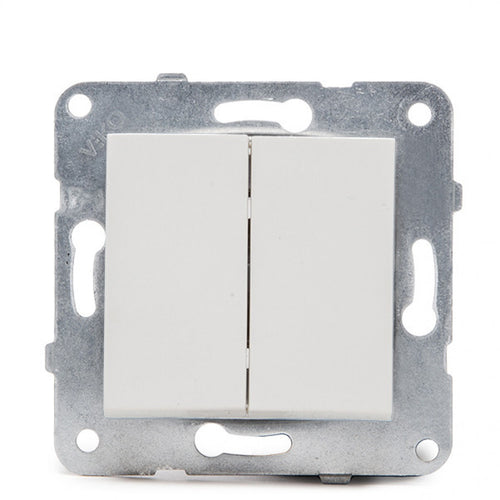

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    3,20€
    3,20€ Infinity%
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

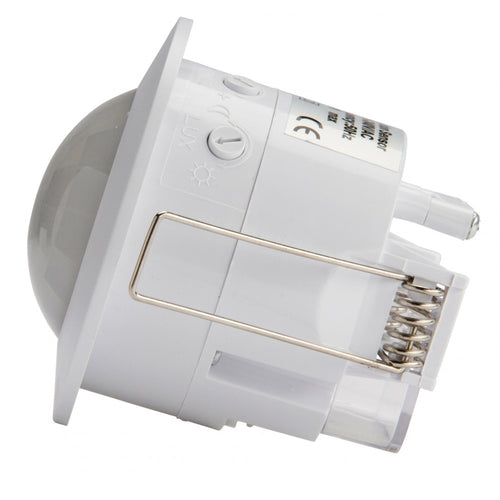

    Motion Sensor Recessed 360º ►1200/300W

    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    10,18€
    10,18€ Infinity%
  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

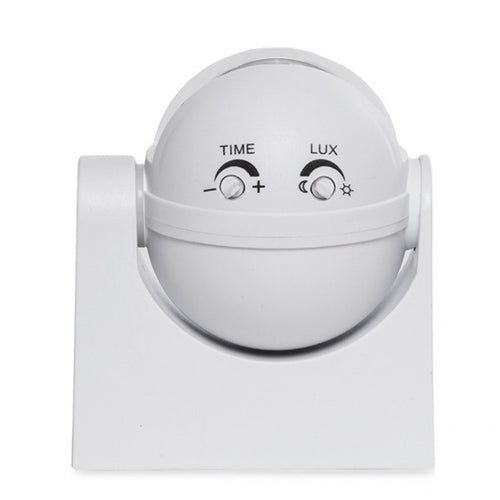

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    7,54€
    7,54€ Infinity%
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    4,44€
    4,44€ Infinity%
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

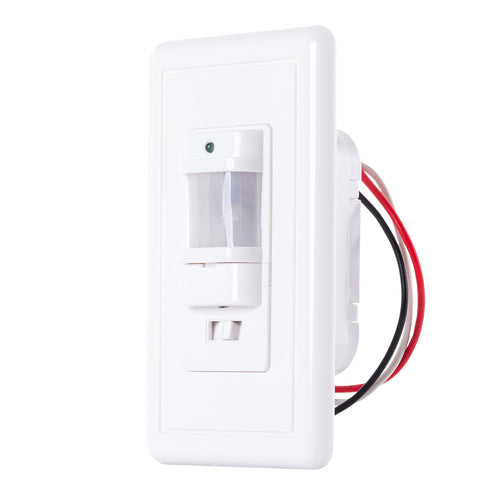

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    4,45€
    4,45€ Infinity%
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

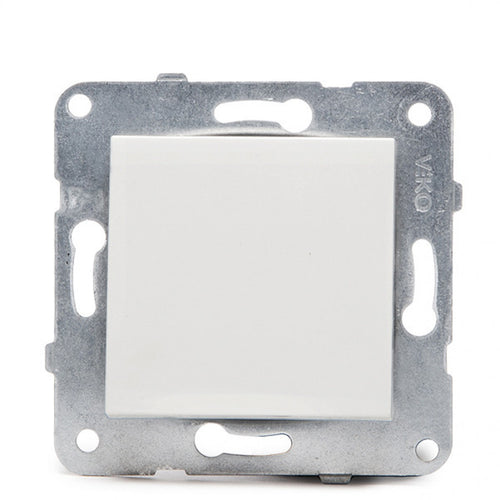

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    5,21€
    5,21€ Infinity%

Technical file

Product code
HO-MB01-O-18W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar Led
Measures (mm)
Ø200
Roof cut (mm)
Ø156
Diameter
200
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/Glass
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
600
Flicker
0.85
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
92
Maximum cri range
20
Chromaticity x
0.323
Chromaticity y
0.353
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-MB01-O-18W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar Led
Measures (mm)
Ø200
Roof cut (mm)
Ø156
Diameter
200
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/Glass
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
600
Flicker
0.85
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
92
Maximum cri range
20
Chromaticity x
0.323
Chromaticity y
0.353
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 200mm diameter circular LED panel with ultra-thin dimensions (36mm), offers solutions for offices, factories, supermarkets, shops and residential use. It can be installed directly to power outlets supplied by the electrical network (85 -265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (84 Lm/W) consuming 18W through SMD2835 type LEDs and managing to provide a luminous flux of 1500Lm evenly distributed over a opalized plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 100W incandescent bulb, its consumption represents a value of 18kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases to the atmosphere.

This board is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the pl aca (45-75VDC, 300mA), additionally the necessary accessories for the installation of the plate are included. White finish built with aluminum.

The plate has an IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

This plate is available in cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. They are also very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.
