LED Downlight Spotlight 9W 900Lm 6000ºK Circular 40,000H [HO-LEDDOWN-9W-CW]

LED Downlight Spotlight 9W 900Lm 6000ºK Circular 40,000H [HO-LEDDOWN-9W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuHO-LEDDOWN-9W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
8,99€
8,99€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-LEDDOWN-9W-CW_padreImg_ho_leddown_9w_cw_0.jpeg)
Cool White
Stock available
Free shipping
8,99€
8,99€ Infinity%

Accessories

  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

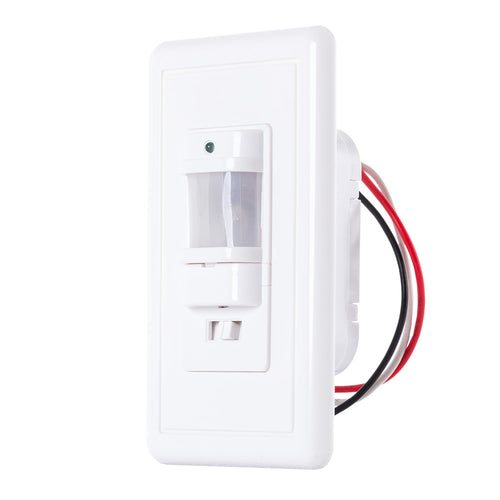

    Motion Sensor Recessed 160º ►600W/200W

    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    4,43€
    4,43€ Infinity%

Technical file

Product code
HO-LEDDOWN-9W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
9.0
Luminosity (LM)
900
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar Led
Measures (mm)
Ø134x61
Roof cut (mm)
Ø108
High
61.0
Diameter
134
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.3
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Energy consumption (kWh/1000h)
9.0
Weight (gr)
365
Flicker
0.98
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Single Value
Single CCT
6000
INDEX R9
29
Minimum cri range
95
Maximum cri range
21
Chromaticity x
0.323
Chromaticity y
0.352
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-LEDDOWN-9W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
9.0
Luminosity (LM)
900
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Epistar Led
Measures (mm)
Ø134x61
Roof cut (mm)
Ø108
High
61.0
Diameter
134
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC24-48V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.3
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Energy consumption (kWh/1000h)
9.0
Weight (gr)
365
Flicker
0.98
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Single Value
Single CCT
6000
INDEX R9
29
Minimum cri range
95
Maximum cri range
21
Chromaticity x
0.323
Chromaticity y
0.352
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The Downlight Spotlight is designed for general lighting applications, both commercial and domestic. It provides an intense light with a multitude of possibilities, ideal for replacing traditional halogen lights, reaching to savings of up to 90% and to conventional low-consumption downlights, reaching savings of up to 60%, thus achieving high energy efficiency.

Includes high-quality aluminum heatsink and clamps for perfect fixing to the ceiling.PVery versatile product that will allow us to direct its 60° beam of light 360° towards specific points depending on the needs of the moment, providing significant savings in consumption electric.

All the characteristics of this LED lighting product make it present a good performance. Ideal for use in interior spaces where the use of a large amount of light is not necessary. It is used above all in transit areas such as halls, corridors or stairs.
