LED Floodlight 300W 42,000Lm 5000ºK IP66 Cree Driver Meanwell HLG 50,000H [FL-JL07-300W-CW]

LED Floodlight 300W 42,000Lm 5000ºK IP66 Cree Driver Meanwell HLG 50,000H [FL-JL07-300W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Philips Led
  • SkuFL-JL07-300W-CW
  • AAA 2021
Eprel file
Warranty
  • Warranty 5 years
  • Tüv Süd TUV SUD
  • 120 º Opening
684,13€
684,13€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 5 years
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(FL-JL07-300W-CW_padreImg_fl_jl07_300w_cw_0.jpeg)
Cool White
There are few
Free shipping
684,13€
684,13€ Infinity%

Accessories

  • (TB-DIM-0-10V-MD_padreImg_tb_dim_0_10v_md_0.jpeg) (TB-DIM-0-10V-MD_padreImg_tb_dim_0_10v_md_1.jpeg)

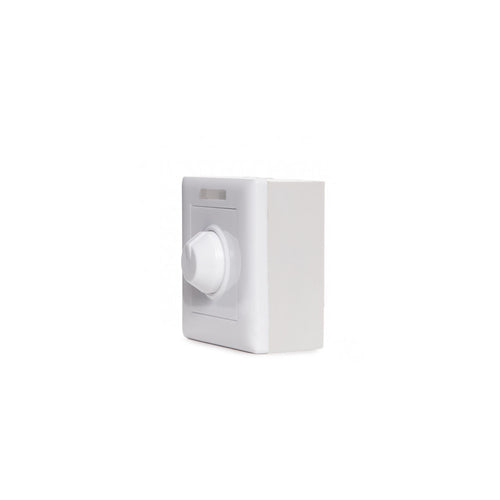

    Dimmer/Remote Control Distancia 0-10V 10A 800W

    GreenIce

    Dimmer/Remote Control Distancia 0-10V 10A 800W

    21,08€
    21,08€ Infinity%

Technical file

Product code
FL-JL07-300W-CW
Light temperature
Cold white
Kelvin º
5000
Power (W)
300.0
Luminosity (LM)
42000
Luminous efficacy (LM/W)
140
LED efficacy
154
Type of LEDs
Cree Led
Measures (mm)
768x208x92
High
768.0
Long
208.0
Broad
92.0
CRI
80
Diffuser
Milky
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP66
IK Protection Index
IK07
Strain
AC85 - 265V50
Estimated life (H)
50000
Dimable
Yes
Equivalence (W)
1280
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-40+65
Lighting cycles
100000
Energy consumption (kWh/1000h)
300.0
Weight (gr)
11600
Flicker
0.46
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
5000
INDEX R9
1
Minimum cri range
90
Maximum cri range
10
Chromaticity x
0.313
Chromaticity y
0.324
Applicable standards
EN 55015:2013; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 61547:2009; EN 60598-1:2015; EN 60598-2-5:2015; EN 62031:2008:2015; EN 62471:2008; EN 62493:2015; IEC 62321:2008; IEC 62321:2013; IEC 62321:2015

Characteristics

Product code
FL-JL07-300W-CW
Light temperature
Cold white
Kelvin º
5000
Power (W)
300.0
Luminosity (LM)
42000
Luminous efficacy (LM/W)
140
LED efficacy
154
Type of LEDs
Cree Led
Measures (mm)
768x208x92
High
768.0
Long
208.0
Broad
92.0
CRI
80
Diffuser
Milky
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP66
IK Protection Index
IK07
Strain
AC85 - 265V50
Estimated life (H)
50000
Dimable
Yes
Equivalence (W)
1280
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-40+65
Lighting cycles
100000
Energy consumption (kWh/1000h)
300.0
Weight (gr)
11600
Flicker
0.46
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
5000
INDEX R9
1
Minimum cri range
90
Maximum cri range
10
Chromaticity x
0.313
Chromaticity y
0.324
Applicable standards
EN 55015:2013; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 61547:2009; EN 60598-1:2015; EN 60598-2-5:2015; EN 62031:2008:2015; EN 62471:2008; EN 62493:2015; IEC 62321:2008; IEC 62321:2013; IEC 62321:2015

Description

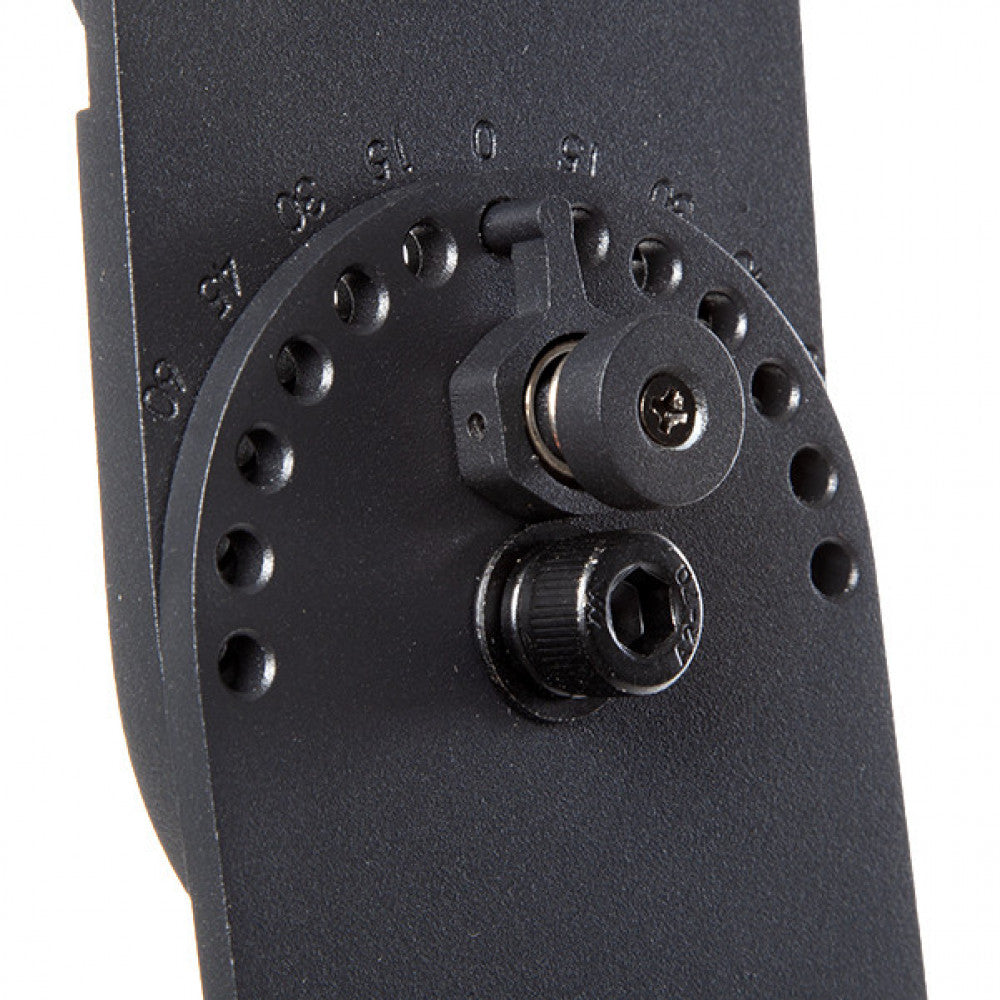

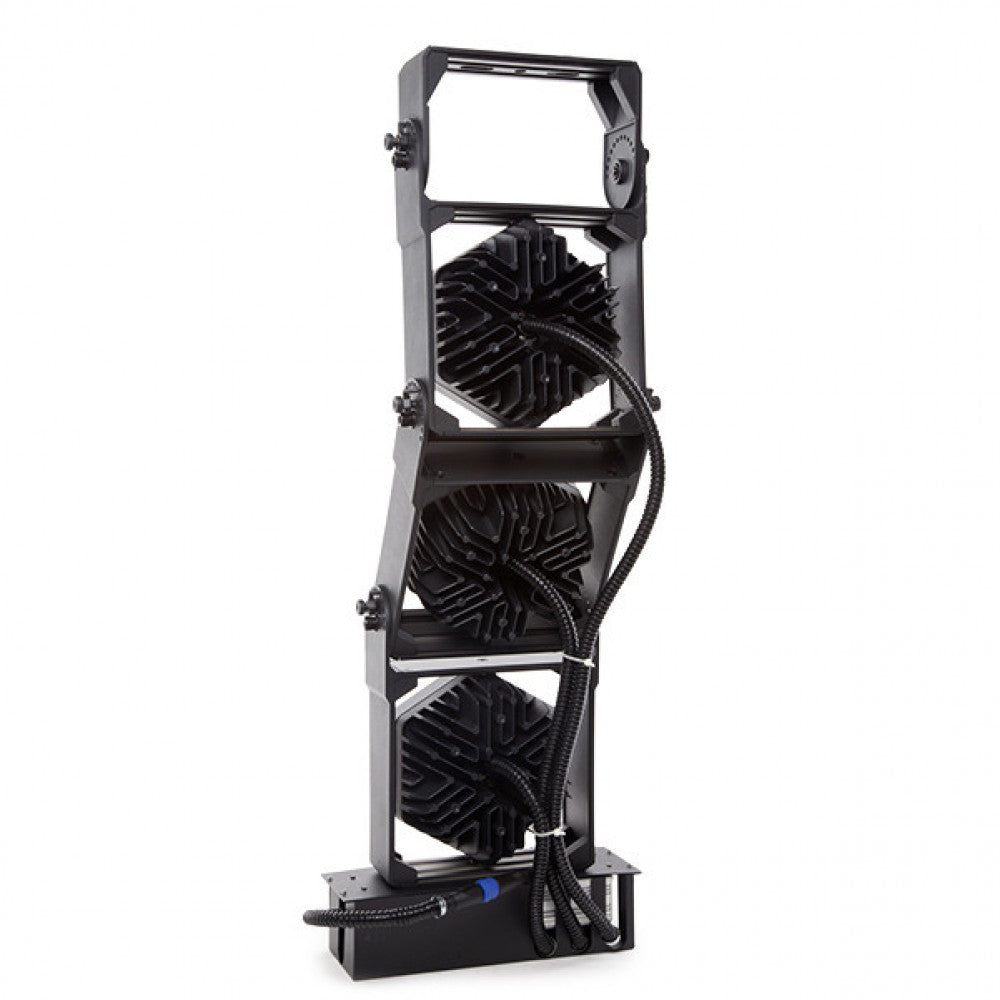

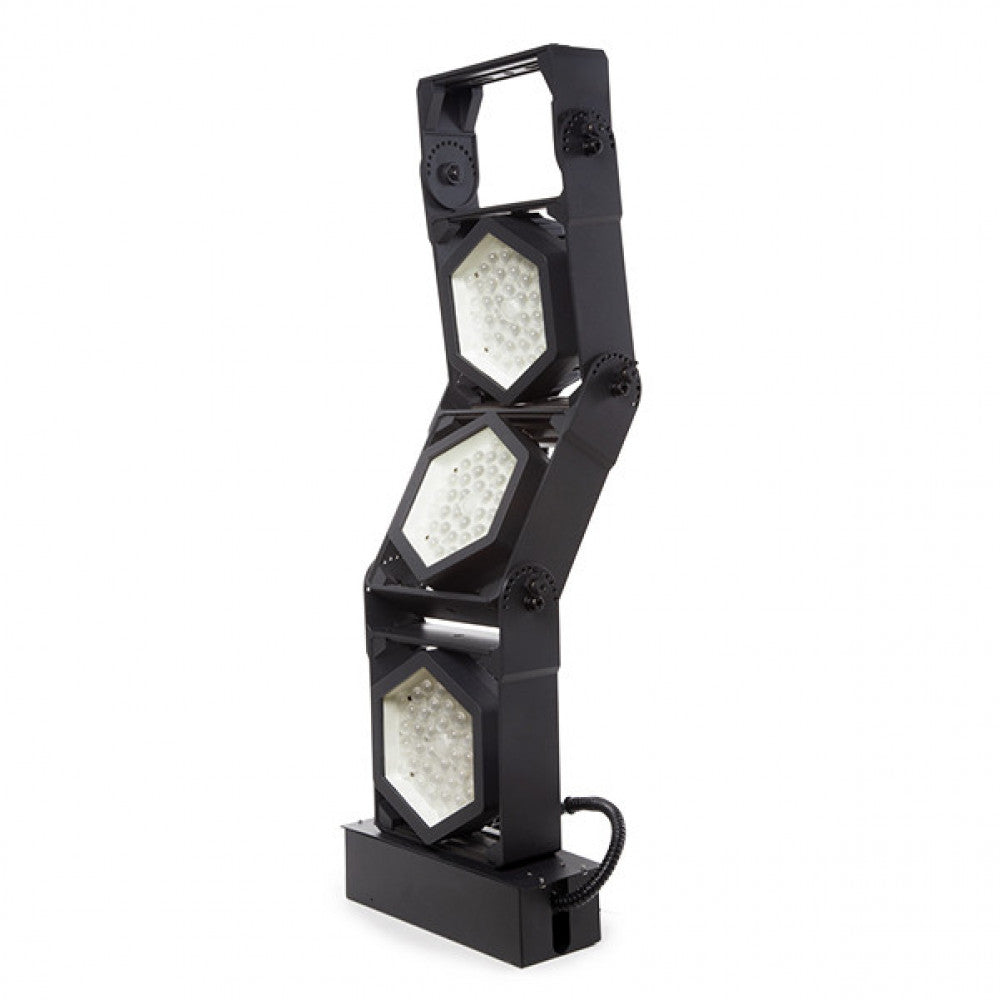

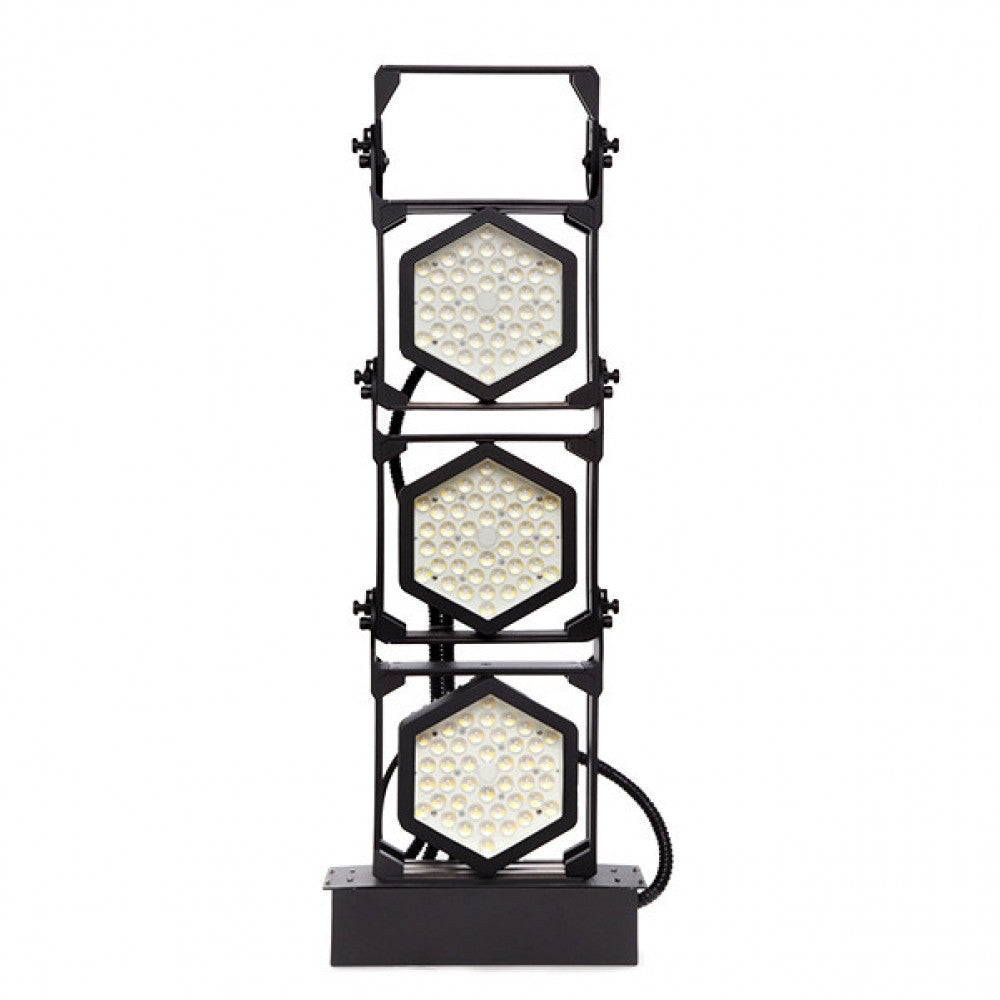

The IP66 300W 145Lm/W Cree 3030 60º Driver Meanwell HLG LED Spotlight is a compact and very powerful solution for lighting all types of spaces. Arm adjustable in any direction.

It is powered by a Meanwell HLG type AB power supply, allowing the light to be regulated with 0-10Vdc regulators and with 10V both with PWM as with resistance or potentiometer. It operates in a voltage range of 85 to 265V in alternating current, working with a high power factor (0.99), this series has an efficiency of 93.5%, with a fanless design, which can operate in a housing temperature range of -40 to 65 degrees Celsius, all within a metal housing with an IP66 protection rating.

High performance and maximum energy efficiency with a directional focus of 55-60 meters of range of bright and bright light. Injection aluminum finish. Maximum heat dissipation.

This type of high-power LED lighting is used in high-rise installations, such as soccer fields, stone quarries or shipyards. It also sees use in lighting facades of buildings or monuments.
