LED High Power 3W 220Lm 6000ºK 45X45 50.000H [CH-LED-3W-45MIL-CW]

LED High Power 3W 220Lm 6000ºK 45X45 50.000H [CH-LED-3W-45MIL-CW]

For additional amounts the delivery period is 30 days As of the order date
  • Brand:GreenIce
  • SkuCH-LED-3W-45MIL-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
0,76€
0,76€ Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(CH-LED-3W-45MIL-CW_padreImg_ch_led_3w_45mil_cw_0.jpeg)
Cool White
Stock available
Free shipping
0,76€
0,76€ Infinity%

Accessories

  • (CH-DRIVER112_padreImg_ch_driver112_0.jpeg) (CH-DRIVER112_padreImg_ch_driver112_1.jpeg)

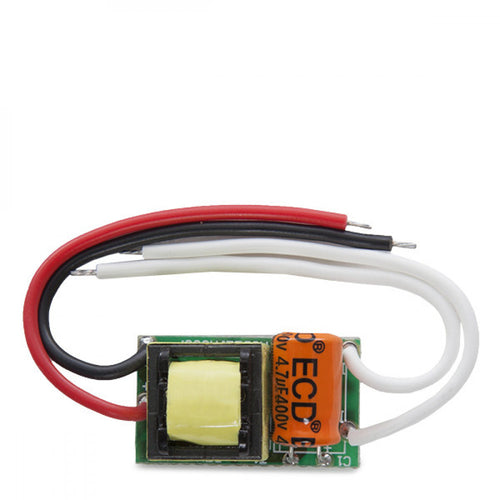

    LED Driver Integrated 4-5W 12-16V 280-300Ma

    GreenIce

    LED Driver Integrated 4-5W 12-16V 280-300Ma

    2,84€
    2,84€ Infinity%
  • (CH-DRIVER111_padreImg_ch_driver111_0.jpeg) (CH-DRIVER111_padreImg_ch_driver111_1.jpeg)

    LED Driver Integrated 2-3W 3,3-10,5V 280-300Ma

    GreenIce

    LED Driver Integrated 2-3W 3,3-10,5V 280-300Ma

    2,67€
    2,67€ Infinity%
  • (CH-DRIVER117_padreImg_ch_driver117_0.jpeg) (CH-DRIVER117_padreImg_ch_driver117_1.jpeg)

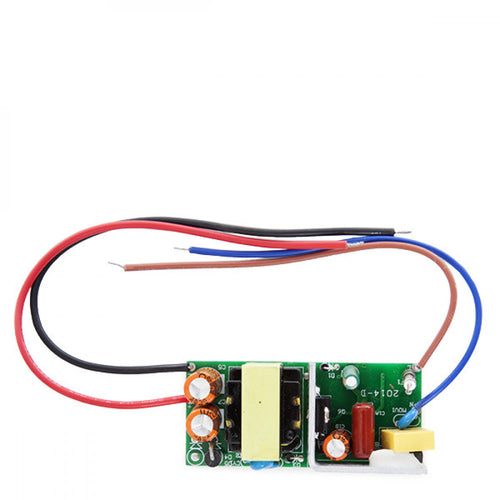

    LED Driver Integrated 25-36W 75-130V 280-300Ma

    GreenIce

    LED Driver Integrated 25-36W 75-130V 280-300Ma

    14,02€
    14,02€ Infinity%
  • (CH-DRIVER114_padreImg_ch_driver114_0.jpeg) (CH-DRIVER114_padreImg_ch_driver114_1.jpeg)

    LED Driver Integrated 8-12W 24-36V 280-300Ma

    GreenIce

    LED Driver Integrated 8-12W 24-36V 280-300Ma

    3,09€
    3,09€ Infinity%
  • (CH-DRIVER113_padreImg_ch_driver113_0.jpeg) (CH-DRIVER113_padreImg_ch_driver113_1.jpeg)

    LED Driver Integrated 6-10W 18-32V 280-300Ma

    GreenIce

    LED Driver Integrated 6-10W 18-32V 280-300Ma

    5,16€
    5,16€ Infinity%

Technical file

Product code
CH-LED-3W-45MIL-CW
Luminous efficacy (LM/W)
73
Light temperature
Cold
Kelvin º
6000
Power (W)
3.0
Luminosity (LM)
220
Measures (mm)
7, 2x8
Long
7.0
Broad
8.0
Number and type of LEDs
COB
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
2.8-3.6V
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
3.0
Weight (gr)
10
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Characteristics

Product code
CH-LED-3W-45MIL-CW
Luminous efficacy (LM/W)
73
Light temperature
Cold
Kelvin º
6000
Power (W)
3.0
Luminosity (LM)
220
Measures (mm)
7, 2x8
Long
7.0
Broad
8.0
Number and type of LEDs
COB
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
2.8-3.6V
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
3.0
Weight (gr)
10
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Description

High Power LEDs are usually used for spot lighting with a light flow of light.

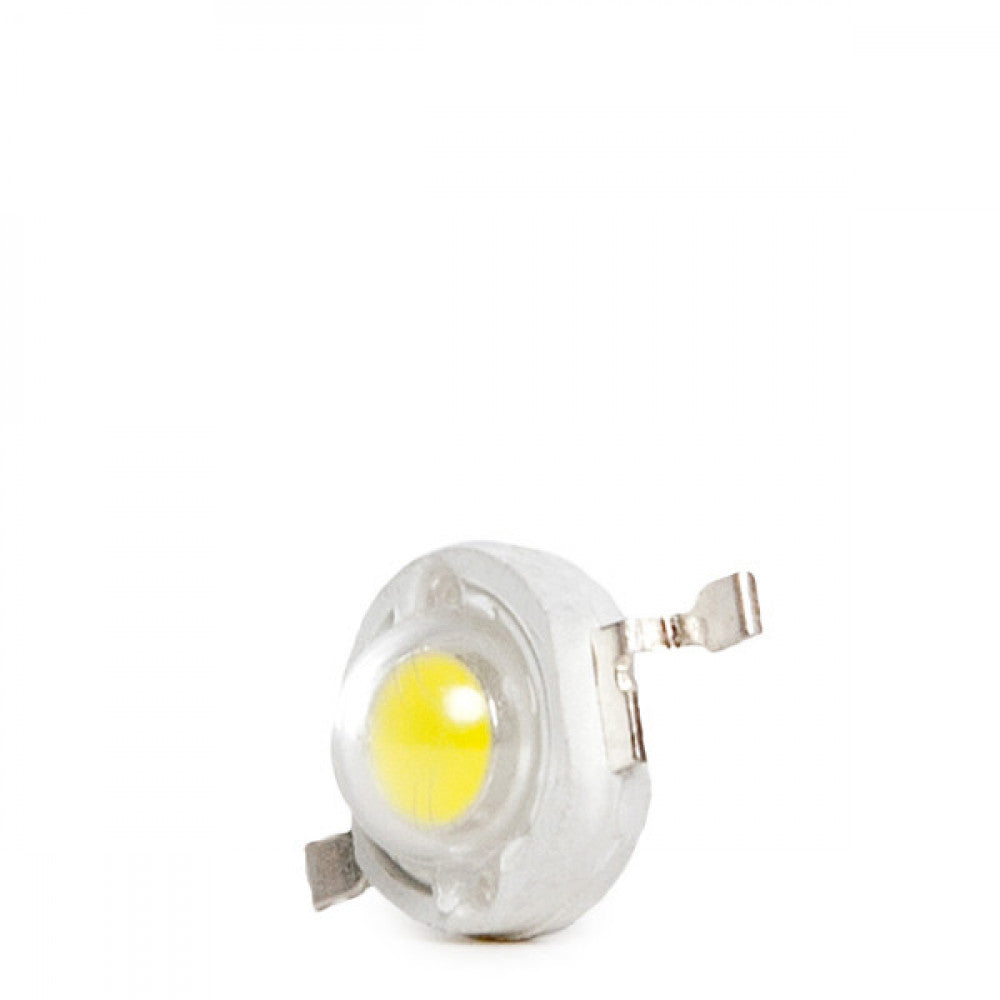

These LEDs are covered by a kind of silicone surrounded by a white plastic , supported by a metal base that acts as a pre-dissipating plate. Two metal arms emerge from the plastic structure from which the connection will be made. Due to their metal base, these must be mounted on another dissipating surface to avoid high temperatures .

The High Power LEDs have four connectors, 2 with positive polarity and 2 negative, from which it is possible to connect them by soldering them using a tin point.

Utilities:

  • Individual: LED power supply directly from the power supply through a regulated source or with the use of resistors or regulators. The desired voltage must be supplied to the LED within of the working values.
  • Parallel configuration la:power a group of LEDs by connecting all the anodes together and all the cathodes together,using the required voltage regulated by a single resistor in series.
  • Series configuration:power a group of sequentially connected LEDs . The number of LEDs to use per series will be limited by the voltage delivered by the power supply.
  • Polarization: the positive pole of the power supply must be connected to the anode (or to the beginning of the series) , while the negative pole must be connected to the cathode (or to the closure of the series).
