LED luminaire 15W 1,496Lm 6000ºK T5 120Cm 40,000H [GR-T5DG15W-CW]

LED luminaire 15W 1,496Lm 6000ºK T5 120Cm 40,000H [GR-T5DG15W-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuHO-T5DG15W-CW
Energy efficiency
  • A 2021
Eprel file
Warranty
  • Warranty 3 years

  • Eye Care Eye Care
  • 120 º Opening

Usual price 8,82€
Usual price Offer price 8,82€ Discount Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years

  • Eye Care Eye Care
  • 120 º Opening

Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HO-T5DG15W-CW_padreImg_ho_t5dg15w_cw_0.jpeg)
Cool White
Available
Free shipping
Usual price 8,82€
Usual price Offer price 8,82€ Discount Infinity%

Accessories

Technical file

Product code
HO-T5DG15W-CW
Luminous efficacy (LM/W)
99
Light temperature
Cold White
Kelvin º
6000
Power (W)
15.0
Luminosity (LM)
1496
Measures (mm)
1200Ø22
Long
1200.0
Diameter
Ø22
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
100
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.3
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T5
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
15.0
Weight (gr)
250
Flicker
0.97
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
2
Chromaticity x
0.378
Chromaticity y
0.378
Driver output
DC24V-80V 240MA
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Drop -down content

Characteristics

Product code
HO-T5DG15W-CW
Luminous efficacy (LM/W)
99
Light temperature
Cold White
Kelvin º
6000
Power (W)
15.0
Luminosity (LM)
1496
Measures (mm)
1200Ø22
Long
1200.0
Diameter
Ø22
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
100
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.3
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T5
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
15.0
Weight (gr)
250
Flicker
0.97
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
24
Minimum cri range
95
Maximum cri range
2
Chromaticity x
0.378
Chromaticity y
0.378
Driver output
DC24V-80V 240MA
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The T5 120Cm T8 LED strip, to be installed on the ceiling or wall, offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to the outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz, by means of a connector cable that can be plugged into either of the two ends of the strip.< /p>

It has a high efficacy (100 Lm/W) consuming 15W through 72 SMD2835 type LEDs, managing to provide a luminous flux of 1496Lm uniformly distributed through an opal plastic diffuser from which an index color rendering of 80. Its consumption represents a value of 15kWh/1000h, reducing the amount of energy invoiced and the emissions of polluting gases into the atmosphere. This strip contains a driver located internally. White finish in the part where the opal plastic diffuser is located and the other part a heat sink made of gray aluminum.

The strip has a degree of protection IP25 (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

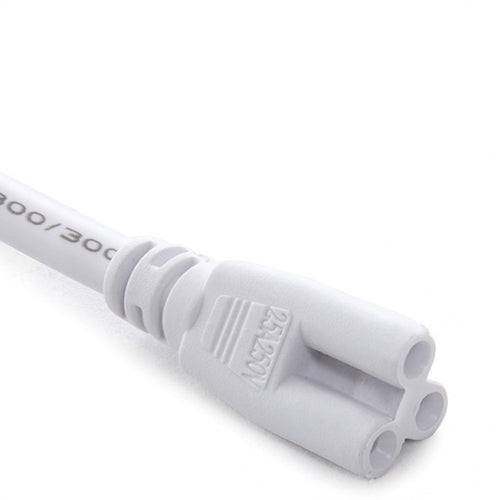

It offers very homogeneous lighting thanks to the 120º opening angle of the light beam. The opal finish of the luminaire reduces glare. It has an aluminum housing and a PC (polycarbonate) cover, materials resistant to water, dust and corrosion. It has a connector cable to power the strip. Its driver is integrated inside the strip.

Ideal for replacing traditional strips and mounting in a wide variety of facilities such as factories, warehouses, car parks, tunnels, etc. .

This strip is available in natural white (4200°K), cool white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
